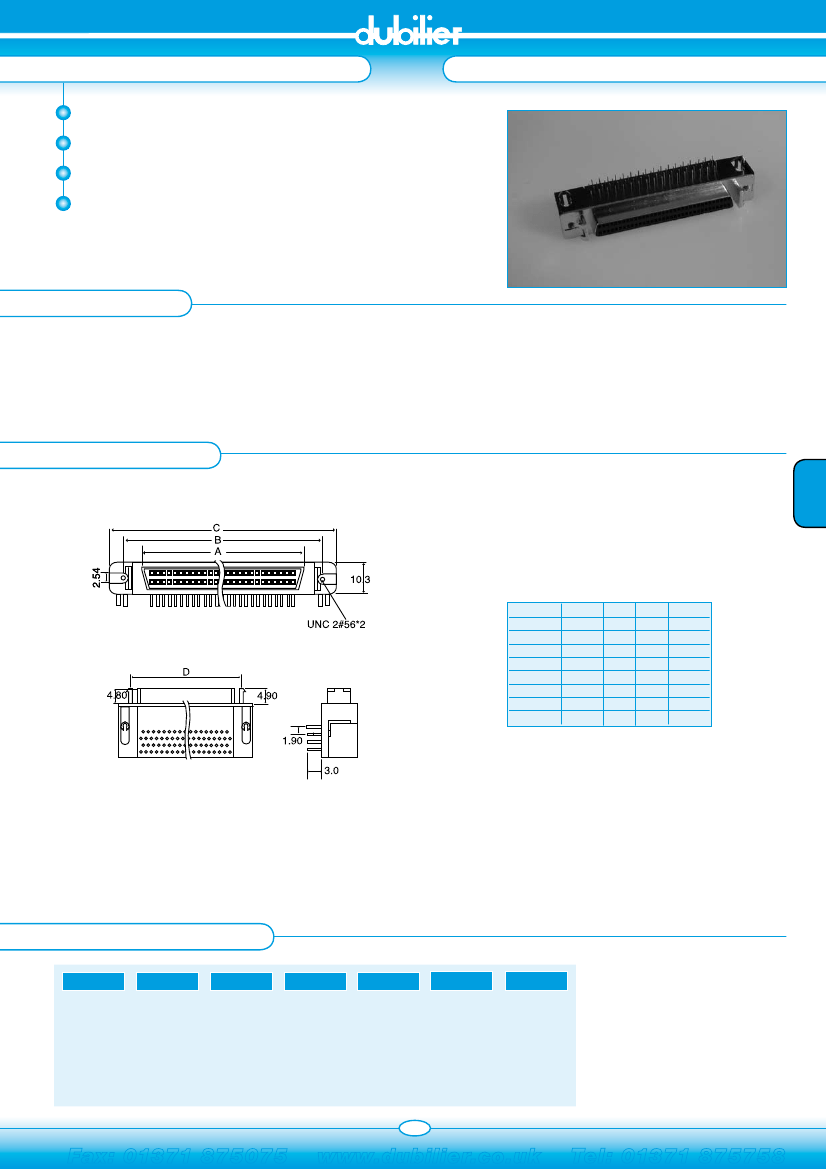

D TYPE SCSI II
20, 26, 28, 40, 50, 68, 80, or 100 ways available
Low Cost
Selective Gold Plated Contacts
1.27 Pitch
PCB SOLDER PIN RIGHT ANGLE
SPECIFICATION
Material
Insulator:
Pin Contacts:
Shell:
PBT & Glass fill reinforced UL94V-0
Phosphor Bronze
Gold Plated over nickel
Zinc Alloy
Nickel over copper plated
Electrical Data
Rated Current:
Insulation Resistance:
Contact Resistance:
Dielectric withstanding Voltage:
Operating Temperature:
1 Amp
3000 mΩ min at 500v DC
30mΩ Max
500vac/1min
-55˚C-+105˚C
OUTLINE DRAWING
SECTION 11
POSITION A B C D
20F
15.25 27.45 33.60 21.05
26F
19.06 31.26 37.41 24.86
28F
20.33 32.53 38.68 26.13
40F
27.95 40.15 46.30 33.75
50F
34.30 46.50 52.65 40.10
68F
45.73 57.93 64.80 51.53
80F
53.35 65.55 71.70 59.15
100F
66.05 78.25 84.40 71.85
ORDERING INFORMATION
DBC
Dubilier
Connectors
SC
Series
SC = SCSI -II
D sub
F
Contact Type
F = Female
SR
Contact Style
SR = Solder Right
Angle
26
No of Ways
S
Contact Plating
Shell Option
20 = 20ways S = Selective Plating Blank = Metal
26 = 26ways
Shell
28 = 28ways
P = Plastic
40 = 40ways
50 = 50ways
68 = 68ways
80 = 80ways
100 = 100ways
263
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
