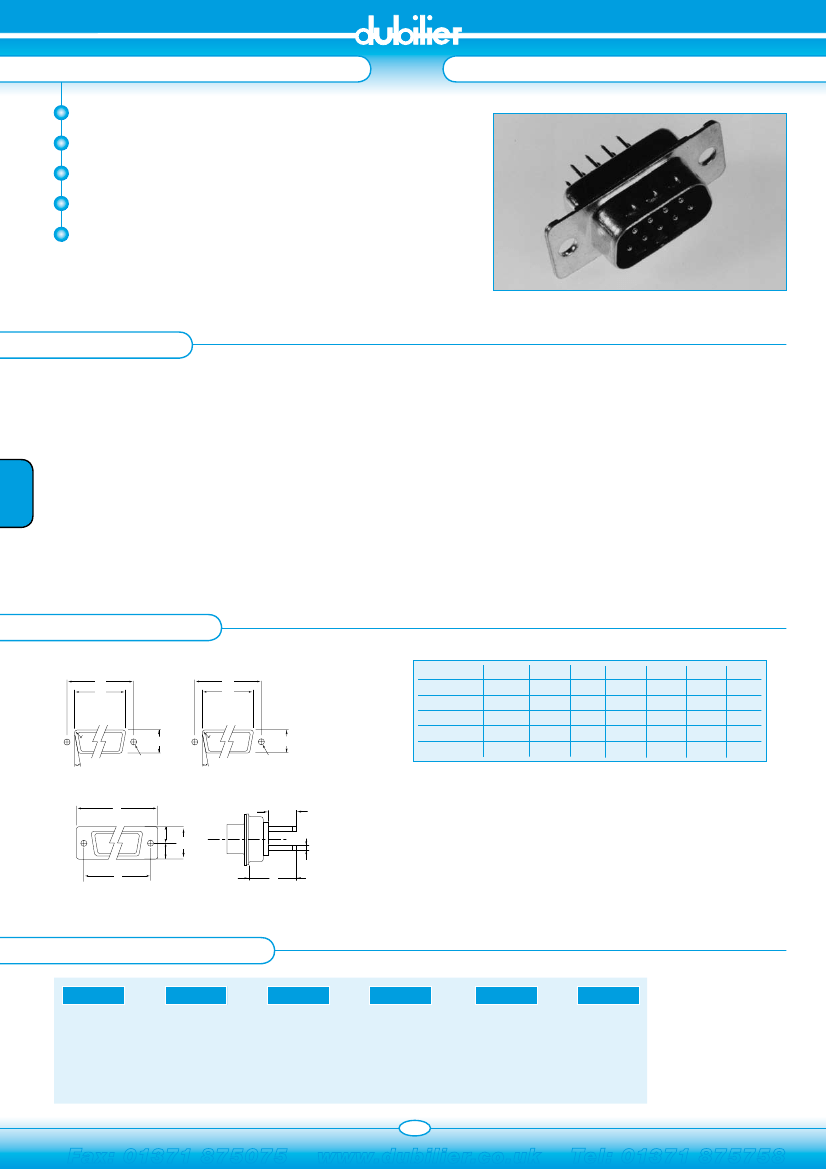

D TYPE CONNECTORS - TURNED PIN
9, 15, 25, 37 or 50 way
Turned Pin (Machined) Contact
Gold Plated Contacts
Yellow Zinc Metal or Tin Housings available
Current Rating - 5Amps
PCB STRAIGHT PIN
SPECIFICATION
Mechanical:
Termination:
Polarisation:
Coupling:
Withdrawal force:
Material and Finishes:
Insulators:
Contacts:
Insertion Cycles:
Hand Solder
Dip Solder straight
Dip Solder 90°C
Wire Wrap 0.6 x 0.6mm
by trapezoidal shell
by friction, locking by special accessories
ca. 0.5 N per contact
Shell steel with yellow passivation over
zinc plate (standard),
steel nickel plated and tinned
Two part mouldings, polyester,
glass fibre re-enforced,
flame retarded according UL 94 V0
gold plated over nickel
500
Electrical:
Creeping Current Stability:
Working Current:
Working Voltages:
Test Voltage:
Contact Resistance:
Insulation Resistance:
Temperature Range:
KB 220 according to DIN 53480
5A per contact with 20AWG cable
300V rms
1000V rms
below 5 x 10 -
3
Ω
over 10MΩ
- 55°C to 125°C
SECTION 11
G
3.2ø
"
"
OUTLINE DRAWING
PANEL CUT OUT
B
F
B
D
A
9 WAY
15 WAY
25 WAY
37 WAY
50 WAY
Dimension - mm
0.6
B
25.0
33.3
47.0
63.5
61.1
C
12.4
12.4
12.4
12.4
15.4
D
22.2
30.5
44.3
60.7
58.3
E
13.0
13.0
13.0
13.0
13.0
F
20.5
28.8
42.5
59.1
56.3
G
11.4
11.4
11.4
11.4
14.1
2.5
10ϒ
B
D
G
3.2ø
10ϒ
2.5
E
3.2ø
4.5
30.8
39.2
53.1
69.5
67
SOCKET
2.5
PLUG
A
E
3.2ø
"
"
B
C
4
1
6
10
4.5
10ϒ
PLUG
10
0.6
STRAIGHT pins for to PCB
A
C
SHELL DIMENSIONS
STRAIGHT pins for to PCB
B
4
6
ENSIONS
ORDERING
1
INFORMATION
DBC
Dubilier
Connectors
TD
Series
TD = Turn Pin D
M1
Connector Type
M1=Male(plug) zinc
F 1= Female(socket) zinc
M2 = Male (plug) Tin
F2 = Female (socket) Tin
SS
Contact Style
SS = Solder Straight
09
Nº of Ways
09 = 9ways
15 = 15ways
25 = 25ways
37 = 37ways
50 = 50ways
3
266
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
