Ordering number : EN5441
2SJ455
SANYO Semiconductors
DATA SHEET
2SJ455
Features
•
•
•
P-Channel Silicon MOSFET
General-Purpose Switching Device
Applications
Low ON-state resistance.
High-speed switching.
Surface mount type device making the following possible.
•
Reduction in the number of manufacturing processes for 2SJ455-applied equipment.
•
High density surface mount applications.
•
Small size of 2SJ455-applied equipment.
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current (DC)
Drain Current (Pulse)
Allowable Power Dissipation
Channel Temperature
Storage Temperature
Symbol
VDSS
VGSS
ID
IDP
PD
Tch
Tstg
PW≤10μs, duty cycle≤1%
Tc=25°C
Conditions
Ratings
--250
±30
-
-7
-
-28
45
150
--55 to +150
Unit
V
V
A
A
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Drain-to-Source Breakdown Voltage
Gate-to-Source Breakdown Voltage
Zero-Gate Voltage Drain Current
Gate-to-Source Leakage Current
Cutoff Voltage
Symbol
V(BR)DSS
V(BR)GSS
IDSS
IGSS
VGS(off)
Conditions
-1mA,
VGS=0V
ID=-
IG=±100μA, VDS=0V
VDS=--250V, VGS=0V
VGS=±25V, VDS=0V
-10V,
ID=-
-1mA
VDS=-
--2.0
Ratings
min
-
-250
±30
--1.0
±10
-
-3.0
typ
max
Unit
V
V
mA
μA
V
Continued on next page.
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not
be intended for use for any "special application" (medical equipment whose purpose is to sustain life,
aerospace instrument, nuclear control device, burning appliances, transportation machine, traffic signal
system, safety equipment etc.) that shall require extremely high level of reliability and can directly threaten
human lives in case of failure or malfunction of the product or may cause harm to human bodies, nor shall they
grant any guarantee thereof. If you should intend to use our products for applications outside the standard
applications of our customer who is considering such use and/or outside the scope of our intended standard
applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the
intended use, our customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are
not guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer' s products or equipment. To verify symptoms and states that cannot be evaluated in an
independent device, the customer should always evaluate and test devices mounted in the customer' s
products or equipment.
www.semiconductor-sanyo.com/network
22410QA TK IM TA-2539 No. 5441-1/3
2SJ455
Continued from preceding page.
Parameter
Forward Transfer Admittance
Static Drain-to-Source On-State Resistance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-ON Delay Time
Rise Time
Turn-OFF Delay Time
Fall Time
Diode Forward Voltage
Diode Reverse Recovery Time
Symbol
|
yfs
|
RDS(on)
Ciss
Coss
Crss
td(on)
tr
td(off)
tf
VSD
trr
Conditions
-10V,
ID=-
-4A
VDS=-
-4A,
VGS=-
-10V
ID=-
VDS=--20V, f=1MHz
VDS=--20V, f=1MHz
VDS=--20V, f=1MHz
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
IS=--7A, VGS=0V
IS=--7A, di / dt=100A /
μs
Ratings
min
3.6
typ
6.0
0.6
1290
330
155
22
90
300
95
--1.0
160
--1.5
0.85
max
Unit
S
Ω
pF
pF
pF
ns
ns
ns
ns
V
ns

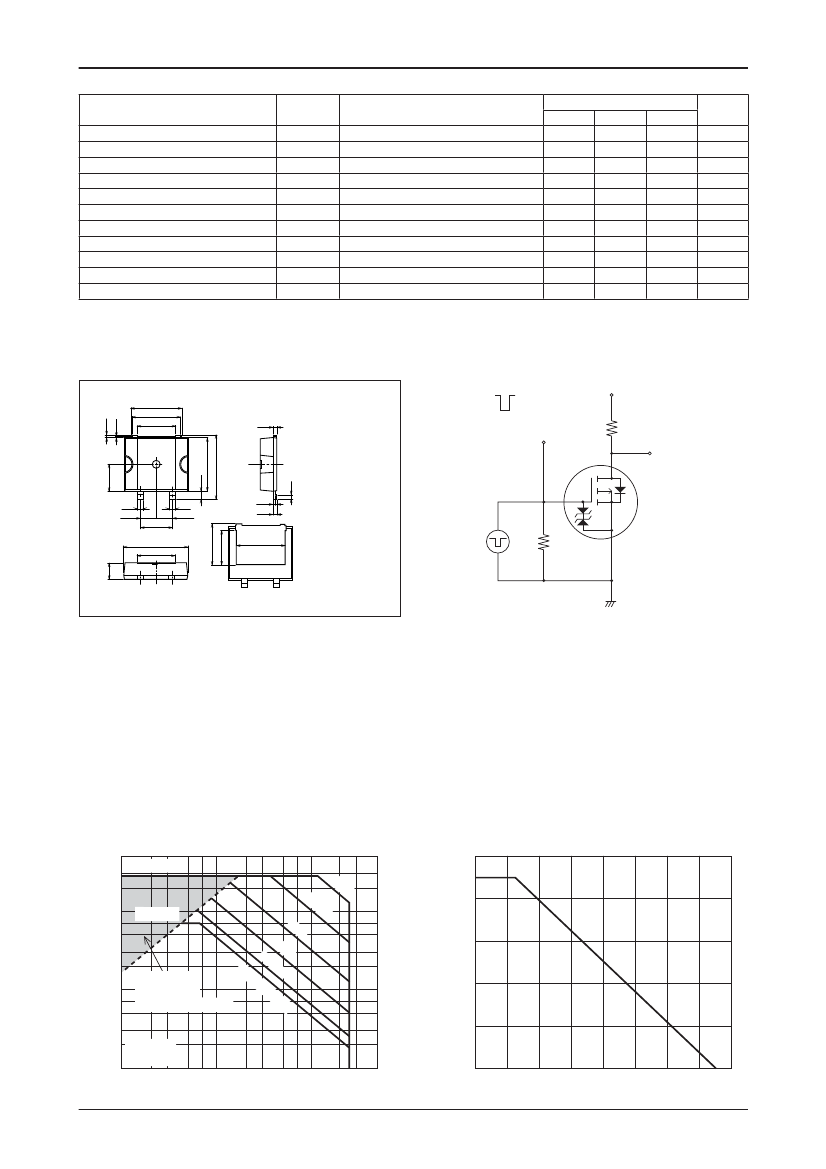

Package Dimensions
unit : mm (typ)
7002-001
Switching Time Test Circuit
8.2
7.8
6.2
3
8.4
10.0
0V
--10V
0.6
VIN
VDD= --100V
VIN
PW=10μs
D.C.
≤1%
G
D
ID= --4.0A
RL=25.0Ω
VOUT
4.2
0.4
0.2
1.2
1.0
2.54
1
2
1.0
2.54
6.2
5.2
0.3
0.6
7.8
5.08
10.0
6.0
2.5
0.7
1 : Gate
2 : Source
3 : Drain
SANYO : ZP
2SJ455
P.G
50Ω
S
5
3
2
ASO
Allowable Power Dissipation, PD -- W
IDP= --28A
50
PD -- Tc
10
10
ID= --7A
10
μ
s
45
40
Drain Current, ID -- A
--10
7
5
3
2
--1.0
7
5
3
2
0
μ
s
1m
10
0m
s
s
ms
30
Operation in
this area is
limited by RDS(on).
DC
op
er
ati
on
20
10
--0.1
--1.0
Tc=25°C
Single pulse
2
3
5
7 --10
2
3
5
7 --100
2
3
5
0
0
20
40
60
80
100
120
140
160
Drain-to-Source Voltage, VDS -- V
IT15289
Case Temperature, Tc --
°C
IT15290
No. 5441-2/3
2SJ455
Note on usage : Since the 2SJ455 is a MOSFET product, please avoid using this device in the vicinity
of highly charged objects.
SANYO Semiconductor Co.,Ltd. assumes no responsibility for equipment failures that result from using
products at values that exceed, even momentarily, rated values (such as maximum ratings, operating
condition ranges, or other parameters) listed in products specifications of any and all SANYO Semiconductor
Co.,Ltd. products described or contained herein.
SANYO Semiconductor Co.,Ltd. strives to supply high-quality high-reliability products, however, any and all
semiconductor products fail or malfunction with some probability. It is possible that these probabilistic failures
or malfunction could give rise to accidents or events that could endanger human lives, trouble that could give
rise to smoke or fire, or accidents that could cause damage to other property. When designing equipment,
adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but
are not limited to protective circuits and error prevention circuits for safe design, redundant design, and
structural design.
In the event that any or all SANYO Semiconductor Co.,Ltd. products described or contained herein are
controlled under any of applicable local export control laws and regulations, such products may require the
export license from the authorities concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system, or
otherwise, without the prior written consent of SANYO Semiconductor Co.,Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification" for the
SANYO Semiconductor Co.,Ltd. product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed
for volume production.
Upon using the technical information or products described herein, neither warranty nor license shall be
granted with regard to intellectual property rights or any other rights of SANYO Semiconductor Co.,Ltd. or any
third party. SANYO Semiconductor Co.,Ltd. shall not be liable for any claim or suits with regard to a third
party's intellectual property rights which has resulted from the use of the technical information and products
mentioned above.
This catalog provides information as of February, 2010. Specifications and information herein are subject
to change without notice.
PS No. 5441-3/3
