QFSS-052-01-H-D-PC8 datasheet, PDF

Datasheet> All Categories > The connector> The connector> QFSS-052-01-H-D-PC8

QFSS-052-01-H-D-PC8: DescriptionBoard Connector, 104 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size2MB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

QFSS-052-01-H-D-PC8 Overview

Board Connector, 104 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,

QFSS-052-01-H-D-PC8 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	104

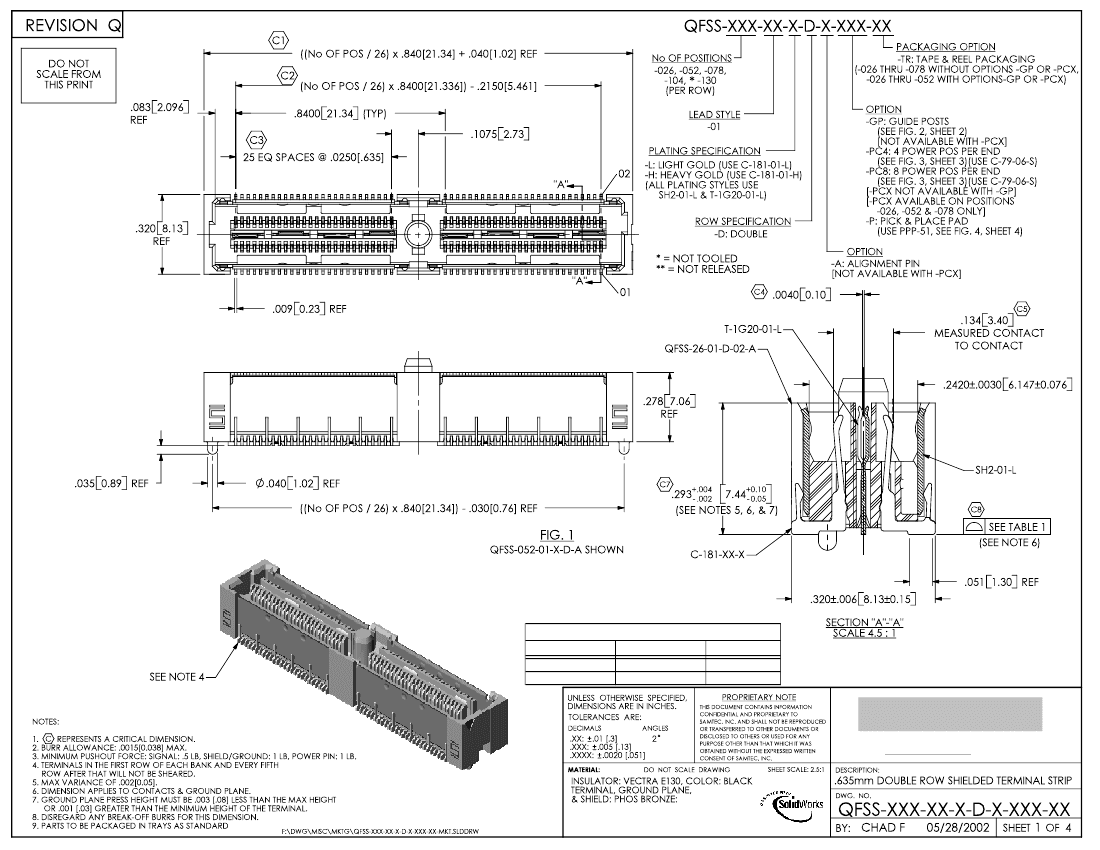

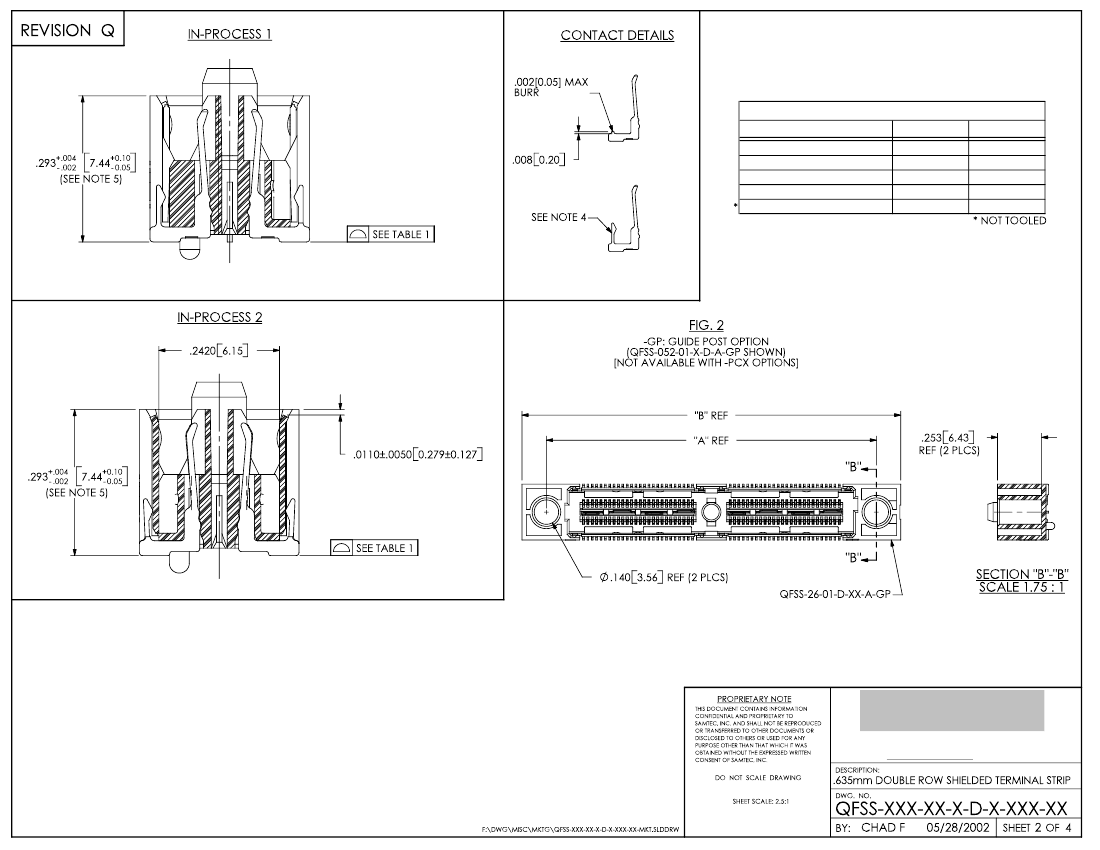

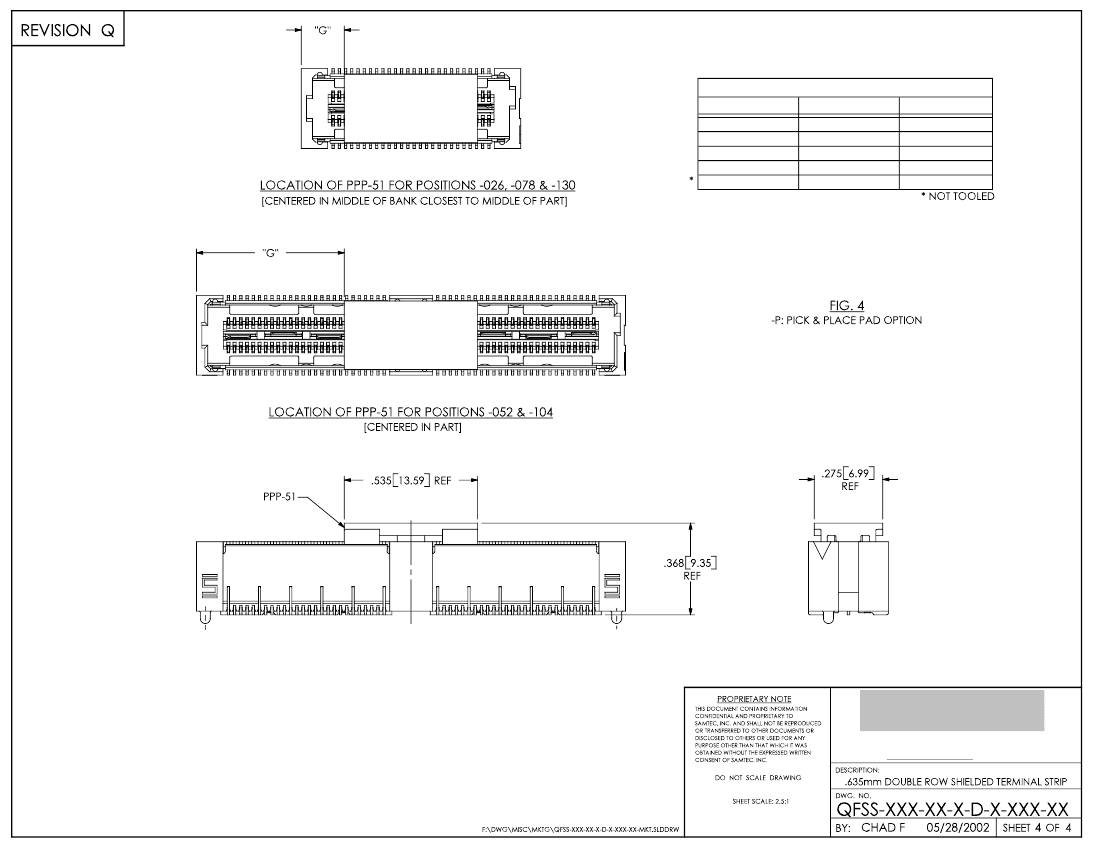

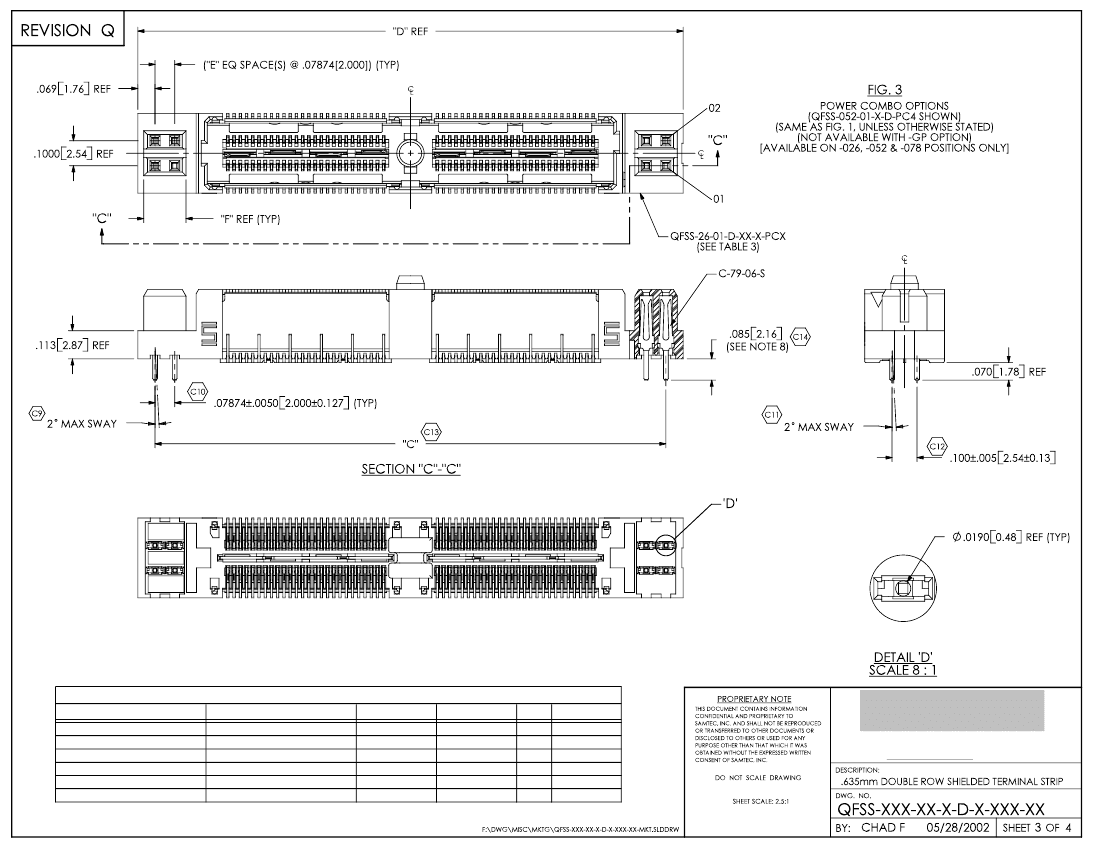

Preview

Download Datasheet

View All

TABLE 1

No OF POSITIONS

-026 THRU -078

-104 AND -130

No OF BANKS

1 THRU 3

4 AND 5

COPLANARITY

.004[.10]

.006[.15]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322

QFSS-052-01-H-D-PC8 Related Products

	QFSS-052-01-H-D-PC8	QFSS-026-01-H-D-PC8	QFSS-026-01-L-D-PC8	QFSS-052-01-L-D-PC8	QFSS-078-01-H-D-PC8	QFSS-078-01-L-D-PC8	QFSS-052-01-L-D-PC4
Description	Board Connector, 104 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 104 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 156 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 156 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,	Board Connector, 104 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	104	52	52	104	156	156	104
