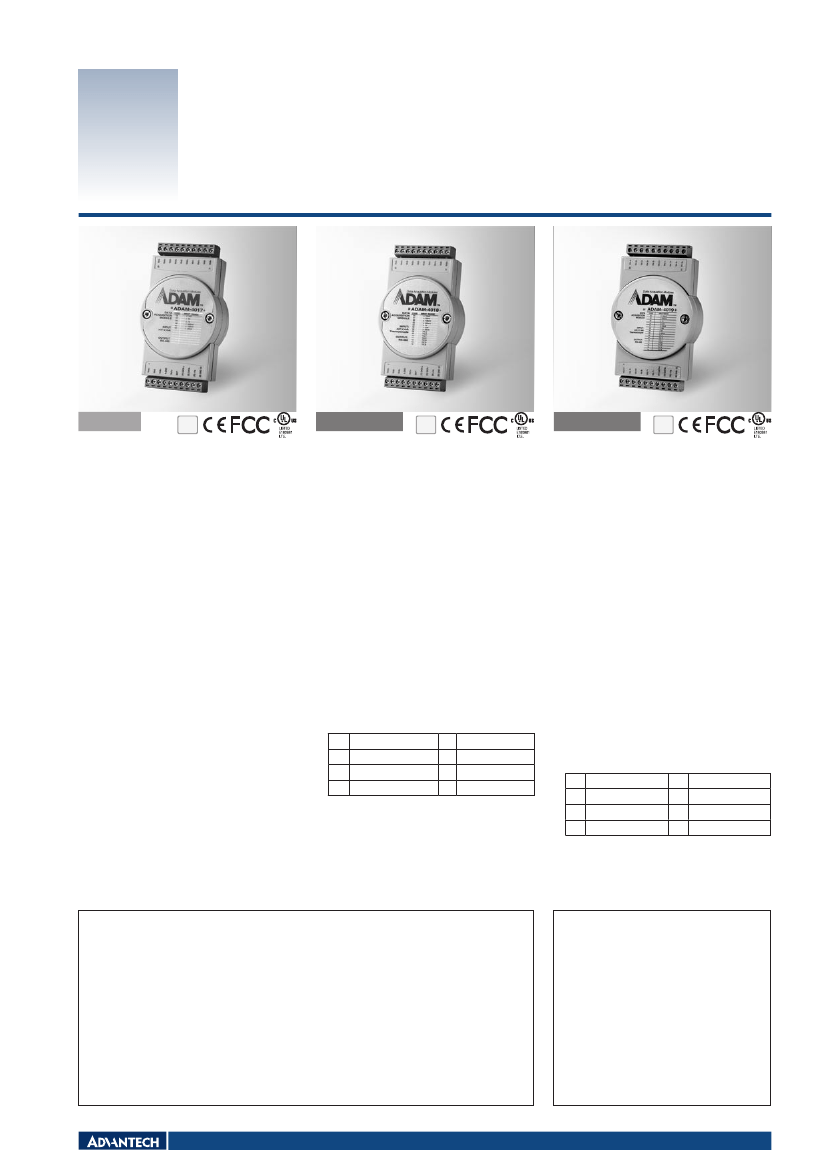

ADAM-4017+
ADAM-4018+
ADAM-4019+
8-ch Analog Input Module with
Modbus
8-ch Thermocouple Input Module
with Modbus
8-ch Universal Analog Input Module
with Modbus
ADAM-4017+
RoHS
2002/95/EC
COMPLIANT
ADAM-4018+
RoHS
2002/95/EC
COMPLIANT
ADAM-4019+
RoHS
2002/95/EC
COMPLIANT
Specifications
General
Power Consumption
1.2 W @ 24 V
DC
Watchdog Timer
System (1.6 second) &
Communication
Supported Protocols
ASCII command and
Modbus/RTU
Specifications
General
Power Consumption
0.8 W @ 24 V
DC
Watchdog Timer
System (1.6 second) &
Communication
Supported Protocols
ASCII command and
Modbus/RTU
Specifications
General
Power Consumption
1.0 W @ 24 V
DC
Watchdog Timer
System (1.6 second) &
Communication
Supported Protocols
ASCII command and
Modbus/RTU
Analog Input
Channels
8 differential
Channel Independent
Yes
Configuration
Input Impedance
Voltage: 20 MΩ
Current: 120
Ω
lnput Type
mV, V, mA
lnput Range
ADAM-4017+
±150 mV, ±500 mV, ±1 V,
±5 V, ±10 V, ±20 mA,
4 ~ 20 mA
Analog Input
Channels
8 differential
Channel Independent
Yes
Configuration
Input Impedance
Voltage: 20 MΩ
Current: 120
Ω
lnput Type
Thermocouple, mA
Voltage/Current
ADAM-4018+
Input Range
0 ~ 20 mA, 4 ~ 20 mA
T/C Types and Temperature Ranges
J
K
T
E
0 ~ 760° C
0 ~ 1,370° C
-100 ~ 400° C
0 ~ 1,000° C
R
S
B
500 ~ 1,750° C
500 ~ 1,750° C
500 ~ 1,800° C
Analog Input
Channels
8 differential channels for
individual input type
Channel Independent
Yes
Configuration
Voltage: 20 MΩ
Input Impedance
Current: 120
Ω
T/C, mV, V, mA
Input Type
Voltage/Current
±1 V, ±2.5 V, ±5 V,
Input Range
±10 V, ±100 mV,
±500 mV, ±20 mA,
4 ~ 20 mA
T/C Types and Temperature Ranges
J
K
T
E
0 ~ 760 °C
0 ~ 1370 °C
-100 ~ 400 °C
0 ~ 1,000 °C
R
S
B
500 ~ 1,750 °C
500 ~ 1,750 °C
500 ~ 1,800 °C
Burn-out Detection
All T/C
Burn-out Detection
4 ~ 20 mA & all T/C
Common Specifications
General
Power Input
Connectors
Unregulated 10 ~ 30 V
DC
2 x plug-in terminal block
(#14 ~ 22 AWG)
Voltage mode: ±0.1% or
better
Current mode: ±0.2% or
better
16-bit
10 sample/second (total)
3,000 V
DC
Overvoltage Protection
±35 V
DC
CMR @ 50/60 Hz
120 dB
NMR @ 50/60 Hz
100 dB
Span Drift
±25 ppm/° C
Zero Drift
±6 μV/° C
Built-in TVS/ESD Protection
Ordering Information
ADAM-4017+
ADAM-4018+
ADAM-4019+
8-ch Analog Input
Module with Modbus
8-ch Thermocouple
Input Module w/Modbus
8-ch Universal Analog
Input Module w/Modbus
Analog Input
Accuracy
Environment
Humidity
5 ~ 95% RH
Operating
-10 ~ 70° C
Temperature
(14 ~ 158° F)
Storage Temperature
-25 ~ 85°C
(-13 ~ 185° F)
Resolution
Sampling Rate
Isolation Voltage
RS-485 I/O Modules
