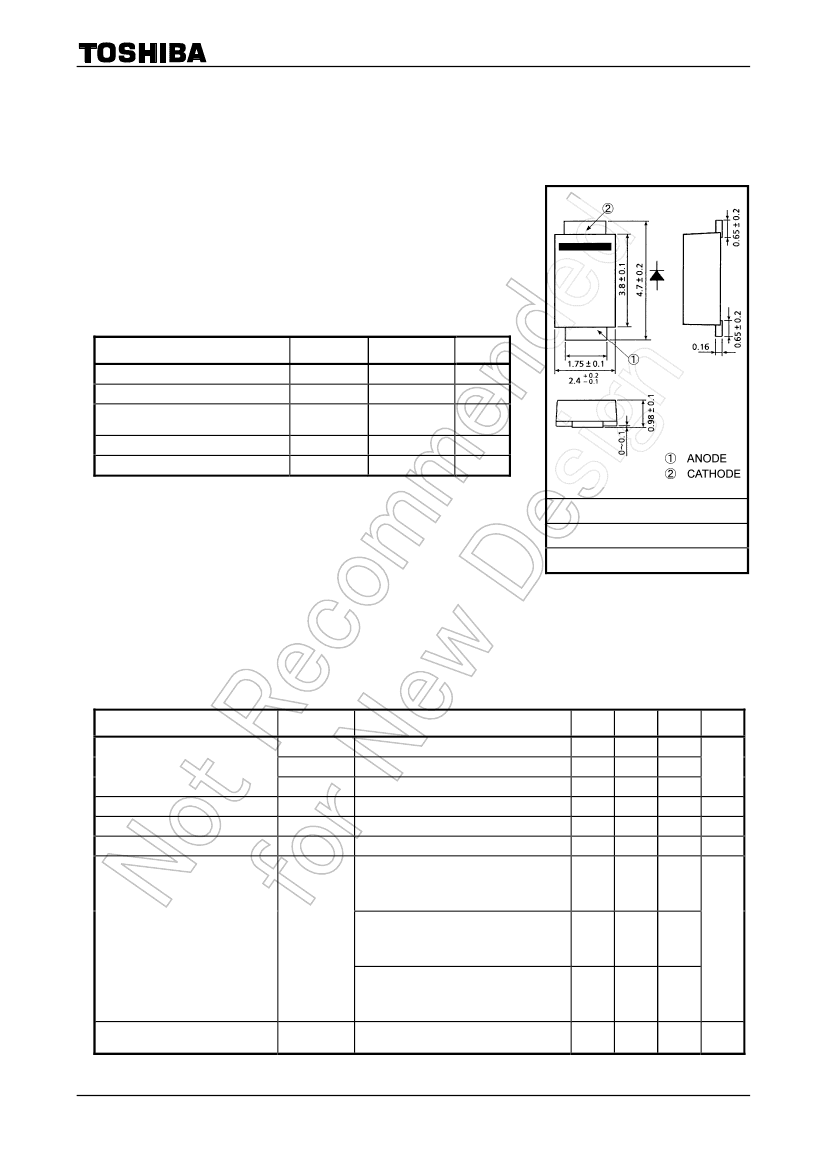

CMH02
TOSHIBA High Efficiency Rectifier Silicon Epitaxial Type
CMH02
Switching Mode Power Supply Applications
•
•
•
•
•
Repetitive peak reverse voltage: V
RRM
= 400 V
Average forward current: I
F (AV)
= 3.0 A
Low forward voltage: V
FM
=1.3 V (Max.)
Very fast reverse recovery time: trr =50ns (Max.)
Suitable for compact assembly due to small surface-mount package
“M−FLAT
TM
” (Toshiba package name)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Repetitive peak reverse voltage
Average forward current
Peak one cycle surge forward current
(non-repetitive)
Junction temperature
Storage temperature range
Symbol
V
RRM
I
F (AV)
I
FSM
T
j
T
stg
Rating
400
3.0 (Note 1)
40 (50 Hz)
−40~150
−40~150
Unit
V
A
A
°C
°C
Note 1: Tℓ＝87°C
Device mounted on a ceramic board
board size: 50 mm
×
50 mm
soldering land: 2 mm
×2
mm
board thickness:0.64t
JEDEC
JEITA
―
―
Note 2: Using continuously under heavy loads (e.g. the application of
TOSHIBA
3-4E1A
high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
Weight: 0.023 g (typ.)
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Symbol
V
FM (1)
Peak forward voltage
V
FM (2)
V
FM (3)
Peak repetitive reverse current
Reverse recovery time
Forward recovery time
I
RRM
t
rr
t
fr
Test Condition
I
FM
=
0.1 A (pulse test)
I
FM
=
1.0 A (pulse test)
I
FM
=
3.0 A (pulse test)
V
RRM
=
400 V (pulse test)
I
F
=
1 A, di/dt =
−30
A/μs
I
F
=
1.0 A
Device mounted on a ceramic board
(board size: 50 mm
×
50 mm)
(soldering land: 2 mm
×
2 mm)
(board thickness: 0.64 t)
Thermal resistance
(junction to ambient)
R
th (j-a)
Device mounted on a glass-epoxy board
(board size: 50 mm
×
50 mm)
(soldering land: 6 mm
×
6 mm)
(board thickness: 1.6 t)
Device mounted on a glass-epoxy board
(board size: 50 mm
×
50 mm)
(soldering land: 2.1 mm
×
1.4 mm)
(board thickness: 1.6 t)
Thermal resistance
(junction to lead)
R
th (j-ℓ)
⎯
Min
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ.
0.73
0.93
1.1
⎯
⎯
⎯
⎯
Max
⎯
⎯
1.3
10
50
100
60
μA
ns
ns
V
Unit
⎯
⎯
135
°C/W
⎯
⎯
210
⎯
⎯
16
°C/W
Start of commercial production
2002-12
1
2013-11-01
CMH02
Marking
Abbreviation code
H2
Part No.
CMH02

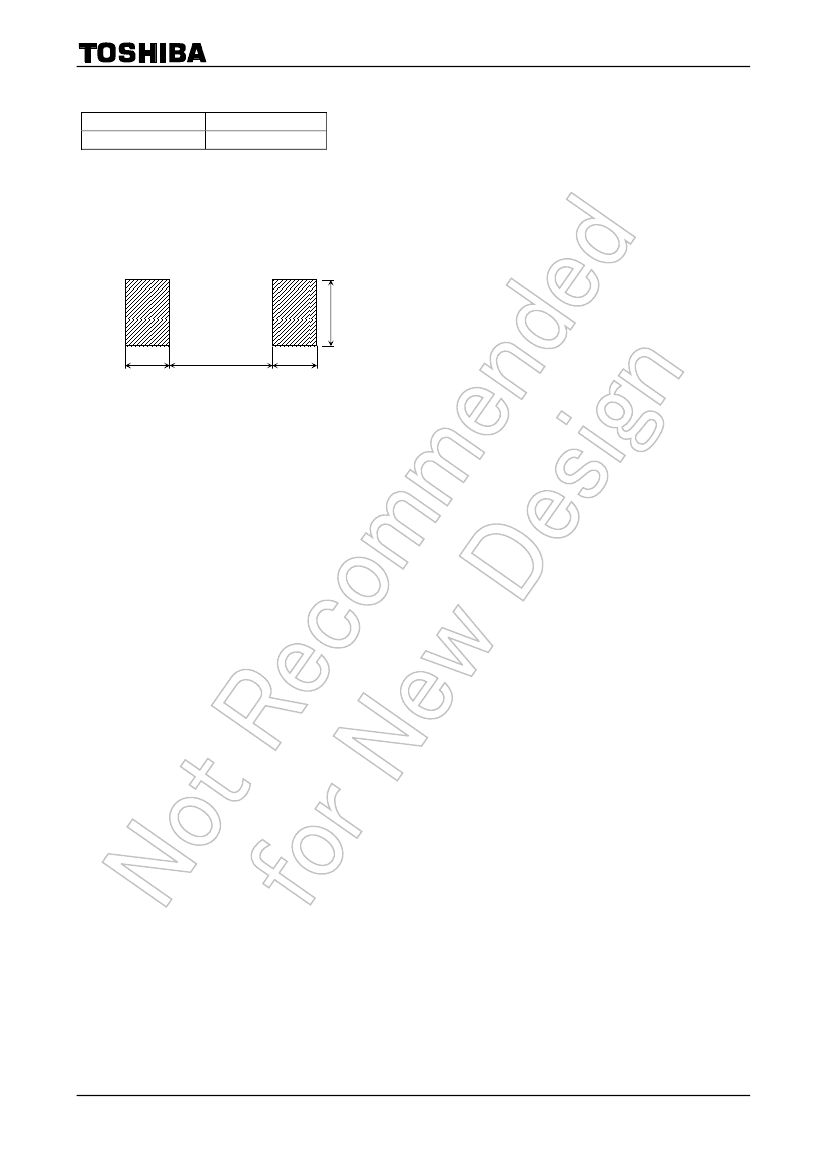

Standard Soldering Pad
Unit: mm
1.4
3.0
1.4
Handling Precaution
The absolute maximum ratings denote the absolute maximum ratings, which are rated values and must not be exceeded
during operation, even for an instant. The following are the general derating methods that we recommend when you
design a circuit with a device.
VRRM: We recommend that the worst case voltage, including surge voltage, be no greater than 80% of the absolute
maximum rating of VRRM for a DC circuit and be no greater than 50% of that of VRRM for an AC circuit.
VRRM has a temperature coefficient of 0.1%/℃. Take this temperature coefficient into account designing a device
at low temperature.
IF(AV): We recommend that the worst case current be no greater than 80% of the absolute maximum rating of IF(AV).
Carry out adequate heat design. If you can’t design a circuit with excellent heat radiation, set the margin by using

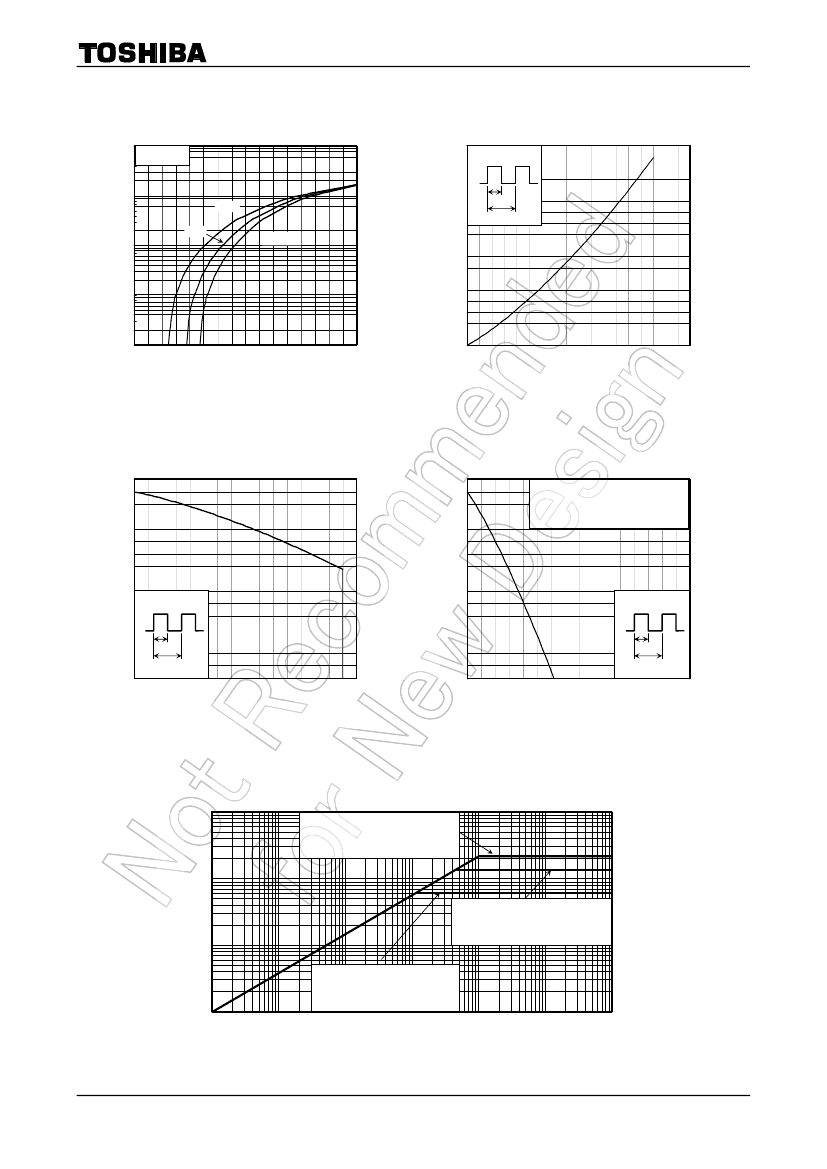

an allowable Tamax-IF (AV) curve.

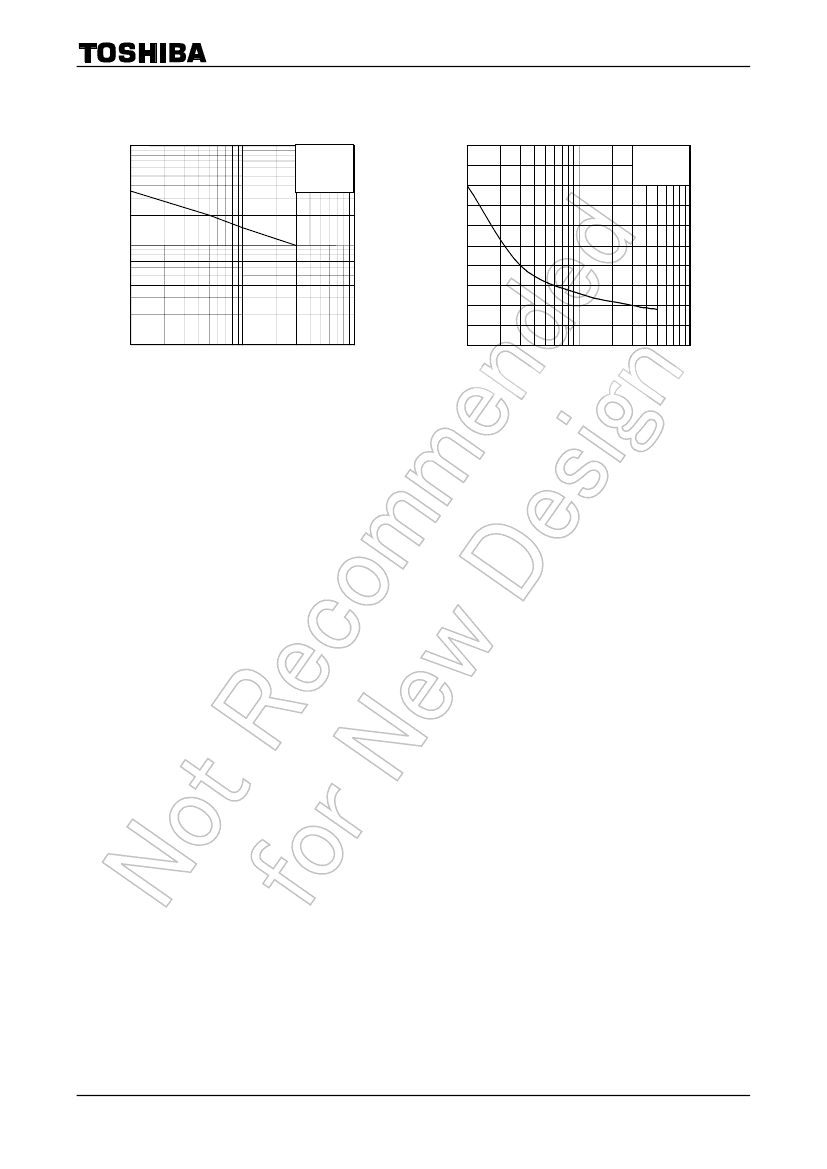

This rating specifies the non-repetitive peak current in one cycle of a 50-Hz sine wave, condition angle 180. Therefore,
this is only applied for an abnormal operation, which seldom occurs during the lifespan of the device.
We recommend that a device be used at a Tj of below 120℃ under the worst load and heat radiation conditions.
Thermal resistance between junction and ambient fluctuates depending on the device’s mounting condition. When using
a device, design a circuit board and a soldering land size to match the appropriate thermal resistance value.
Please refer to the Rectifiers databook for further information.
2.1
2
2013-11-01
CMH02
