CMH-070-26-0077 datasheet, PDF

CMH-070-26-0077: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Blue Insulator, Receptacle,; CategoryThe connector The connector; File Size418KB，4 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric View All

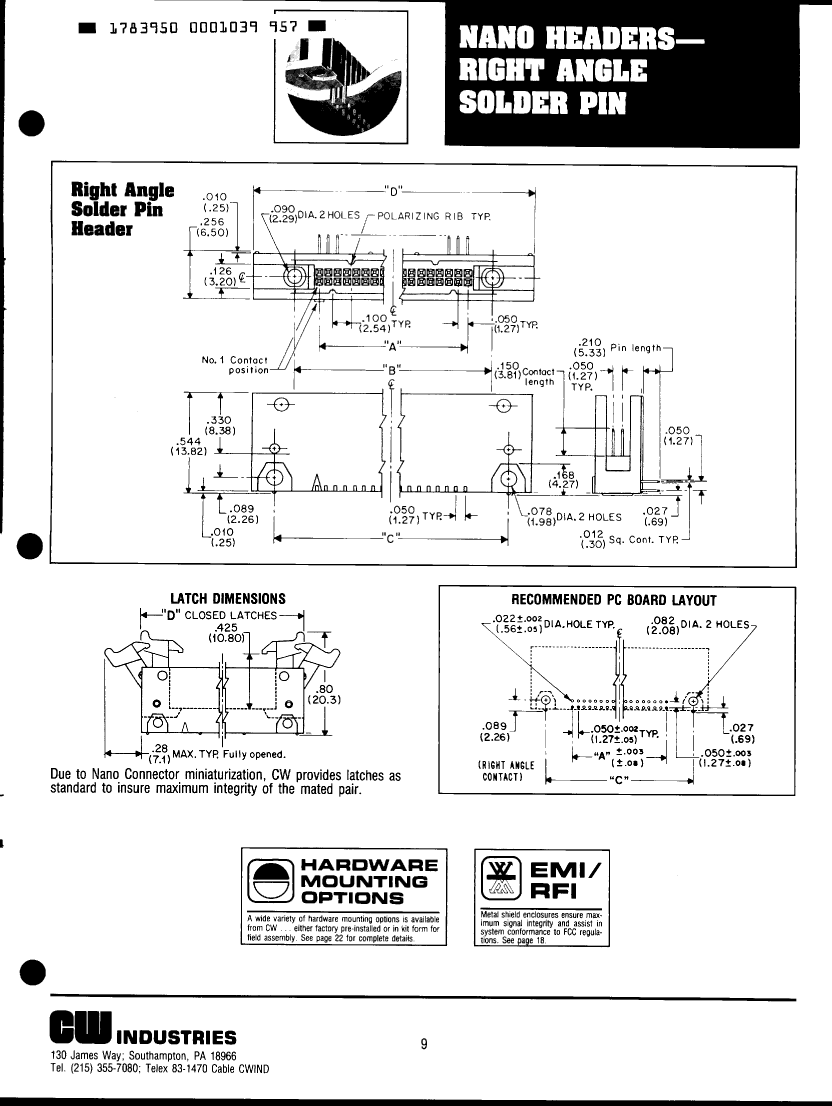

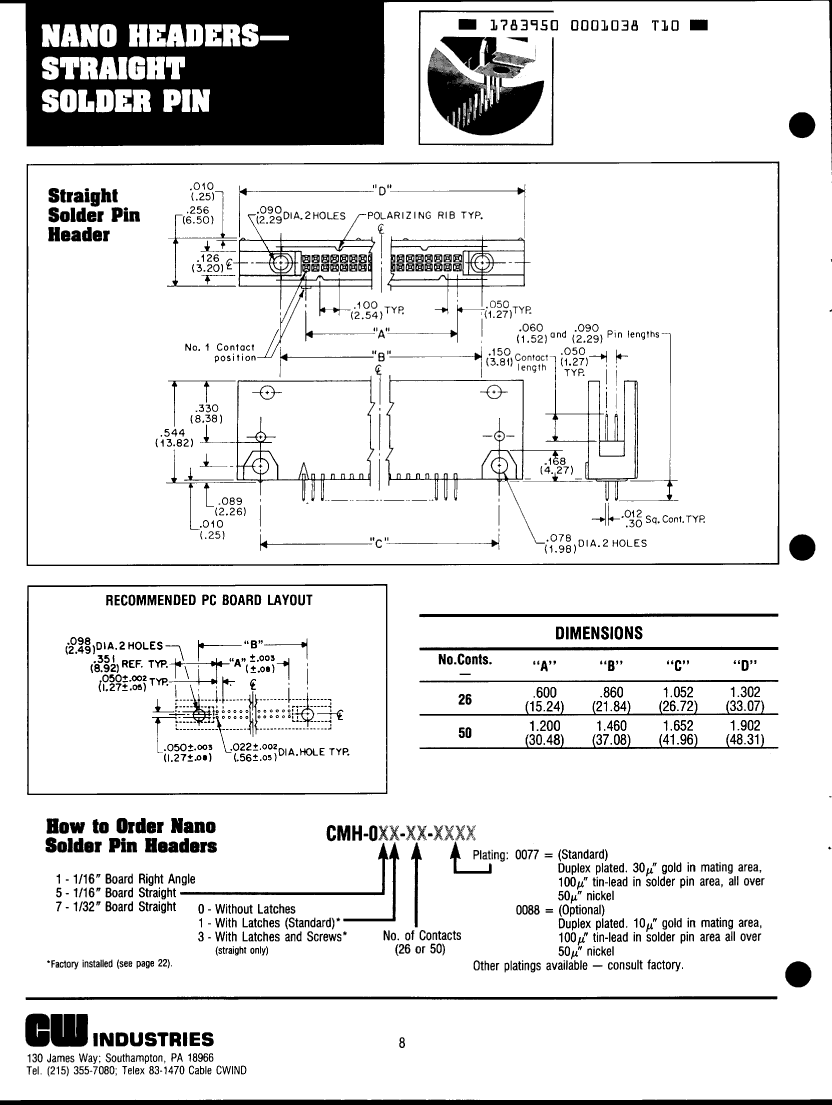

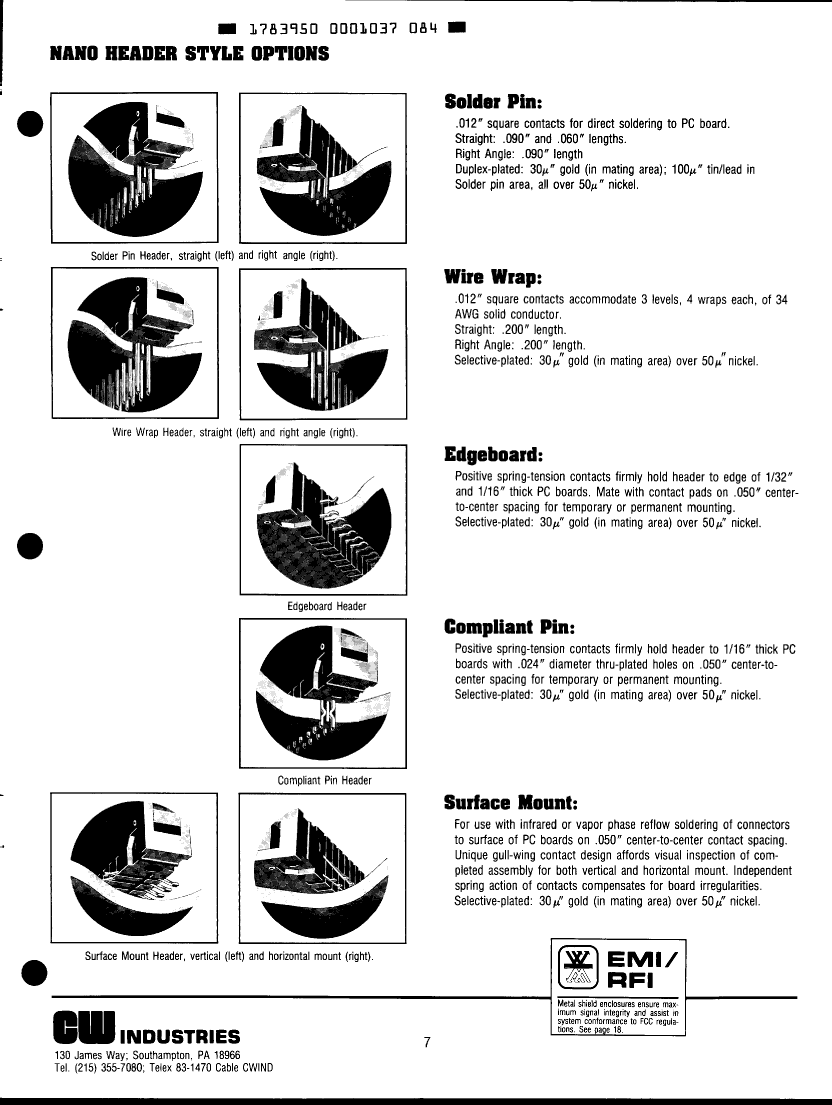

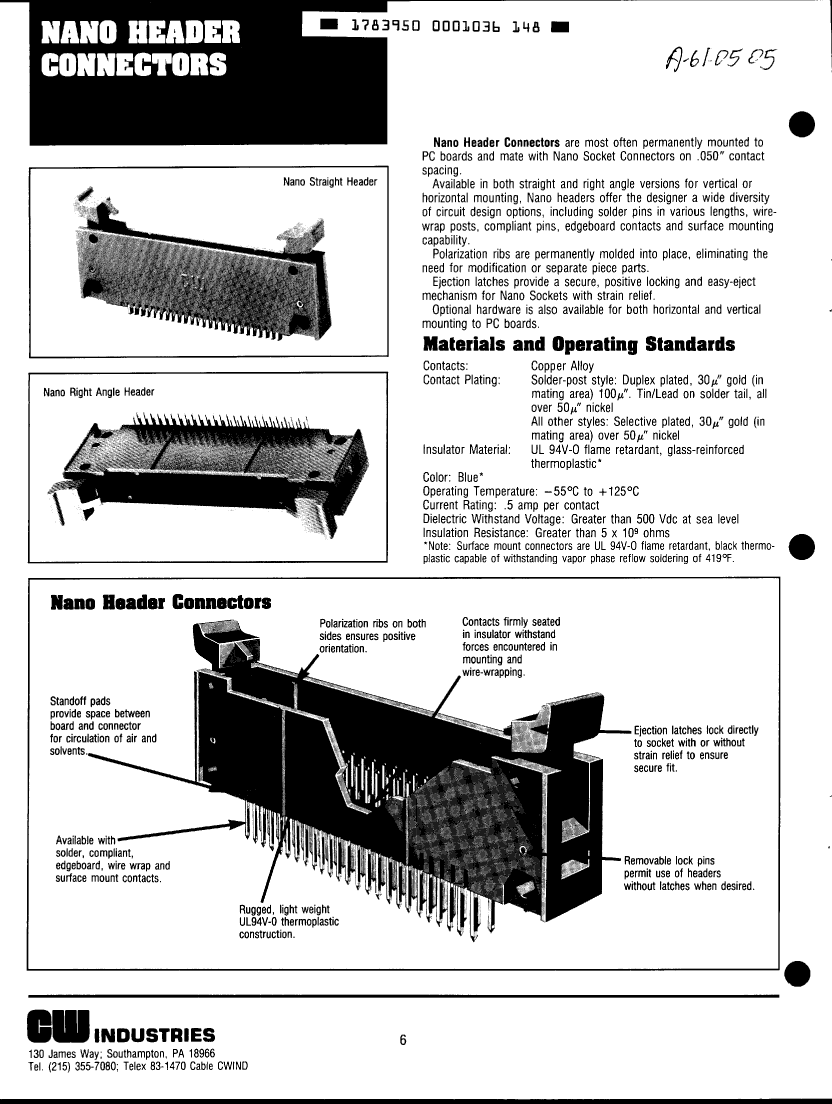

CMH-070-26-0077 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Blue Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CW Industries
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELD AVAILABLE
Board mount options	HOLE .086-.098
body width	0.256 inch
subject depth	0.544 inch
body length	1.302 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	CMH
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.06 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26
