KAP1103R: DescriptionPiano Dip Switch, 3 Switches, SPST, Off-(on), Momentary, 0.1A, 50VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size144KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

KAP1103R Overview

Piano Dip Switch, 3 Switches, SPST, Off-(on), Momentary, 0.1A, 50VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle

KAP1103R Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
Actuator angle	30 deg
Actuator length	0.07 inch
Actuator material	GLASS FILLED POLYESTER
Actuator type	PIANO
body width	10.795 mm
body height	10.1854 mm
Body length or diameter	9.1694 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact function	OFF-(ON)
Contact resistance	0.05 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VRMS V
Electrical life	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD OVER NICKEL
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	KAP
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	6
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal length	0.126 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER

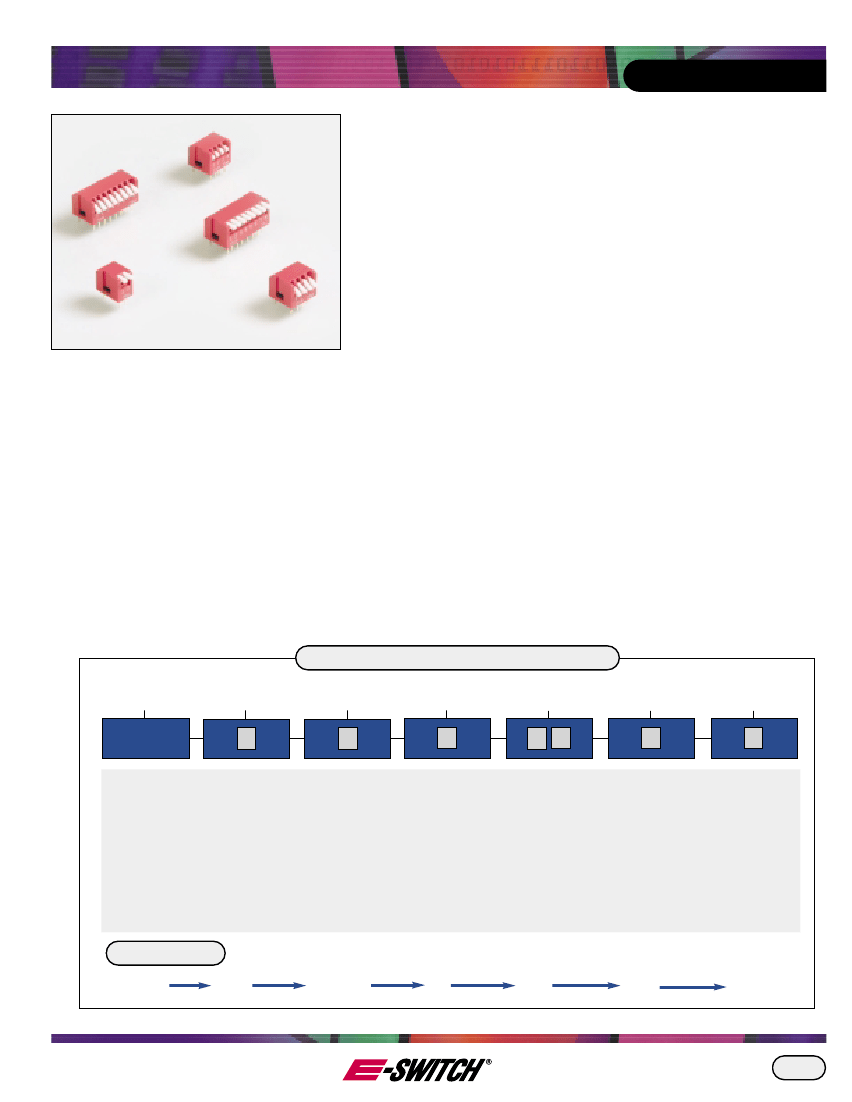

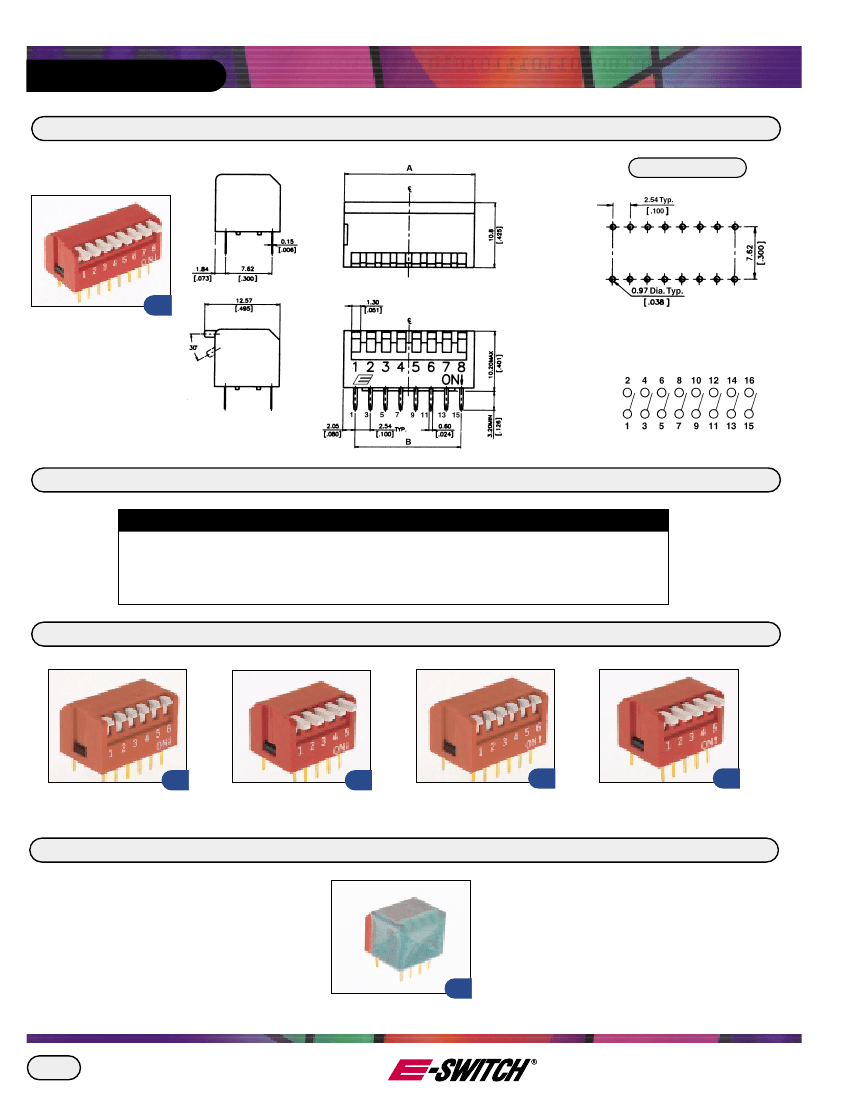

Preview

Download Datasheet

View All

S E R I E S

KAP

SWITCHES

PIANO DIP SWITCHES

SPECIFICATIONS

Switch Function:

Contact Rating:

Insulation Resistance:

Contact Resistance:

Operating Life:

Operating Force:

Travel (Actuator):

Dielectric Strength:

Temperature Range:

Vibration:

Shock:

Soldering

Recommendations:

SPST, 1 thru 12 positions (except position 11)

Switch: 25mA @ 24V DC

Carry: 100mA @ 50V DC

100 MΩ Min. @ 500V DC

Initial: 50 mΩ typical @ 2-4V DC @ 100mA

After Life: 100mΩ typical @ 2-4 DC @ 100mA

2,000 make-and-break cycles, each circuit

1000 gf max.

2.0 mm typical

500V RMS min. @ sea level between adjacent terminals

Operating/Storage: -40° C to 85° C

To MIL-STD-202F, Method 201 A

To MIL-STD-202F, Method 213B, Condition A

Wave: 500 F (260 C) for 5s max;

Hand: 30W soldering iron @ 608 F (320 C) for 2s

typical. Keep all switches in the “OFF” position during

soldering and cleaning process.

MATERIALS

Housing and Actuator:

Contacts:

Terminals:

Tape:

Glass filled polyester (PBT) UL94-V0

Phosphor Bronze with gold plate over nickel plate

Mylar

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

PACKAGING

Switches are supplied in standard IC tubes with all poles “OFF”.

HOW TO ORDER

Series

Model No.

Termination

Circuit

No. of Positions

Actuator

Seal

P=Piano Type

1=PC Pin

1=SPST

R=Recessed Act., (None)=Std.

Unsealed

Top Side OFF

E=Extended Act., T=Top Tape

Sealed

Top Side OFF

V=Recessed Act.,

Top Sife ON

W=Extened Act.,

Top Side ON

EXAMPLE

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com

info@e-switch.com

157
