HYMD116G725B8-M Overview

Registered DDR SDRAM DIMM

HYMD116G725B8-M Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	DIMM
package instruction	DIMM, DIMM184
Contacts	184
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	SINGLE BANK PAGE BURST
Maximum access time	0.75 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	133 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N184
memory density	1207959552 bi
Memory IC Type	DDR DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	184
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM184
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	2.5 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.785 A
Maximum slew rate	2.99 mA
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

16Mx72 bits

Registered DDR SDRAM DIMM

HYMD116G725B(L)8-M/K/H/L

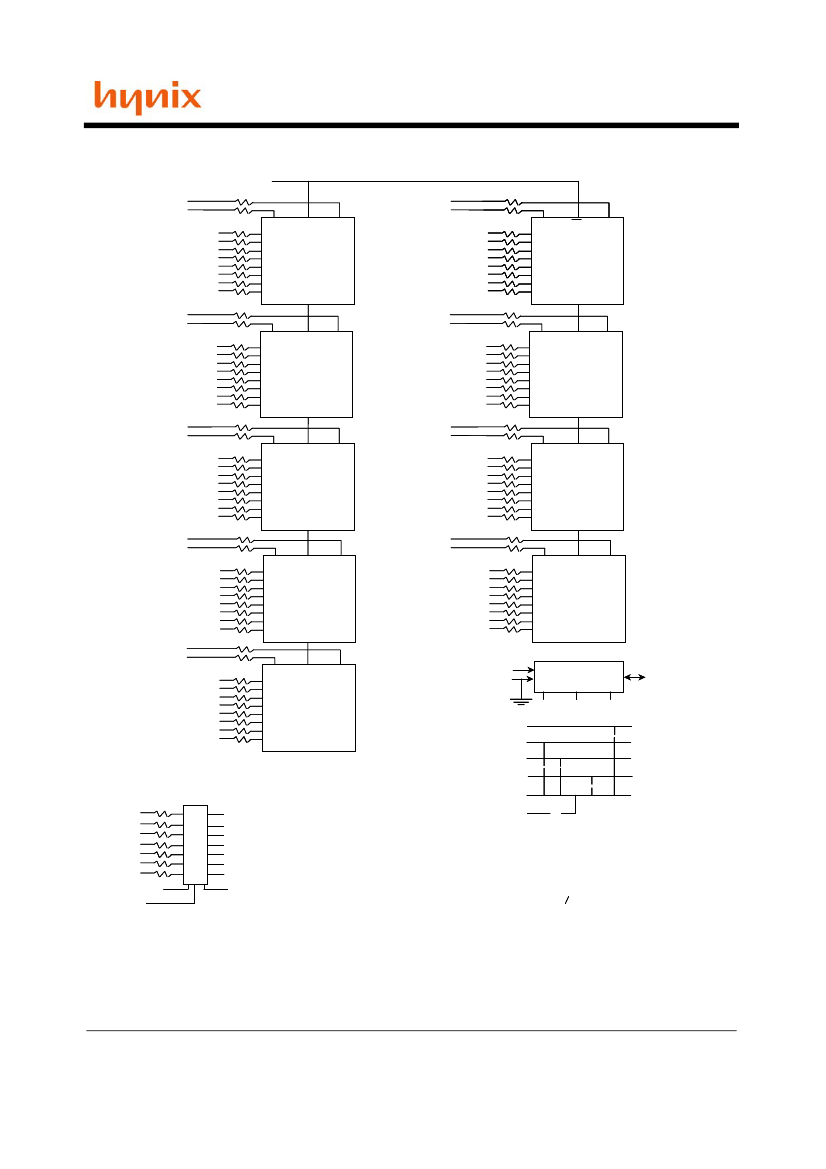

DESCRIPTION

Hynix HYMD116G725B(L)8-M/K/H/L series is registered 184-pin double data rate Synchronous DRAM Dual In-Line

Memory Modules (DIMMs) which are organized as 16Mx72 high-speed memory arrays. Hynix HYMD116G725B(L)8-M/

K/H/L series consists of nine 16Mx8 DDR SDRAM in 400mil TSOP II packages on a 184pin glass-epoxy substrate. Hynix

HYMD116G725B(L)8-M/K/H/L series provide a high performance 8-byte interface in 5.25" width form factor of industry

standard. It is suitable for easy interchange and addition.

Hynix HYMD116G725B(L)8-M/K/H/L series is designed for high speed of up to 133MHz and offers fully synchronous

operations referenced to both rising and falling edges of differential clock inputs. While all addresses and control

inputs are latched on the rising edges of the clock, Data, Data strobes and Write data masks inputs are sampled on

both rising and falling edges of it. The data paths are internally pipelined and 2-bit prefetched to achieve very high

bandwidth. All input and output voltage levels are compatible with SSTL_2. High speed frequencies, programmable

latencies and burst lengths allow variety of device operation in high performance memory system.

Hynix HYMD116G725B(L)8-M/K/H/L series incorporates SPD(serial presence detect). Serial presence detect function is

implemented via a serial 2,048-bit EEPROM. The first 128 bytes of serial PD data are programmed by Hynix to identify

DIMM type, capacity and other the information of DIMM and the last 128 bytes are available to the customer.

FEATURES

•

128MB (16M x 72) Registered DDR DIMM based on

16Mx8 DDR SDRAM

JEDEC Standard 184-pin dual in-line memory module

(DIMM)

Error Check Correction (ECC) Capability

Registered inputs with one-clock delay

Phase-lock loop (PLL) clock driver to reduce loading

2.5V +/- 0.2V VDD and VDDQ Power supply

All inputs and outputs are compatible with SSTL_2

interface

•

Fully differential clock operations (CK & /CK) with

100MHz/125MHz/133MHz

Programmable CAS Latency 2 / 2.5 supported

Programmable Burst Length 2 / 4 / 8 with both

sequential and interleave mode

tRAS Lock-out function supported

Internal four bank operations with single pulsed RAS

Auto refresh and self refresh supported

4096 refresh cycles / 64ms

ORDERING INFORMATION

Part No.

HYMD116G725B(L)8-M

HYMD116G725B(L)8-K

HYMD116G725B(L)8-H

HYMD116G725B(L)8-L

=2.5V

DDQ

=2.5V

Power Supply

Clock Frequency

133MHz (*DDR266:2-2-2)

133MHz (*DDR266A)

133MHz (*DDR266B)

125MHz (*DDR200)

Interface

Form Factor

SSTL_2

184pin Registered DIMM

5.25 x 1.7 x 0.15 inch

* JEDEC Defined Specifications compliant

This document is a general product description and is subject to change without notice. Hynix Semiconductor does not assume any

responsibility for use of circuits described. No patent licenses are implied.

Rev. 0.3/May. 02
