CAPACITORS

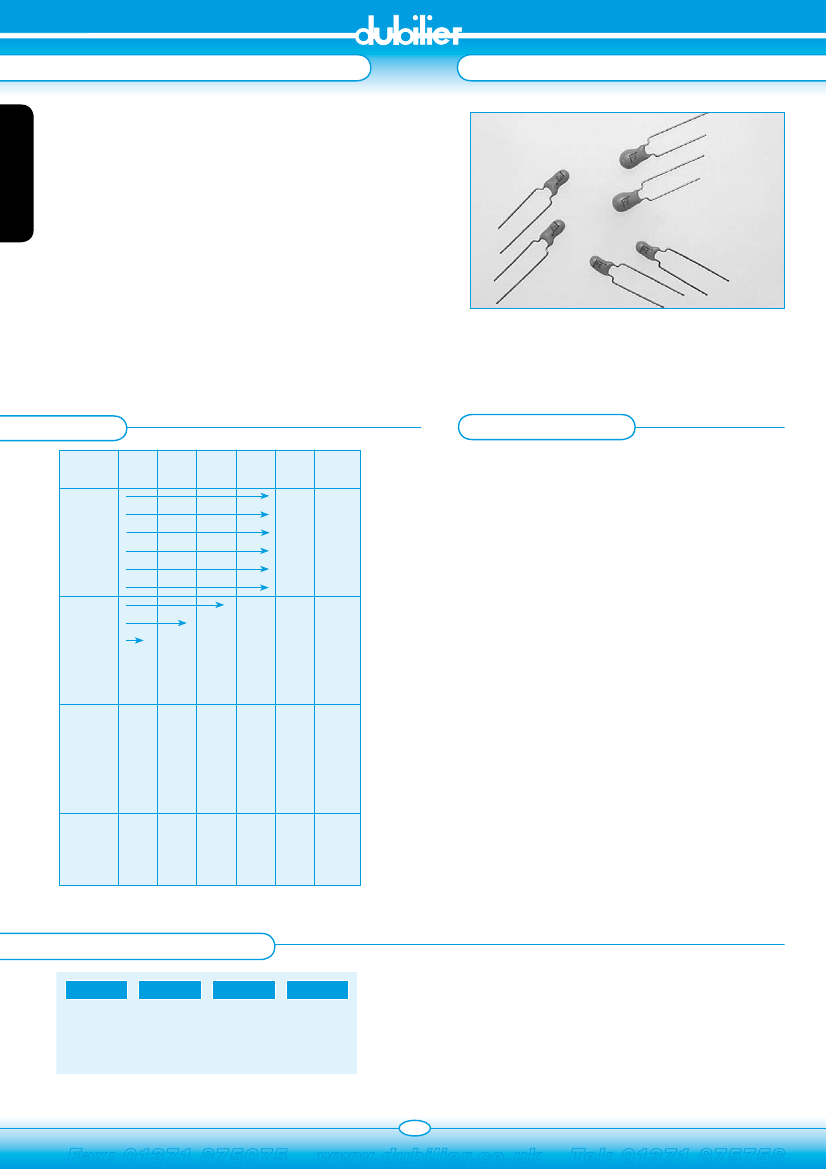

The ‘SH’ is a premium grade tantalum capacitor, exhibiting ultra-low leakage-
current and impedance in small case sizes.
Applications for this device include:-
High density logic boards
Instrumentation
Timing circuits
Decoupling circuits
- where space is a premium
- requiring high temperature stability
- requiring low leakage current
- requiring low impedance
TANTALUM DIPPED SH
SECTION 1
Product is normally supplied loose on a 5mm pitch, but it is also
available with a 2.5mm pitch and also taped & reeled for auto-insertion.
All product is manufactured to comply with Dubilier’s stringent quality
standards involving quality checks at each stage of processing and
production.
RANGE
V
µF
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
.
øxl/mm
10
øxl/mm
1
øxl/mm
5
øxl/mm
5
øxl/mm
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.5
5.0x8.5
5.5x8.5
6.0x8.5
6.0x10.0
7.0x10.5
8.0x12.5
9.0x14.0
9.0x15.0
50
øxl/mm
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.0
5.0x8.5
5.0x9.0
5.5x8.5
6.0x10.0
6.5x10.0
7.0x10.5
8.0x13
8.5x14
9.0x14
SPECIFICATION
Temperature
Life Time
Tolerance
Leakage Current
-55 to +85˚C (125˚C operation
possible with de-rating)
2000 Hours @ +85°C
± 20% (10% available)
<0.008CV or 0.05µA whichever
larger (>2 mins.)
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.5
5.0x8.5
5.0x9.0
5.5x8.5
6.0x10.0
6.5x10.0
7.0x10.5
8.0x12.5
9.0x14.0
10.0x17
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.5
5.0x8.5
5.0x9.0
5.5x8.5
6.0x9.0
6.5x10.0
7.0x10.5
8.0x12.5
9.0x14.5
10.0x17
10.0x18.5
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.5
5.0x8.5
5.0x9.0
5.5x8.5
6.0x10.0
6.0x10.0
8.0x12.0
9.0x12.0
9.0x16
9.0x16
10.0x18.5
4.5x7.0
4.5x7.0
4.5x7.0
4.5x7.5
5.0x8.5
5.0x9.0
5.5x9.0
6.0x10.0
7.0x10.5
8.0x12.0
9.0x14.0
9.0x16
All parts supplied with 5mm pitch as standard. 2.5mm pitch also available on
parts with 7mm diameter or less.
ORDERING INFORMATION
SH
Range
10
Capacitance
µF
1
Voltage
V
TR
Options:
TR = Tape/Reel
k = 10% Tol
2.5P : 2.5 pitch
Blank = 5mm pitch
10
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
CAPACITORS
TANTALUM DIPPED SH
ENDURANCE
Test Time/Hr
Leakage Current/µA
Capacitance/µF
Tan ∂
2000 ± 48
Less than 125% of initial value
Within ± 10% of initial value
Less than or equal to initial value
ELECTRICAL
Stability at
Temperature Extremes
-55˚C Capacitance within ± 12% max
(better than -5% typ) +85˚C
Capacitance within ± 12% max (better
than +5% typ). Leakage current within
10% initial value.
Capacitance within 10% of initial value.
Leakage current within 125% of initial
value.Tan ∂ less than or equal to initial
value.
Capacitance within 10% of initial value.
Leakage current within125% of initial
value. Tan ∂ less than or equal to initial
value.
Capacitance within 5% of initial value.
Leakage current less than or equal to
initial value. Tan ∂ less than or equal to
initial value.
6.3 10 16 25 35 50
8
13 20 32 44 63
6.3 10 16 25 35 50
4
6.3 10 16 23 33
SECTION 1
TAN ∂
Capacitance/µF
Tan ∂
0.1 to 1.5
0.04
2.2 to 6.8
0.06
10 to 68
0.08
100 to 220
0.1
Humidity 0˚C,
0-5% RH 1 days
Shelf Life
000Hr @ 5˚C; no
voltage applied
Surge Voltage 1000
cycles @ 5˚C
Rated Voltage/V
Surge Voltage/V
Temperature - Voltage
de-rating @ 15˚C
IMPEDANCE (ohms MAX.)
V
µF
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
.
10
1
5
5
26.0
21.0
17.0
15.0
13.0
10.0
8.0
6.0
5.0
4.0
3.0
2.5
2.0
1.6
1.3
1.0
0.8
50
26.0
21.0
17.0
15.0
13.0
10.0
8.0
5.0
3.5
3.0
2.5
2.0
1.6
1.2
1.0
13.0
10.0
8.0
6.0
5.0
3.7
3.0
2.0
1.8
1.6
0.9
0.9
0.7
13.0
10.0
8.0
6.0
5.0
3.7
2.7
2.1
1.7
1.3
1.0
0.8
0.6
0.5
10.0
8.0
6.0
5.0
4.0
3.2
2.5
2.0
1.6
1.3
1.0
0.8
0.6
0.5
10.0
8.0
6.0
5.0
4.0
3.1
2.5
2.0
1.5
1.2
1.0
0.8
Impedance measured at 100KHz and 25˚C.
SAFETY
Operating Properties
It is recommended that the following operating modes are not
imposed on the capacitors;
Over or reverse voltage
Over temperature
Power rating exceeded
High current surge due to low impedance (we recommend
that the circuit impedance should be 3Ω/V minimum).
107
Material Content
Tantalum capacitors contain no material normally considered as
hazardous. Materials include: Epoxy Resin, Graphite, Manganese
Dioxide, Tantalum, Tantalum Oxide. Noxious fumes may be emitted
if incinerated.
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
CAPACITORS
TANTALUM DIPPED SH

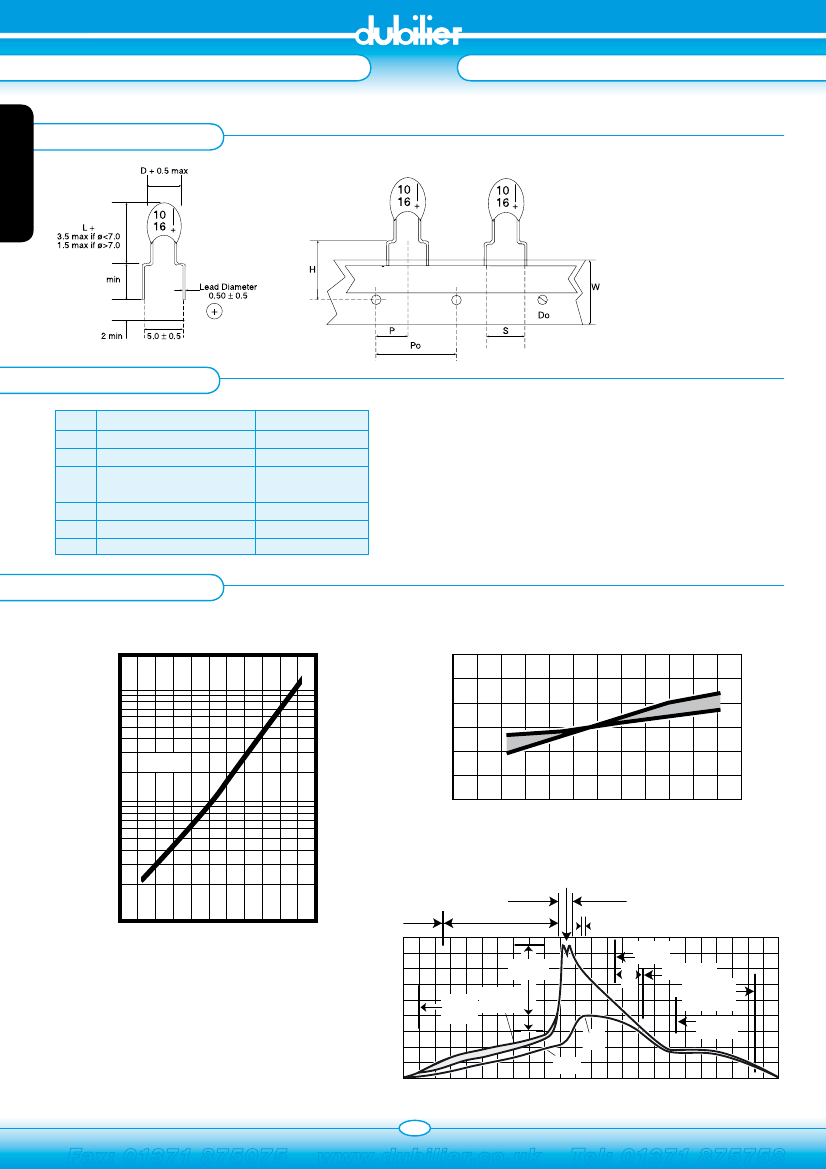

OUTLINE DRAWING
Capacitance Value
Multiplier of DC Leakage Current
Degrees – C°
SECTION 1
4
DIMENSIONS (mm)
Code
Po
P
S
H
Do
W
Description
Feed hole pitch
Hole centre to component centre
Lead pitch
Height to seating plane
Feed hole diameter
Tape width
Dimensions/mm
12.7 ± 0.3
6.35 ± 0.4
5.0 + 0.8/-0.2
(2.5 + 0.4/-0.1 option)
16.0 ± 0.5
4.0 ± 0.2
18.0 + 1.0/-0.5
CHARACTERISTICS
DC leakage current (DCL) increases with increasing
temperature according to the typical curve
Capacitance typically changes with temperature
according to the curve
+20
10.0
+10
0
-10
-20
-80 -60 -40 -20
0 +20 +40 +60 +80 +100 +120
Reference 1.0
at + 25 ˚C
1.0
Operating Temperature
˚C
Optimum Solder Wave Profile
Solder Wave Peak
Temperature 260 °C
Entrance to Solder Wave
Exit from Solder Wave
(Time in Wave – 2 to 4 Secs.)
Hot Air Debridging
Exit from
Solder
Machine
0.1
-60 -40 -20
0
+20 +40 +60 +80 +100 +125
Flux Zone
Preheat Zone
Operating Temperature –˚C
250
225
200
175
150
125
100
75
50
25
0
1
2
Top Side
Nominal
3
Entrance
to Solder
Machine
Typical Effect of Temperature
upon DC Leakage Current
80°C
to 120
°C
Bottom Side
Temperature
Range
Free
Free
Air
Air
Cool
Cool
Entrance to
In-Line Cleaner
Exit from
In-Line Cleaner
(time in cleaner
may be less)
Immersion in
Cleaning
Vapor
150°C
Max.
4
5
6
Time (Minutes)
10
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
