MCM72200SG70 datasheet, PDF - EEWORLD Datasheet

MCM72200SG70: DescriptionMEMORY MODULE,DRAM,FAST PAGE,2MX72,CMOS,SSIM,100PIN,PLASTIC; Categorystorage storage; File Size145KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

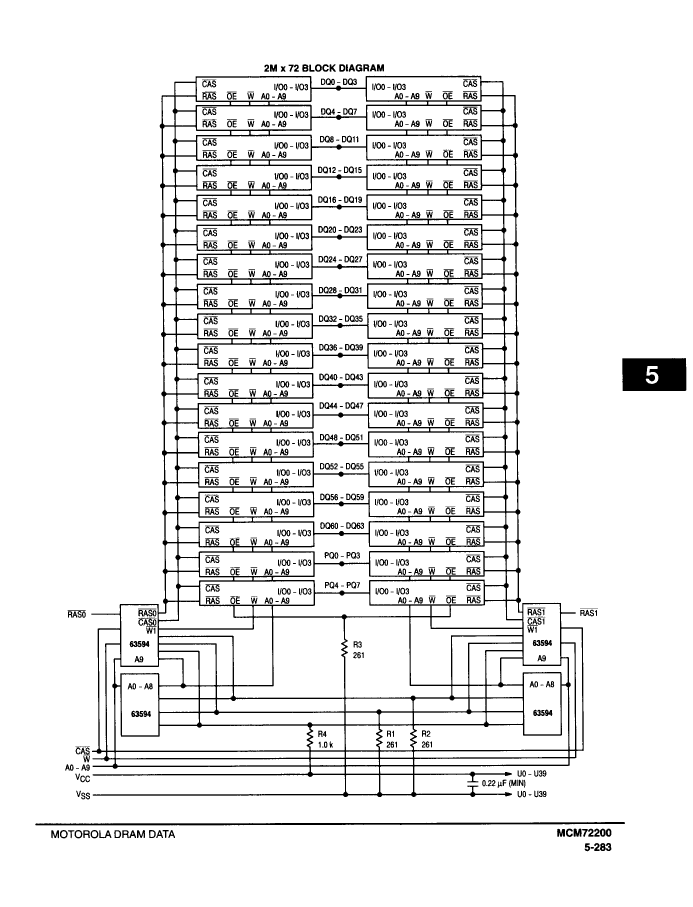

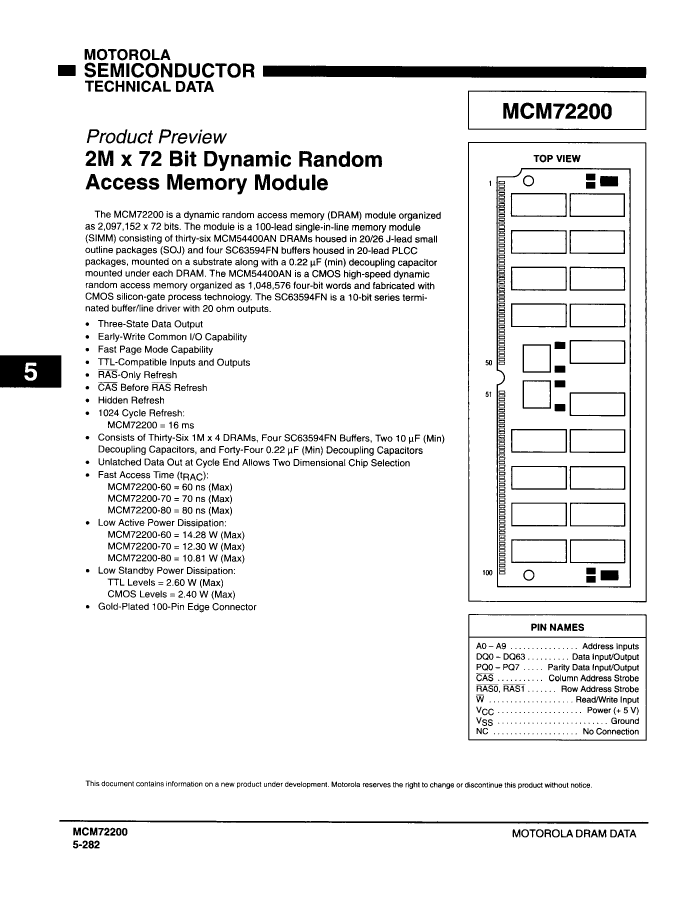

MCM72200SG70 Overview

MEMORY MODULE,DRAM,FAST PAGE,2MX72,CMOS,SSIM,100PIN,PLASTIC

Parameter Name	Attribute value
Maker	NXP
package instruction	SIMM, SSIM100
Reach Compliance Code	unknown
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N100
memory density	150994944 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	72

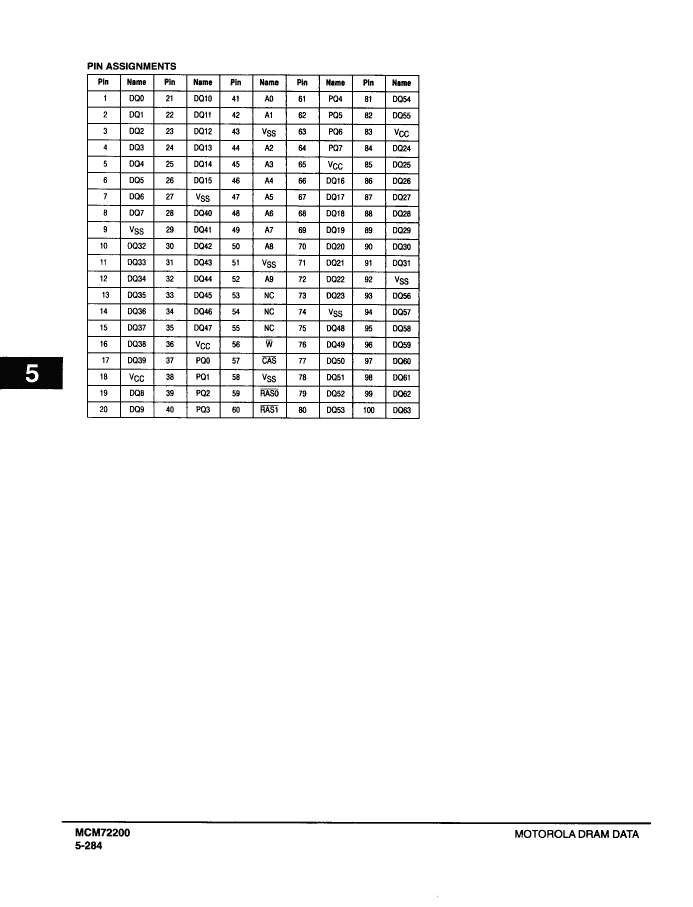

Number of terminals	100
word count	2097152 words
character code	2000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX72
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM100
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

	MCM72200SG70	MCM72200SG60	MCM72200SG80
Description	MEMORY MODULE,DRAM,FAST PAGE,2MX72,CMOS,SSIM,100PIN,PLASTIC	MEMORY MODULE,DRAM,FAST PAGE,2MX72,CMOS,SSIM,100PIN,PLASTIC	MEMORY MODULE,DRAM,FAST PAGE,2MX72,CMOS,SSIM,100PIN,PLASTIC
Maker	NXP	NXP	NXP
package instruction	SIMM, SSIM100	SIMM, SSIM100	SIMM, SSIM100
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	70 ns	60 ns	80 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N100	R-PSMA-N100	R-PSMA-N100
memory density	150994944 bit	150994944 bit	150994944 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	72	72	72
Number of terminals	100	100	100
word count	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000
Maximum operating temperature	70 °C	70 °C	70 °C
organize	2MX72	2MX72	2MX72
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM100	SSIM100	SSIM100
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE
