SMT Power Inductors
High Current Molded Power Inductor - PA4341.XXXNLT Series
Height:
3.0mm Max
Footprint:
7.6mm x 6.9mm Max
Current Rating:
up to 32.5A
Inductance Range:
0.1uH to 47.0uH

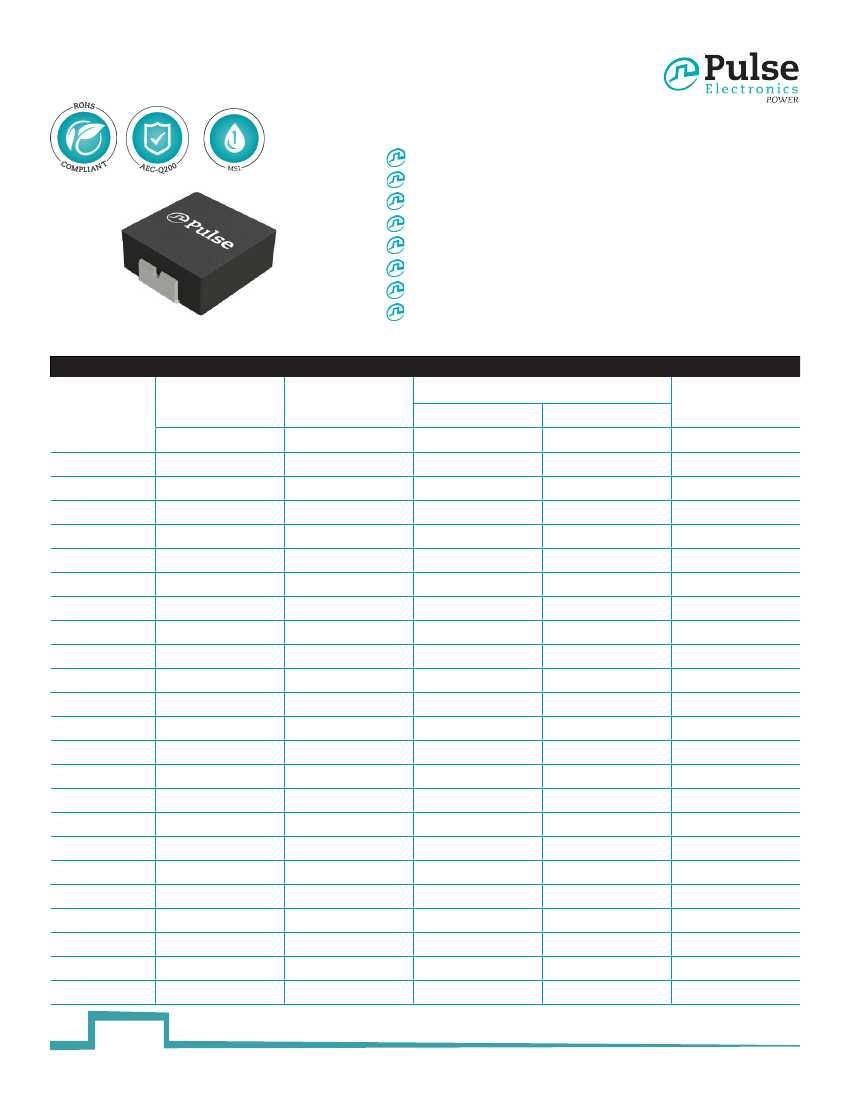

Shielded construction and compact design
High current, low DCR, and high efficiency
Minimized acoustic noise and minimized leakage flux
200Vdc Isolation between terminal and core
Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C
Part
Number
6
PA4341.101NLT
PA4341.151NLT
PA4341.161NLT
PA4341.201NLT
PA4341.221NLT
PA4341.301NLT
PA4341.331NLT
PA4341.361NLT
PA4341.471NLT
PA4341.561NLT
PA4341.601NLT
PA4341.681NLT
PA4341.751NLT
PA4341.821NLT
PA4341.102NLT
PA4341.122NLT
PA4341.152NLT
PA4341.182NLT
PA4341.202NLT
PA4341.222NLT
PA4341.252NLT
PA4341.332NLT
PA4341.472NLT
1
Inductance
5
100KHz, 1V
(uH ±20%)
0.10*
0.15*
0.16*
0.20*
0.22*
0.30
0.33
0.36
0.47
0.56
0.60
0.68
0.75
0.82
1.0
1.2
1.5
1.8
2.0
2.2
2.5
3.3
4.7
Rated
Current
A
32.5
27
27
24
23
21
20
19
17.5
16.5
16
15.5
14.5
13
11
10
9.0
8.5
8.2
8.0
7.0
6.0
5.5
DC Resistance
TYP.
mΩ
1.2
1.5
1.5
1.8
2.1
3.2
3.5
3.6
4.0
4.7
4.7
4.8
5.5
6.7
8.3
10
13
14
16
18
20
28
37
P768. K (07/18)
MAX.
mΩ
1.7
1.9
1.9
2.5
2.8
3.8
3.9
4.2
4.2
5.0
5.2
5.5
6.6
8.0
10
12
15
17
19
20
22
30
40
Saturation
Current
A
60
45
45
41
40
35
32
32
26
25.5
25.5
25
24.5
24
22
20
18
16
15
14
13
13.5
10
power.pulseelectronics.com
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4341.XXXNLT Series
Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C
Part
Number
6
PA4341.562NLT
PA4341.682NLT
PA4341.822NLT
PA4341.103NLT
PA4341.123NLT
PA4341.153NLT
PA4341.223NLT
PA4341.333NLT
PA4341.473NLT
Inductance
5
100KHz, 1V
(uH ±20%)
5.6
6.8
8.2
10
12
15
22
33
47
Rated
Current
A
5.0
4.5
4.0
3.5
3.3
3.0
2.0
2.0
1.75
DC Resistance
TYP.
mΩ
43
54
64
75
81
107
165
200
302
MAX.
mΩ
48
60
68
85
93
123
190
240
363
Saturation
Current
A
9.0
8.0
7.5
6.0
5.5
4.0
3.5
2.5
2.0
Notes:
1. Actual temperature of the component during system operation (ambient plus
temperature rise) must be within the standard operating range.
2. The saturation current is the current at which the initial inductance drops approxi-
mately 30% at the stated ambient temperature. This current is determined by placing
the compnent in the specified ambient environment and applying a short duration
pulse current (to eliminate self-heating effect) to the component.
3. The rated current is the DC current required to raise the component temperature by
approximately 40½C. Take note that the components’ performanc varies depending
on the system condition. It is suggested that the component be tested at the system
level, to verify the temperature rise of the component during system operation.
4.
5.
6.
The part temperature (ambient+temp rise) should not exceed 125½C under worst
case operating conditions. Circuit design, PCB trace size and thickness, airflow and
other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application.
Please note that the inductance tolerance of all parts are ±20%, except .101NLT, .151NLT
, .161NLT, .201NLT, and .221NLT which are ±30%.
Parts shown in bold are standard catalog parts and are available through sample
stock and distribution. Parts in lighter font are available but are not necessarily held
in sample stock or distribution
and lead times may be longer.
Please contact Pulse
for availablity.

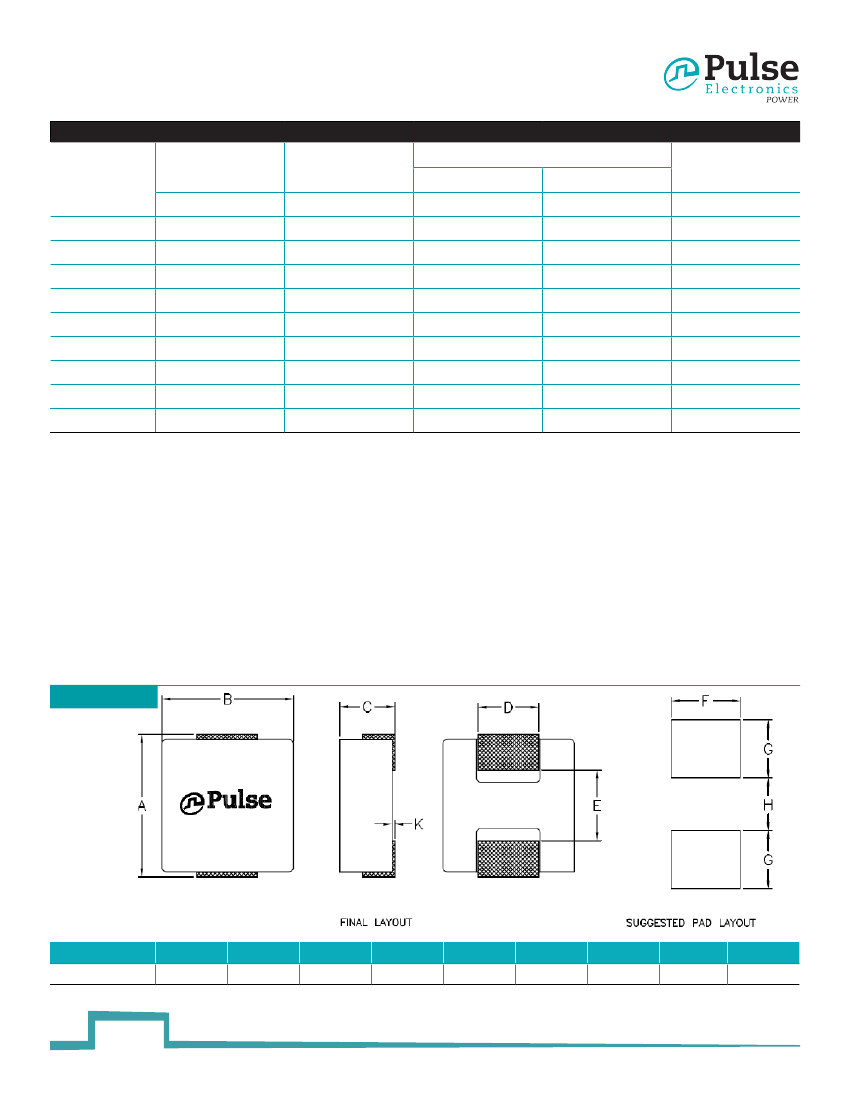

Mechanical
PA4341.XXXNLT
Series
PA4341.XXXNLT
All Dimensions in mm.
2
A
7.6 MAX
B
6.9 MAX
C
3.0 MAX
D
(3.0)
E
(3.7)
F
(3.5)
G
(2.95)
H
(2.5)
K
(0~0.22)
power.pulseelectronics.com
P768. K (07/18)
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4341.XXXNLT Series
TAPE & REEL INFO
Marking
Marking
W
A
K
0
P
1
G
Direction of tape
SURFACE MOUNTING TYPE, REEL/TAPE LIST
REEL SIZE (mm)
A
G
PA4341.XXXNLT
Ø330
16
P
1
12
TAPE SIZE (mm)
W
K
0
16
3.3
QTY
PCS/REEL
1000
For More Information
Pulse Worldwide
Pulse Europe
Headquarters
Pulse Electronics GmbH
15255 Innovation Drive Ste 100
Am Rottland 12
San Diego, CA 92128
58540 Meinerzhagen
U.S.A.
Germany
Pulse China Headquarters
Pulse Electronics (ShenZhen) CO., LTD
D708, Shenzhen Academy of
Aerospace Technology,
The 10th Keji South Road,
Nanshan District, Shenzhen,
P.R. China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
3 Fraser Street
0428 DUO Tower
Singapore 189352
Pulse North Asia
1F., No.111 Xiyuan Rd
Zhongli City
Taoyuan City 32057
Taiwan (R.O.C)
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Tel: 65 6287 8998
Fax: 65 6280 0080
Tel: 886 3 4356768
Fax: 886 3 4356820
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may
be trademarks or registered trademarks of their respective owners. © Copyright, 2018. Pulse Electronics, Inc. All rights reserved.
3
power.pulseelectronics.com
P768. K (07/18)
http://www.power.pulseelectronics.com/contact
