D2HW-BL243ML

Description
SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 2A, 12VDC, 1.4mm, THROUGH HOLE-STRAIGHT
Categoryunclassified
File Size2MB,11 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric View All

D2HW-BL243ML Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 2A, 12VDC, 1.4mm, THROUGH HOLE-STRAIGHT

D2HW-BL243ML Parametric

Parameter NameAttribute value
Maximum DC contact current2 A
Maximum DC contact voltage12 V
Maximum operating temperature85 Cel
Minimum operating temperature-40 Cel
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
sealIP50
Electrical life100000 Cycle(s)
switch functionSPDT
terminal coatingNOT SPECIFIED
Manufacturer SeriesD2HW
Control valvePIN PLUNGER
width5.3 mm
high6.5 mm
length or diameter13.3 mm
Installation featuresTHROUGH HOLE-STRAIGHT
maximum control0.7600 N
Switch actionMOMENTARY
Switch typeSNAP ACTING/LIMIT SWITCH
Terminal typeSOLDER
Maximum total conduction1.4 mm

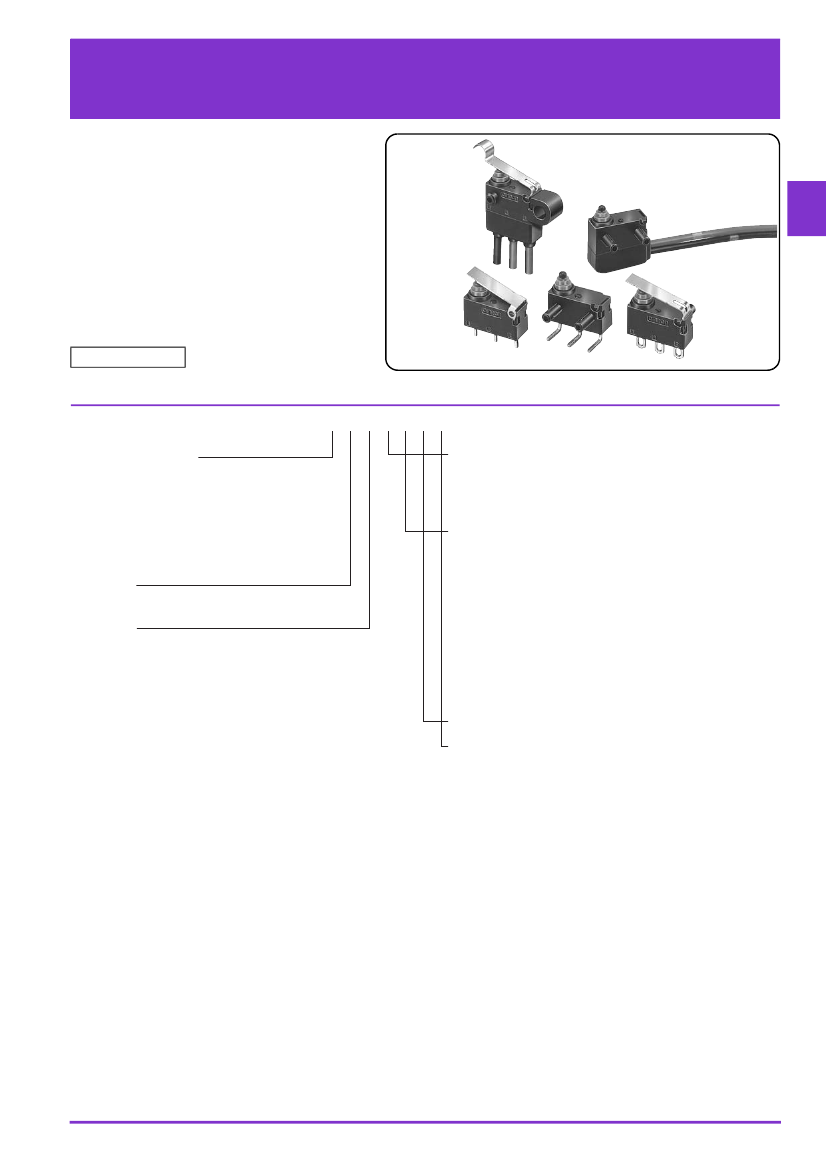

D2HW
Sealed Ultra Subminiature Basic Switch
Smallest sealed snap-action
switch in the industry with a
very long stroke for reliable
ON/OFF action
The case dimensions are 78% of conventional
models, contributing to down-sizing of
mechanical modules.
Extra-long stroke even without levers.
(OT reference value: 1.4 mm).
Made of environmentally-friendly materials.
All models are lead-free, including molded lead
wire models.
RoHS Compliant
D
2
H
W
Model Number Legend
1 2 3 4 5 6 7
D2HW -
@ @ @ @ @
-
@
-
@
1. Mounting Structure
A : Without posts (base-mounting)
BR : Long post on right
BL : Long post on left
C : M3-screw mounting models
ER : Short post on right
EL : Short post on left
2. Raitings
2 : 5 VDC 1mA to 12 VDC 2A
3. Actuator
0 : Pin plunger
1 : Hinge lever
2 : Long hinge lever
3 : Simulated roller lever
4 : Hinge roller lever
5 : Straight leaf lever
6 : Leaf lever
7 : Simulated roller leaf lever
8 : Long leaf lever
4. Contact form
1 : SPDT
2 : SPST-NC (Molded lead wire models only)
3 : SPST-NO (Molded lead wire models only)
5. Terminals
D, DS :
DR, DRS :
DL, DLS :
H, HS :
M, MS :
MR, MRS :
ML, MLS :
PCB terminals (Straight)
PCB Terminals (Right-angled)
PCB Terminals (Left-angled)
Solder terminals
Molded lead wires downwards
Molded lead wires on right-side
Molded lead wires on left-side
Note. UL/CSA approved versions are available.
In this case, a "S" will be added to the end of the model number.
The Lead wire is a UL approved wire (AWG24, UL1007).
6. Special Specification
7. Special Industry Specification
