PZT2222AE6433 datasheet, PDF - EEWORLD Datasheet

PZT2222AE6433: DescriptionSmall Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-223, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size123KB，6 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

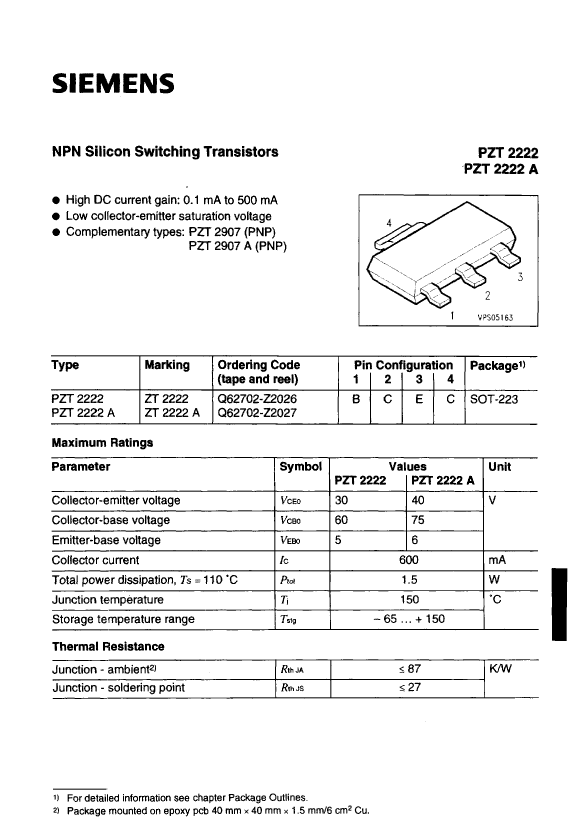

PZT2222AE6433 Overview

Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-223, 4 PIN

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	SOT-223
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE

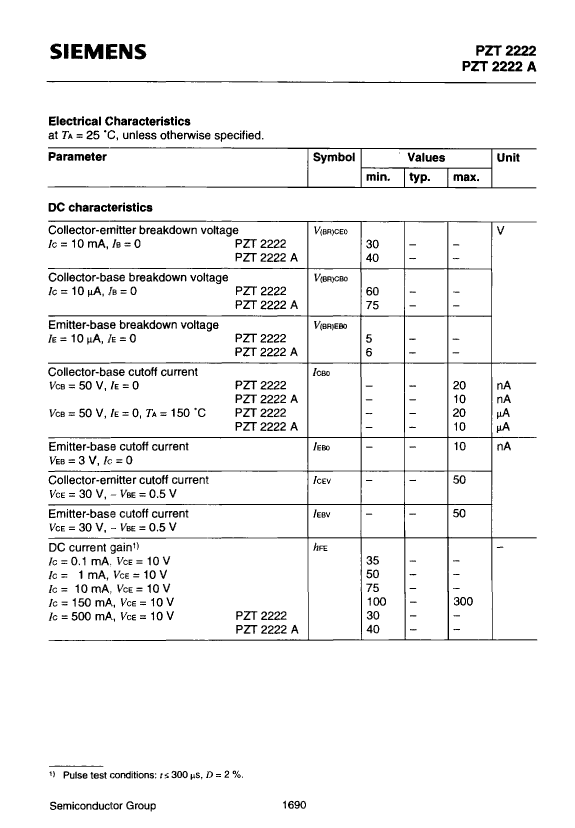

Minimum DC current gain (hFE)	40
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

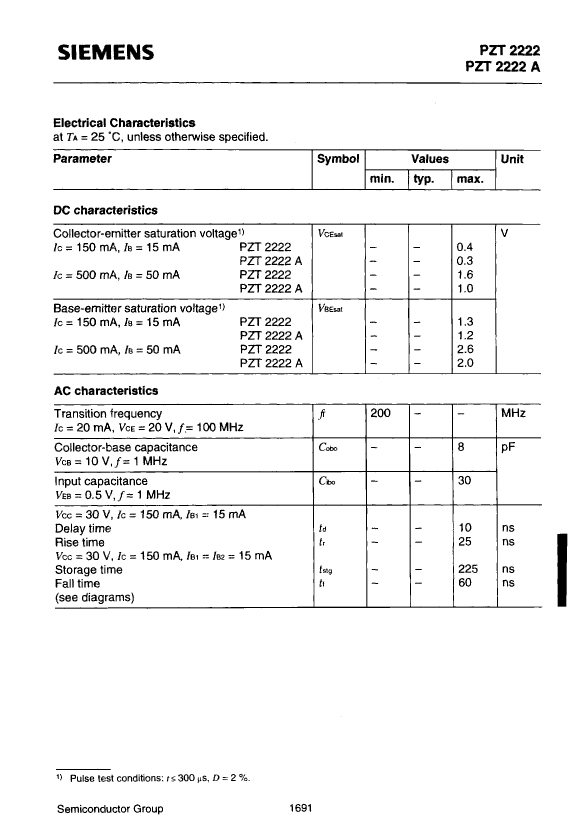

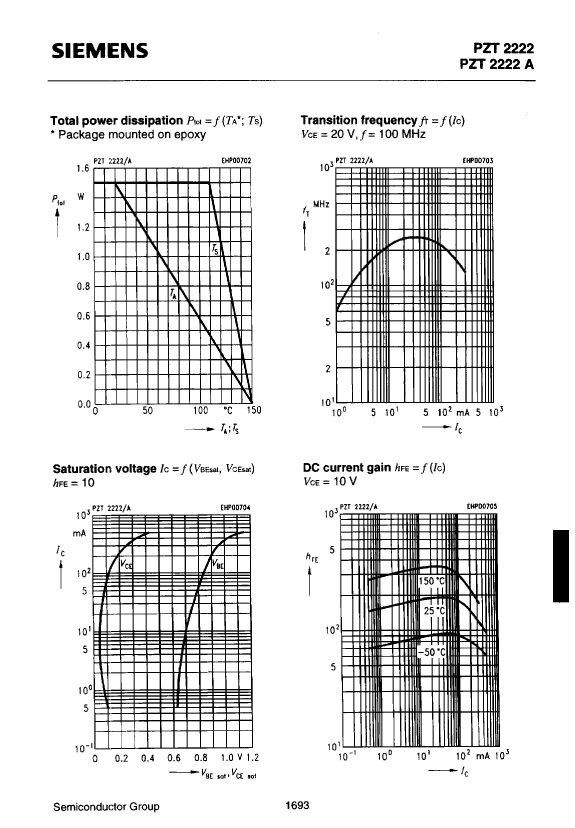

Nominal transition frequency (fT)	200 MHz

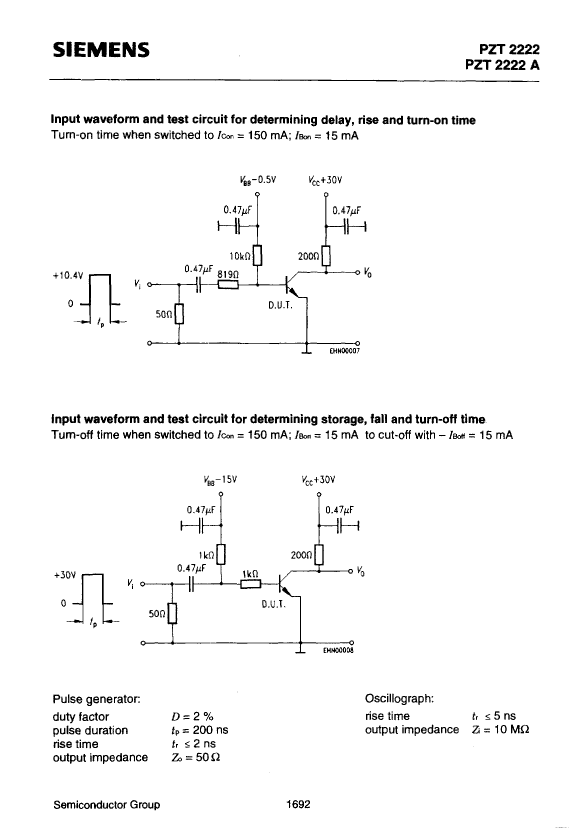

Maximum off time (toff)	285 ns
Maximum opening time (tons)	35 ns

	PZT2222AE6433	PZT2222AE6327
Description	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-223, 4 PIN	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-223, 4 PIN
Maker	Infineon	Infineon
Parts packaging code	SOT-223	SOT-223
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.6 A	0.6 A
Collector-emitter maximum voltage	40 V	40 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	40
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz
Maximum off time (toff)	285 ns	285 ns
Maximum opening time (tons)	35 ns	35 ns
