5962-8944903XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-8944903XA

5962-8944903XA: DescriptionMath Coprocessor, 16-Bit, CMOS, CQFP68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，30 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

5962-8944903XA Overview

Math Coprocessor, 16-Bit, CMOS, CQFP68

5962-8944903XA Parametric

Parameter Name	Attribute value
Maker	Intel
package instruction	QFF,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
boundary scan	NO
maximum clock frequency	16 MHz
External data bus width	16
JESD-30 code	S-CQFP-F68
JESD-609 code	e0
length	24.08 mm
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.69 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.08 mm
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, COPROCESSOR

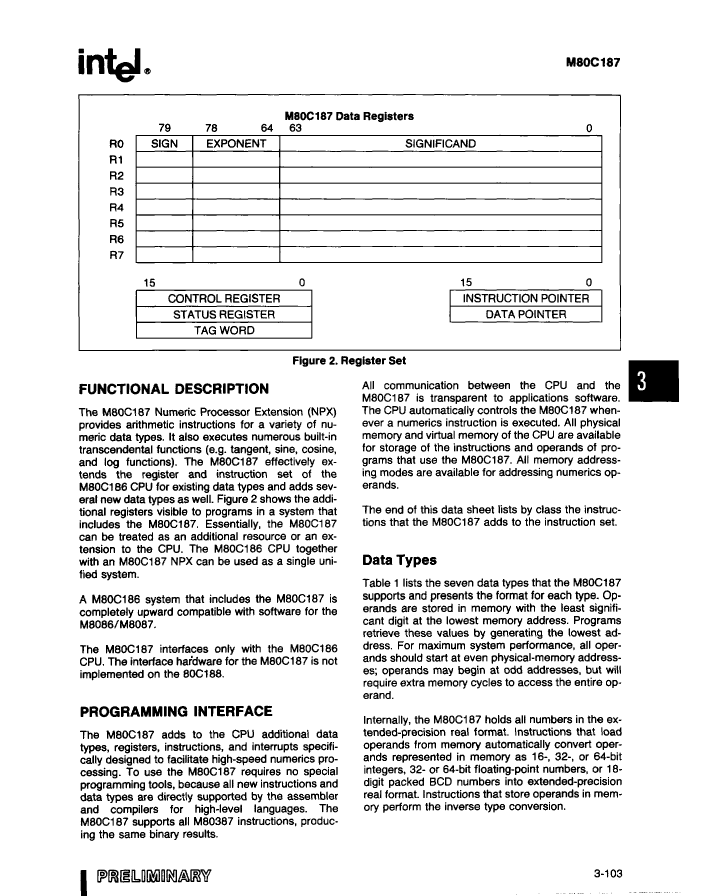

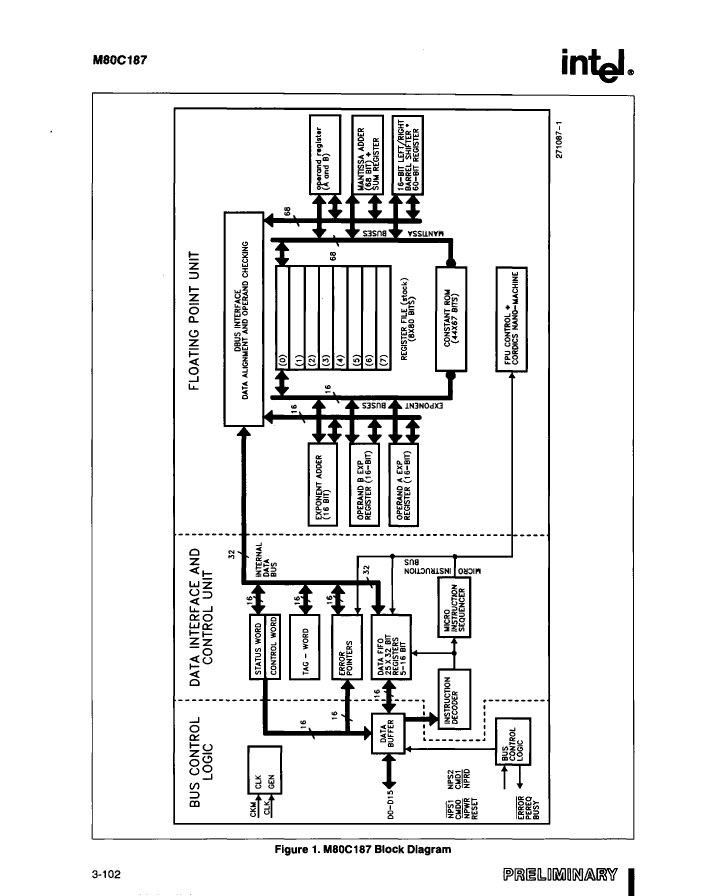

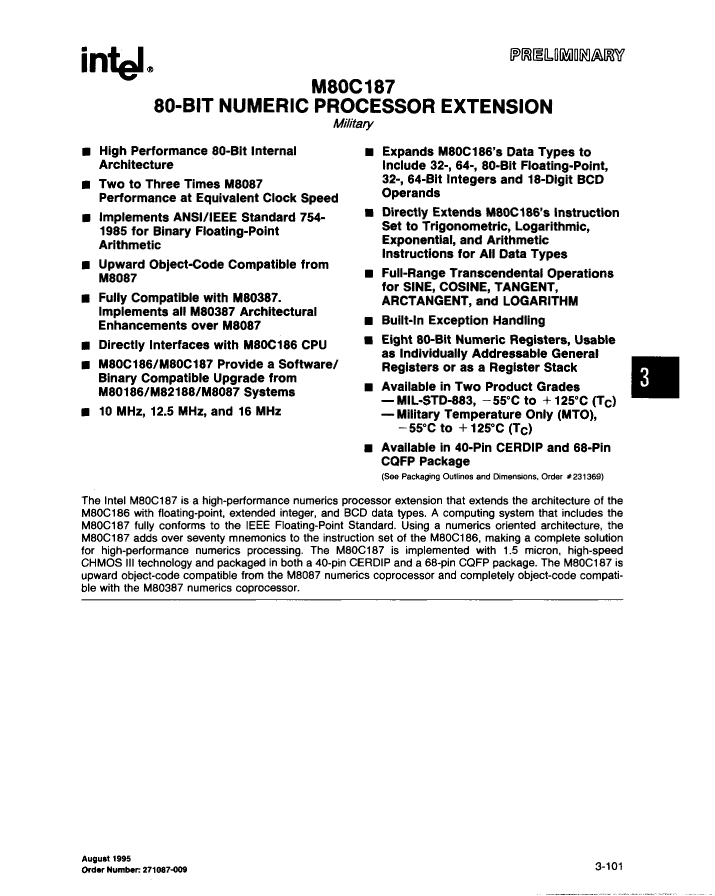

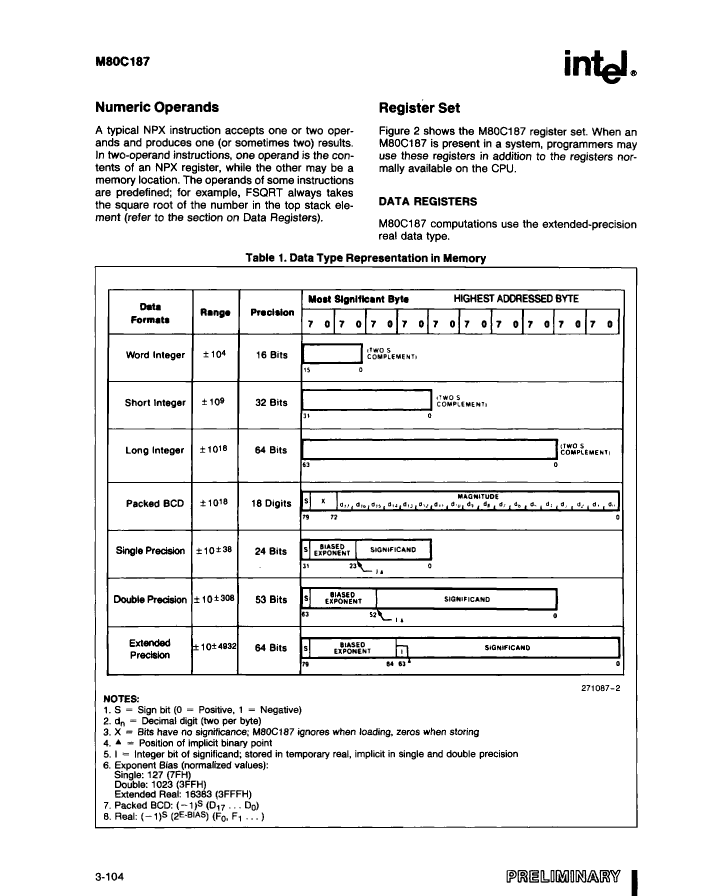

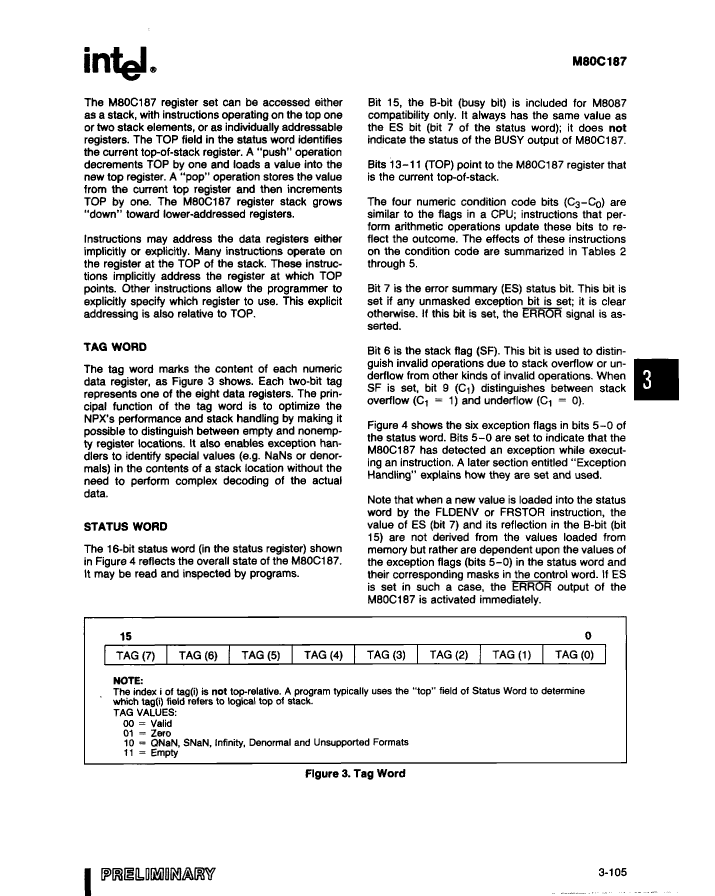

Preview

Download Datasheet

View All

5962-8944903XA Related Products

	5962-8944903XA	MQ80C187-12	MD80C187-10	MD80C18716	5962-8944903QX	MD80C187-12	5962-8944903QA	MQ80C18716	MQ80C187-10	5962-8944903XX
Description	Math Coprocessor, 16-Bit, CMOS, CQFP68	Math Coprocessor, 16-Bit, CMOS, CQFP68, CERAMIC, QFP-68	Math Coprocessor, 16-Bit, CMOS, CDIP40, CERDIP-40	Math Coprocessor, 16-Bit, CMOS, CDIP40, CERDIP-40	Math Coprocessor, 16-Bit, CMOS, CDIP40, CERAMIC, DIP-40	Math Coprocessor, 16-Bit, CMOS, CDIP40, CERDIP-40	Math Coprocessor, 16-Bit, CMOS, CDIP40	Math Coprocessor, 16-Bit, CMOS, CQFP68, CERAMIC, QFP-68	Math Coprocessor, 16-Bit, CMOS, CQFP68, CERAMIC, QFP-68	Math Coprocessor, 16-Bit, CMOS, CQFP68, CERAMIC, QFP-68
package instruction	QFF,	QFF, QFL68,.95SQ	DIP, DIP40,.6	DIP, DIP40,.6	DIP,	DIP, DIP40,.6	DIP,	QFF, QFL68,.95SQ	QFF, QFL68,.95SQ	QFF,
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown	unknown	compliant	unknown	unknow
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	12.5 MHz	10 MHz	16 MHz	16 MHz	12.5 MHz	16 MHz	16 MHz	10 MHz	16 MHz
External data bus width	16	16	16	16	16	16	16	16	16	16
JESD-30 code	S-CQFP-F68	S-CQFP-F68	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68
Number of terminals	68	68	40	40	40	40	40	68	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF	QFF	DIP	DIP	DIP	DIP	DIP	QFF	QFF	QFF
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	FLAT
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR	MATH PROCESSOR, COPROCESSOR
Maker	Intel	Intel	Intel	Intel	-	Intel	Intel	Intel	Intel	Intel
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0	e0	-
length	24.08 mm	24.08 mm	52.325 mm	52.325 mm	-	52.325 mm	-	24.08 mm	24.08 mm	24.08 mm
Maximum seat height	2.69 mm	2.69 mm	5.72 mm	5.72 mm	-	5.72 mm	-	2.69 mm	2.69 mm	2.69 mm
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	-	2.54 mm	-	1.27 mm	1.27 mm	1.27 mm
width	24.08 mm	24.08 mm	15.24 mm	15.24 mm	-	15.24 mm	-	24.08 mm	24.08 mm	24.08 mm
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-	incompatible	-	incompatible	incompatible	-
Parts packaging code	-	QFP	DIP	DIP	DIP	DIP	-	QFP	QFP	QFP
Contacts	-	68	40	40	40	40	-	68	68	68
barrel shifter	-	YES	YES	YES	-	YES	-	YES	YES	-
Bus compatibility	-	80C186	80C186	80C186	-	80C186	-	80C186	80C186	-
Encapsulate equivalent code	-	QFL68,.95SQ	DIP40,.6	DIP40,.6	-	DIP40,.6	-	QFL68,.95SQ	QFL68,.95SQ	-
power supply	-	5 V	5 V	5 V	-	5 V	-	5 V	5 V	-
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883
Maximum slew rate	-	135 mA	115 mA	156 mA	-	135 mA	-	156 mA	115 mA	-
Base Number Matches	-	1	1	1	1	1	1	-	-	-
