10005639-33278HLF datasheet, PDF

10005639-33278HLF: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size667KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10005639-33278HLF Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compli
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	10005639
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0

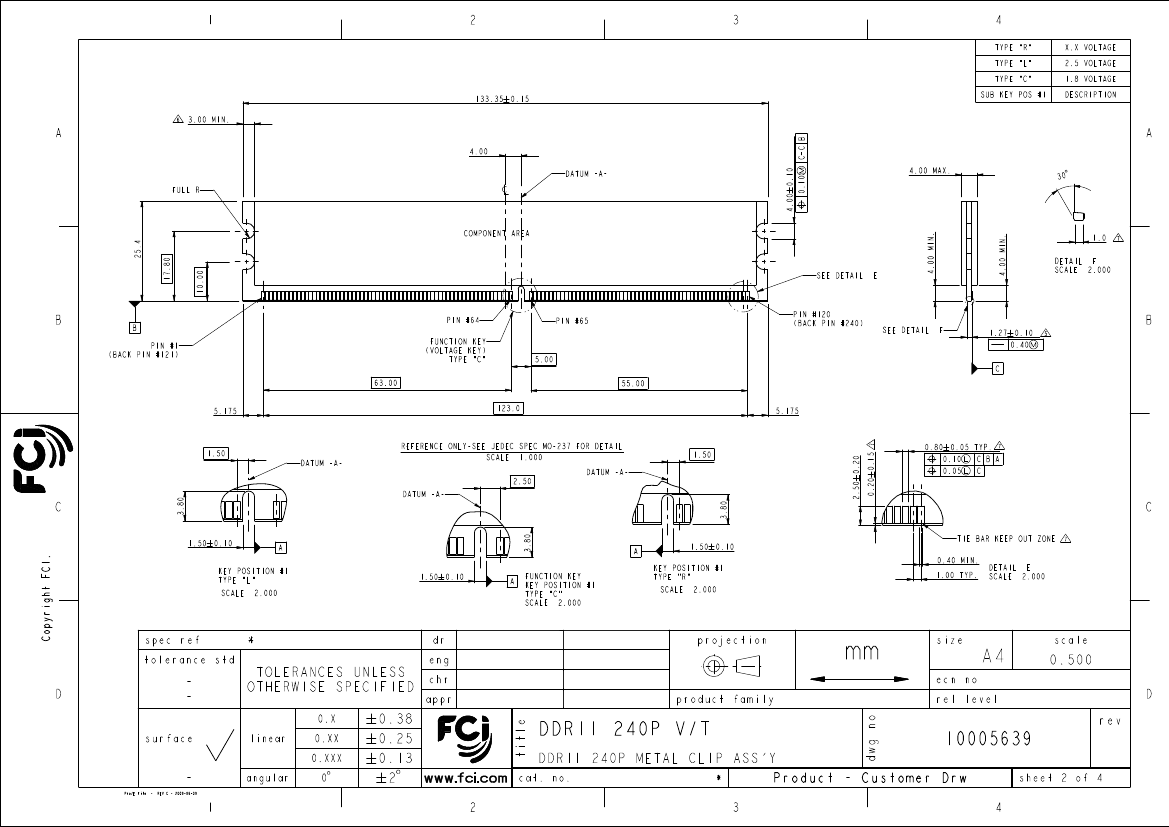

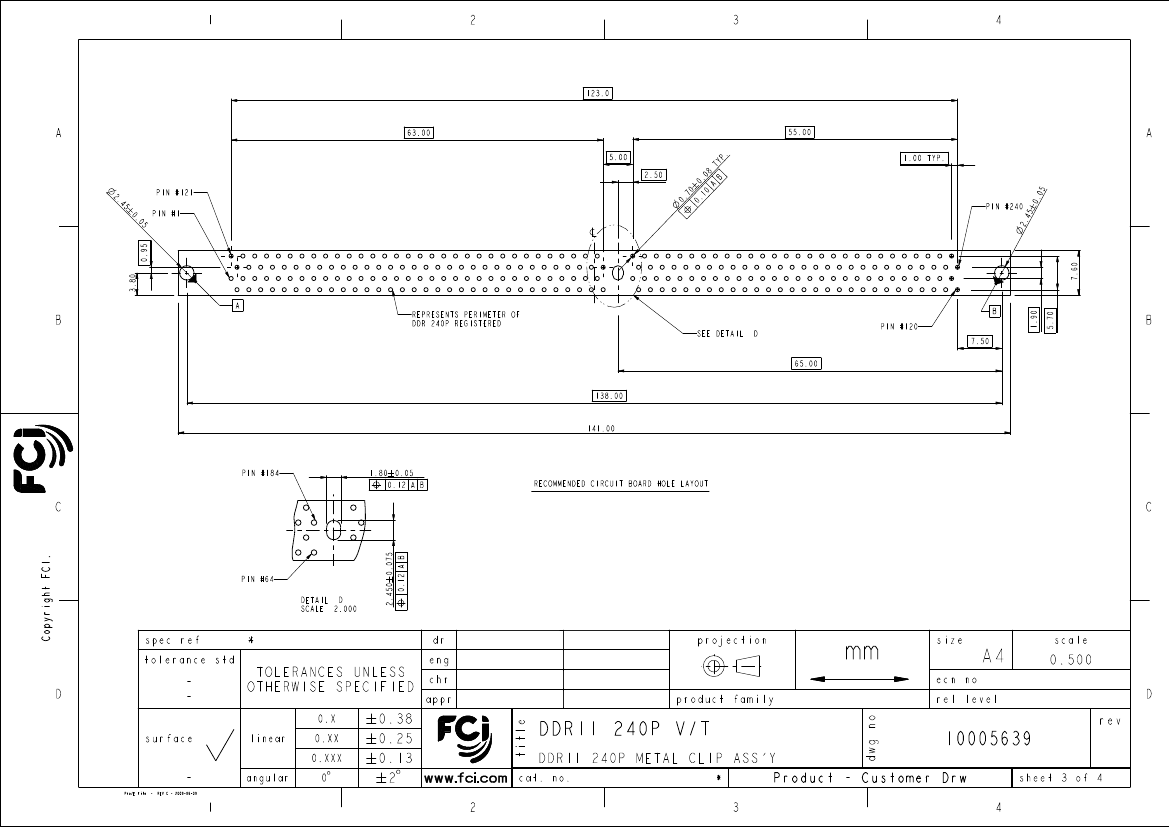

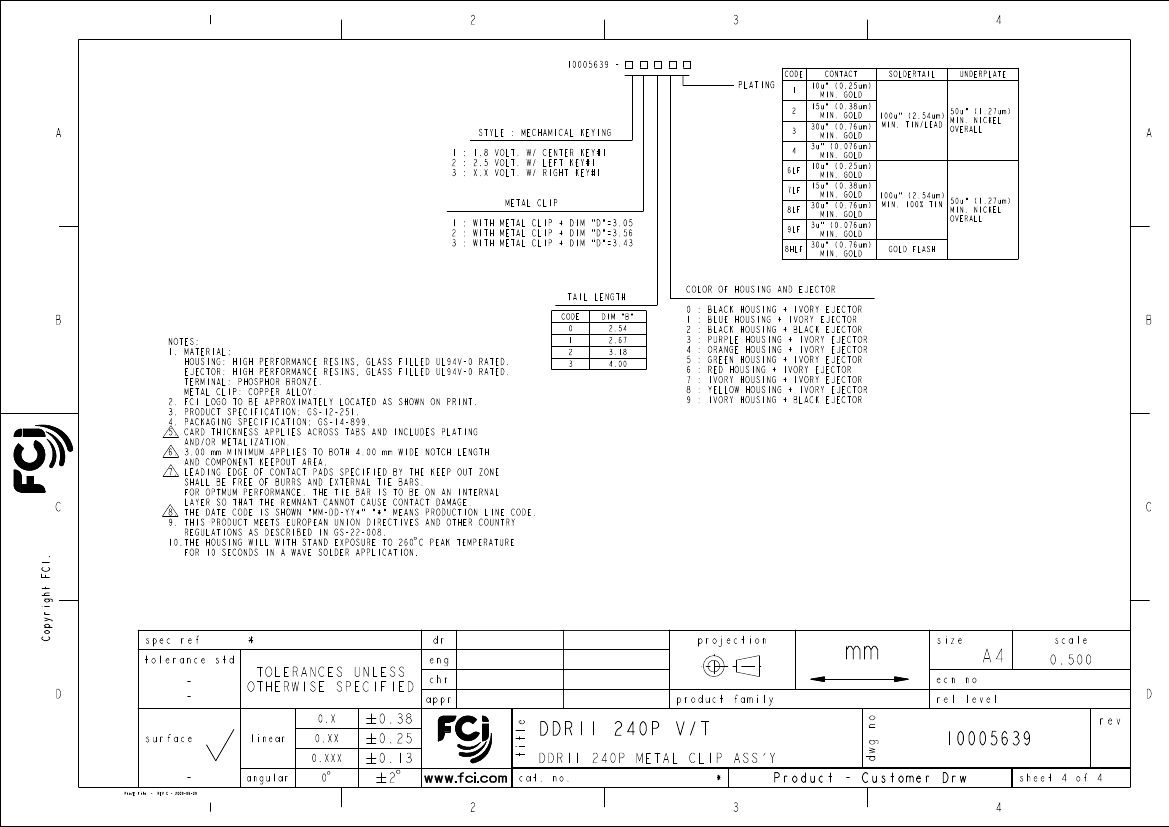

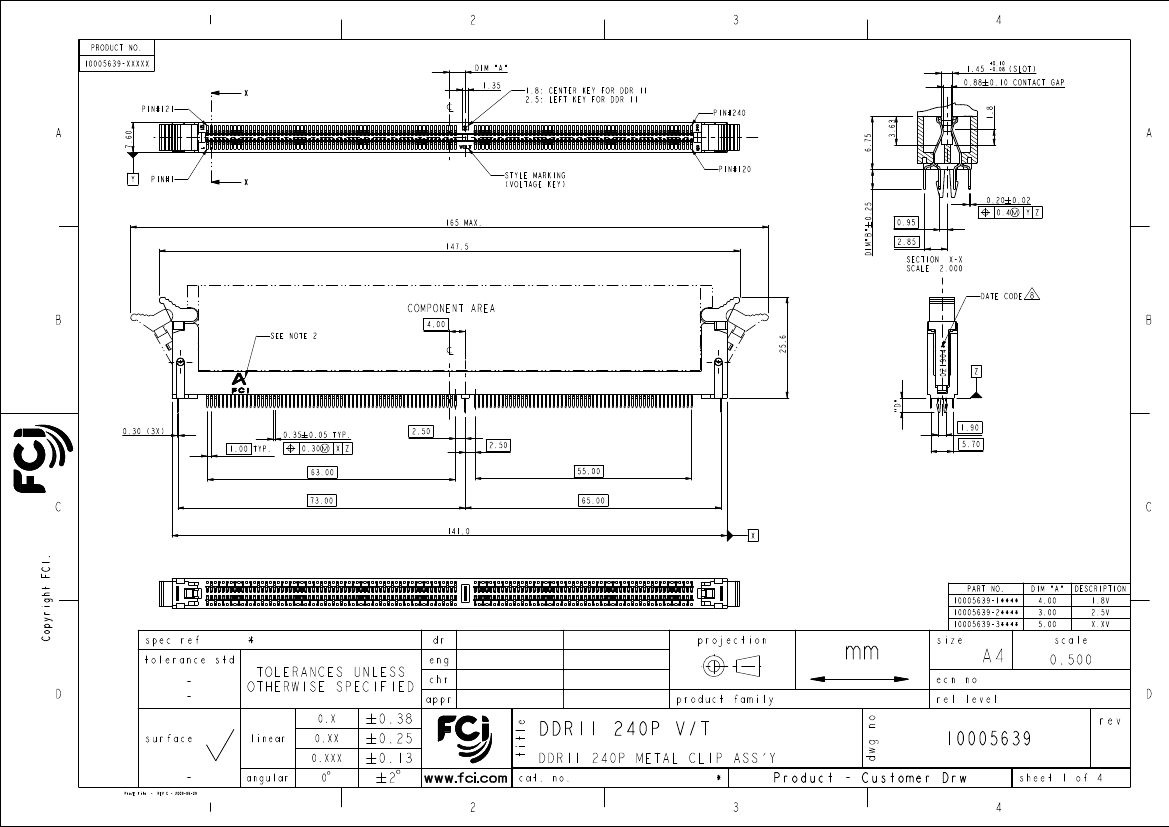

Rick Bian

Nickor Zuo

Jian Huang

Pei-Ming Zheng

2010/07/08

2011/11/30

2011/12/02

ELX-DG-008280-1

Released

X

PDS: Rev :X

STATUS:Released

Printed: Dec 02, 2011
