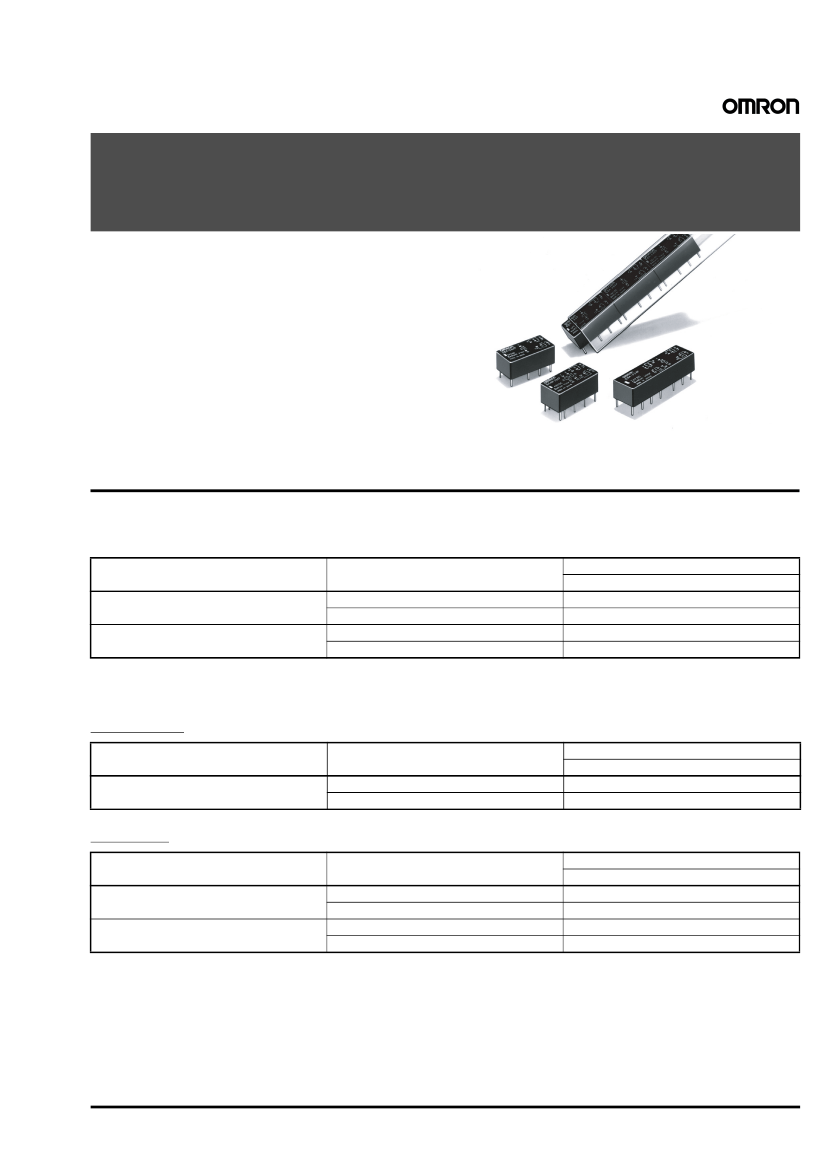

Low Signal Relay
G6A
Fullly Sealed Relay with High Impulse Withstand
• High sensitivity — can be driven by digital circuits.
• Low-profile design allows use in 12.70 mm PC board rack.
• Surge withstand voltage meets FCC Part 68 regulation.
• Units can be mounted side by side due to low magnetic
leakage.
• Special models available for low thermoelectromotive force.
• Unique moving loop (permanent magnet) armature reduces
relay size, magnetic interference, and contact bounce time.
• Single or dual coil winding types available.
• RoHS Compliant
R
C
FCC
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G6A-274P-ST-US-DC12).
■
Non-latching
Type
Standard
Low-sensitivity
DPDT
4PDT
DPDT
4PDT
Contact form
G6A-274P-ST-US
G6A-474P-ST-US
G6A-274P-ST40-US
G6A-474P-ST40-US
Model
Ag (Au clad)
■
Latching
Single Coil
Type
Standard
DPDT
4PDT
Contact form
G6AU-274P-ST-US
G6AU-474P-ST-US
Model
Ag (Au clad)
Dual Coil
Type
Standard
Low-sensitivity
DPDT
4PDT
DPDT
4PDT
Contact form
G6AK-274P-ST-US
G6AK-474P-ST-US
G6AK-274P-ST40-US
G6AK-474P-ST40-US
Model
Ag (Au clad)
Low Signal Relay
G6A
81
Specifications
■
Contact Data
Type
G6A-274P-ST(40)-US, G6A-474P-ST(40)-US
G6AK-274P-ST(40)-US, G6AK-474P-ST(40)-US
G6AU-274P-ST-US, G6AU-474P-ST-US
Resistive load (p.f. = 1)
0.50 A at 125 VAC,
2 A at 30 VDC
Ag (Au clad)
3A
250 VAC, 220 VDC
2A
125 VA, 60 W
10
μA,
10 mVDC
1A
62.50 VA, 30 W
Inductive load (p.f. = 0.4)
(L/R = 7 ms)
0.3 A* at 125 VAC,
1 A at 30 VDC
Load
Rated load
Contact material
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load (See note)
* 0.25A at 125VAC for latching models
Note:
P level:
λ
60
= 0.1 x 10
–6
/operation
This value was measured at a switching frequency of 60 operations/min and the criterion of contact resistance is 50
Ω.
This value may vary
depending on the switching frequency and operating environment. Always double-check relay suitability under actual operating conditions.
■
Coil Data
Standard Non-latching DPDT (G6A-274P-ST-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
66.70
44.6
40
33.30
22.20
16.70
8.30
4.90
Coil
resistance
(Ω)
45
101
125
180
405
720
2,880
9,750
Coil inductance
(ref. value) (H)
Armature
OFF
0.07
0.16
0.20
0.29
0.63
1.10
4.50
13.70
Armature
ON
0.065
0.14
0.18
0.26
0.57
1.06
4.10
12.50
Approx. 235
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
200%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 200
Low-sensitivity Non-latching DPDT (G6A-274P-ST40-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
133.30
88.9
80
66.70
44.30
33.30
16.70
8.30
Coil
resistance
(Ω)
22.50
50.6
62.50
90
203
360
1,440
5,760
Coil inductance
(ref. value) (H)
Armature
OFF
0.03
0.065
0.08
0.11
0.27
0.52
2.10
7.50
Armature
ON
0.02
0.06
0.07
0.10
0.23
0.43
1.80
6.40
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
150%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 400
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
82
Low Signal Relay
G6A
Standard Non-latching 4PDT (G6A-474P-ST-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
120
79.9
72.50
60
40
30
15
7.50
Coil
resistance
(Ω)
25
56.3
69
100
225
400
1,600
6,400
Coil inductance
(ref. value) (H)
Armature
OFF
0.05
0.11
0.14
0.20
0.45
0.80
3.20
12.80
Armature
ON
0.045
0.095
0.12
0.17
0.38
0.68
2.70
10.90
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
150%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 360
Low-sensitivity Non-latching 4PDT (G6A-474P-ST40-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
133.30
88.9
80
66.70
44.30
33.30
16.70
8.30
Coil
resistance
(Ω)
22.50
50.6
62.50
90
203
360
1,440
5,760
Coil inductance
(ref. value) (H)
Armature
OFF
0.035
0.1
0.12
0.17
0.42
0.70
2.80
10.20
Armature
ON
0.02
0.07
0.09
0.13
0.30
0.52
2.20
8.60
70% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
150%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 400
Standard Single Coil Latching DPDT (G6AU-274P-ST-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
33.70
22.2
20
16.70
11.10
8.30
4.20
2.50
Coil
resistance
(Ω)
89
202
250
360
810
1,440
5,760
19,000
Coil inductance
(ref. value) (H)
Armature OFF
0.15
0.34
0.44
0.64
1.38
2.50
9.20
28.50
Armature ON
0.11
0.25
0.35
0.48
1.07
2
7.20
22
Approx. 120
70% max.
Set pick-up
voltage
Reset pick-
up voltage
% of rated voltage
70% min.
200%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 100
Standard Dual Coil Latching DPDT (G6AK-274P-ST-US)
Rated
Rated
Coil
voltage current resistance
(VDC)
(mA)
(Ω)
Coil inductance
(ref. value) (H)
Set coil
Reset coil
Armature Armature Armature Armature
OFF
ON
OFF
ON
3
4.5
5
6
9
12
24
48
66.70
40.2
36
30
20
15
7.50
4.20
45
112
139
200
450
800
3,200
11,520
0.037
0.09
0.11
0.16
0.38
0.60
2.10
8.50
0.027
0.065
0.08
0.12
0.28
0.45
1.50
6.30
0.027
0.065
0.08
0.12
0.28
0.45
1.50
6.30
0.037
0.09
0.11
0.16
0.38
0.60
2.10
8.50
Approx. 200
70% max.
Set
pick-up
voltage
Reset
pick-up
voltage
% of rated voltage
70% min.
200%
at 23°C
Approx. 200
Approx. 180
Maximum
voltage
Power
consumption
(mW)
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
Low Signal Relay
G6A
83
Low-sensitivity Dual Coil Latching DPDT (G6AK-274P-ST40-US)
Coil
Rated
Rated
voltage current resistance
(mA)
(Ω)
(VDC)
Coil inductance (ref. value) (H)
Set coil
Reset coil
Set
pick-up
voltage
Reset
pick-up
voltage
% of rated voltage
70% max.
70% min.
150%
at 23°C
Approx. 360
Maximum
voltage
Power
consumption
(mW)
Armature Armature Armature Armature
OFF
ON
OFF
ON
3
4.5
5
6
9
12
24
48
120
79.9
72.50
60
40
30
15
7.50
25
56.3
69
100
225
400
1,600
6,400
0.015
0.04
0.05
0.07
0.16
0.28
1.10
4
0.01
0.025
0.035
0.05
0.12
0.20
0.75
2.90
0.01
0.025
0.035
0.05
0.12
0.20
0.75
2.9
0.015
0.04
0.05
0.07
0.16
0.28
1.10
4
Standard Single Coil Latching 4PDT (G6AU-474P-ST-US)
Rated
voltage
(VDC)
3
4.5
5
6
9
12
24
48
Rated
current
(mA)
106.80
71.2
64
53.30
35.60
26.70
13.30
6.70
Coil
resistance
(Ω)
28.10
63.2
78.10
112.50
253
450
1,800
7,200
Coil inductance (ref. value) (H)
Armature OFF
0.03
0.06
0.08
0.11
0.25
0.45
1.80
7.00
Armature ON
0.02
0.04
0.06
0.08
0.18
0.32
1.30
5.20
70% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
70% min.
150%
at 23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 320
Standard Dual Coil Latching 4PDT (G6AK-474P-ST-US
Rated
voltage
(VDC)
Rated
Coil
current resistance
(mA)
(Ω)
Coil inductance (ref. value) (H)
Set coil
Reset coil
Set
pick-up
voltage
Reset
pick-up
voltage
% of rated voltage
70% max.
70% min.
150%
at 23°C
Approx. 320
Maximum
voltage
Power
consumption
(mW)
Armature Armature Armature Armature
OFF
ON
OFF
ON
3
4.5
5
6
9
12
24
48
106.80
71.2
64
53.30
35.60
26.70
13.30
6.70
28.10
63.2
78.10
112.50
253
450
1,800
7,200
0.03
0.06
0.08
0.11
0.25
0.45
1.80
7.00
0.02
0.04
0.06
0.08
0.18
0.32
1.30
5.20
0.02
0.04
0.06
0.08
0.18
0.32
1.30
5.20
0.03
0.06
0.08
0.11
0.25
0.45
1.80
7.00
Dual Coil Latching Low-sensitivity 4PDT (G6AK-474P-ST40-US)
Rated
voltage
(VDC)
Rated
Coil
current resistance
(mA)
(Ω)
Coil inductance (ref. value) (H)
Set coil
Reset coil
Set
pick-up
voltage
Reset
pick-up
voltage
% of rated voltage
70% max.
70% min.
150%
at 23°C
Approx. 360
Maximum
voltage
Power
consumption
(mW)
Armature Armature Armature Armature
OFF
ON
OFF
ON
3
4.5
5
6
9
12
24
48
120
79.9
72.50
60
40
30
15
7.50
25
56.3
69
100
225
400
1,600
6,400
0.02
0.045
0.065
0.09
0.18
0.30
1.20
4.40
0.02
0.035
0.05
0.075
0.14
0.23
0.82
3.20
0.02
0.035
0.05
0.075
0.14
0.23
0.82
3.20
0.02
0.045
0.065
0.09
0.18
0.30
1.20
4.40
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Operating characteristics are measured at a coil temperature of 23°C.
3.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
84
Low Signal Relay
G6A
■
Characteristics
Type
Contact resistance (See note 1)
Operate (set) time
(See note 2)
Release (reset) time
(See note 2)
DPDT
4PDT
DPDT
4PDT
4PDT
Operating frequency
Mechanical
Electrical
Insulation resistance (See note 3)
Dielectric strength
50 mΩ max.
5 ms max. (mean value approx. 3 ms)
7 ms max. (mean value approx 3.80 ms)
3 ms max. (mean value approx. 1.20 ms)
5 ms max. (mean value approx. 1.30 ms)
7 ms min.
15 ms min.
36,000 operations/hour
1,800 operations/hour (under rated load)
1,000 MΩ min. (at 500 VDC); except for set-reset
1,000 VAC, 50/60 Hz for 1 minute between coil and contacts
1,000 VAC, 50/60 Hz for 1 minute between contacts of different poles
1,000 VAC, 50/60 Hz for 1 minute between contacts of same pole
250 VAC, 50/60 Hz for 1 minute between set and reset coils
Surge withstand voltage
Vibration
Shock
Ambient temperature
Humidity
Service life
Weight
Mechanical
Electrical
DPDT
4PDT
1,500 V (10 x 160
μs)
(conforms to FCC Part 68)
Mechanical durability
10 to 55 Hz; 5 mm double amplitude
Malfunction durability
10 to 55 Hz; 3.3 mm double amplitude
Mechanical durability
1,000 m/s
2
(Approx. 100G
Malfunction durability
DPDT: 500 m/s
2
(Approx. 50 G); 4PDT: 300 m/s
2
(Approx. 30 G)
-40° to 70°C with no icing
5% to 85% RH
100 million operations min. (at 36,000 operations/hour)
500,000 operations min. (at 1,800 operations/hr) See “Characteristic Data”
Approx. 3.5 g
Approx. 6.0 g
5 ms max. (mean value approx. 2.50 ms)
7 ms max. (mean value approx. 3.30 ms)
5 ms max. (mean value approx. 2.50 ms)
7 ms max. (mean value approx. 2.70 ms)
Non-latching
Latching
Min. set/reset signal width DPDT
Note: 1.
The contact resistance was measured with 10 mA at 1 VDC with a fall-of-potential method.
2.
Values in parentheses are typical values unless otherwise stated.
3.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those for checking the dielectric strength
(except between the set and reset coil).
4.
The above values are initial values.
■
Approvals
UL Recognized (File No. E41515) / CSA Certified (File No. LR31928) - - Ambient Temp. = 40°C
Type
G6A( )-274P-ST( )-US
Contact form
DPDT
Coil rating
1.5 to 48 VDC
Contact ratings
1 A at 125 VAC (General Purpose)
2 A at 30 VDC (General Purpose)
0.6 A at 110 VDC (General Purpose)
Number of test operations
6,000
Note: 1.
The rated values approved by each of the safety standards (e.g., UL and CSA) may be different from the performance characteristics
individually defined in this catalog.
2.
In the general interest of product improvement, specifications are subject to change.
Low Signal Relay
G6A
85
京公网安备 11010802033920号
EEWORLD
