CS-8126DW16: DescriptionFixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO16, WIDE, SOIC-16; CategoryPower/power management The power supply circuit; File Size829KB，8 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

CS-8126DW16 Overview

Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO16, WIDE, SOIC-16

CS-8126DW16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CHERRY
package instruction	SOP, SOP16,.4
Reach Compliance Code	unknown
Adjustability	FIXED
Maximum drop-back voltage 1	0.6 V
Nominal dropback voltage 1	0.4 V
Maximum input voltage	26 V
Minimum input voltage	6 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Number of functions	1
Output times	1
Number of terminals	16
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-45 °C
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.75 A
Maximum output voltage 1	5.15 V
Minimum output voltage 1	4.85 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	3%

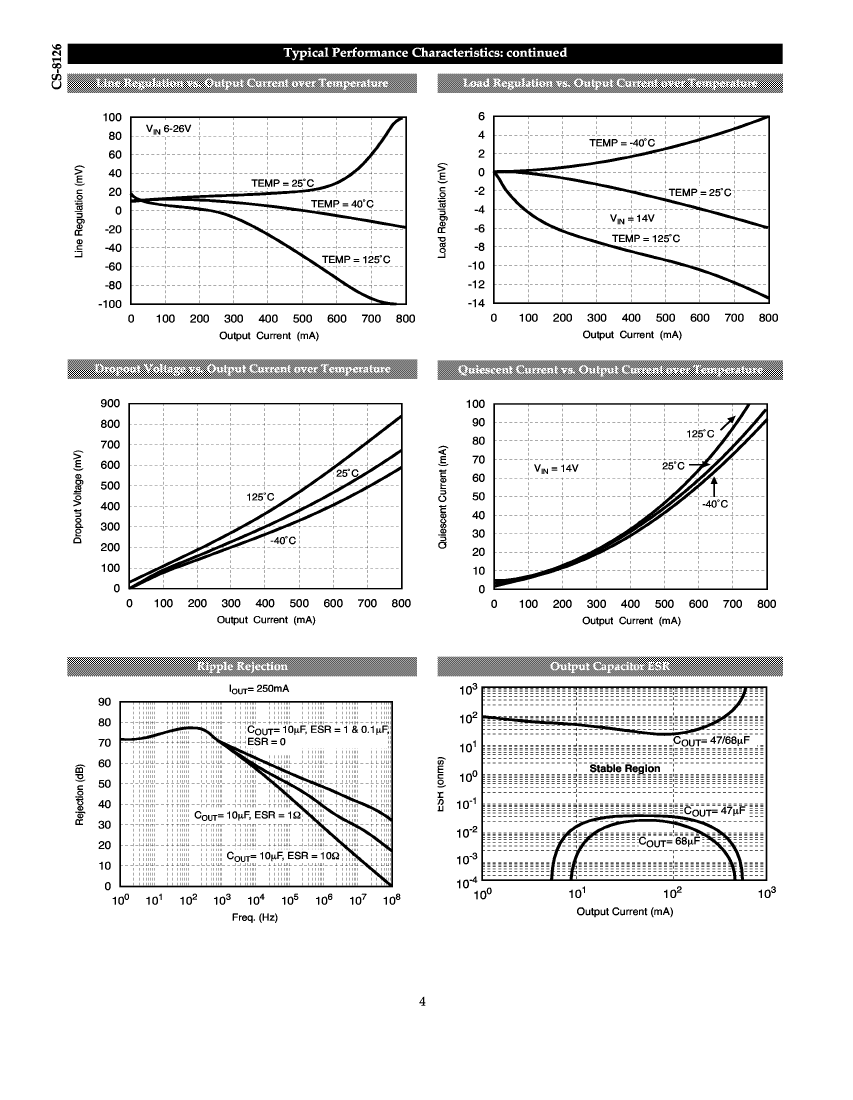

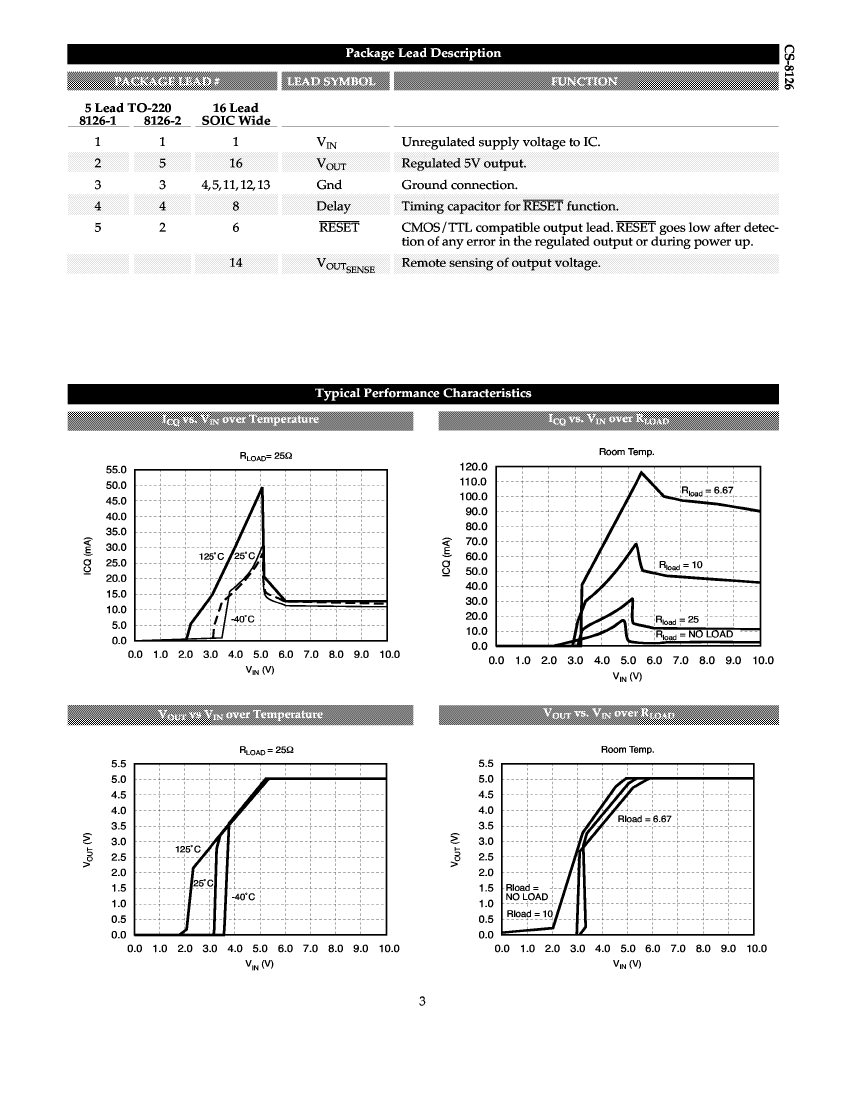

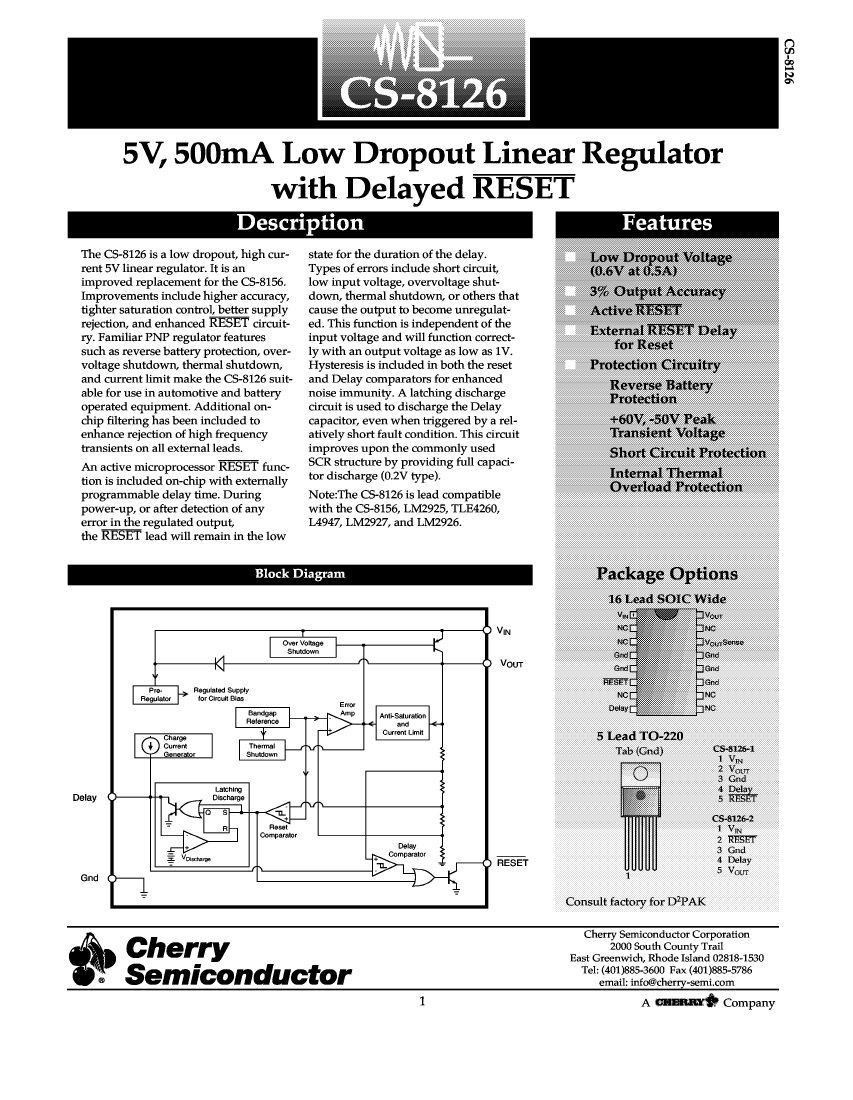

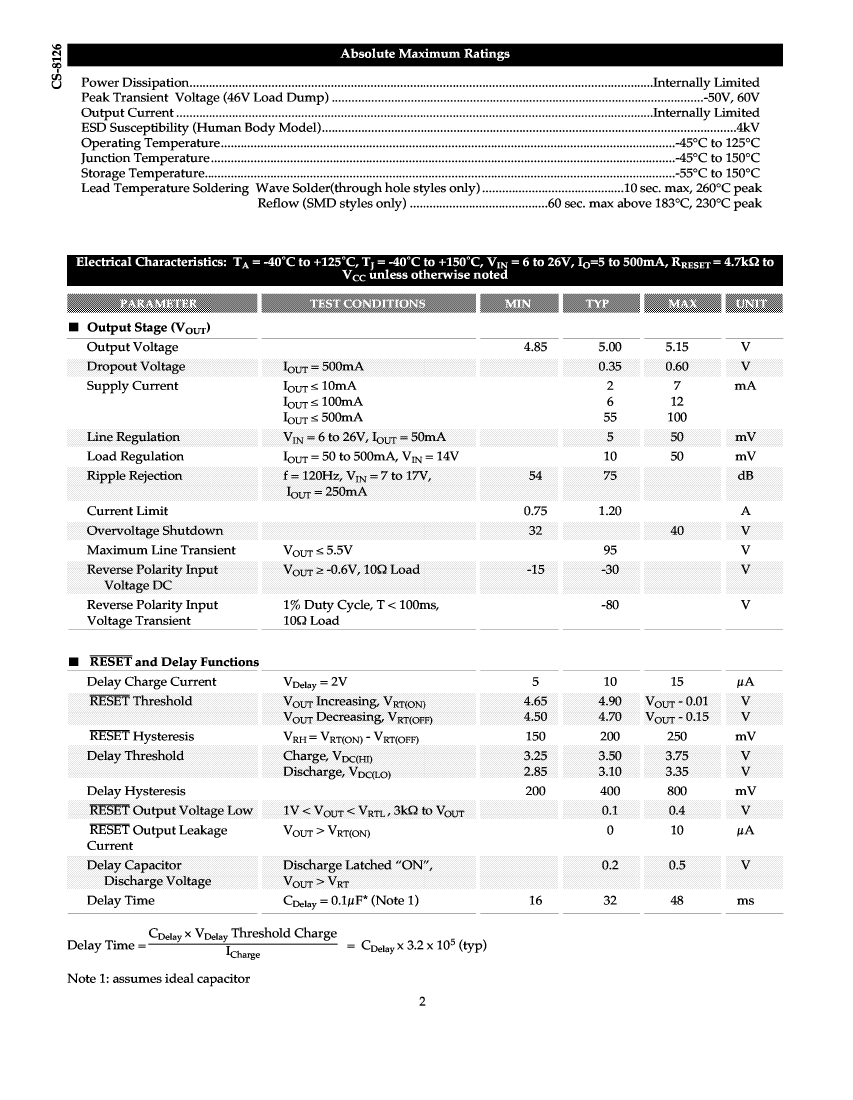

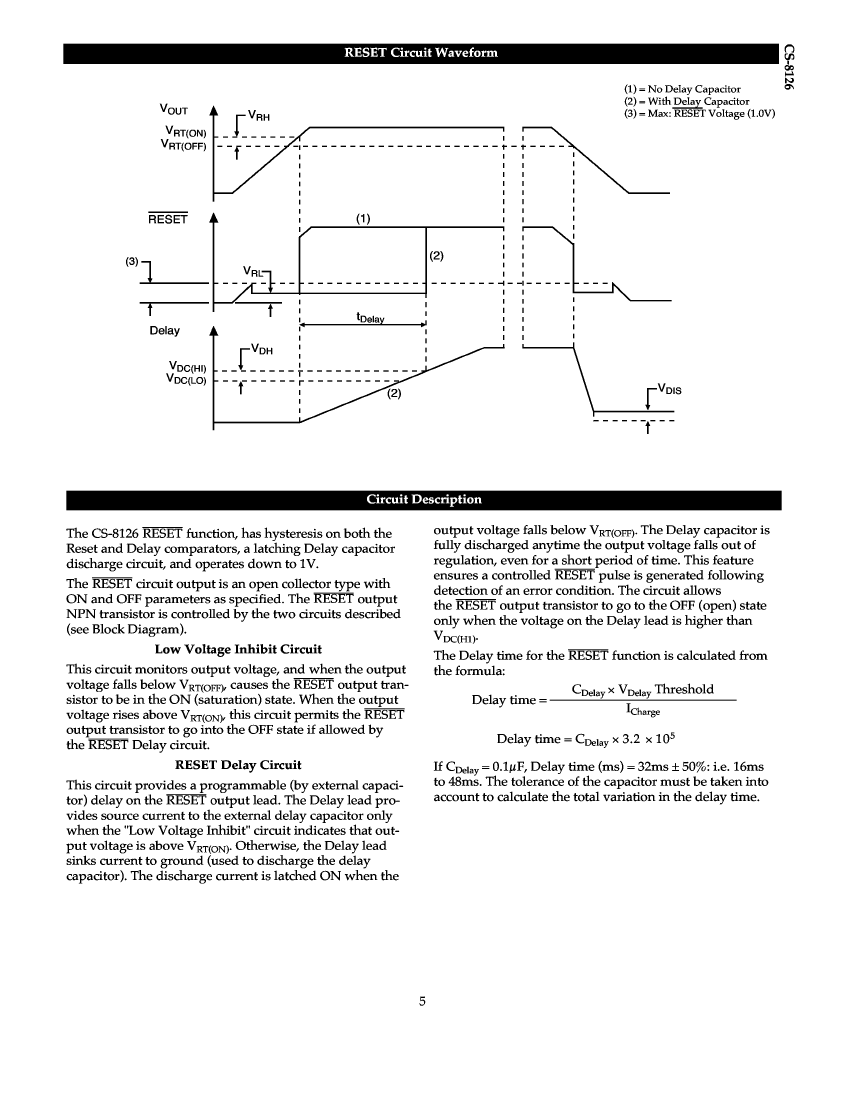

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CS-8126DW16 Related Products

	CS-8126DW16	CS-8126-1T5	CS-8126-1TH5	CS-8126-1TV5	CS-8126-2T5	CS-8126-2TH5	CS-8126-2TV5	CS-8126DWR16
Description	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO16, WIDE, SOIC-16	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, STRAIGHT, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, HORIZONTAL, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, VERTICAL, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, STRAIGHT, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, HORIZONTAL, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, VERTICAL, TO-220, 5 PIN	Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PDSO16, SOIC-16
package instruction	SOP, SOP16,.4	STRAIGHT, TO-220, 5 PIN	HORIZONTAL, TO-220, 5 PIN	ZIP, ZIP5,.15,.2,67TB	STRAIGHT, TO-220, 5 PIN	HORIZONTAL, TO-220, 5 PIN	ZIP, ZIP5,.15,.2,67TB	SOIC-16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V
Maximum input voltage	26 V	26 V	26 V	26 V	26 V	26 V	26 V	26 V
Minimum input voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
JESD-30 code	R-PDSO-G16	R-PSFM-T5	R-PSFM-T5	R-PSFM-T5	R-PSFM-T5	R-PSFM-T5	R-PSFM-T5	R-PDSO-G16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	5	5	5	5	5	5	16
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-40 °C
Maximum output current 1	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.5 A
Maximum output voltage 1	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V	5.15 V
Minimum output voltage 1	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V	4.85 V
Nominal output voltage 1	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	NO	NO	NO	NO	NO	NO	YES
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	-
Nominal dropback voltage 1	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-
Maximum grid adjustment rate	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	-
Maximum load regulation	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	-
Output times	1	1	1	1	1	1	1	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
encapsulated code	SOP	-	ZIP	ZIP	-	ZIP	ZIP	-
Encapsulate equivalent code	SOP16,.4	SIP5,.1,67TB	ZIP5H,.15,.7,67TB	ZIP5,.15,.2,67TB	SIP5,.1,67TB	ZIP5H,.15,.7,67TB	ZIP5,.15,.2,67TB	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	1.27 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum voltage tolerance	3%	3%	3%	3%	3%	3%	3%	-
Base Number Matches	-	1	1	1	1	1	1	-
