SKKE15/14 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SKKE15/14

SKKE15/14: DescriptionRectifier Diode, 1 Phase, 1 Element, 15A, 1400V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN; CategoryDiscrete semiconductor diode; File Size546KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKE15/14 Overview

Rectifier Diode, 1 Phase, 1 Element, 15A, 1400V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN

SKKE15/14 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	R-XUFM-D2
Contacts	2
Manufacturer packaging code	CASE A4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, UL RECOGNIZED
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.85 V
JESD-30 code	R-XUFM-D2
JESD-609 code	e2
Maximum non-repetitive peak forward current	280 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	15 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1400 V
Maximum reverse current	2500 µA
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

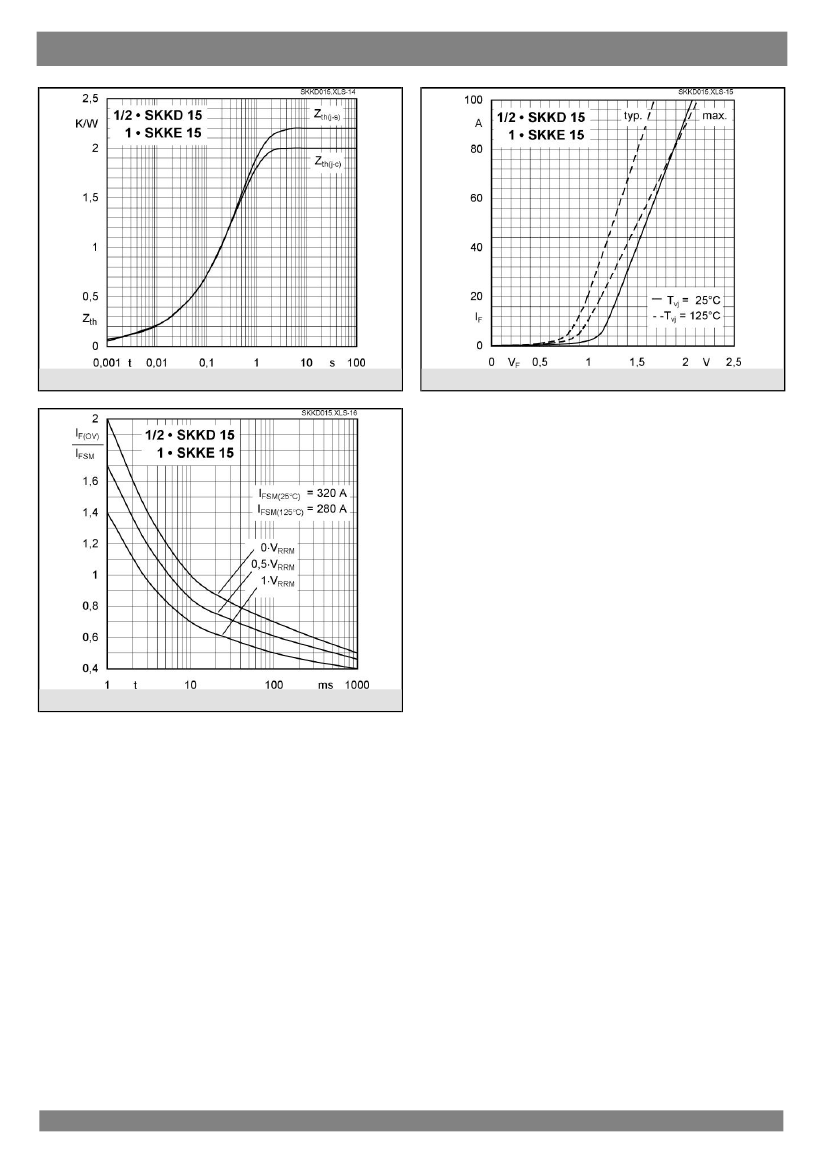

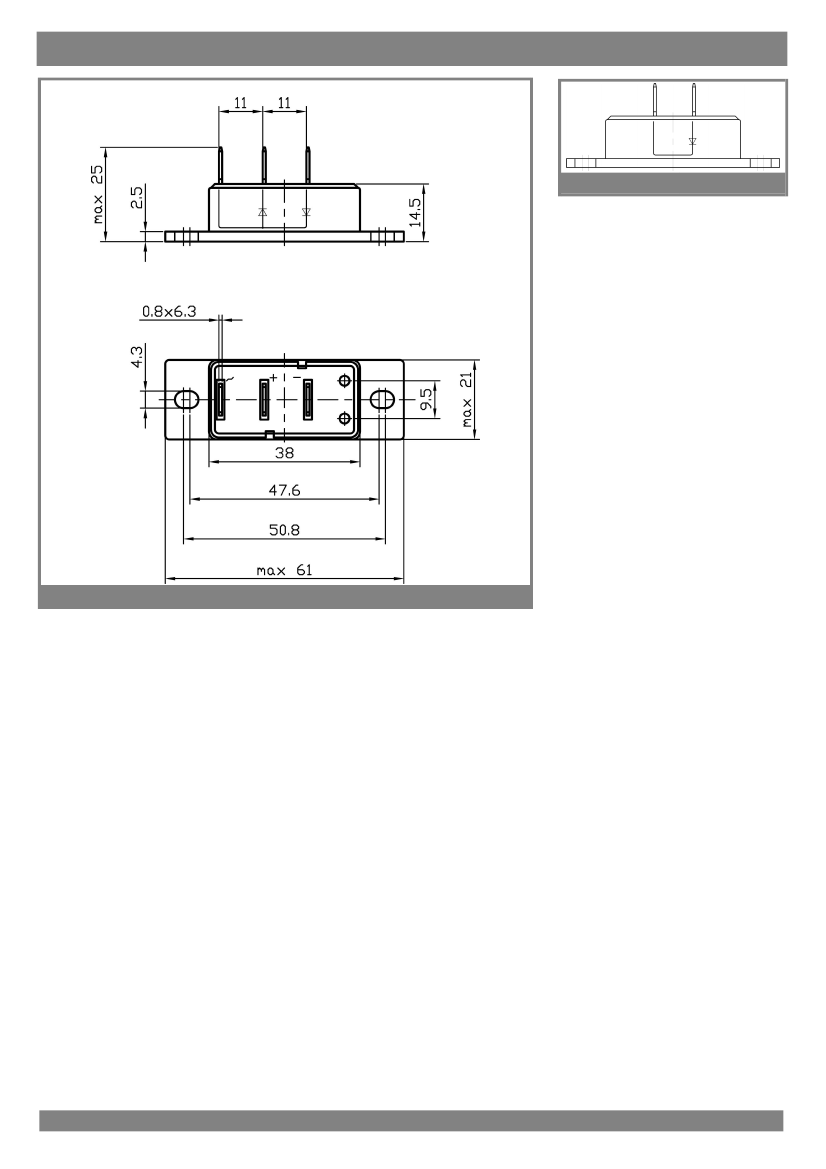

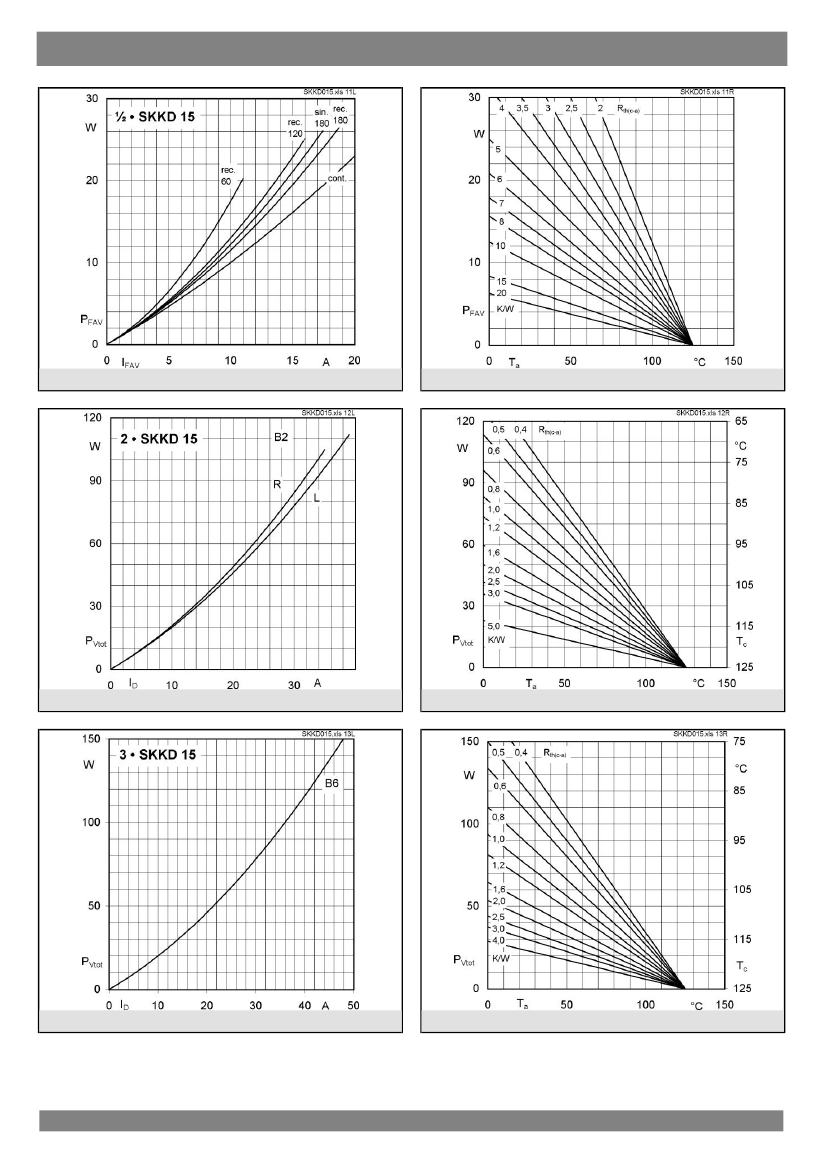

Preview

Download Datasheet

View All

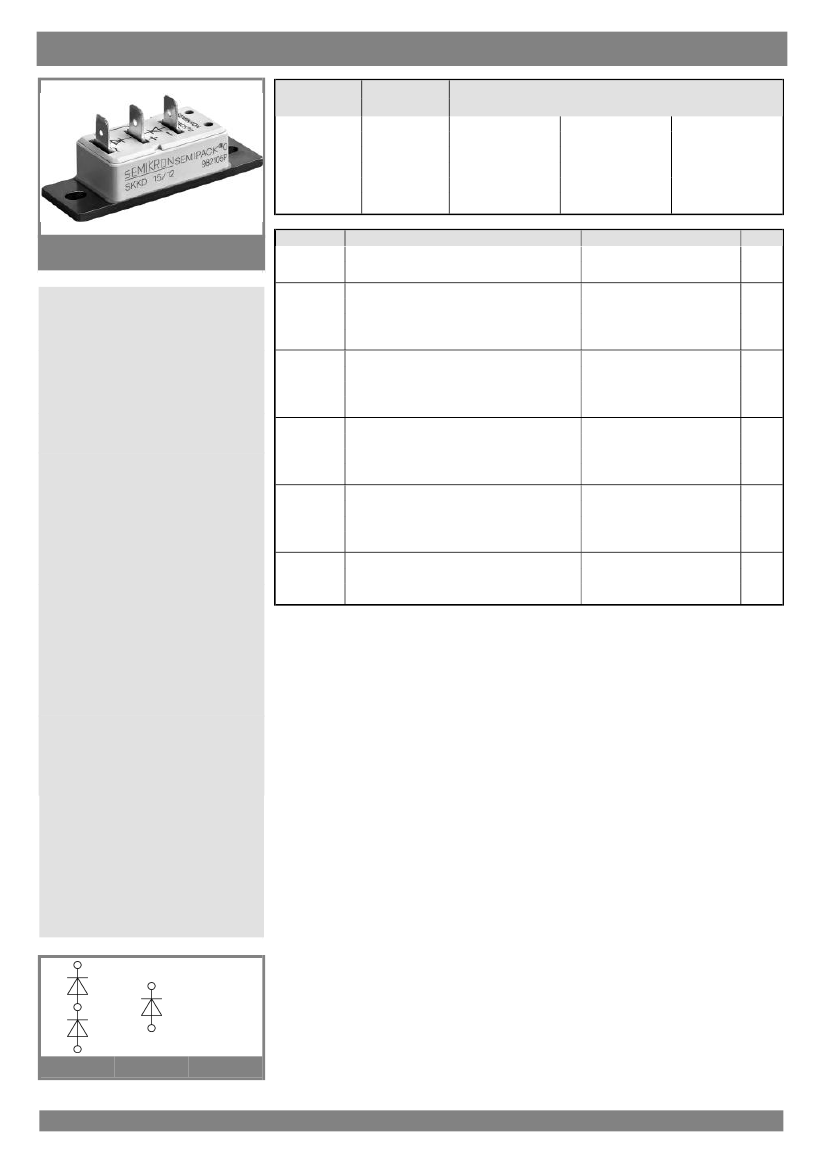

SKKD 15

SEMIPACK 0

Rectifier Diode Modules

SKKD 15

SKKE 15

Symbol

Conditions

Values

Units

Features

Typical Applications

SKKD

SKKE

28-08-2003 IMP

SKKE15/14 Related Products

	SKKE15/14	SKKE15/06	SKKE15/16	SKKE15/08	SKKE15/04
Description	Rectifier Diode, 1 Phase, 1 Element, 15A, 1400V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 15A, 600V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 15A, 1600V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 15A, 800V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 15A, 400V V(RRM), Silicon, CASE A4, SEMIPACK 0, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2
Contacts	2	2	2	2	2
Manufacturer packaging code	CASE A4	CASE A4	CASE A4	CASE A4	CASE A4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, UL RECOGNIZED	FREE WHEELING DIODE, UL RECOGNIZED	FREE WHEELING DIODE, UL RECOGNIZED	FREE WHEELING DIODE, UL RECOGNIZED	UL RECOGNIZED, HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V
JESD-30 code	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2	R-XUFM-D2
JESD-609 code	e2	e2	e2	e2	e2
Maximum non-repetitive peak forward current	280 A	280 A	280 A	280 A	280 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1400 V	600 V	1600 V	800 V	400 V
Maximum reverse current	2500 µA	2500 µA	2500 µA	2500 µA	2500 µA
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Is Samacsys	-	N	N	N	N
Base Number Matches	-	1	1	1	1
