HPD15-24D12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> HPD15-24D12

HPD15-24D12: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid; CategoryPower/power management The power supply circuit; File Size45KB，3 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

HPD15-24D12 Overview

DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid

HPD15-24D12 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -12V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	S-MDMA-P5
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Maximum output voltage	12.24 V
Minimum output voltage	11.76 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	15 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

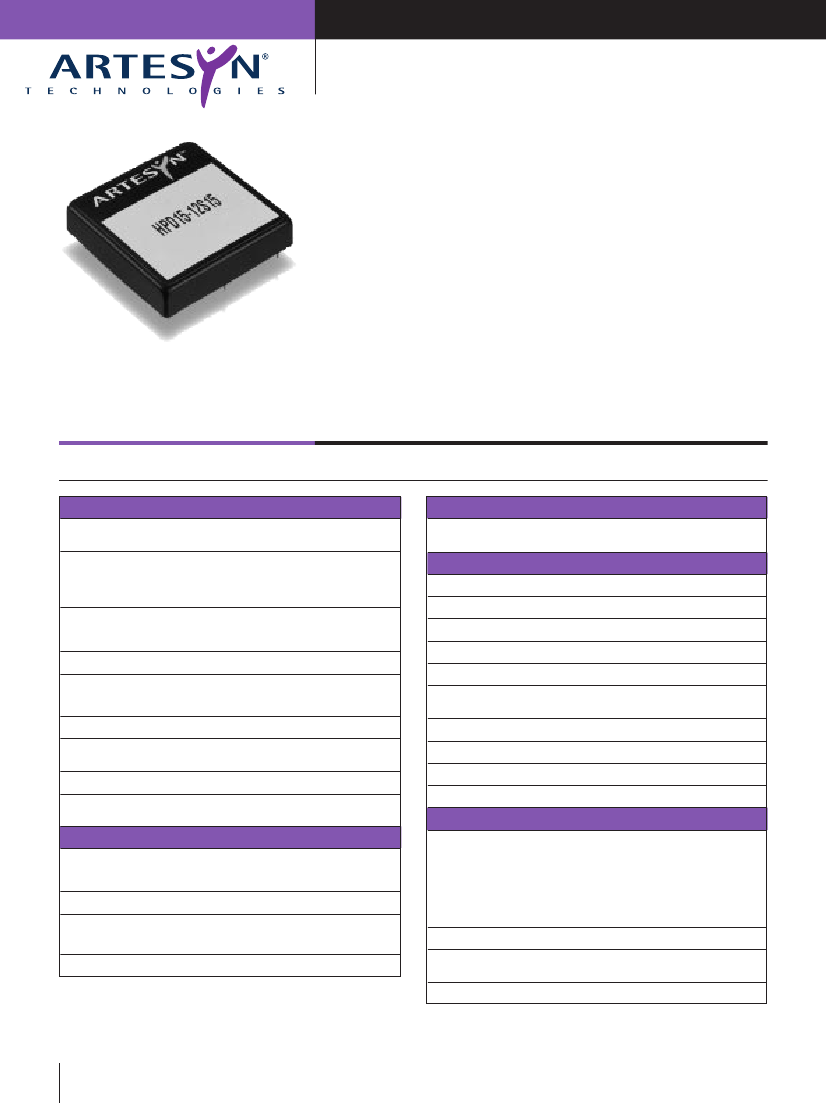

HPD15 SERIES

Single, dual and triple output

•

2.0 x 2.0 x 0.4 inch package (singles and duals)

2:1 wide input voltage range

30 models available including 2.1V and 3.3V outputs

Indefinite short circuit protection

EN55022 conducted emissions level A

Designed to meet EN60950 and IEC950

The HPD15 series of DC/DC converters offer 15 Watts of output power in a high

density 2 x 2 inch case. A range comprises 30 models with 2:1 wide input

voltages of 9-18V, 18-36V and 36-72VDC. Single, dual and triple outputs are

available with 2.1V and 3.3V single outputs suitable for low voltage logic

requirements. Standard features of the HPD15 series include indefinite short

circuit protection and undervoltage lockout. The series meets EN55022 level A

conducted and radiated emissions. In addition to this, all outputs are regulated

and isolated from the input. Typical applications are on board logic or analog

circuits supplied by telecom distribution power voltages, cellular and

telecommunications systems.

[ 2 YEAR WARRANTY ]

SPECIFICATION

OUTPUT SPECIFICATIONS

Line regulation

Cross regulation

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

EMC CHARACTERISTICS

±0.3%

±1.5%

4.0% max.

5.0% max.

±0.2%

Isolation resistance

±4.0%

Isolation capacitance

Input/output

Fixed

Designed to meet

±2.0%

Switching frequency

180 to 220kHz

EN60950

IEC950

Input/output

Conducted emissions

Radiated emissions

EN55022, FCC part 15

Level A

LL to HL, singles and duals

LL to HL, triple output

Duals: asymmetrical load

10% to 100% FL

Triples: asymmetrical load

10% to 100% FL

Singles and duals:

10% to 100% FL

Triples: 10% to 100% FL

GENERAL SPECIFICATIONS

Efficiency

Isolation voltage

See table

Input/output

78% typ.

500VDC

Ω

1nF

Load regulation

Voltage accuracy

Minimum load

2.1V, 3.3V, 5V

50mA max.

Single 12V, 15V

20mA max.

Duals & triples, each output

10% FL

At start-up

20MHz bandwidth

3.0% max.

1.5% pk-pk, max.

20mV rms

±0.02%/°C

Hiccup mode

See Note 4

Indefinite

Approvals and

standards

Case material

Material flammability

Weight

MTBF

Overshoot

Ripple and noise

Temperature coefficient

Short circuit protection

Black coated, metal case

UL94V-0

65g (2.29oz)

MIL-HDBK-217F

300,000 hours

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

9 to 18VDC

18 to 36VDC

36 to 72VDC

See table

8.5VDC

17VDC

34VDC

200ms

Relative humidity

Altitude

Vibration

Operating ambient

-10°C to +50°C

(See derating curve)

Extended temp.,

-25°C to +50°C

option, See Note 2

Non-operating amb.

-25°C to +95°C

Case

+95°C max.

Derating

See derating curve

Cooling

Free air convection cooled

Non-condensing

Operating

Non operating

5Hz to 500Hz

30% to 95%

10,000 feet max.

40,000 feet max.

2.5G rms (approx.)

INPUT SPECIFICATIONS

Input voltage range

12VDC nominal

24VDC nominal

48VDC nominal

Input current

Undervoltage lockout

12V nominal

(dual and triple outputs) 24V nominal

48V nominal

Start-up time

PAGE 1
