FTMH-1-40-02-L-DH datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTMH-1-40-02-L-DH

FTMH-1-40-02-L-DH: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，20 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTMH-1-40-02-L-DH Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

FTMH-1-40-02-L-DH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	E.L.P.
body width	0.125 inch
subject depth	0.07 inch
body length	1.576 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FTMH
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.556 mm
Plating thickness	FLASH inch
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

Preview

Download Datasheet

View All

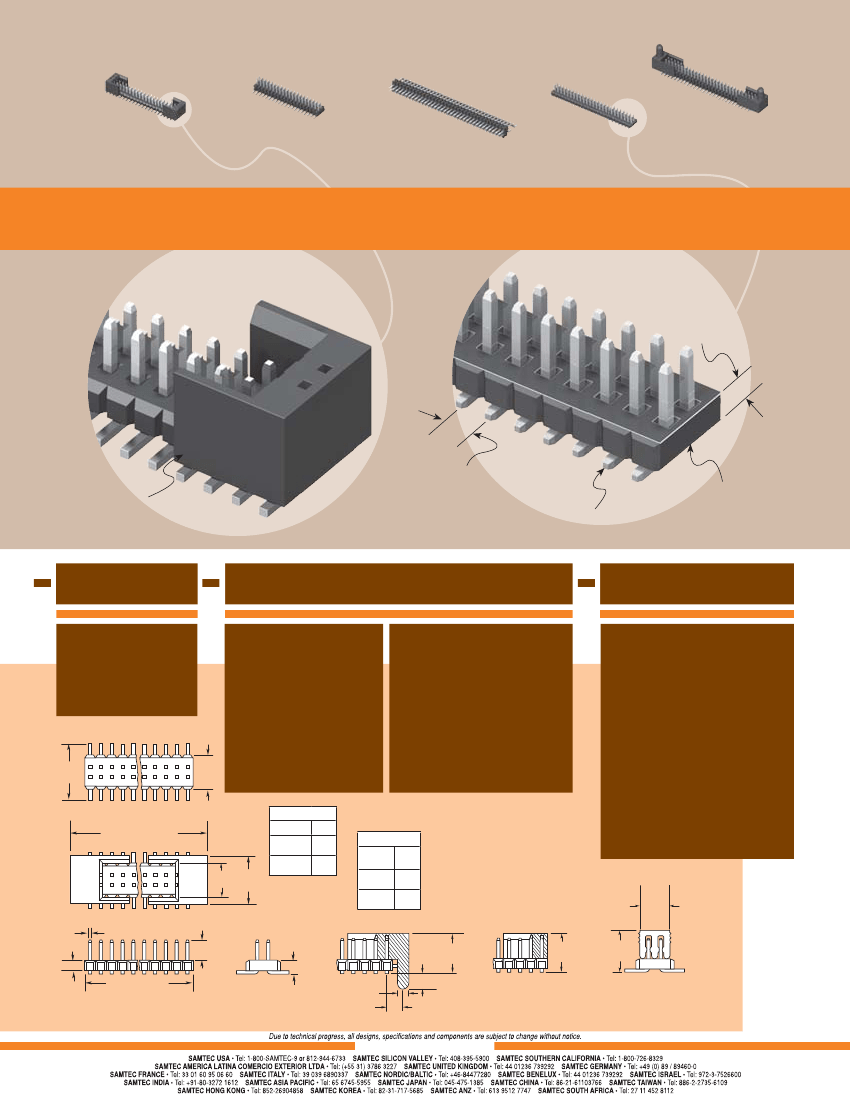

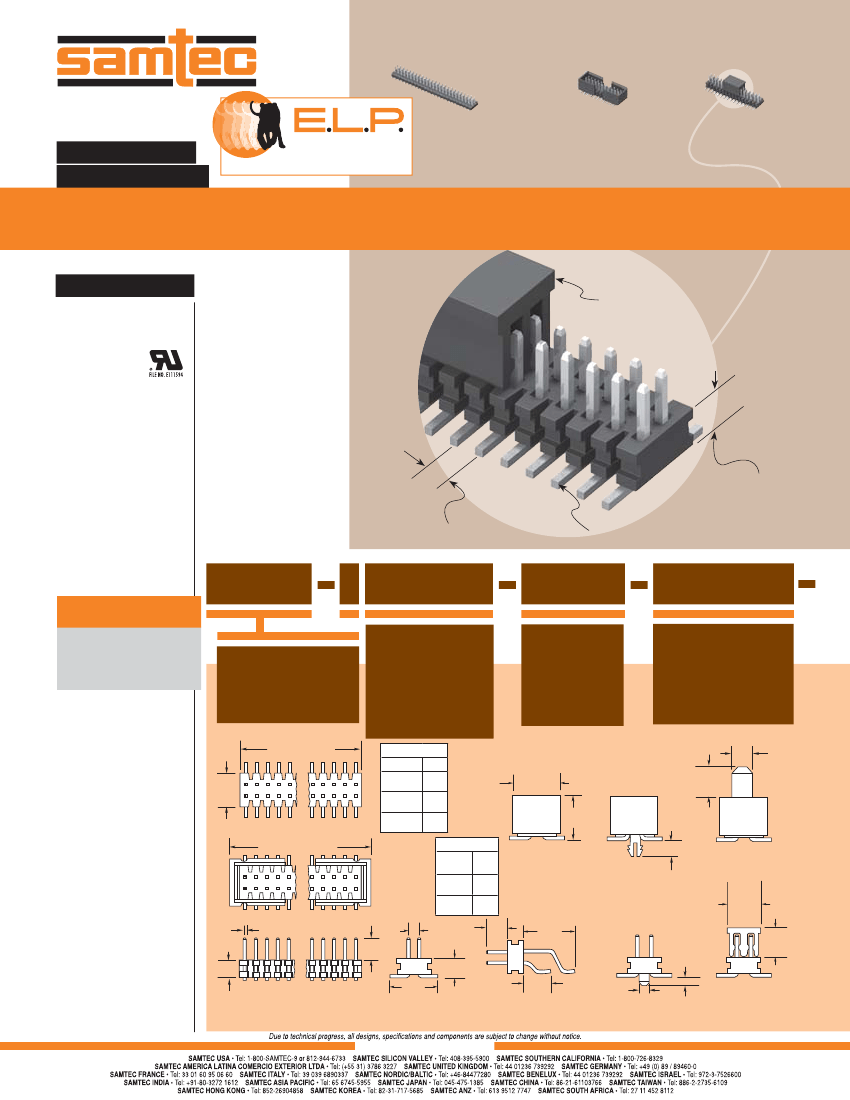

F-211

FTM–125–02–L–DV

FTMH–116–02–L–DV–P

FTMH–111–02–F–DV–ES–A

EXTENDED LIFE PRODUCT

(1,00mm) .03937"

FTMH, FTM SERIES

10 year Mixed Flowing Gas with 30µ" Gold

Call Samtec for maximum cycles

SMT MICRO TERMINIAL STRIPS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FTMH

or www.samtec.com?FTM

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Current Rating:

FTMH = 2.5A @ 80°C ambient

FTM = 1.5A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Plating:

Sn or Au over

50µ" (1,27µm) Ni

RoHS Compliant:

Yes

Mates with:

CLM, MLE

Optional

Pick & Place

pads

Processing:

Lead-Free Solderable:

Yes

-DV Lead Coplanarity:

(0,10mm) .004" max

-DH Lead Coplanarity:

(0,10mm) .004" max (05-25)

(0,15mm) .006" max (26-50)

(1,00mm) .03937"

micro pitch

Low proﬁle

(1,79mm)

.071"

Surface

Mount

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

APPLICATION

SPECIFIC OPTION

End shrouds with

board locks available.

Molded end shrouds available

for 05 through 08 positions.

Call Samtec.

FTMH

= SMT Micro

= 02 thru 50

(FTMH –DH Row Option)

(FTM except –S & –SA

option 04 thru 46)

= 05 thru 50

(–DV Row Option)

100

FTMH & FTM

–02

= (1,91) .075" Post

(Mates with MLE)

–F

= Gold ﬂash on post,

Matte Tin on tail

FTM

= Micro Low Proﬁle

No. of positions

x (1,00) .03937

FTMH

–03

= (1,65) .065" Post

(Mates with CLM)

–L

= 10µ" (0,25µm) Gold on post,

Matte Tin on tail

FTMH

OPTION

(1,57)

.062

(4,06)

.160

(5,49)

.216

(1,91)

.075

DIA

(4,32)

.170

(3,84)

.151

(3,17)

.125

– ES

– EC

FTMH

No. of positions

x (1,00) .03937 +

(3,10)

.122

– EP

(1,22)

.048

FTMH

LEAD

STYLE

– 02

– 03

–ES OPTION

–EC OPTION

– EP OPTION

(1,91)

.075

(1,65)

.065

(0,30) .012 SQ TYP

(1,00)

.03937

(5,00)

.197

(0,69)

.027

(2,59)

.102

(0,64) .025

DIA

(3,18)

.125

(5,08)

.200

(3,18)

.125

(1,49)

.059

Shrouded option removed for clarity

(1,80)

.071

(5,21)

.205

–P OPTION

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–DV OPTION

–DH OPTION

–A OPTION

WWW.SAMTEC.COM
