C-0408-30-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> C-0408-30-U

C-0408-30-U: DescriptionDirectional Coupler, 4000MHz Min, 8000MHz Max, 0.4dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size82KB，2 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

C-0408-30-U Overview

Directional Coupler, 4000MHz Min, 8000MHz Max, 0.4dB Insertion Loss-Max,

C-0408-30-U Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=3000WATT
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
Maximum insertion loss	0.4 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

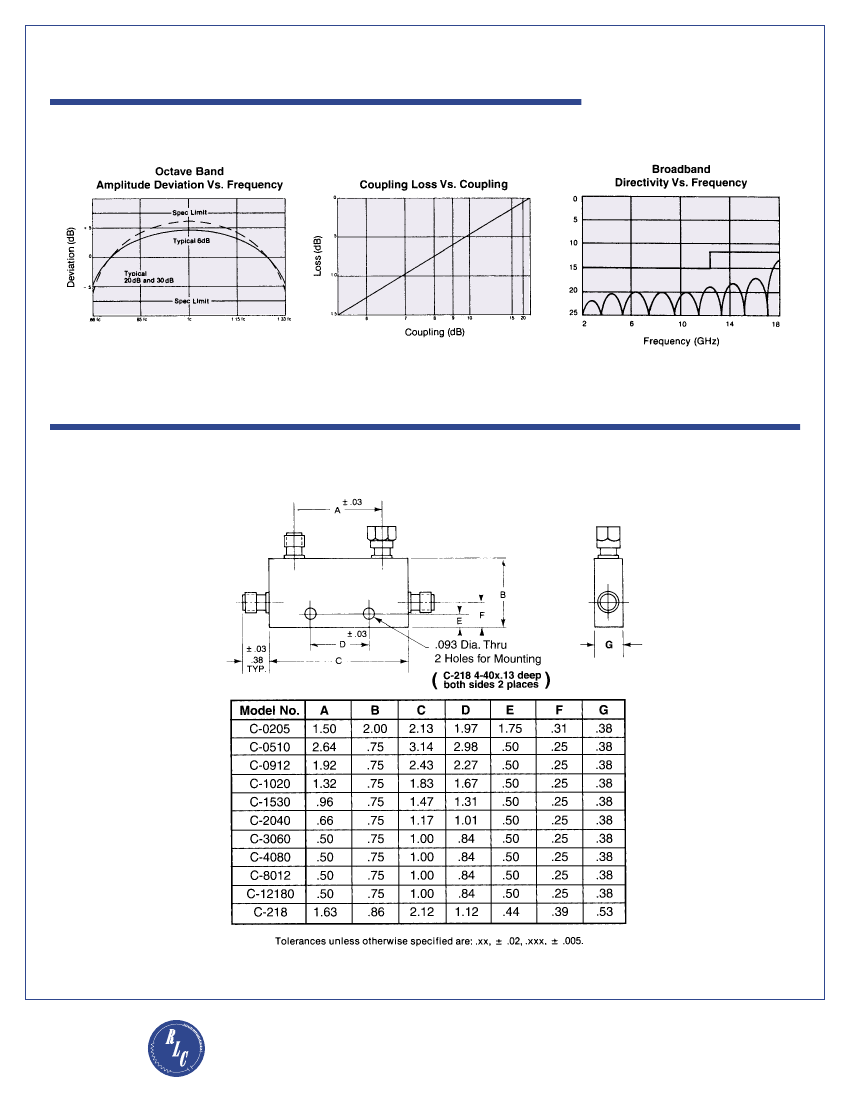

Octave and Broadband

Directional Couplers

RLC Electronics' Broadband Directional Coupler provide the

ultimate in flat coupling and high directivity over the 2 to 18 GHz

band. These miniaturized units are ideal where stringent wide

band specifications must be maintained.

Specifications

-1-2-3

Model

Number

C-0205-

C-0510-

C-0912-

C-1020-

C-1530-

C-2040-

C-3060-

C-4080-

C-8012-

C-12180-

C-218-6**

C-218-10**

C-218-16**

Frequency

Range (GHz)

0.25-0.50

0.50-1.00

0.96-1.235

1.00-2.00

1.50-3.00

2.00-4.00

3.00-6.00

4.00-8.00

8.00-12.40

12.40-18.00

Directivity

Min (dB)

VSWR

(Max)

1.15

1.10

1.15

1.20

1.25

1.35

1.45

1.50

Frequency

Deviation (dB)

±0.75

±0.25

±0.75

±1.00

Loss

Max. (dB)*

0.20

0.15

0.25

0.30

0.35

0.40

0.60

0.90

0.65

2.00-18.00

15 < 12.4

12 > 12.4

1.50

±1.00

Coupling(Nominal):

6±0.5dB

10±0.5dB, 20±1.0dB, 30±1.0dB

Power:

50 watts ave: C-218; 20 watts average.

5KW peak: C-218; 3 KW peak

Impedance:

50 Ohms

Connector Type:

SMA female

Temperature:

-55 C to +85 C

Environment:

MIL-E-5400, Class 1A

note:

* Does not include coupling loss

**Coupling referenced to output port.

To designate coupler desired use:

(1) 0205, 0510, etc for model number

(2) Coupling value in dB

(3) "T" for built in 2 watt termination, U for

no termination.

Example: C-2040-6-T a 6 dB coupler, 2 to 4 GHz frequency band, with internal termination

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
