68402-316 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 68402-316

68402-316: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size220KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

68402-316 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

68402-316 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	68402
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0

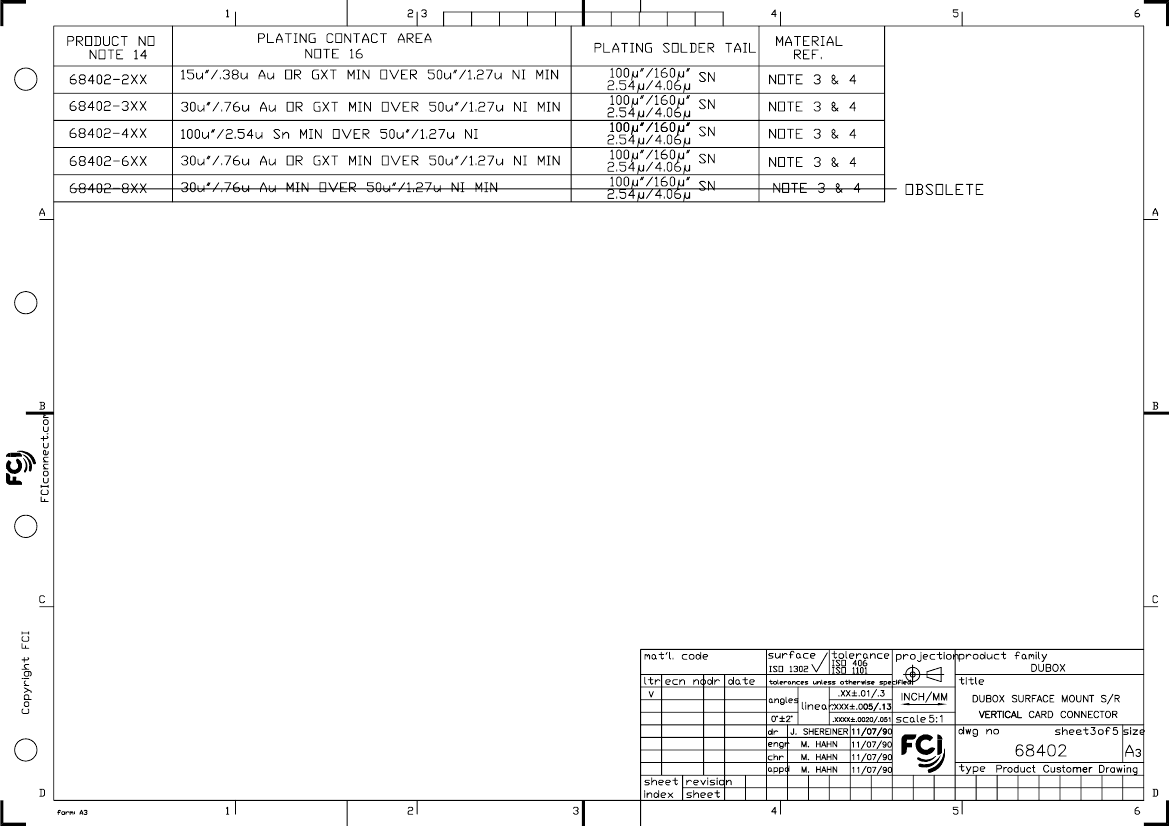

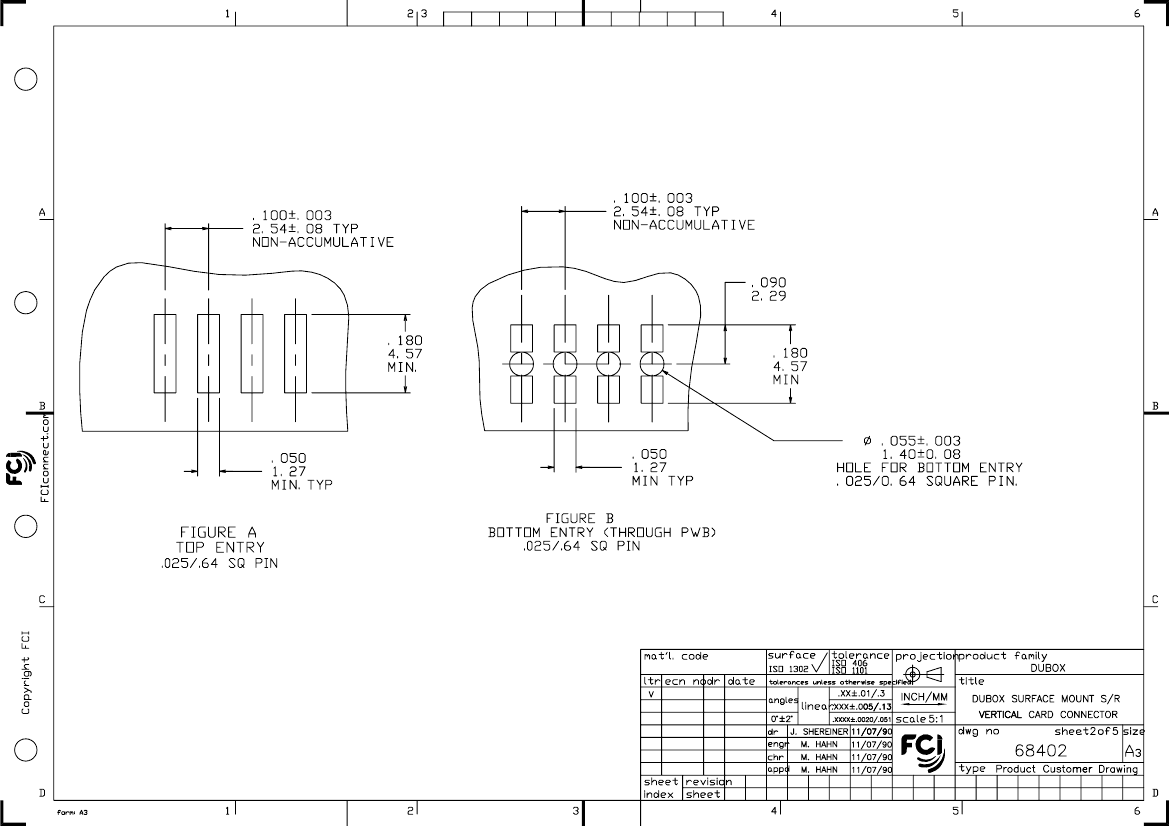

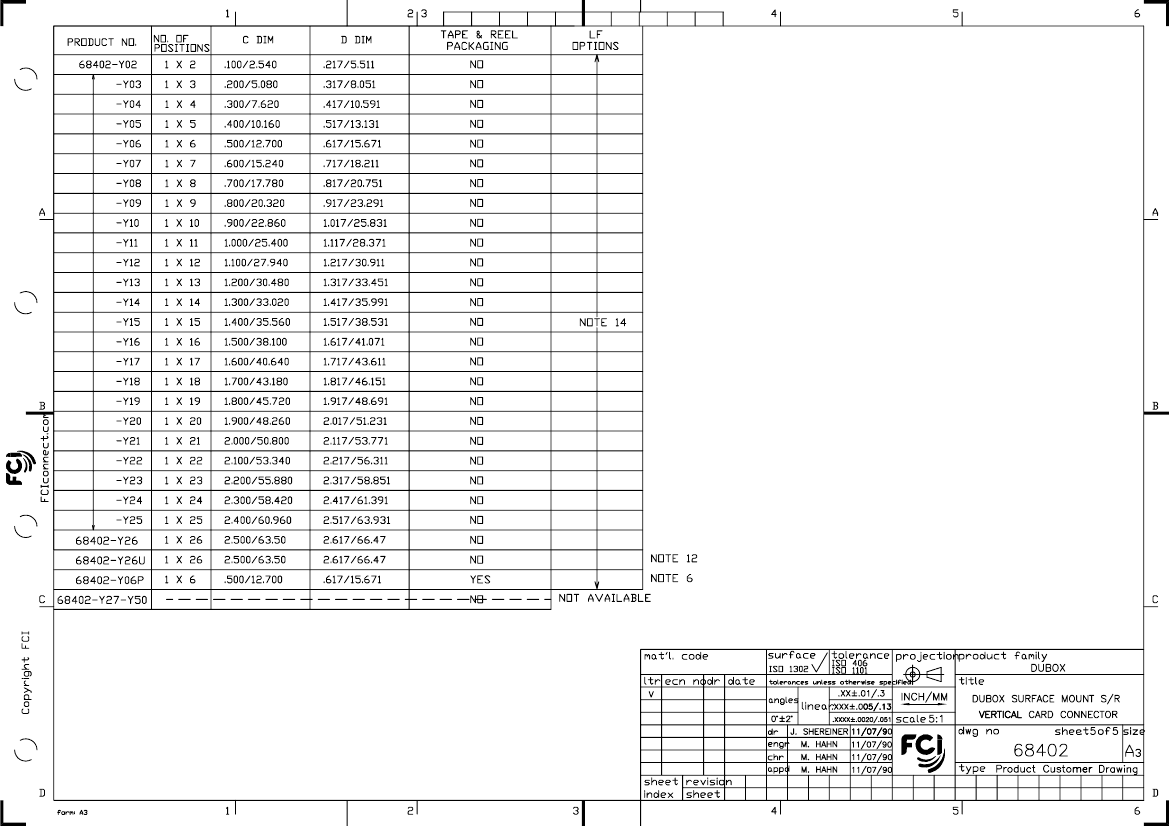

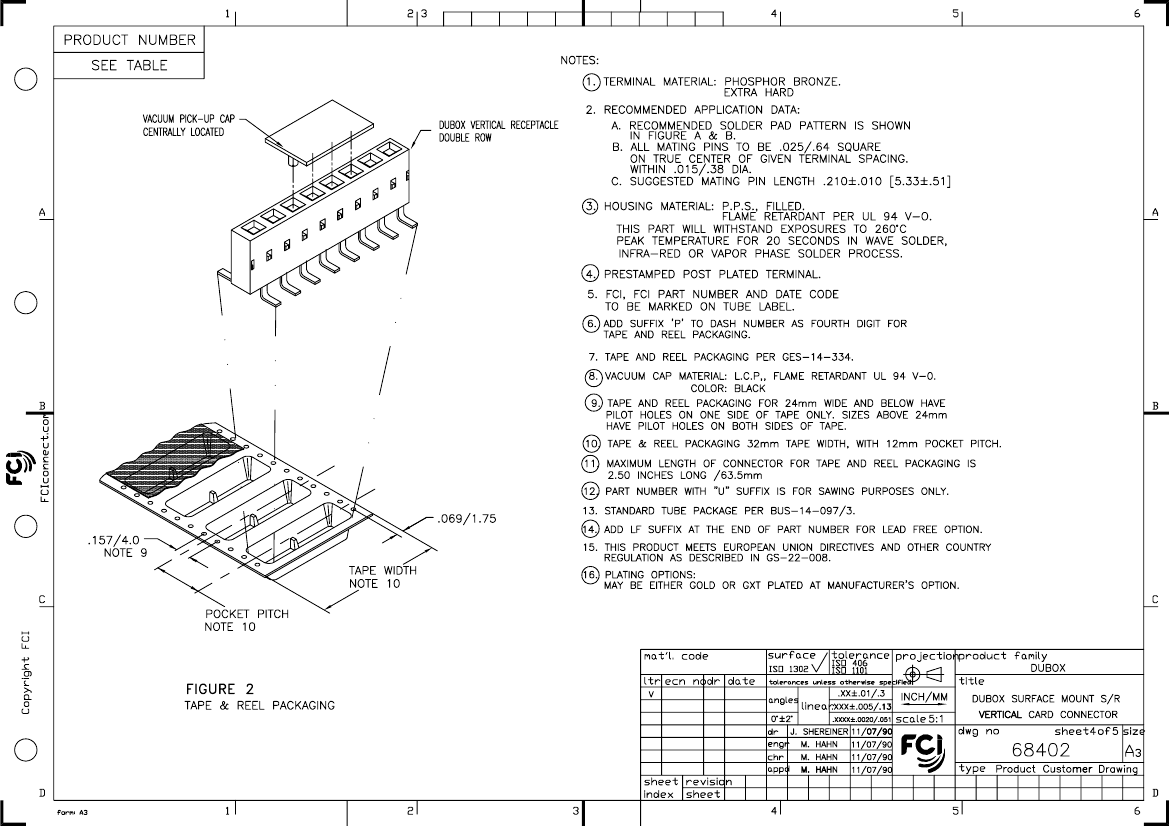

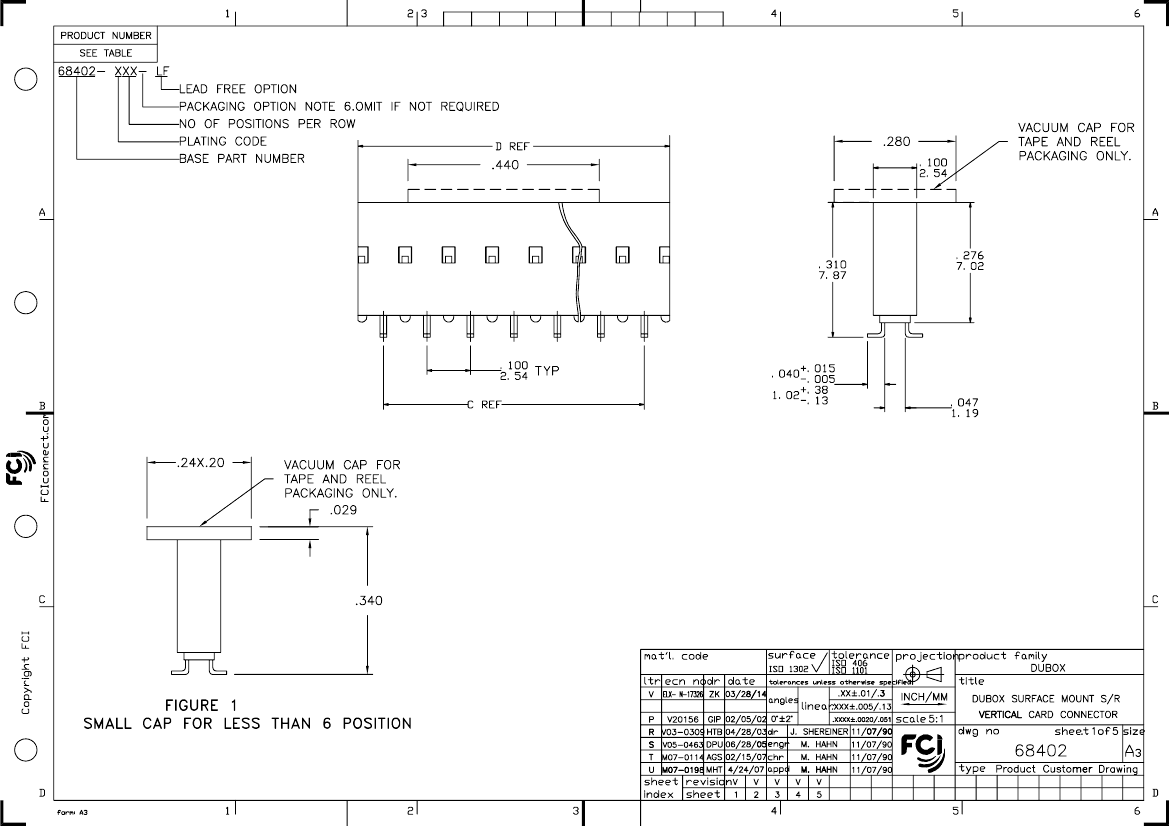

Preview

Download Datasheet

View All

PDS: Rev :V

STATUS:Released

Printed: Apr 08, 2014

68402-316 Related Products

	68402-316	68402-212LF	68402-202LF	68402-204LF	68402-205LF	68402-206LF	68402-207LF	68402-208LF	68402-209LF	68402-210LF
Description	Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	16	12	2	4	5	6	7	8	9	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Factory Lead Time	-	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks	13 weeks	6 weeks
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	1	1	1	1
