PLB06M1060: DescriptionRectangular Power Connector, 6 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size44KB，2 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric Compare View All

PLB06M1060 Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal

PLB06M1060 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Positronic Industries, Inc.

www.connectpositronic.com

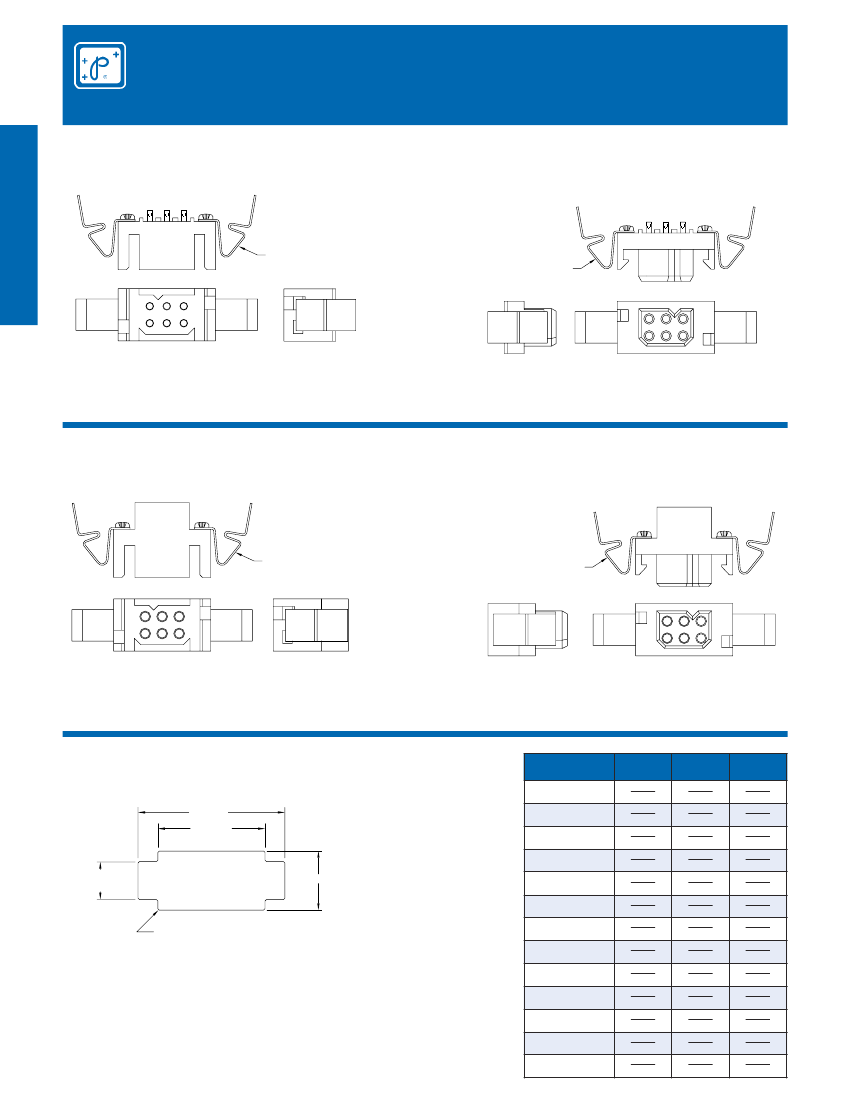

PANEL MOUNT

CONNECTORS

ower

onnection

ystems

POWER CONNECTION SYSTEMS PANEL MOUNT CONNECTORS

QUICK RELEASE MOUNTING CLIP

PCS SERIES

Typical part number:

PLB06M206C1

Typical part number:

PLB06M1060

A±0.010

B±0.005

0.415±0.005

[10.54±0.13]

CODE 2, SOLDER – 18 AWG [1.0mm] MAX.

MALE

Mounting Clip

Factory Installed

FEMALE

Mounting Clip

Factory Installed

Typical part number:

PLB06F206C1

For connection system 8

POWER CONNECTION SYSTEMS PANEL MOUNT CONNECTORS

QUICK RELEASE MOUNTING CLIP

REMOVABLE CONTACT TYPE

MALE

Mounting Clip

Factory Installed

FEMALE

Mounting Clip

Factory Installed

Typical part number:

PLB06F1060

For connection system 8

PANEL CUTOUT

CONNECTOR

VARIANTS

PLA03

PLAH03

PLA04

PLAH04

PLA06

PLAH06

PLA08

PLAH08

PLB06

PLBH06

PLB08

PLBH08

PLB12

PLBH12

PLB16

PLBH16

PLC09

PLCH09

PLC12

PLCH12

PLC18

PLCH18

PLC24

PLCH24

PLC30

PLCH30

1.600

[40.64]

1.798

[45.67]

2.192

[55.68]

2.586

[65.68]

1.600

[40.64]

1.798

[45.67]

2.192

[55.68]

2.586

[65.68]

1.600

[40.64]

1.798

[45.67]

2.192

[55.68]

2.586

[65.68]

2.980

[75.69]

1.168

[29.67]

1.366

[34.70]

1.760

[44.70]

2.154

[54.71]

1.168

[29.67]

1.366

[34.70]

1.760

[44.70]

2.154

[54.71]

1.168

[29.67]

1.366

[34.70]

1.760

[44.70]

2.154

[54.71]

2.548

[64.72]

0.445

[11.30]

0.445

[11.30]

0.445

[11.30]

0.445

[11.30]

0.643

[16.33]

0.643

[16.33]

0.643

[16.33]

0.643

[16.33]

0.839

[21.31]

0.839

[21.31]

0.839

[21.31]

0.839

[21.31]

0.839

[21.31]

C±0.005

0.015[0.38]R. MAX. TYP.

Maximum panel thickness: 0.063[1.60] nominal.

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.

PLB06M1060 Related Products

	PLB06M1060	PLB06M206C1	PLB06F206C1	PLB06F10810	PLB06M10810
Description	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 6 Contact(s), Female, Solder Terminal	Rectangular Power Connector, 6 Contact(s), Female, Solder Terminal	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	Gold Flash (Au) - with Nickel (Ni) barrier	GOLD FLASH OVER NICKEL
Contact point gender	MALE	MALE	FEMALE	FEMALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	6	6	6	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Positronic Industries	-	Positronic Industries	Positronic Industries	Positronic Industries
JESD-609 code	-	e4	e4	-	e4
Manufacturer's serial number	-	PLB	PLB	-	PLB
Plug information	-	PLB06F206C1	-	PLB06M10810	PLB06F10810
