DATA SHEET
PHOTOCOUPLER
PS2601,PS2602,PS2601L,PS2602L
HIGH ISOLATION VOLTAGE
6-PIN PHOTOCOUPLER
−NEPOC
TM
Series−
DESCRIPTION
The PS2601, PS2602, PS2601L, PS2602L are optically coupled isolators containing a GaAs light emitting diode
and an NPN silicon phototransistor in a plastic DIP (Dual In-line Package).
The PS2601L, PS2602L are lead bending type (Gull-wing) for surface mount.
FEATURES
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High-speed switching (t
r
= 3
µ
s TYP., t
f
= 5
µ
s TYP.)
• High current transfer ratio (CTR = 300 % TYP.)
• UL approved: File No. E72422 (S)
• Ordering number of taping product: PS2601L-E3, E4, PS2602L-E3, E4
APPLICATIONS
• Power supply, SSR
• Telephone, FAX
• AC/DC line interface
• Electric home appliances
The information in this document is subject to change without notice.
Document No. P11284EJ4V0DS00 (4th edition)
Date Published April 1998 NS CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
1988
PS2601,PS2602,PS2601L,PS2602L
PACKAGE DIMENSIONS (in millimeters)
PS2601, PS2602
DIP type
10.16 MAX.
PS2601L, PS2602L
Lead bending type
10.16 MAX.
7.62
6.5
7.62
2.8 MIN. 4.55 MAX.
3.8 MAX.
3.8 MAX.
0.65
0 to 15˚
2.54 2.54 MAX.
1.34
1.34±0.10 2.54 2.54 MAX.
0.25
M
0.9±0.25
9.60±0.4
0.50±0.10
0.25
M
PIN CONNECTIONS (TOP VIEW)
PS2601, PS2601L
6
5
4
1. Anode
2. Cathode
3. NC
4. Emitter
5. Collector
6. Base
1
2
3
1
6
PS2602, PS2602L
5
4
1. Anode
2. Cathode
3. NC
4. Emitter
5. Collector
6. NC
2
3
2
0.05 to 0.2
6.5
PS2601,PS2602,PS2601L,PS2602L
ABSOLUTE MAXIMUM RATINGS (T
A
= 25
°
C, unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Reverse Voltage
Power Dissipation Derating
Power Dissipation
Peak Forward Current
Transistor
*1
Symbol
I
F
V
R
Ratings
80
6.0
1.5
150
1
80
7
50
1.5
150
5 000
−55
to +100
−55
to +150
Unit
mA
V
mW/°C
mW
A
V
V
mA
mW/°C
mW
Vr.m.s.
°C
°C
∆
P
D
/°C
P
D
I
FP
V
CEO
V
ECO
I
C
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
∆
P
C
/°C
P
C
BV
T
A
T
stg
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
*1
PW = 100
µ
s, Duty Cycle = 1 %
*2
AC voltage for 1 minute at T
A
= 25
°C,
RH = 60 % between input and output
3
PS2601,PS2602,PS2601L,PS2602L
ELECTRICAL CHARACTERISTICS (T
A
= 25
°
C)
Parameter
Diode
Forward Voltage
Reverse Current
Terminal Capacitance
Transistor
Collector to Emitter
Dark Current
DC Current Gain
Coupled
*1
Symbol
V
F
I
R
C
t
I
CEO
h
FE
CTR
V
CE (sat)
R
I-O
C
I-O
t
r
t
f
I
F
= 10 mA
V
R
= 5 V
Conditions
MIN.
TYP.
1.1
MAX.
1.4
5.0
Unit
V
µ
A
pF
V = 0 V, f = 1.0 MHz
V
CE
= 80 V, I
F
= 0 mA
I
C
= 2 mA, V
CE
= 5 V
I
F
= 5 mA, V
CE
= 5 V
I
F
= 10 mA, I
C
= 2 mA
V
I-O
= 1.0 kV
DC
V = 0 V, f = 1.0 MHz
V
CC
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
10
11
30
100
700
80
300
600
0.3
nA
Current Transfer Ratio
*2
(I
C
/I
F
)
Collector Saturation
Voltage
Isolation Resistance
Isolation Capacitance
Rise Time
Fall Time
*3
%
V
Ω
0.6
3
5
pF
µ
s
*3
*1
PS2601, PS2601L only
*2
CTR rank
K: 300 to 600 (%)
L: 200 to 400 (%)
M: 80 to 240 (%)
*3
Test circuit for switching time
Pulse input
(PW = 100
µ
s,
Duty cycle = 1/10)
I
F
50
Ω
V
OUT
R
L
= 100
Ω
V
CC
4
PS2601,PS2602,PS2601L,PS2602L

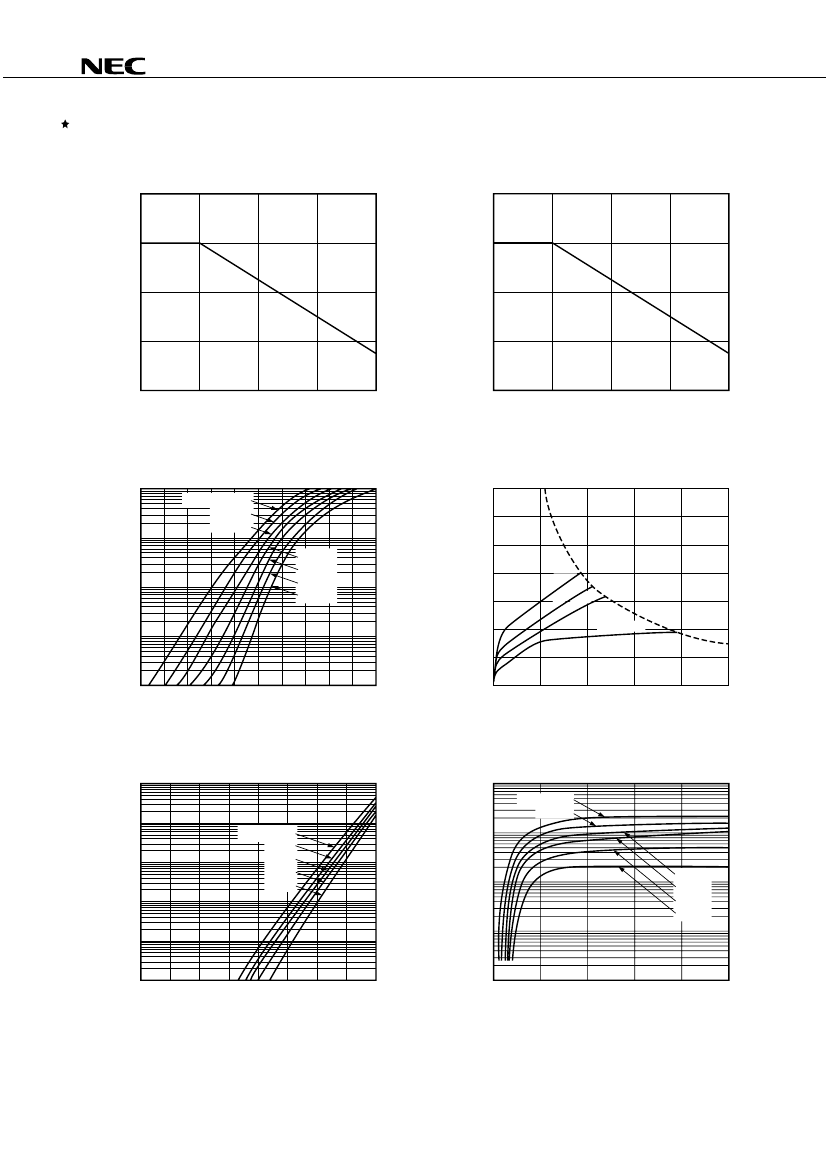

TYPICAL CHARACTERISTICS (T
A
= 25
°
C, unless otherwise specified)
DIODE POWER DISSIPATION vs.
AMBIENT TEMPERATURE
Transistor Power Dissipation P
C
(mW)
TRANSISTOR POWER DISSIPATION
vs. AMBIENT TEMPERATURE
200
200
Diode Power Dissipation P
D
(mW)
150
150
100
100
50
50
0
25
50
75
100
0
25
50
75
100
Ambient Temperature T
A
(˚C)
Ambient Temperature T
A
(˚C)
FORWARD CURRENT vs.
FORWARD VOLTAGE
100
T
A
= +100 ˚C
+75 ˚C
+50 ˚C
10
+25 ˚C
0 ˚C
–25 ˚C
–55 ˚C
COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE
70
60
Collector Current I
C
(mA)
Forward Current I
F
(mA)
50
40
30
20
10
A
0m
A
5
m
20
mA
10
1
I
F
= 5 mA
0.1
0.01
0.6
0.8
1.0
1.2
1.4
1.6
0
2
4
6
8
10
Forward Voltage V
F
(V)
Collector to Emitter Voltage V
CE
(V)
COLLECTOR TO EMITTER DARK
CURRENT vs. AMBIENT TEMPERATURE
Collector to Emitter Dark Current I
CEO
(nA)
COLLECTOR CURRENT vs.
COLLECTOR SATURATION VOLTAGE
100
I
F
= 50 mA
20 mA
Collector Current I
C
(mA)
10 000
1 000
100
V
CE
= 80 V
40 V
24 V
10 V
5V
10
1
10
10 mA
5 mA
2 mA
1 mA
1
0.1
–60 –40 –20
0.1
0
20
40
60
80
100
0.01
0.0
0.2
0.4
0.6
0.8
1.0
Ambient Temperature T
A
(˚C)
Collector Saturation Voltage V
CE(sat)
(V)
5
