BK1/S505-1AV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK1/S505-1AV

BK1/S505-1AV: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 1A, 250VAC, 1500A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size147KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK1/S505-1AV Overview

TIME DELAY BLOW ELECTRIC FUSE, 1A, 250VAC, 1500A (IR), THROUGH HOLE

BK1/S505-1AV Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME DELAY
body height	21.1 mm
Body length or diameter	5.54 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Manufacturer's serial number	S505
Installation features	THROUGH HOLE
method of packing	BAG
physical size	5.54mm x 21.1mm
Rated breaking capacity	1500 A
Rated current	1 A
Rated voltage (AC)	250 V
Guideline	MITI; SEMKO; UL
surface mount	NO
Terminal surface	TIN
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

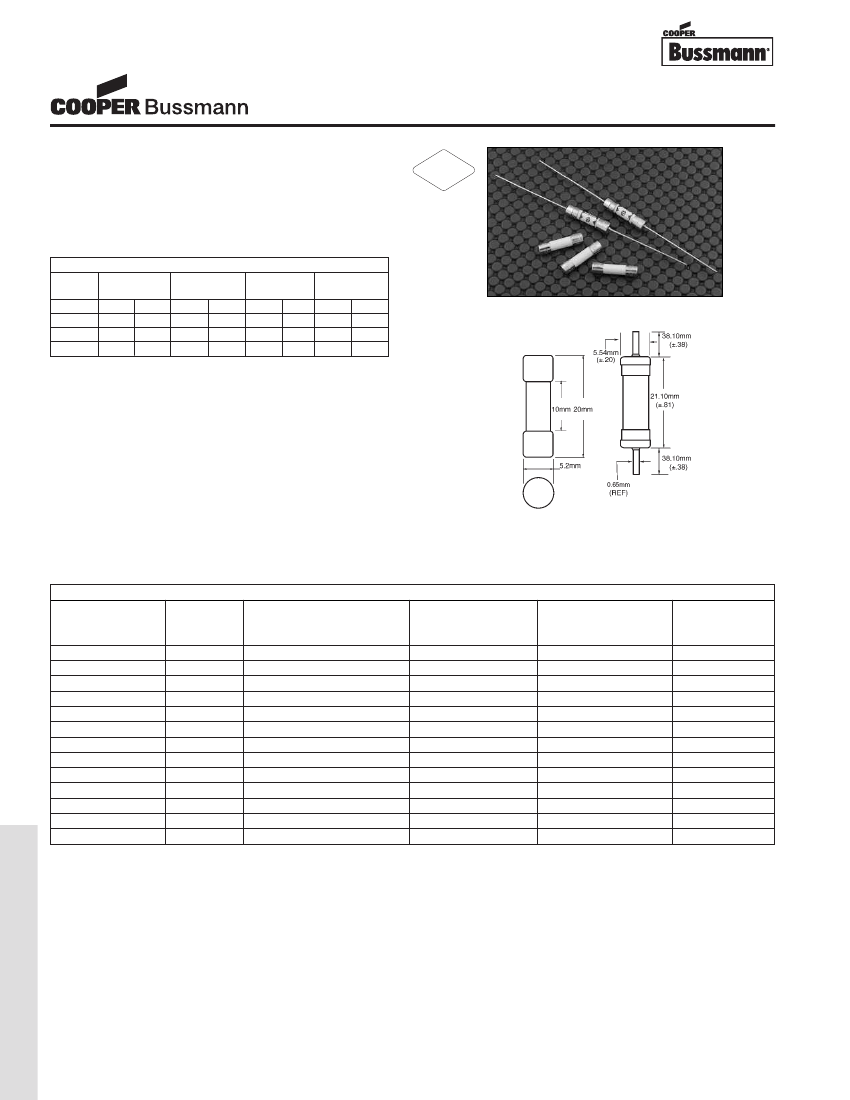

5mm x 20mm Fuses

S505 Series, Time Delay, Ceramic Tube

Description

• Time delay, high breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Ceramic tube, nickel plated brass endcap construction

• Designed to IEC 60127-2 (1A-10A)

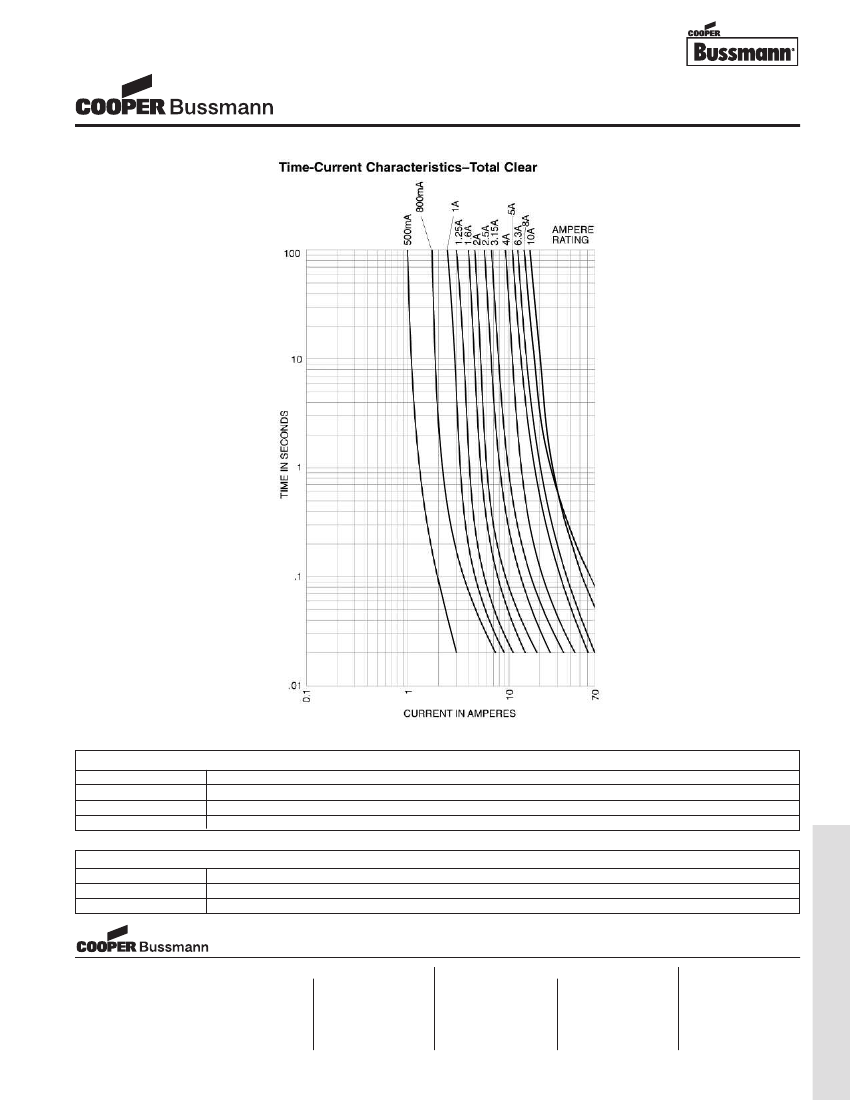

ELECTRICAL CHARACTERISTICS

1.5 In 2.1 In

2.75 In

4 In

10 In

min max

min

max min max min max

<1A

60 min 30 min 250 ms 80 sec 50 ms 5 sec 5 ms 55 ms

1A-3.15A 60 min 30 min 1 sec 80 sec 95 ms 5 sec 10 ms 100 ms

4A-10A 60 min 30 min 1 sec 80 sec 150 ms 5 sec 20 ms 100 ms

12.5A

30 min 1 sec 80 sec 150 ms 5 sec 20 ms 100 ms

RoHS

2002/95/EC

Dimensions

Drawing Not to Scale

Agency Information

• UL Recognized Card: (1A-10A) Guide JDYX2,

File E19180

• Semko Approval, 1A-10A

• VDE Approval, 1.25A-10A

• BSI Approval, 1.25A-10A

• IMQ Approval, 1.25A-10A

• MITI Approval, 1A-10A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. S505-3-R)

• Ratings above 6.3A have a 0.8mm diameter lead

SPECIFICATIONS

Product Code

S505-500mA

S505-800mA

S505-1A

S505-1.25A

S505-1.6A

S505-2A

S505-2.5A

S505-3.15A

S505-4A

S505-5A

S505-6.3A

S505-8A

S505-10A

Traditional Ferrule Fuses - Ferrule Type

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage (50Hz)

1500A

Typical DC

Cold Resistance

(ohms)*

0.243

0.117

0.093

0.061

0.041

0.030

0.022

0.015

0.011

0.008

0.007

0.006

Typical

Melting I

t (A

Sec)

AC†

0.74

1.6

3.5

7.6

197

311

397

Typical

Voltage

Drop (mV)‡

170

150

130

110

100

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

t (I

t was measured at listed interrupting rating and rated voltage)

‡ Typical Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)

OC-70
