PS2533-4-V: DescriptionDarlington Output Optocoupler, 4-Element, 5000V Isolation, PLASTIC, DIP-16; CategoryLED optoelectronic/LED photoelectric; File Size149KB，18 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

PS2533-4-V Overview

Darlington Output Optocoupler, 4-Element, 5000V Isolation, PLASTIC, DIP-16

PS2533-4-V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	PLASTIC, DIP-16
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	350 V
Configuration	SEPARATE, 4 CHANNELS WITH BUILT-IN DIODE AND RESISTOR
Nominal current transfer ratio	4000%
Maximum dark power	400 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
JESD-609 code	e0
Number of components	4
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

DATA SHEET

PHOTOCOUPLER

PS2533-1,-2,-4,PS2533L-1,-2,-4

HIGH COLLECTOR TO EMITTER VOLTATGE

HIGH ISOLATION VOLTAGE

MULTI PHOTOCOUPLER SIRIES

DESCRIPTION

The PS2533-1, -2, -4 and PS2533L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode

and an NPN silicon darlington connected phototransistor.

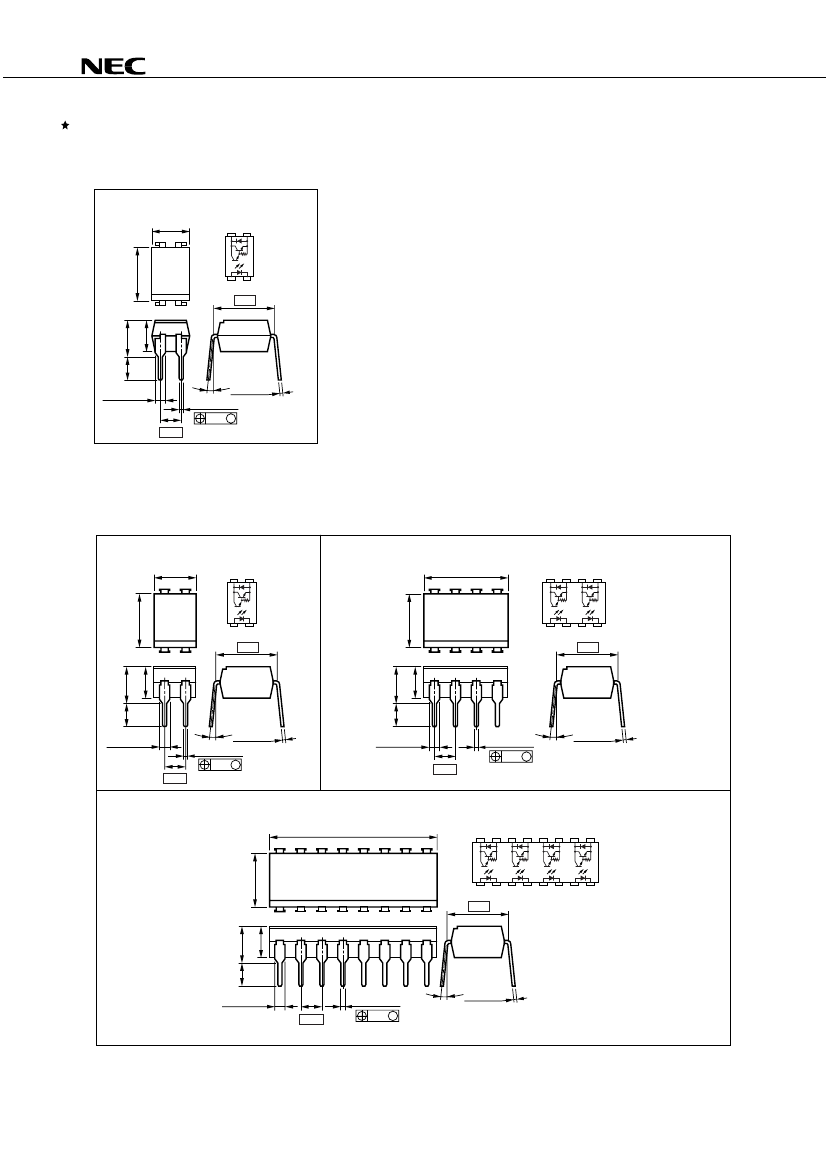

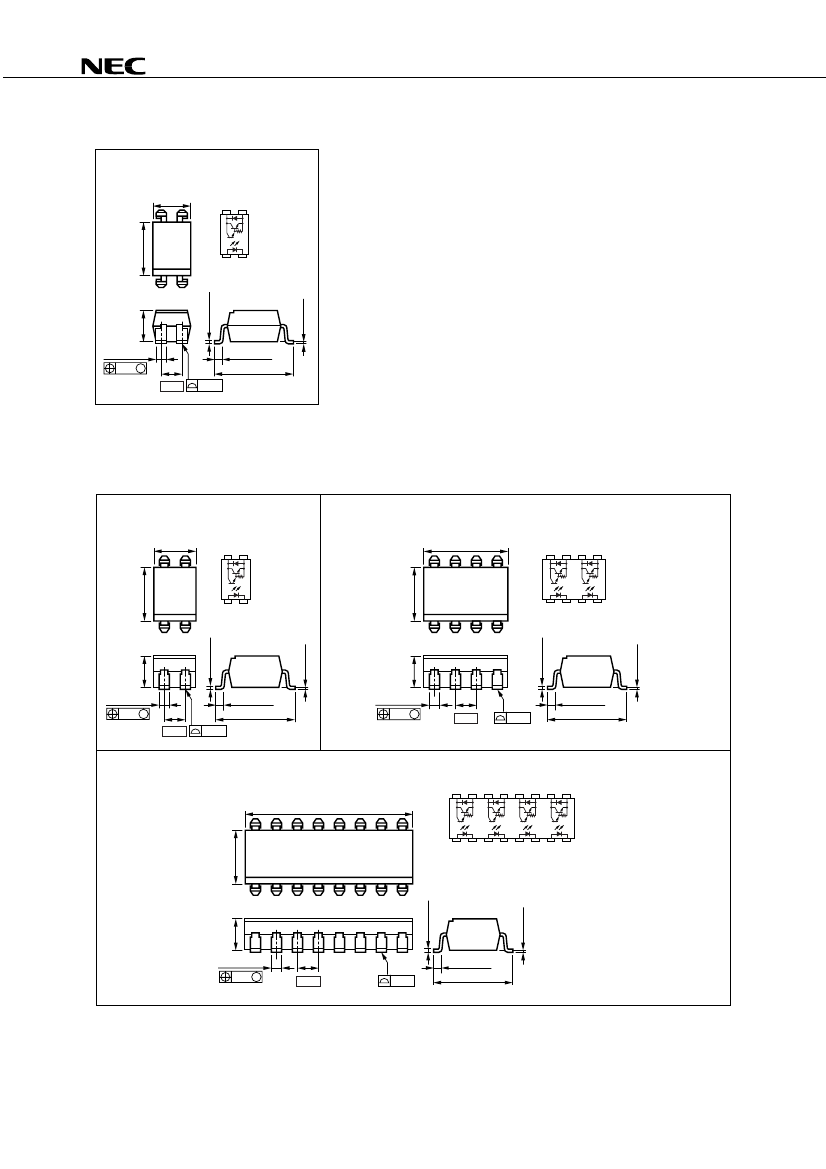

The PS2533-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2533L-1, -2, -4 are lead bending type

(Gull-wing) for surface mount.

−NEPOC

Series−

FEATURES

• High collector to emitter voltage (V

CEO

= 350 V)

• High Isolation voltage (BV = 5 000 Vr.m.s.)

• High current transfer ratio (CTR = 4 000 % TYP.)

• High-speed switching (t

= 100

s TYP.)

• Ordering number of tape product: PS2533L-1-E3, E4, F3, F4, PS2533L-2-E3, E4

• Safety standards

• UL approved: File No. E72422 (S)

• BSI approved: No. 8221/8222

• CSA approved: No. CA 101391

• NEMKO approved: No. P98101708

• SEMKO approved: No. 9824187/01-02

• DEMKO approved: No. 307863

• FIMKO approved: No. F1 11397

• VDE0884 approved (Option)

APPLICATIONS

• Telephone, Exchange equipment

• FAX/MODEM

The information in this document is subject to change without notice. Before using this document, please confirm that

this is the latest version.

Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices

representative for availability and additional information.

Document No. PN10233EJ01V0DS (1st edition)

(Previous No. P11435EJ6V0DS00)

Date Published February 2003 CP(K)

Printed in Japan

The mark

•

shows major revised points.

NEC Compound Semiconductor Devices 1990, 2003
