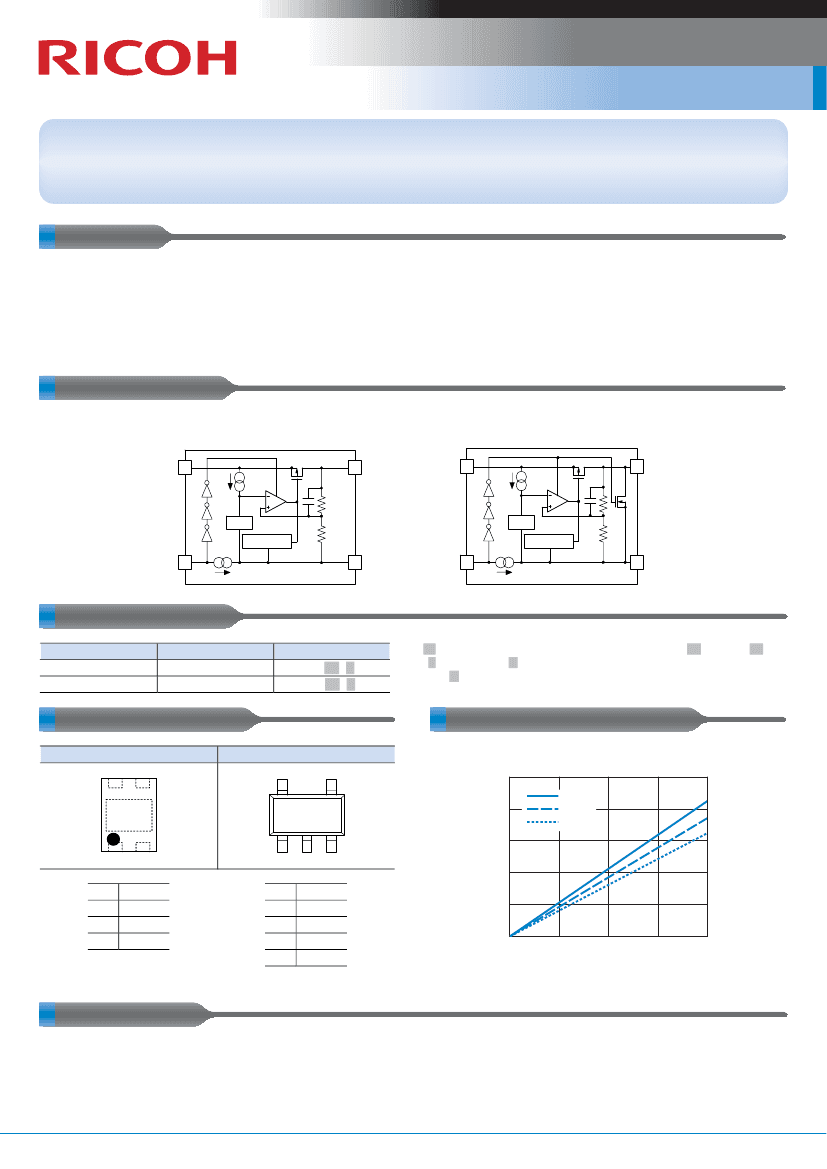

RP100x Series
Low Supply Current 200mA LDO
The RP100x Series are CMOS-based LDO regulators featuring 200mA output.
Various basic performances of the RP Series have been improved by adopting a new manufacturing process. RP100x features supply
current as low as 18μA, which is far lower than existing lines. Due to a built-in 0.87Ω (at V
OUT
=2.8V) on-resistor, RP100x can provide a
low dropout voltage. RP100x also features an excellent line transient response, ripple rejection at 75dB, and low noise. The output
voltage accuracy is as high as
±
0.6% and the temperature drift coefficient of output voltage is low at
±
30ppm/°C.
FEATURES
•
Supply Current (I
SS
) ························Typ. 18μA (V
IN
=SET V
OUT
+1V)
•
Standby Current (I
standby
) ·················Typ. 0.1μA (Same as above, CE="L")
•
Dropout Voltage (V
DIF
) ····················Typ. 0.13V (I
OUT
=150mA, V
OUT
=2.8V)
•
Ripple Rejection (RR)·····················Typ. 75dB (f=1kHz)
•
Input Voltage Range (V
IN
) ···············1.7V to 5.25V
•
Output Voltage Range (V
OUT
)··········1.2V to 3.3V
∗
(internally fixed)
•
Output Voltage Accuracy··············± 0.6%
•
Temp. coeff. of Output Voltage·····Typ.
±
30ppm/°C
•
Line Regulation ····························Typ. 0.02%/V
•
Fold-back Protection Circuit·········Current limit Typ. 40mA
•
Auto-Discharge function···············D Version
•
Packages ·····································DFN(PLP)1612-4, SOT-23-5
•
Ceramic capacitors can be used. ···1μF or more
∗
) For detail, please check our website.
BLOCK DIAGRAMS
RP100xxx1B
(Without Auto-Discharge function)
V
DD
V
OUT
RP100xxx1D
(With Auto-Discharge function)
V
DD
V
OUT
Vref
Current Limit
Vref
Current Limit
CE
GND
CE
GND
SELECTION GUIDES
Package
DFN(PLP)1612-4
SOT-23-5
Quantity per Reel
Part No.
5,000 pcs
RP100K.xx.1.
∗
-TR
3,000 pcs
RP100N.xx.1.
∗
-TR-F
.xx.
: Specify the output voltage within the range 1.2V (.12.) to 3.3V (.33.).
.∗
: Select from (.B.) without auto-discharge function or
(.D.) with auto-discharge function.
PACKAGES (Top View)
DFN(PLP)1612-4
4
3
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
RP100x281x
250
Dropout Voltage vs. Output Current
85°C
25°C
-40°C
∗
Dropout Voltage V
DIF
(mV)
200
150
100
50
0
1
2
1
2
3
1
2
3
4
V
OUT
GND
CE
V
DD
1
2
3
4
5
V
DD
GND
CE
NC
V
OUT
0
50
100
150
Output Current I
OUT
(mA)
200
∗
) The tab is substrate level (GND).
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
No.EK-145-091101
CMOS LDO Regulator
