CHC-CC0910LLF-01-50R0 datasheet, PDF

Datasheet> All Categories > CHC-CC0910LLF-01-50R0

Preview

CHC-CC0910LLF-01-50R0: DescriptionChipscale Thevenin Ter mination Network; File Size475KB，1 Pages; ManufacturerIRC ( TT Electronics ); Websitehttp://www.irctt.com/

Download Datasheet Compare View All

CHC-CC0910LLF-01-50R0 Overview

Chipscale Thevenin Ter mination Network

Preview

Download Datasheet

View All

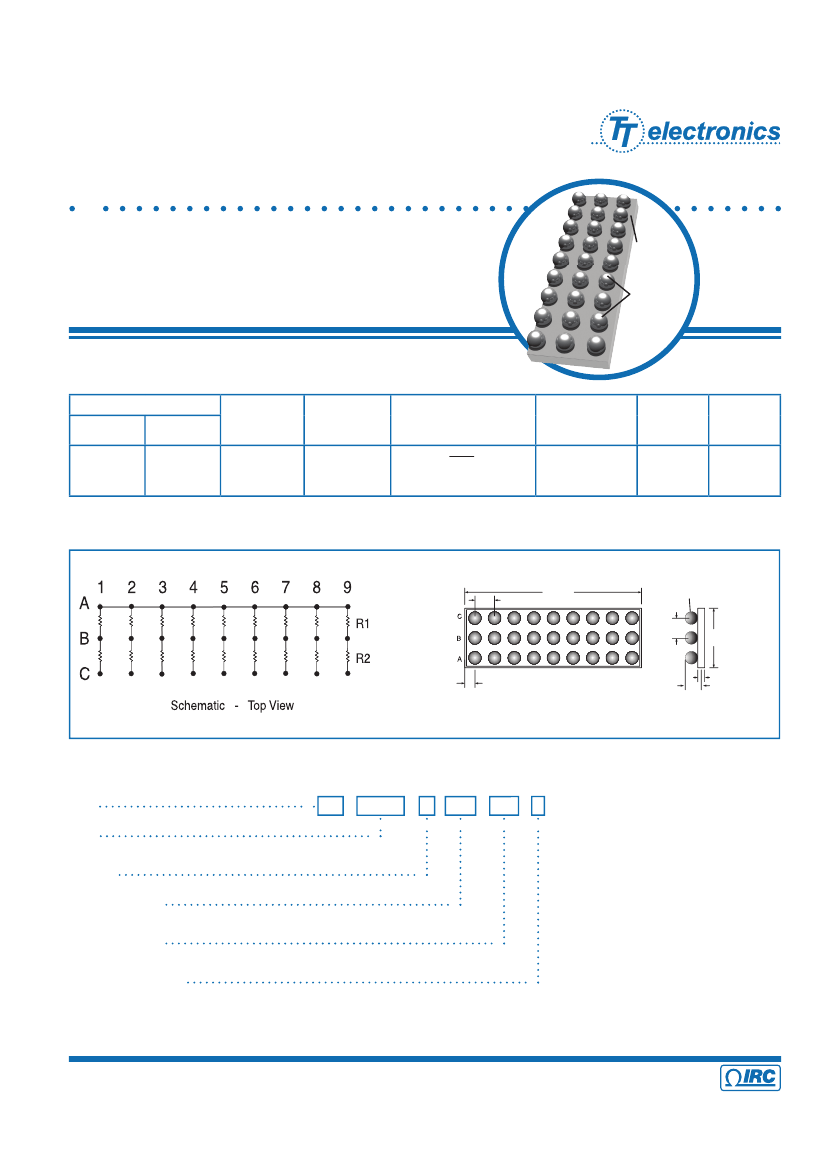

Chipscale Thevenin

Termination Network

CHC Thevenin Series

•

High speed digital termination network

•

Superior TaNFilm

resistors on ceramic substrate

•

RoHS compliant terminations available

•

JEDEC standard 9-9A compatible

High

purity alumina

substrate

Ball grid

terminations

Electrical Data

Resistance Values

50Ω - 75Ω

22Ω - 25Ω

Absolute

Tolerance

±1%

Absolute

TCR

±100ppm/°C

Maximum

Operating

Voltage

Operating

Temperature

Range

0°C to +70°C

Element

Power

70°C

50mW

Package

Power

70°C

1.0W

√

PxR

(not to exceed 25V)

Physical and Schematic Data

1.00mm

±0.25mm

9.00mm

±0.15mm

0.64mm ±0.05 diameter

solder bumps

1.00mm

±0.25mm

3.0mm

±0.15mm

0.50mm

±0.25mm

1.27mm

±0.16mm

0.63mm

±0.1mm

Ordering Data

Preﬁx

Model

CHC - CC0910L - 01 - 50R0 - 25R0 - F

CC0910L = 1mm pitch Thevenin network with 10/90 Sn/Pb terminations

CC0910LLF = 1mm pitch Thevenin network with RoHS Compliant SnAgCu (SAC) terminations

TCR Code

01 = ±100ppm/°C

R1 Resistance Code

Standard 4-digit code

Example: 50R0 = 50Ω

R2 Resistance Code

Standard 4-digit code

Example: 25R0 = 25Ω

Absolute Tolerance Code

F = 1%; G = 2%, J = 5%

For additional information or to discuss your speciﬁc requirements, please contact our Applications Team using the contact details below.

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

CHC Thevenin Issue January 2009 Sheet 1 of 1
