PEEL16V8PQ-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PEEL16V8PQ-15

PEEL16V8PQ-15: DescriptionEE PLD, 15ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20; CategoryProgrammable logic devices Programmable logic; File Size857KB，16 Pages; ManufacturerIntegrated Circuit Systems（IDT ）

Download Datasheet Parametric Compare View All

PEEL16V8PQ-15 Overview

EE PLD, 15ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20

PEEL16V8PQ-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Circuit Systems（IDT ）
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-20
Contacts	20
Reach Compliance Code	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
maximum clock frequency	45.5 MHz
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
length	26.162 mm
Dedicated input times	8
Number of I/O lines	8
Number of entries	18
Output times	8
Number of product terms	64
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

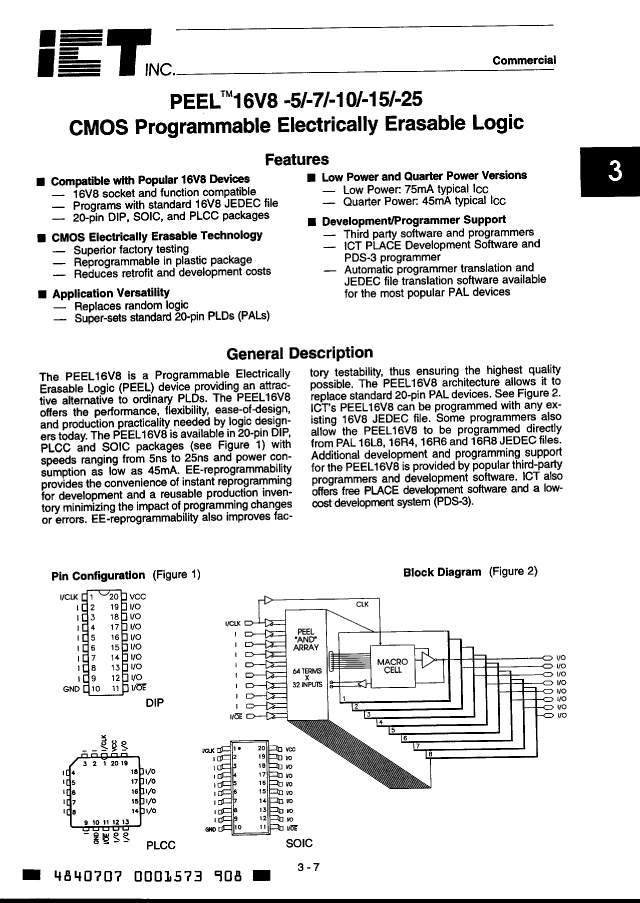

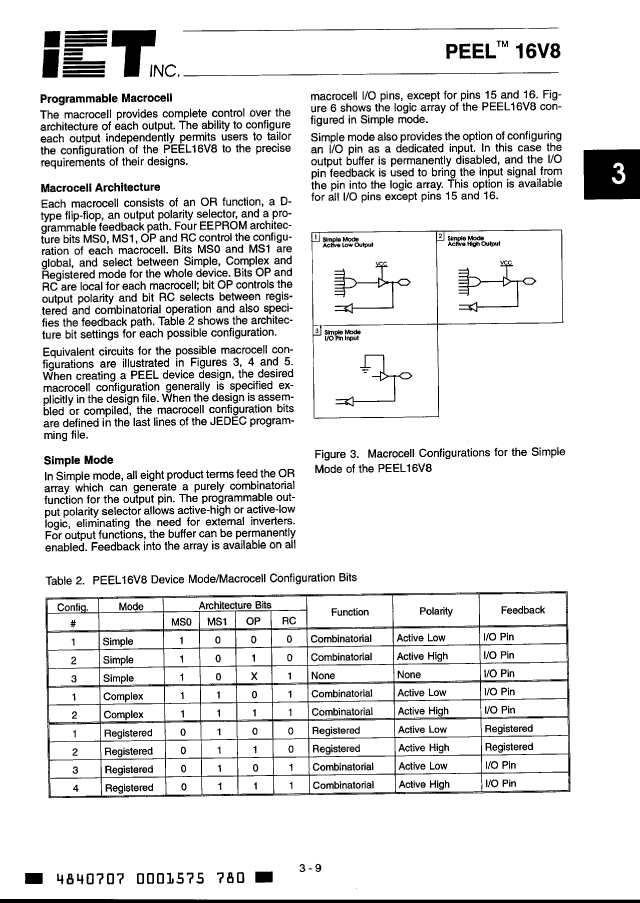

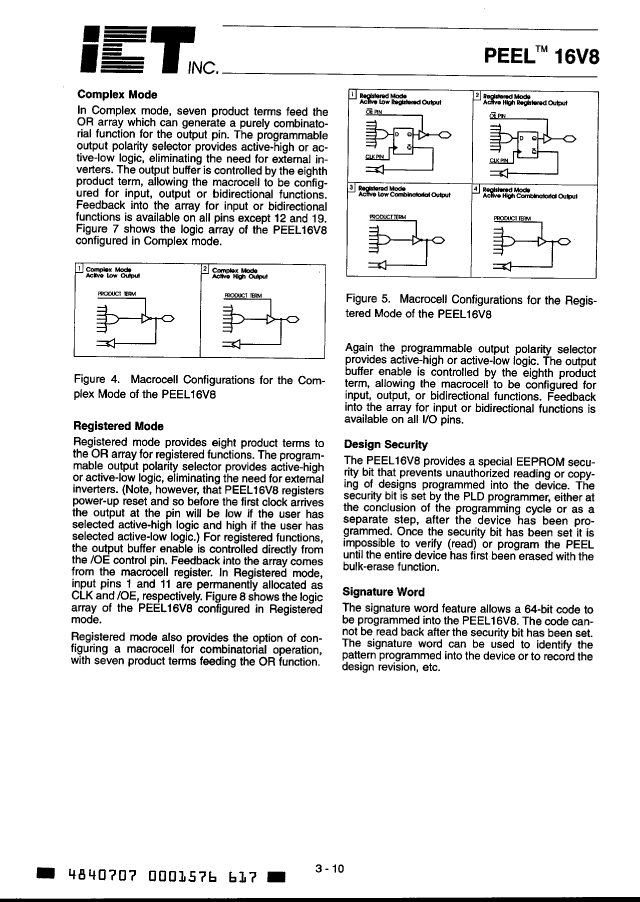

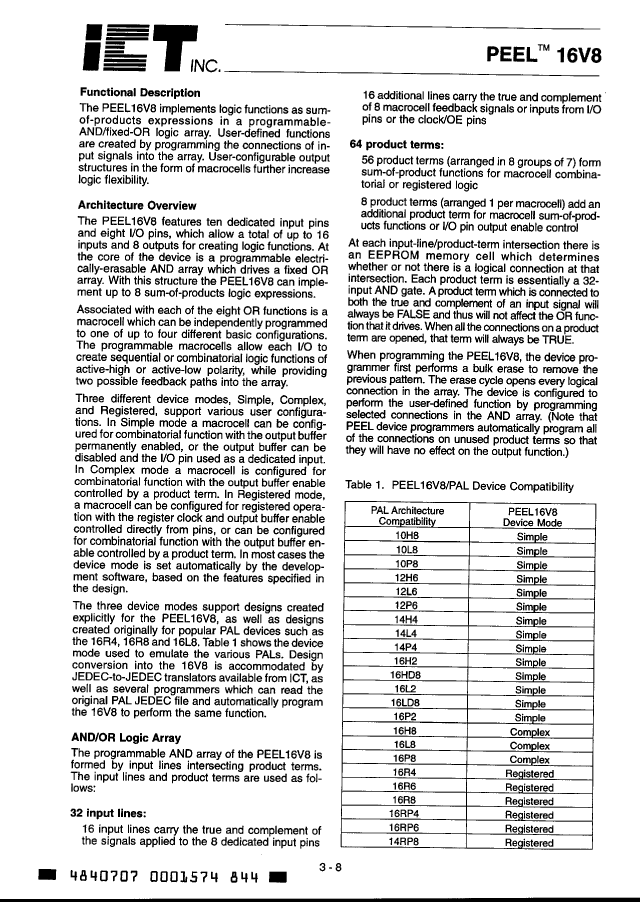

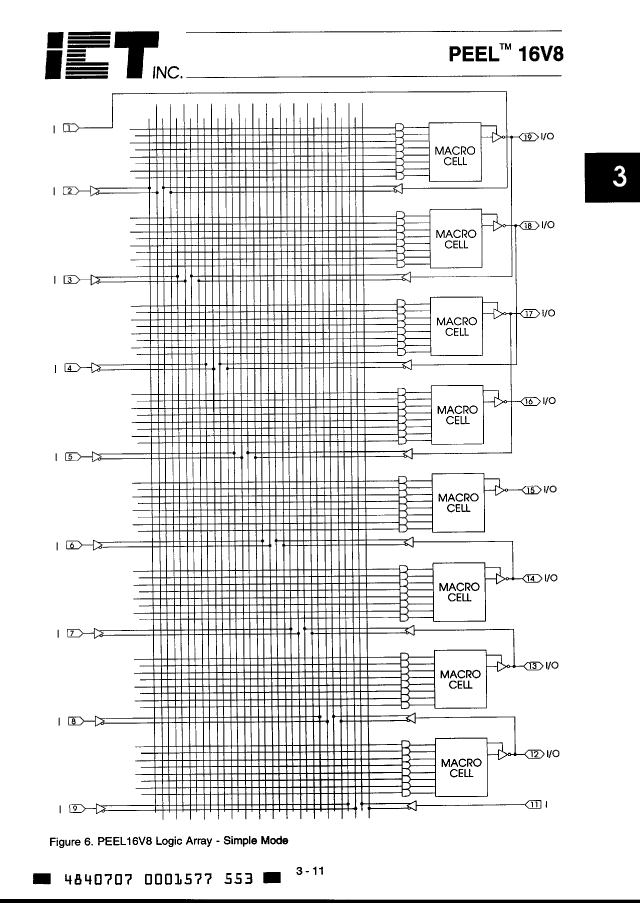

Preview

Download Datasheet

View All

PEEL16V8PQ-15 Related Products

	PEEL16V8PQ-15	PEEL16V8SQ-15	PEEL16V8JQ-15	PEEL16V8PQ-25	PEEL16V8SQ-25	PEEL16V8JQ-25
Description	EE PLD, 15ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	EE PLD, 15ns, PDSO20, SOIC-20	EE PLD, 15ns, PQCC20, PLASTIC, LCC-20	EE PLD, 25ns, PDIP20, 0.300 INCH, PLASTIC, DIP-20	EE PLD, 25ns, PDSO20, SOIC-20	EE PLD, 25ns, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	QLCC	DIP	SOIC	QLCC
package instruction	0.300 INCH, PLASTIC, DIP-20	SOP, SOP20,.4	QCCJ, LDCC20,.4SQ	DIP, DIP20,.3	SOP, SOP20,.4	QCCJ, LDCC20,.4SQ
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
Architecture	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE	PAL-TYPE
maximum clock frequency	45.5 MHz	45.5 MHz	45.5 MHz	37 MHz	37 MHz	37 MHz
JESD-30 code	R-PDIP-T20	R-PDSO-G20	S-PQCC-J20	R-PDIP-T20	R-PDSO-G20	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0	e0
length	26.162 mm	12.8 mm	8.9662 mm	26.162 mm	12.8 mm	8.9662 mm
Dedicated input times	8	8	8	8	8	8
Number of I/O lines	8	8	8	8	8	8
Number of entries	18	18	18	18	18	18
Output times	8	8	8	8	8	8
Number of product terms	64	64	64	64	64	64
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	QCCJ	DIP	SOP	QCCJ
Encapsulate equivalent code	DIP20,.3	SOP20,.4	LDCC20,.4SQ	DIP20,.3	SOP20,.4	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	SMALL OUTLINE	CHIP CARRIER	IN-LINE	SMALL OUTLINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	15 ns	15 ns	15 ns	25 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	J BEND	THROUGH-HOLE	GULL WING	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD
width	7.62 mm	7.5 mm	8.9662 mm	7.62 mm	7.5 mm	8.9662 mm
Maximum seat height	-	2.65 mm	4.369 mm	-	2.65 mm	4.369 mm
Base Number Matches	-	1	1	1	1	1
