PALCE22V10H-10ZC/5 datasheet, PDF

PALCE22V10H-10ZC/5: DescriptionEE PLD, 10ns, CMOS, CDFP24, CERAMIC, FP-24; CategoryProgrammable logic devices Programmable logic; File Size788KB，27 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

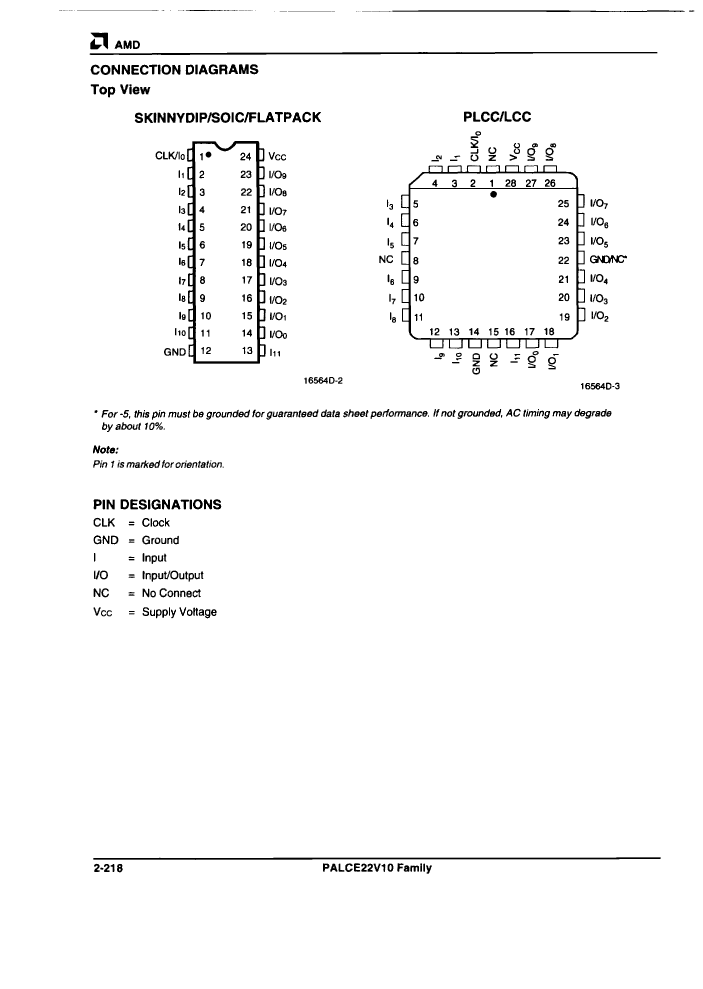

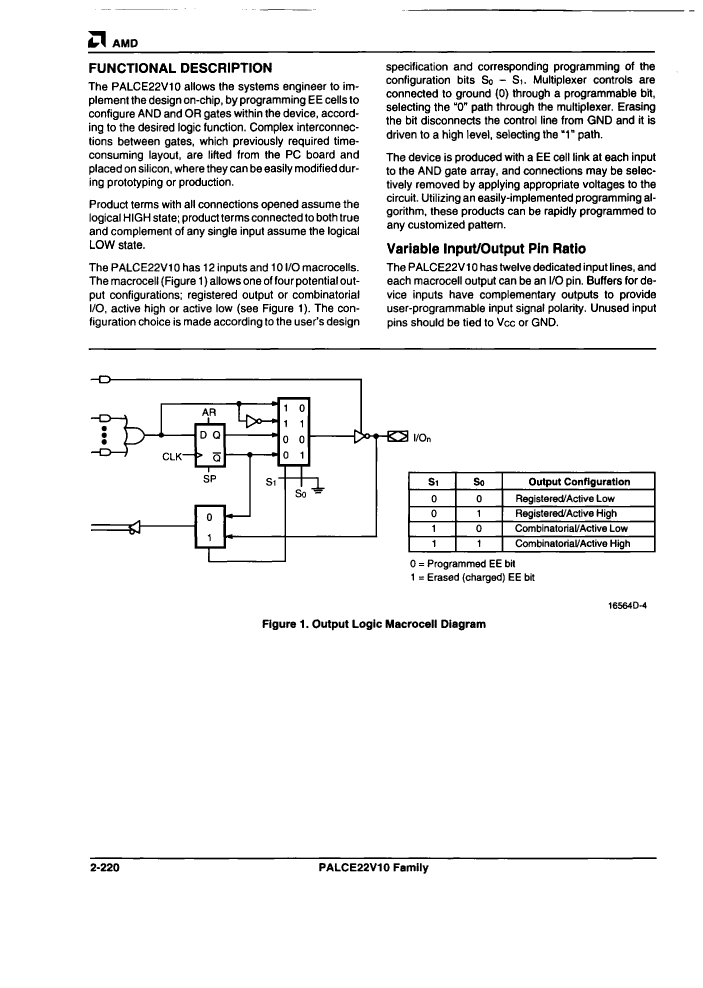

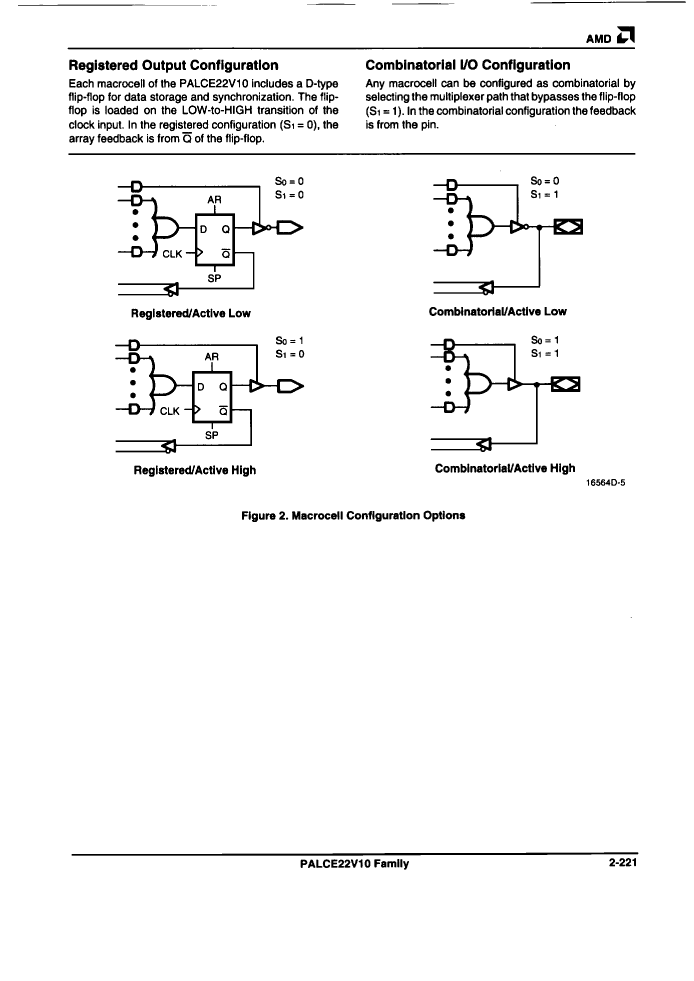

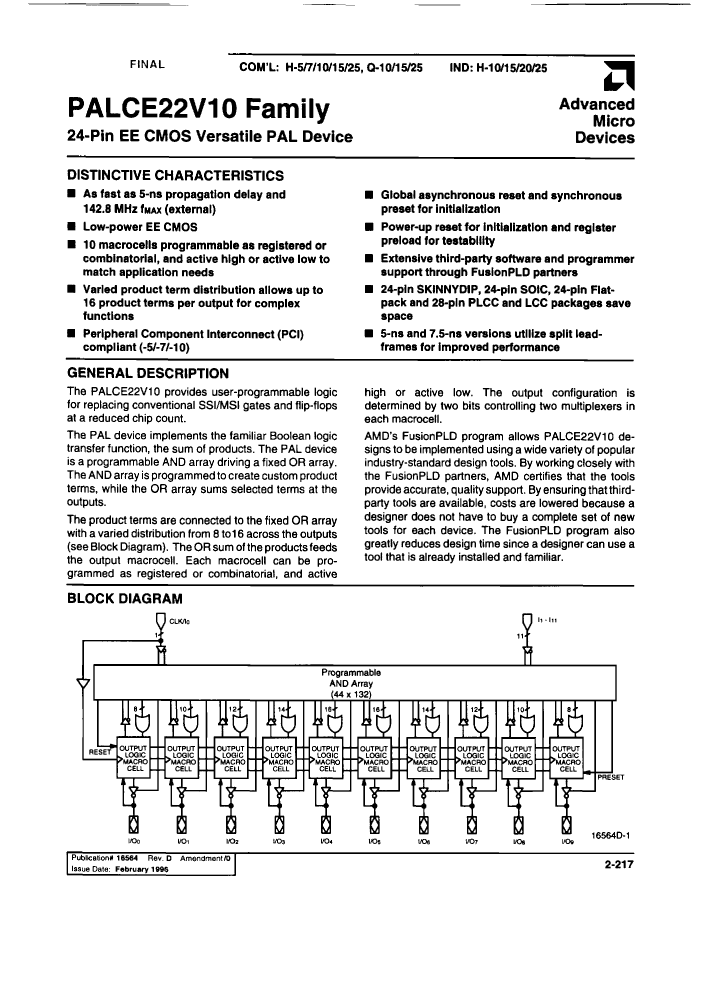

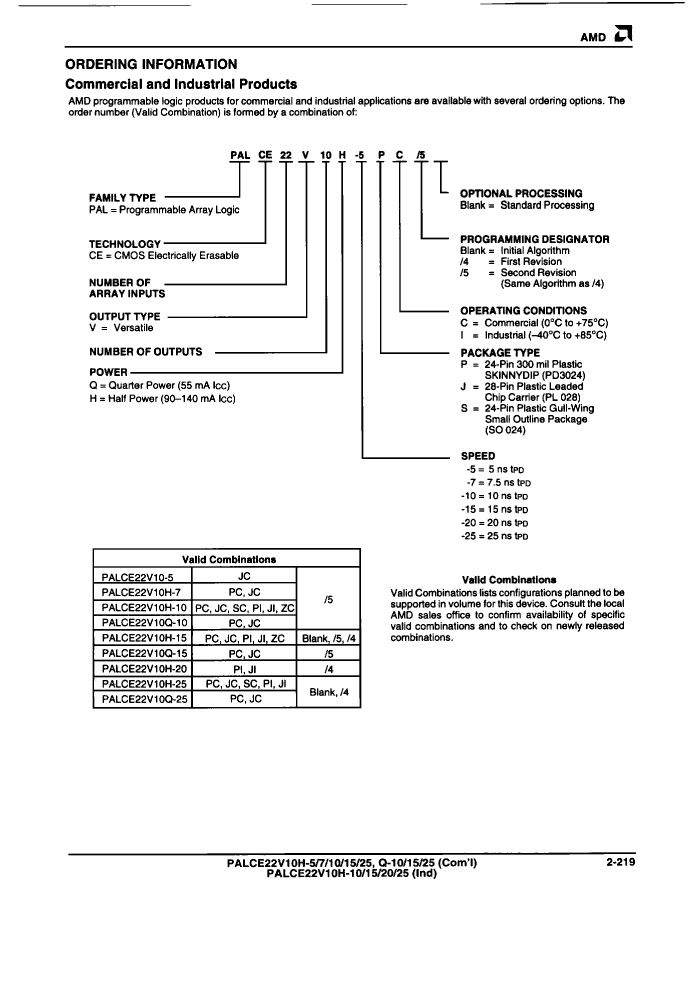

PALCE22V10H-10ZC/5 Overview

EE PLD, 10ns, CMOS, CDFP24, CERAMIC, FP-24

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	DFP
package instruction	DFP,
Contacts	24
Reach Compliance Code	unknown
Other features	10 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK
maximum clock frequency	83.3 MHz
JESD-30 code	R-CDFP-F24
length	15.367 mm
Dedicated input times	11
Number of I/O lines	10
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Programmable logic type	EE PLD
propagation delay	10 ns
Certification status	Not Qualified
Maximum seat height	2.286 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.29 mm
