BA9743AFV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA9743AFV

BA9743AFV: DescriptionDUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16; CategoryPower/power management The power supply circuit; File Size3MB，17 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA9743AFV Overview

DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16

BA9743AFV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSSOP, SOP16,.25
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	35 V
Minimum input voltage	3.6 V
Nominal input voltage	6 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	5 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.25 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	800 kHz
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

Preview

Download Datasheet

View All

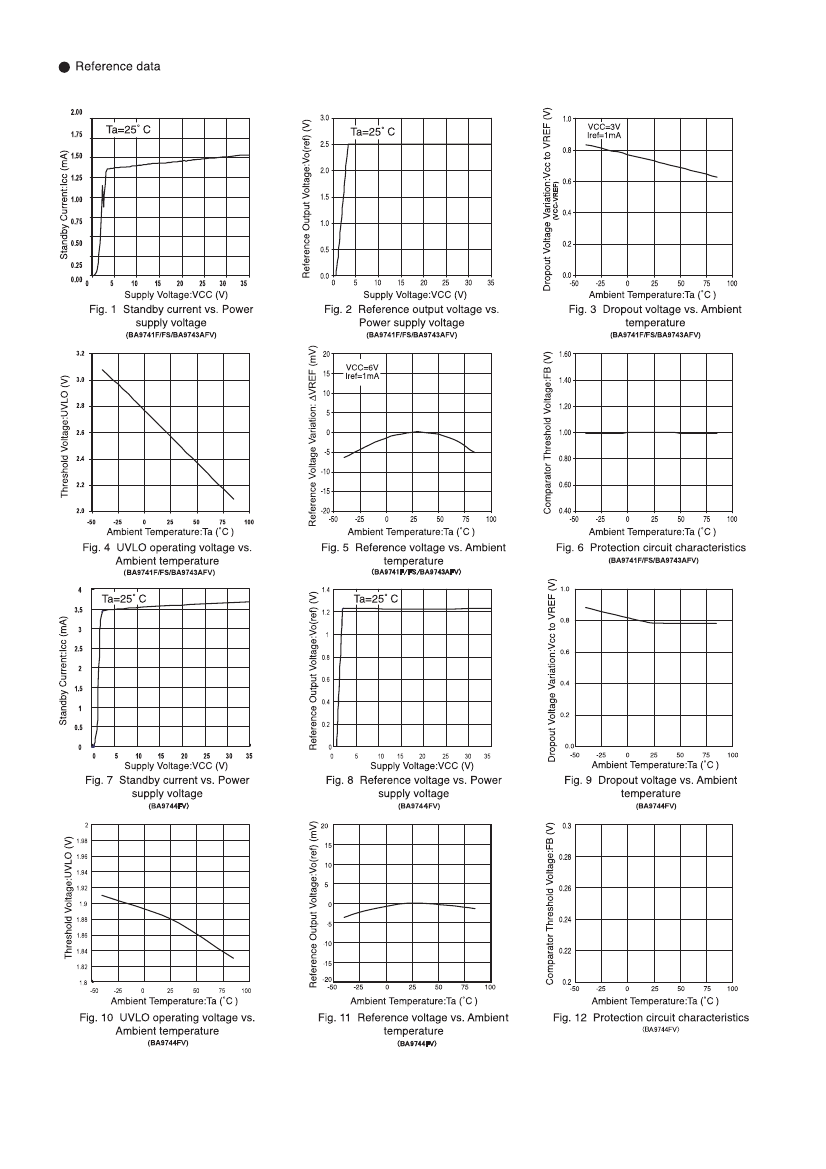

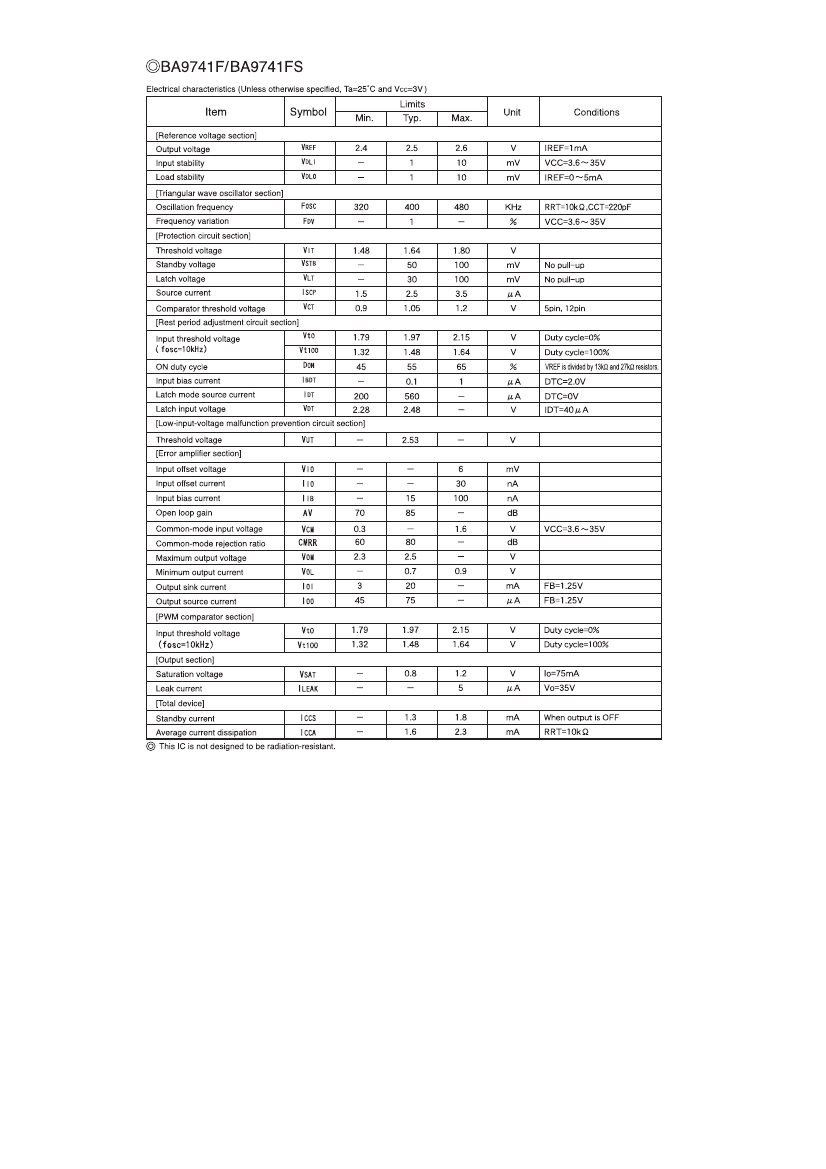

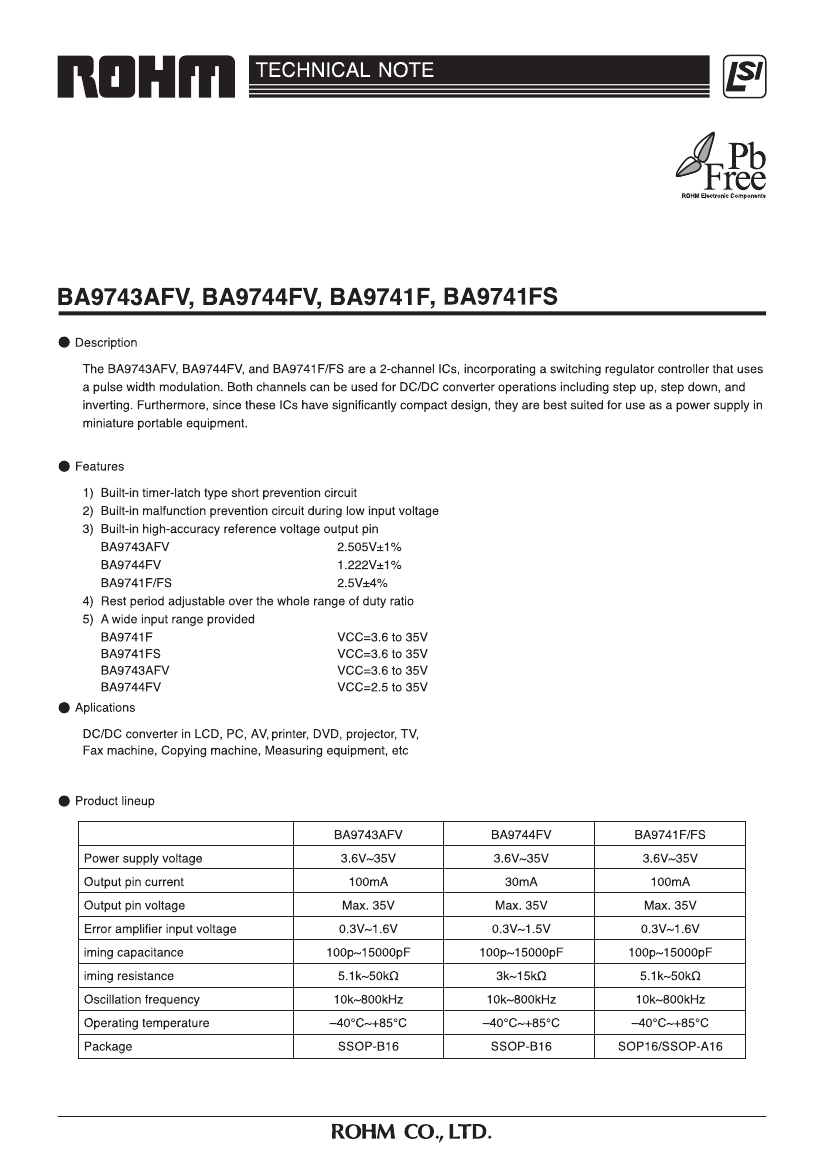

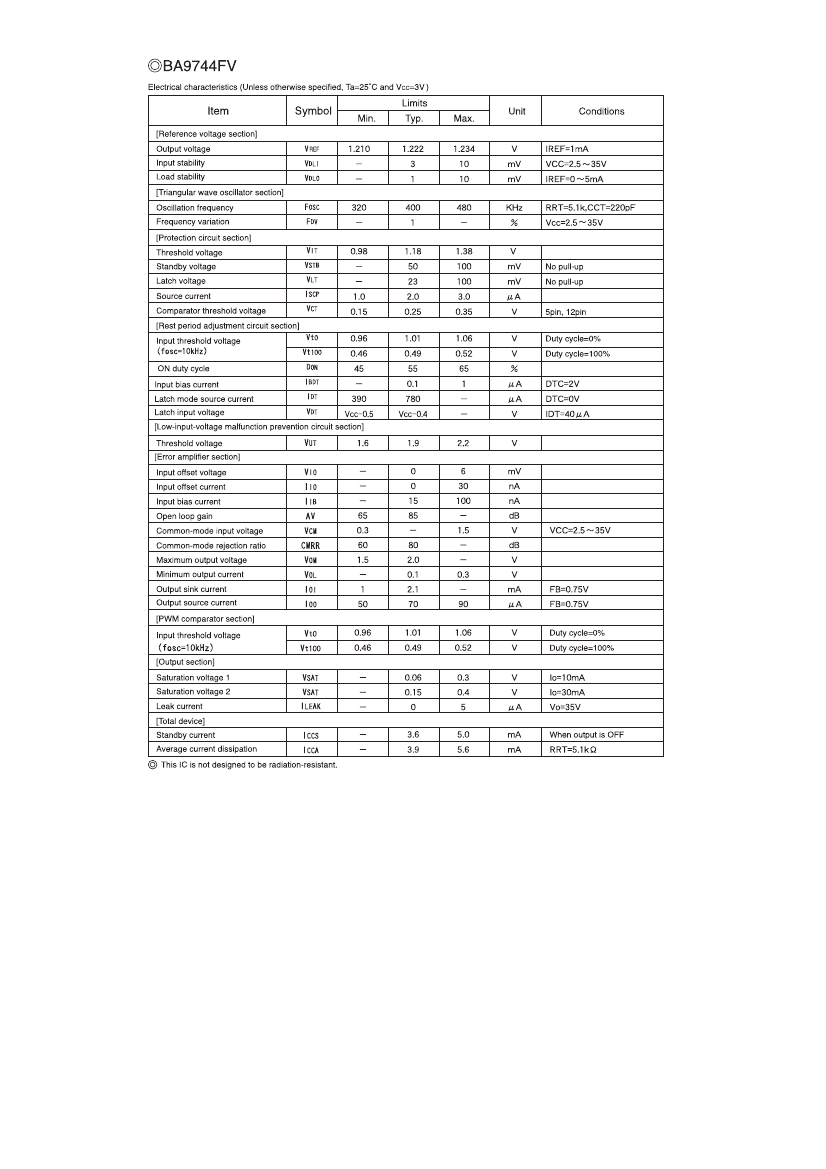

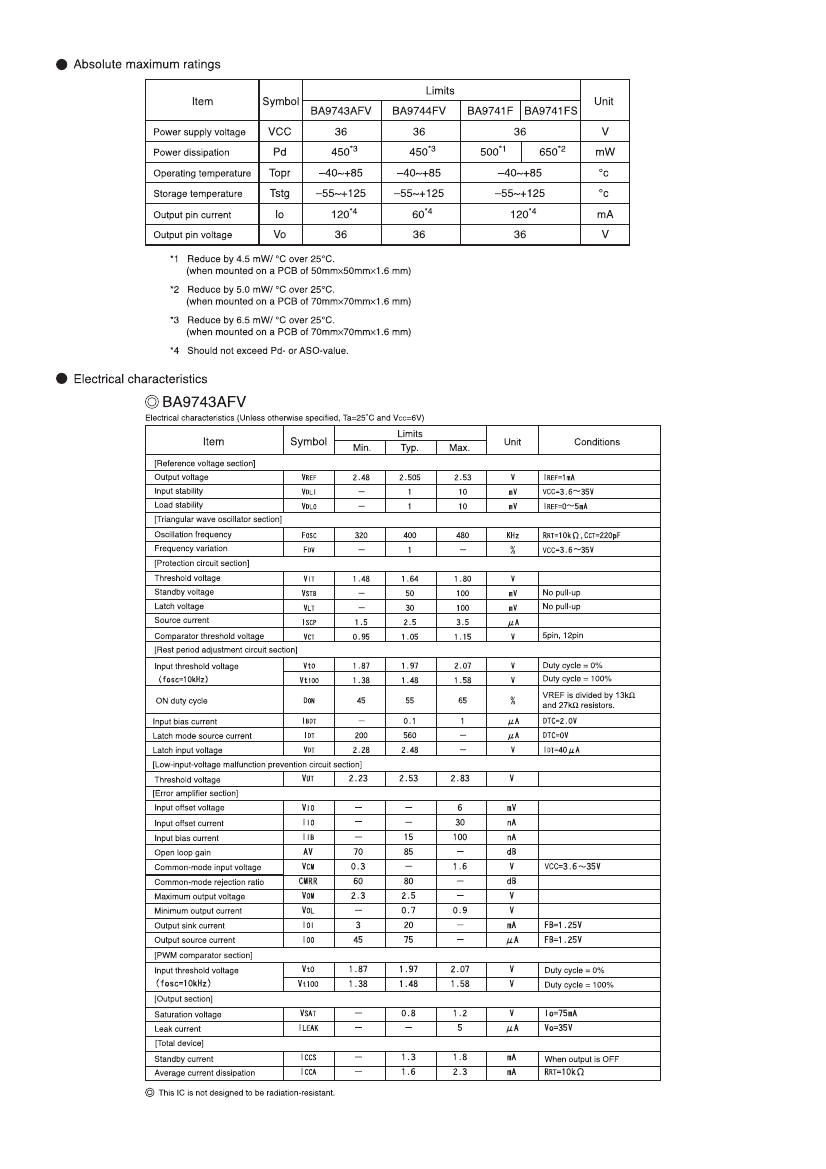

Large Current External FET Controller Type Switching Regulators

Dual-output Step-up, Negative Voltage,

Step-down Switching Regulators (Controller type)

Sep. 2008

BA9743AFV Related Products

	BA9743AFV	BA9741F	BA9741FS	BA9744FV	BA9743AFV_08
Description	DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16	0.12 A DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16	0.12 A DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16	0.06 A DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16	0.12 A DUAL SWITCHING CONTROLLER, 800 kHz SWITCHING FREQ-MAX, PDSO16
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	-
Parts packaging code	SOIC	SOIC	SOIC	SOIC	-
package instruction	LSSOP, SOP16,.25	SOP, SOP16,.25	SSOP, SOP16,.25,32	LSSOP, SSOP16,.25	-
Contacts	16	16	16	16	-
Reach Compliance Code	compli	compli	compli	compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	DUAL SWITCHING CONTROLLER	-
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	-
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-
Maximum input voltage	35 V	35 V	35 V	35 V	-
Minimum input voltage	3.6 V	3.6 V	3.6 V	2.5 V	-
Nominal input voltage	6 V	3.6 V	3.6 V	3 V	-
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	-
JESD-609 code	e2	e2	e2	e2	-
length	5 mm	10 mm	6.6 mm	5 mm	-
Number of functions	1	1	1	1	-
Number of terminals	16	16	16	16	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-
Maximum output current	0.12 A	0.12 A	0.12 A	0.06 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	LSSOP	SOP	SSOP	LSSOP	-
Encapsulate equivalent code	SOP16,.25	SOP16,.25	SOP16,.25,32	SSOP16,.25	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-
Peak Reflow Temperature (Celsius)	260	260	260	260	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	1.25 mm	1.6 mm	1.6 mm	1.25 mm	-
surface mount	YES	YES	YES	YES	-
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum switching frequency	800 kHz	800 kHz	800 kHz	800 kHz	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.65 mm	1.27 mm	0.8 mm	0.65 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	10	10	10	-
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	-
