LFC-J20RA: DescriptionCard Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size379KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric Compare View All

LFC-J20RA Overview

Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal

LFC-J20RA Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
body width	0.148 inch
subject depth	0.358 inch
body length	1.244 inch
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
MIL compliance	NO
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

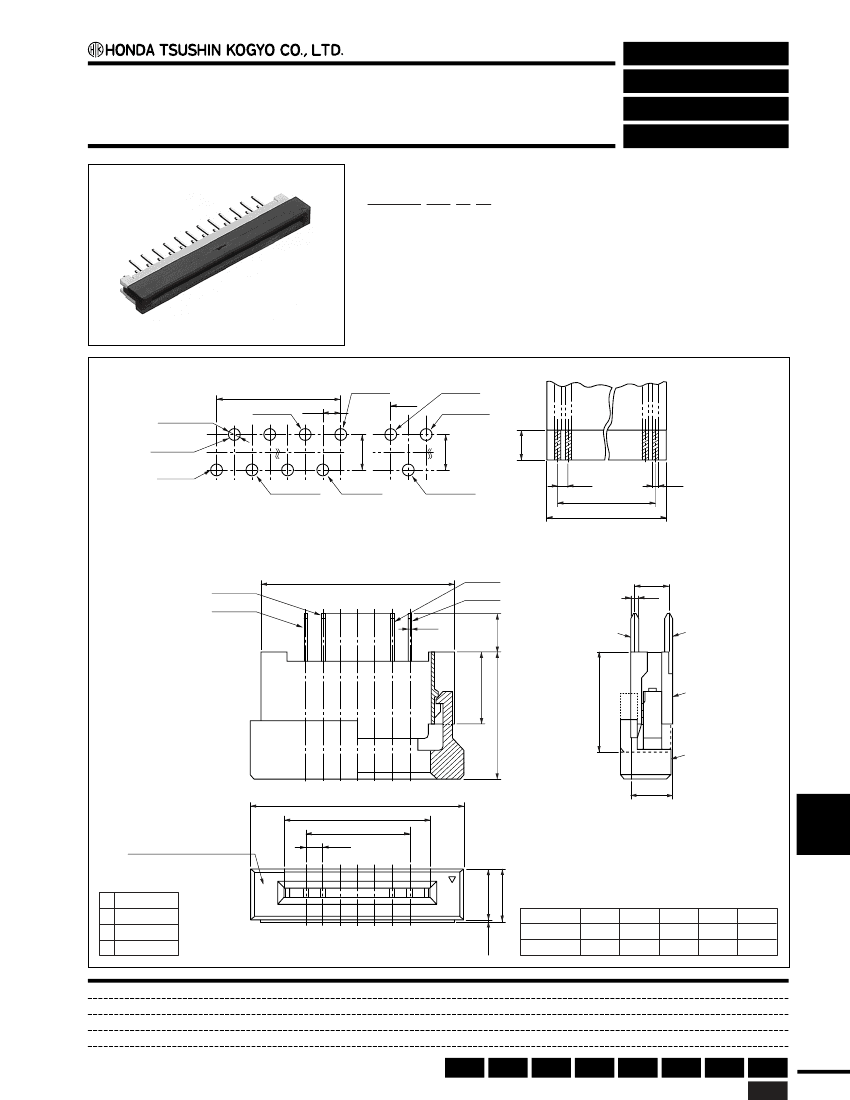

Connectors for FPC

Straight DIP type female connector for FPC

LFC-J( )RA

G

Configuration of product Part No.

Straight DIP

LFC-J ( ) R A

➀

➁

➂ ➃

➀

Series name

➁

No. of contacts: 20, 25

➂

Order of marked contact numbers:

Marked in reverse direction to the configuration of

product Part No. LFC-J( )A

➃

Form of insulator: Wide width type slider

n-ø0.8

+ 0.05

–

A

–

POS.#3

1.25

–

+ 0.05

A

–

+ 0.1

POS.#n-2

2.5

– 0.05

3.5

POS.#n

POS.#n-2

Even number positions

POS.#2

POS.#n-1

Odd number positions

1.25

– 0.05

A

–

+ 0.1

E

–

+ 0.1

+

0.7

– 0.05

+

Recommended P. C. B Layout

(Thickness = 1.6 )

Recommended F. P. C Layout

+

(Thickness = 0.3

– 0.05

)

2.5

0.5

POS.#n-1

POS.#n

POS.#1

0.35

2.8 REF.

(When insulator B is opened)

(When insulator B is locked)

5.1

9.1

3

No. of Contacts is marked.

1.25

3.65

3.75

G

Components

➀

Insulator A

➁

Insulator C

➂

Contacts A

➃

Contacts B

G

Dimensions

Part No.

LFC-J20RA

LFC-J25RA

A

23.75

30

B

26.55

32.8

C

30.25

36.5

D

31.6

37.85

E

26.35

32.6

Mating FPC Thickness:

t = 0.3

–

+ 0.05

LFC series…13

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Dip

M-15

P

MR

0.1 REF.

N

LFC

D

B

A

L

➁

K

7.2

➀

J

➂

➃

I

C

POS.#2

H

G

POS.#n-1

2.5

– 0.05

+

F

+ 0.1

POS.#1

POS.#n

E

25

D

B

A

1.25 mm pitch FPC

LFC-J20RA Related Products

	LFC-J20RA	LFC-J25RA
Description	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, 0.049 inch Pitch, Solder Terminal
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
body width	0.148 inch	0.148 inch
subject depth	0.358 inch	0.358 inch
body length	1.244 inch	1.49 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω
MIL compliance	NO	NO
Plug contact pitch	0.049 inch	0.049 inch
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.4892 mm	2.4892 mm
Rated current (signal)	0.5 A	0.5 A
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch
Terminal pitch	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER
Total number of contacts	20	25
