LC-101-5005F20BP: DescriptionFiber Optic Connector, 125um, Single Mode, Simplex, Plug; CategoryThe connector The connector; File Size169KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

LC-101-5005F20BP Overview

Fiber Optic Connector, 125um, Single Mode, Simplex, Plug

LC-101-5005F20BP Parametric

Parameter Name	Attribute value
Objectid	1903699321
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	125um
IEC compliance	NO
Insertion loss	0.2 dB
MIL compliance	NO
model	SINGLE
Installation type	CABLE
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

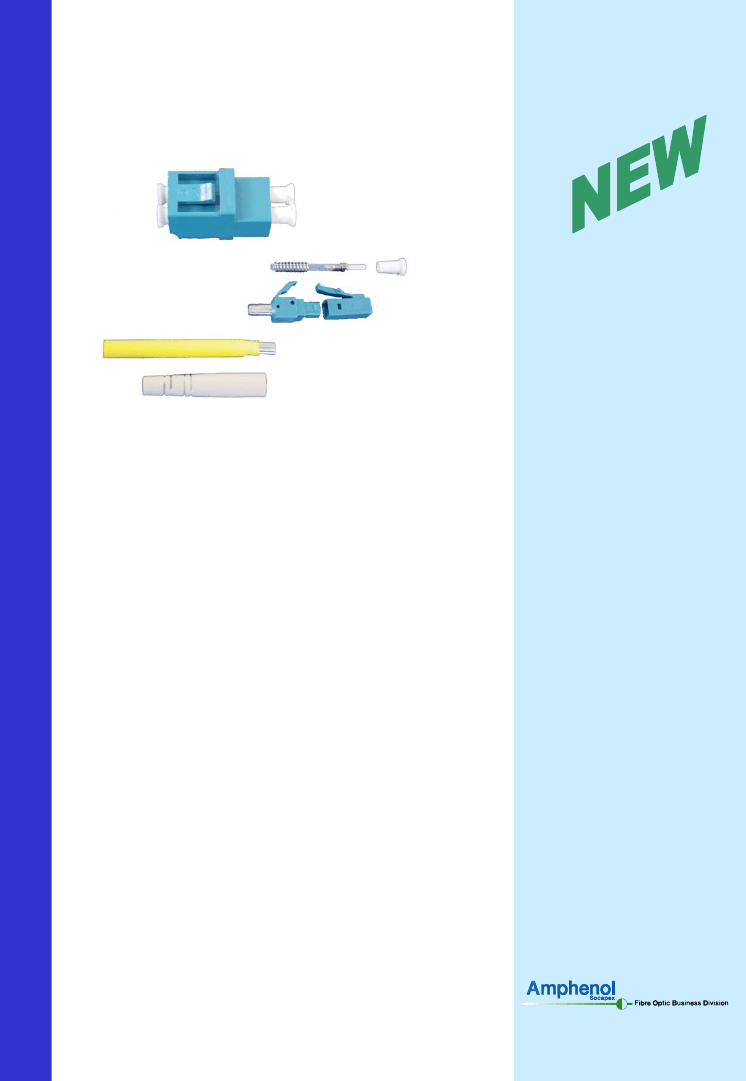

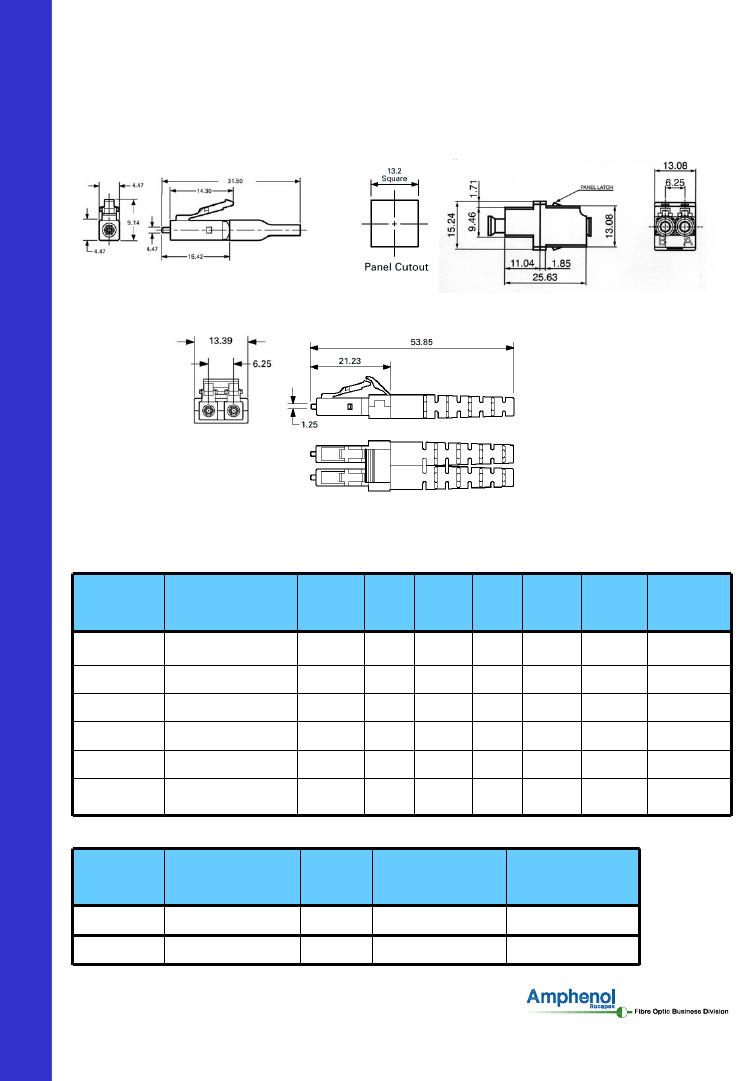

LC

LC Series

Singlemode Multipiece connectors

and adapters

MAIN CHARACTERISICS

Features

•Small Form Factor

• The LC connector is a

high performance,

double density

singlemode connector

Technical description

• Typical insertion loss :

- Singlemode & Multimode fiber : 0,2 dB

• Typical back reflection

- Singlemode fiber : < -50 dB

• Durability : 500 mating/unmating cycles

• Operating temperature : -20°C, +70°C

• Connector materials :

- Polymer body

- Zirconia ceramic ferrule diameter 1,25mm

• Connector indexing

• Spring loaded connector for physical contact butt coupling

• Pull-proof locking system

• Coupling with audible latching system to indicate the mating

• Conform to EIA/TIA 568A IEC

• Simplex or Duplex connectors with duplex adapters

• Termination by epoxy polish with polishing machines

• Termination by epoxy polish with field tool kit in 5 minutes

Applications

• Telecommunication and

metropolitan networks,

• Access networks

• DWDM systems

• Optical switches

Amphenol Socapex

Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23

Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and

reliable but are presented without garanty. No reproduction without agreement. E556/B . Printed in France by Amphenol Socapex.
