GC4210 – GC4275
TM
®
CONTROL DEVICES – HIGH SPEED PIN DIODES
RoHS Compliant
DESCRIPTION
The GC4200 series are high speed (cathode base) PIN diodes
made with high resistivity epitaxial silicon material. These diodes
are passivated with silicon dioxide for high stability and reliability
and have been proven by thousands of device hours in high
reliability systems.
These devices can withstand storage temperatures from -65°C to
+200°C and will operate over the range from -55°C to +150°C. All
devices meet or exceed military environmental specifications of
MIL-PRF-19500. The GC4200 series will operate with as little as
+10 mA forward bias.
This series of diodes meets RoHS requirements per EU Directive
2002/95/EC. The standard terminal finish is gold unless otherwise
specified. Consult the factory if you have special requirements.
APPLICATIONS
2B
KEY FEATURES
Available as packaged devices or
as chips for hybrid applications
Low Loss
Suitable for application to 18Ghz
High Speed
Low Insertion Loss
High Isolation
RoHS Compliant
1
1
www.MICROSEMI.com
Most of our devices are supplied with
Gold plated terminations. Other terminal
finishes are available on request. Consult
factory for details.
The GC4200 series can be used in RF circuits as an on/off element,
as a switch, or as a current controlled resistor in attenuators
extending over the frequency range from UHF through Ku band.
Switch applications include high speed switches (ECM systems), TR
switches, channel or antenna selection switches
(telecommunications), duplexers (radar) and digital phase shifters
(phased arrays).
The GC4200 series are also used as passive and active limiters for
low to moderate RF power levels.
Attenuator type applications include amplitude modulators, AGC
attenuators, power levelers and level set attenuators.
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
3B
APPLICATIONS/BENEFITS
RF / Microwave Switching
Duplexers
Digital Phase Shifting
Phase Array Radar
Rating
Maximum Leakage Current
@80% of Minimum Rated V
B
Storage Temperature
Operating Temperature
Symbol
I
R
T
STG
T
OP
Value
0.5
-65 to +200
-55 to +150
Unit
uA
GC4210-GC4275
GC4210-GC4275
ºC
ºC
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website
:
www.MICROSEMI.com
HU
UH
Specifications are subject to change, consult factory for the latest information.
These devices are ESD sensitive and must be handled use using ESD precautions.
Copyright
2006
Rev.: 2009-02-19
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 1
GC4210 – GC4275
TM
®
CONTROL DEVICES – HIGH SPEED PIN DIODES
RoHS Compliant
.
DEVICE ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
E
Model Number
GC4270
GC4271
GC4272
GC4273
GC4274
GC4275
GC4210
GC4211
GC4212
GC4213
GC4214
GC4215
GC4220
GC4221
GC4222
GC4223
GC4224
GC4225
1
I
R
=10μA
V
b
(V)
70
70
70
70
70
70
100
100
100
100
100
100
250
250
250
250
250
250
C
j
(pF)
2
@V
R
=10V
R
s
(Ω)
3
@20 mA
I
R
=6mA/I
F
=10mA
T
L
(nS)
(Typ)
100
100
100
100
100
100
200
200
200
200
200
200
500
500
500
500
500
500
Thermal
Resistance
θ
(˚C/W)
www.MICROSEMI.com
(Min)
(Max)
0.06
0.10
0.20
0.30
0.40
0.50
0.06
0.10
0.20
0.30
0.40
0.50
0.06
0.10
0.20
0.30
0.40
0.50
(Max)
1.5
1.0
0.8
0.7
0.6
0.5
1.5
1.0
0.75
0.6
0.5
0.35
2.5
2.0
1.5
1.0
0.8
0.6
(Max)
80
70
70
60
50
40
80
70
70
60
50
40
80
70
70
60
50
40
Notes:
1. This series of devices is available in standard case styles 00, 30, and 35. Many other styles are available on request.
2. Capacitance is measured at 1 MHz.
3. Resistance is measured AT 1 GHz using transmission loss techniques.
The junction capacitance specified is for a 00 (chip) package style. Standard wafer evaluation and
characterization is completed using a style 30 package. Diodes are available in many case styles.
Each type offers performance trade-offs. The proper choice of package style depends on the end
application and operating environment. Consult factory for assistance. Reverse polarity diodes
(NIP) and higher voltage PIN and NIP diodes are also available. (See data sheets for GC4300,
GC4400, and GC4500 series respectively.)
E
LECTRICALS
E
LECTRICALS
Copyright
2006
Rev.: 2009-02-19
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 2

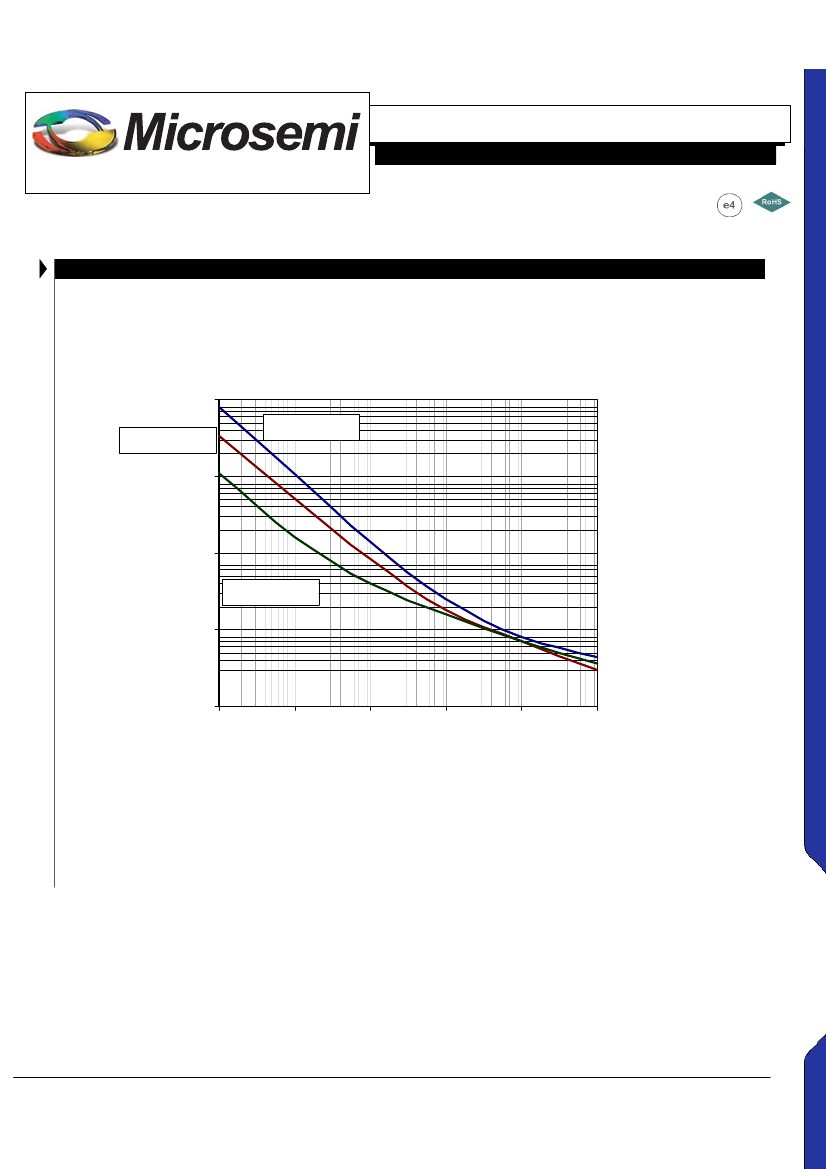

GC4210 – GC4275
TM
®
CONTROL DEVICES – HIGH SPEED PIN DIODES
RoHS Compliant

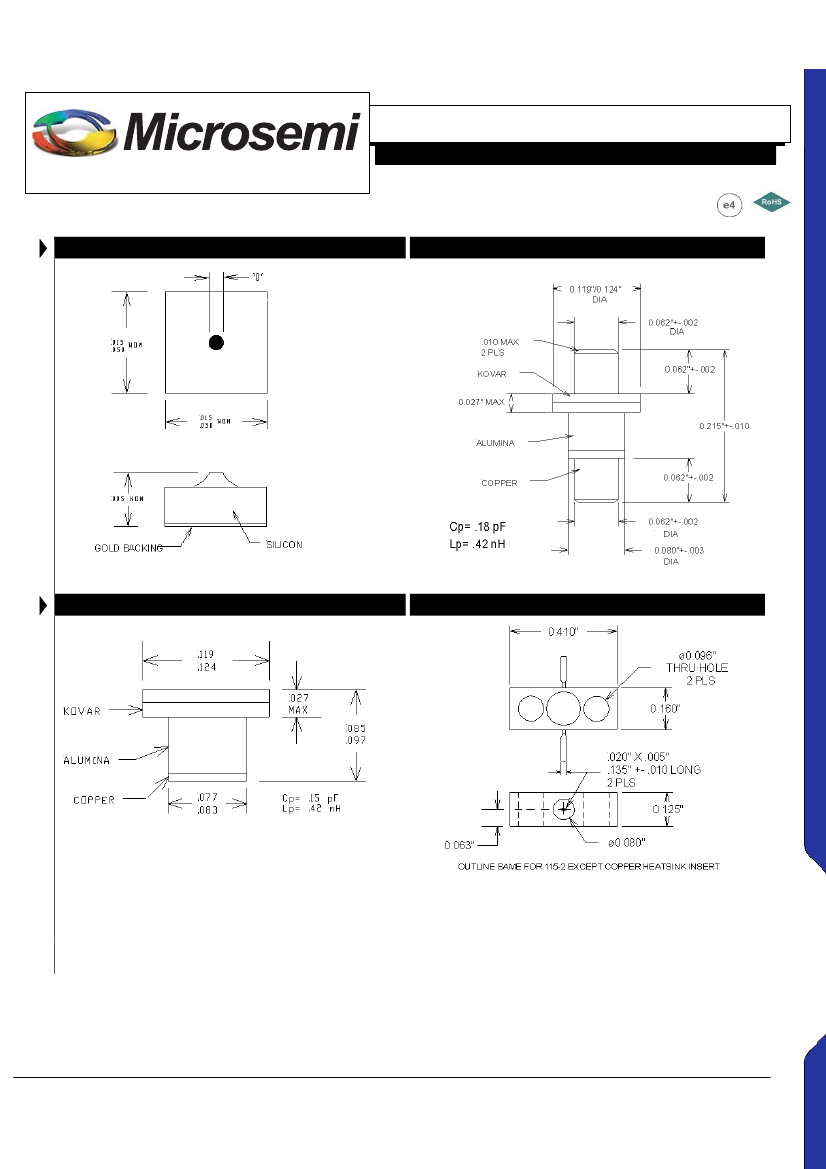

PACKAGE STYLE 00
PACKAGE STYLE 30
www.MICROSEMI.com
Dimensions vary by model. Consult factory for details.
PACKAGE STYLE 35
PACKAGE STYLE 115
MECHANICAL
MECHANICAL
50 OHM BOLT CHANNEL MODULE
OTHER PACKAGE STYLES AVAILABLE ON REQUEST
CONSULT FACTORY
Copyright
2006
Rev.: 2009-02-19
Microsemi
Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
Page 4
