GC84001 – GC84300
TM
®
PASSIVE DEVICES
MNS Capacitors
RoHS Compliant
DESCRIPTION
The GC84000 series are silicon chip capacitors and utilize silicon
nitride as the dielectric layer. These capacitors are preferred over
MOS devices because of their improved reliability and ruggedness. In
addition, they exhibit higher capacitance per unit area, resulting in
smaller size.
Because MNS capacitors are high Q devices, they have superior
insertion loss characteristics for high frequency applications as
compared with ceramic chip capacitors. They are used from UHF
through Ku-bands and exhibit less than 0.1 dB insertion loss over this
range.
The working voltage rating is 100 V
DC
(140 V
DC
, typical). Special
devices with breakdown ratings to 300 V
DC
and custom sizes are
available. Contact factory for details.
This series of devices meets RoHS requirements per EU Directive
2002/95/EC. The standard terminal finish is gold unless otherwise
specified. Consult the factory if you have special requirements.
APPLICATIONS
The GC84000 chip capacitors are used in RF circuits for DC blocks,
capacitive coupling and RF bypass. They are used for fixed
capacitive tuning of oscillators, multipliers or filter elements.
KEY FEATURES
Excellent Q
Superior Insertion Loss
Suitable for application to 18Ghz
RoHS Compliant
1
www.MICROSEMI.com
APPLICATIONS/BENEFITS
RF Bias Networks
DC Block
RF Bypass
Capacitive Coupling
Fixed Tuning Elements
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Working Voltage
Temperature Coeffecient of
Capacitance
Storage Temperature
Operating Temperature
Symbol
V
R
T
CC
T
STG
T
OP
Value
100
190
-65 to +200
-55 to +150
Unit
Volts
MNS CAPACITORS
MNS CAPACITORS
ppm/ ºC
ºC
ºC
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change, consult the factory for further information.
These devices are ESD sensitive and must be handled using ESD precautions.

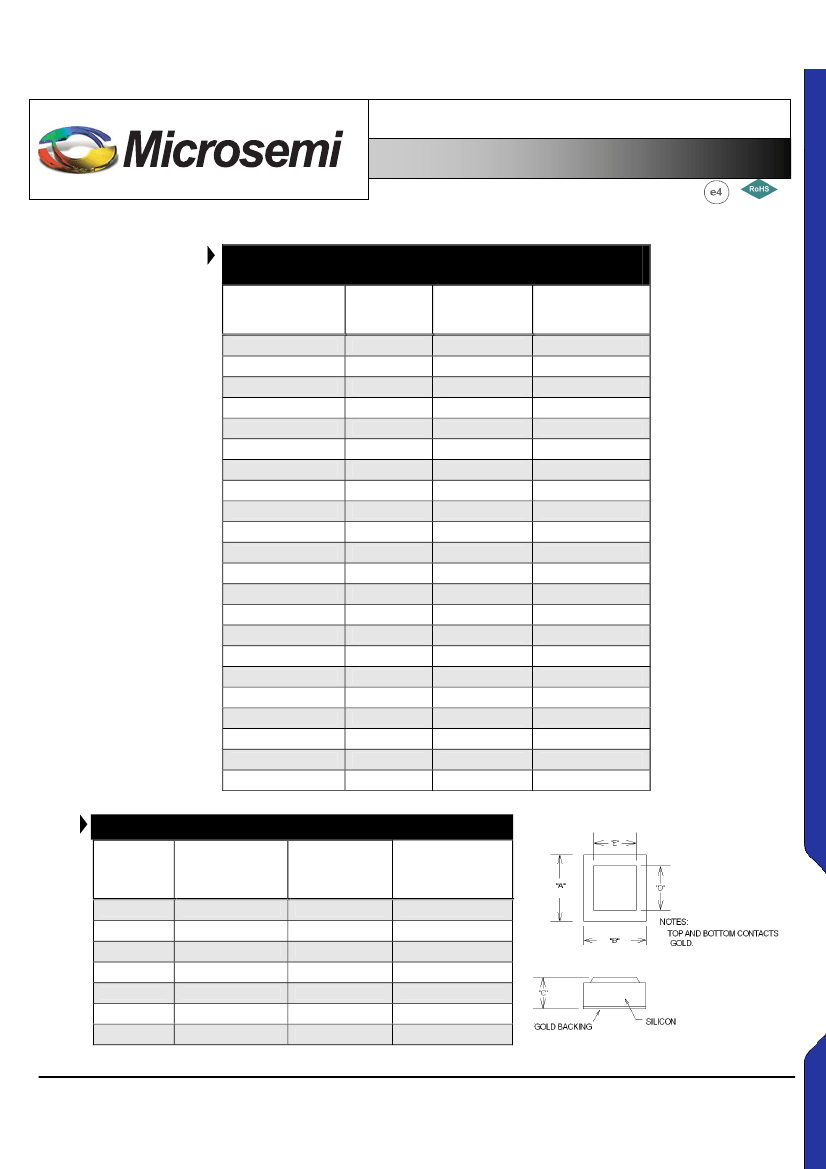

These devices are supplied with gold
plated terminations.
1
Copyright
2007
Rev: 2009-01-08
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
