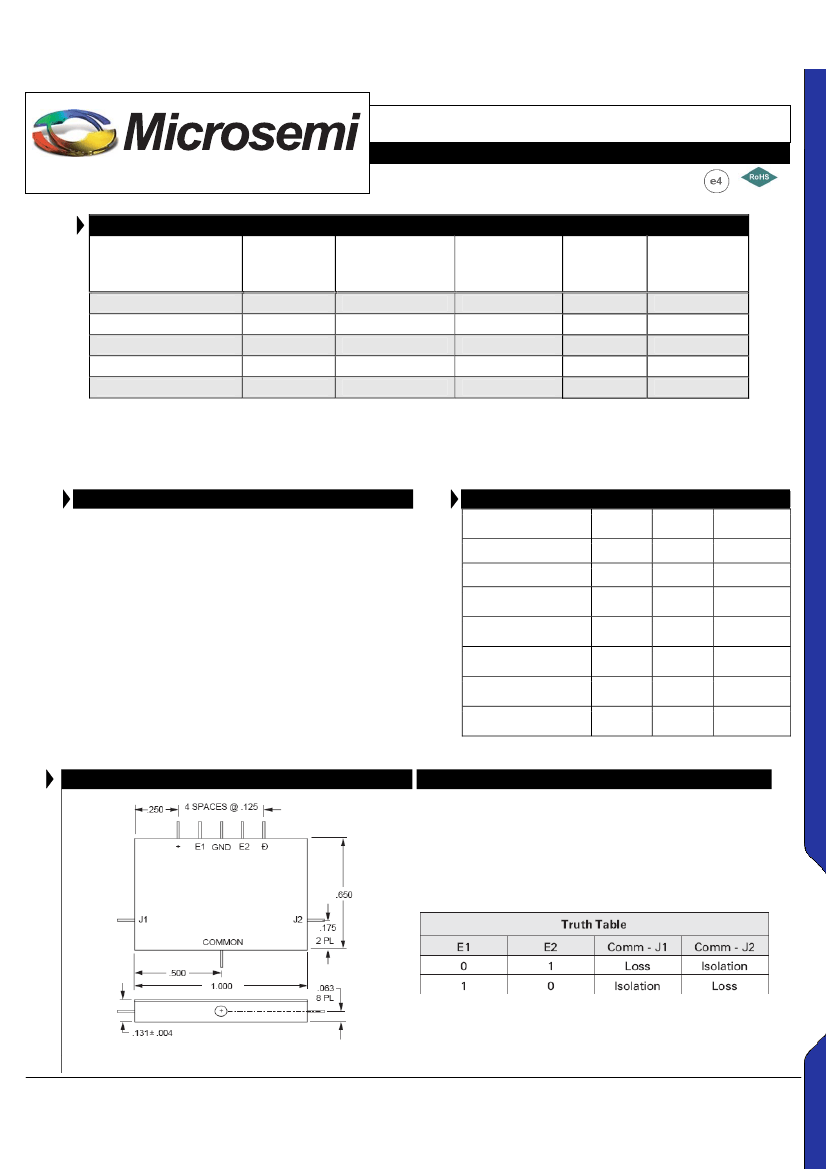

REFLECTIVE SPDT SWITCH MODULES with TTL Driver
| GG72230 | GG72230-01 | GG72230-05 | GG72230-02 | GG72230-04 | GG72230-03 | |
|---|---|---|---|---|---|---|
| Description | REFLECTIVE SPDT SWITCH MODULES with TTL Driver | REFLECTIVE SPDT SWITCH MODULES with TTL Driver | SPDT, 2000MHz Min, 18000MHz Max, 1 Func, 2.5dB Insertion Loss-Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-8 | SPDT, 2000MHz Min, 8000MHz Max, 1 Func, 1.6dB Insertion Loss-Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-8 | SPDT, 8000MHz Min, 18000MHz Max, 1 Func, 2.5dB Insertion Loss-Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-8 | REFLECTIVE SPDT SWITCH MODULES with TTL Driver |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to |
| package instruction | - | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 |
| Reach Compliance Code | - | compli | compliant | compliant | compliant | compli |
| structure | - | MODULE | MODULE | MODULE | MODULE | MODULE |
| Maximum input power (CW) | - | 26.99 dBm | 26.99 dBm | 26.99 dBm | 26.99 dBm | 26.99 dBm |
| Maximum insertion loss | - | 1 dB | 2.5 dB | 1.6 dB | 2.5 dB | 2.2 dB |
| Minimum isolation | - | 60 dB | 45 dB | 60 dB | 50 dB | 60 dB |
| JESD-609 code | - | e4 | e4 | e4 | e4 | e4 |
| Number of functions | - | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | - | 8 | 8 | 8 | 8 | 8 |
| Maximum operating frequency | - | 4000 MHz | 18000 MHz | 8000 MHz | 18000 MHz | 12400 MHz |
| Minimum operating frequency | - | 500 MHz | 2000 MHz | 2000 MHz | 8000 MHz | 4000 MHz |
| Maximum operating temperature | - | 95 °C | 95 °C | 95 °C | 95 °C | 95 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Encapsulate equivalent code | - | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 | MODULE,8LEAD,1 |
| port termination | - | REFLECTIVE | REFLECTIVE | REFLECTIVE | REFLECTIVE | REFLECTIVE |
| power supply | - | 5,-8/-15 V | 5,-8/-15 V | 5,-8/-15 V | 5,-8/-15 V | 5,-8/-15 V |
| RF/Microwave Device Types | - | SPDT | SPDT | SPDT | SPDT | SPDT |
| Terminal surface | - | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) |
| Maximum voltage standing wave ratio | - | 1.5 | 2 | 1.7 | 2 | 1.9 |
