KV1913A – GC1310
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM™Hyperabrupt Varactor Diodes
RoHS Compliant
DESCRIPTION
Our EPSM packaged devices are designed for the most demanding
commercial and Military requirements where the inconsistent
performance inherent in plastic surface mount packages cannot be
tolerated. These package styles extend the surface mount
construction format to 6 GHz for high performance wireless
applications. Select varactors from three families of C/V curves for
designs through 6 GHz. They are available in multiple chip
configuration as well as outlines which directly replace SOT23 and
SOD323 devices. Other devices and values are always available.
Contact our applications engineering department for more details.
KEY FEATURES
Wide Range of Capacitance
Values
For Frequencies from VHF to 6
GHz
Lower Parasitics
Superior Consistency/Repeatability
Footprints Available for SOT23/
SOD323/SOD123
Dozens of Configurations Available
Mil Grade Ceramic/Epoxy
Amalgam
Tape & Reel Available for Pick and
Place Assembly
RoHS Compliant
1
www.MICROSEMI.com
APPLICATIONS
Specify EPSM package style 450A or 454. For 3 terminal style 454,
refer to configuration page. Example: GC1503-454-4 is a common
cathode pair of abrupt junction varactors with 1.5 pF capacitance
@4V (per device); for the 2 terminal style 450A, refer to the outline
dimension table. Example: GC1503-450A is a single abrupt junction
varactor with 1.5 pF capacitance at 4V in an 0604 footprint.
APPLICATIONS/BENEFITS
High Performance Wireless
Surface Mount Options for
GSM, TAGS, WANS, PCS
Wideband VCO applications
Voltage Tuned Filters
VCXOs
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Leakage Current
@80% of Minimum Rated V
B
Storage Temperature
Operating Temperature
Symbol
I
R
T
STG
T
OP
Value
50
-55 to +125
-55 to +125
Unit
nA
EPSM VARACTORS
EPSM VARACTORS
ºC
ºC
IMPORTANT:
For the most current data, consult our website:
www.MICROSEMI.com
Specifications are subject to change. Consult factory for the latest information
.
These devices are ESD sensitive and must be handled using ESD precautions.
1
The EPSM products are supplied with a
RoHS complaint Gold finish
.
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KV1913A – GC1310
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM™Hyperabrupt Varactor Diodes
RoHS Compliant
KV1900 SUPER HYPERABRUPT VARACTORS
FOR 1-8 VOLT HIGH SENSITIVITY VCO’S
.
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
Model Number
KV1913A
KV1953A
KV1923A
KV1933A
KV1943A
KV1963A
KV1973A
KV1983A
KV1993A
V
B
(V)
IR=10μA
(Min)
12
12
12
12
12
12
12
12
12
C
T
(pF)
@1V
(Min)
36.0
26.0
17.0
13.0
9.0
4.0
1.8
1.2
0.6
C
T
(pF)
@2.5V
18 – 27
13 – 20
8.5 – 13
6.5 – 10
4.5 – 6.5
2.0 – 3.0
1.1 – 1.5
0.8 – 1.1
0.5 – 0.8
C
T
(pF)
@4V
(Max)
12.0
9.0
6.0
4.5
3.0
1.5
0.8
0.6
0.4
C
T
(pF)
@8V
(Max)
6.20
4.70
3.20
2.70
1.70
1.00
0.55
0.45
0.35
Q
@4V, 50 MHz
(Min)
400
500
600
750
900
1200
1400
1600
1800
www.MICROSEMI.com
KV2100 MICROWAVE HYPERABRUPT VARACTORS
FOR 2-15 VOLT WIDE BANDWIDTH VCO’S
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
Model Number
KV2163
KV2153
KV2143
KV2133
KV2123
KV2113
V
B
(V)
IR=10μA
(Min)
22
22
22
22
22
22
C
T
(pF)
@0V
(Typ)
26.0
14.0
7.0
5.0
3.0
2.0
C
T
(pF)
@4V
8.75 – 10.80
4.45 – 5.50
2.65 – 3.30
1.75 – 2.20
1.30 – 1.65
0.85 – 1.10
C
T
(pF)
@20V
1.85 – 2.50
0.85 – 1.30
0.65 – 0.90
0.50 – 0.70
0.40 – 0.55
0.30 – 0.45
Q
@4V,50 MHz
(Min)
400
600
700
850
1000
1200
GC1300 MICROWAVE ABRUPT VARACTORS
FOR 0-30 VOLT MODERATE BANDWIDTH LOW NOISE VCO’S
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
Model Number
GC1300
GC1301
GC1302
GC1303
GC1304
GC1305
GC1306
GC1307
GC1308
GC1309
GC1310
V
B
(V)
IR=10μA
(Min)
30
30
30
30
30
30
30
30
30
30
30
C
T
(pF)
@4V
(+/-10%)
0.8
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
Ratio
C
T 0
/ C
T 4
(Min)
1.5
1.6
1.7
1.8
1.9
2.0
2.0
2.1
2.1
2.2
2.2
Ratio
C
T 4
/ C
T30
(Min)
1.45
1.55
1.60
1.65
1.70
1.75
1.80
1.85
1.90
1.95
2.00
Q
@4V,50 MHz
(Min)
3900
3800
3700
3600
3500
3400
3300
3100
2700
2600
2500
ELECTRICALS
ELECTRICALS
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
KV1913A – GC1310
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM™Hyperabrupt Varactor Diodes
RoHS Compliant

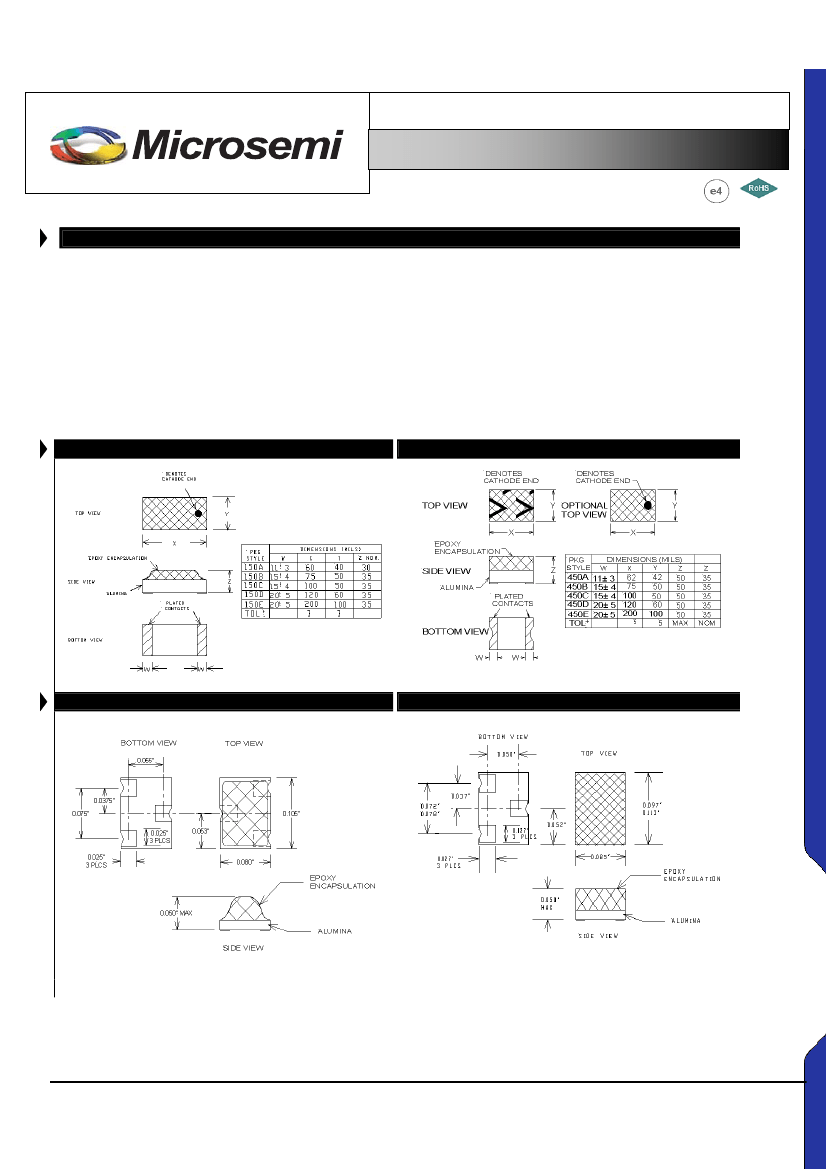

MECHANICAL OPTIONS
EPSM products are available in a broad range of mechanical configurations. The standard package style is the 450
series. This series has several sizes available to accommodate the internal chip configurations. The 450A is the most
common configuration for single diode applications. The 454 series package style is a three terminal configuration
designed to accommodate 2 chips for ‘T” and common anode/cathode designs. With uniform ‘flat-top’ construction, the
450 series of EPSM products are ideally suited for tape and reel / automated assembly.
The 150 series of EPSM products have a ‘glob-top’ construction and are traditionally used in smaller volume
applications.
www.MICROSEMI.com
PACKAGE STYLE 150X
PACKAGE STYE 450X
PACKAGE STYLE 154
PACKAGE STYPE 454
MECHANICAL
MECHANICAL
Packages are designed with wrap-around metalized castellations for superior assembly results.
Copyright
2007
Rev: 2009-01-19
Microsemi
Microwave Products
Page 3
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
