TTMC10105L datasheet, PDF - EEWORLD Datasheet

TTMC10105L: DescriptionOR/NOR Gate, ECL10K, CDIP16; Categorylogic logic; File Size105KB，3 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

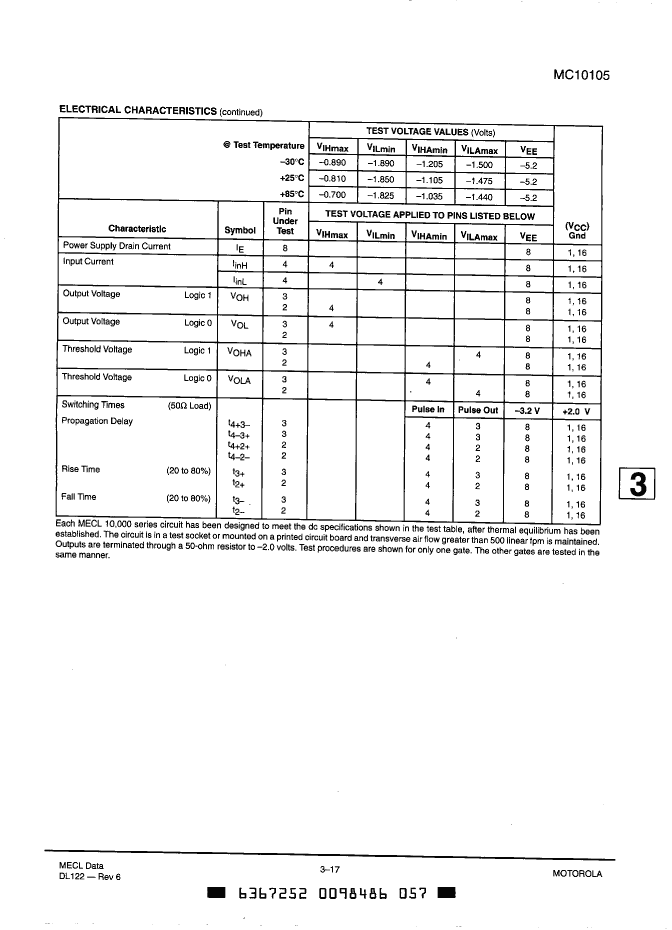

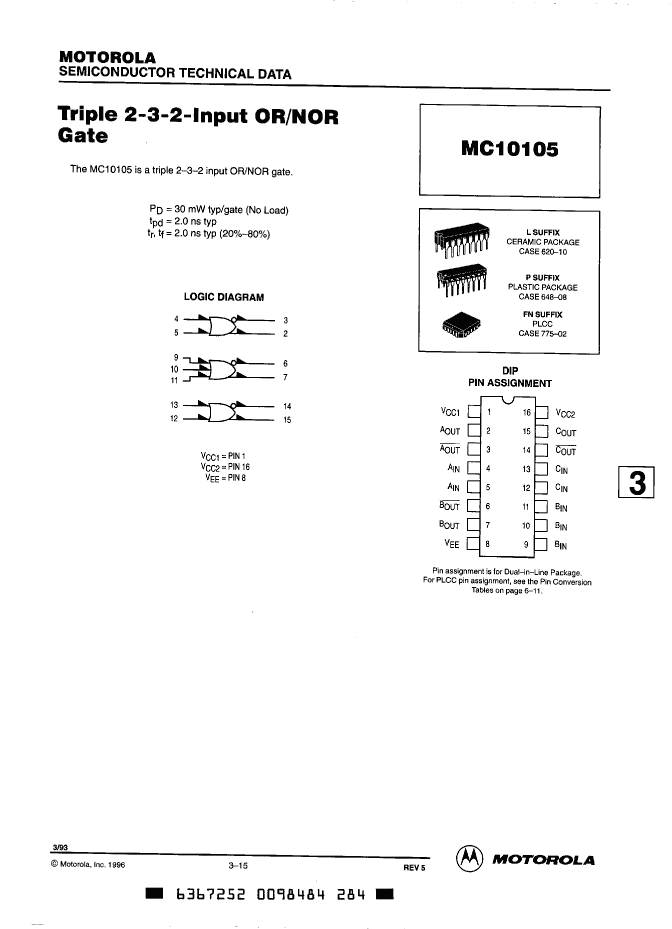

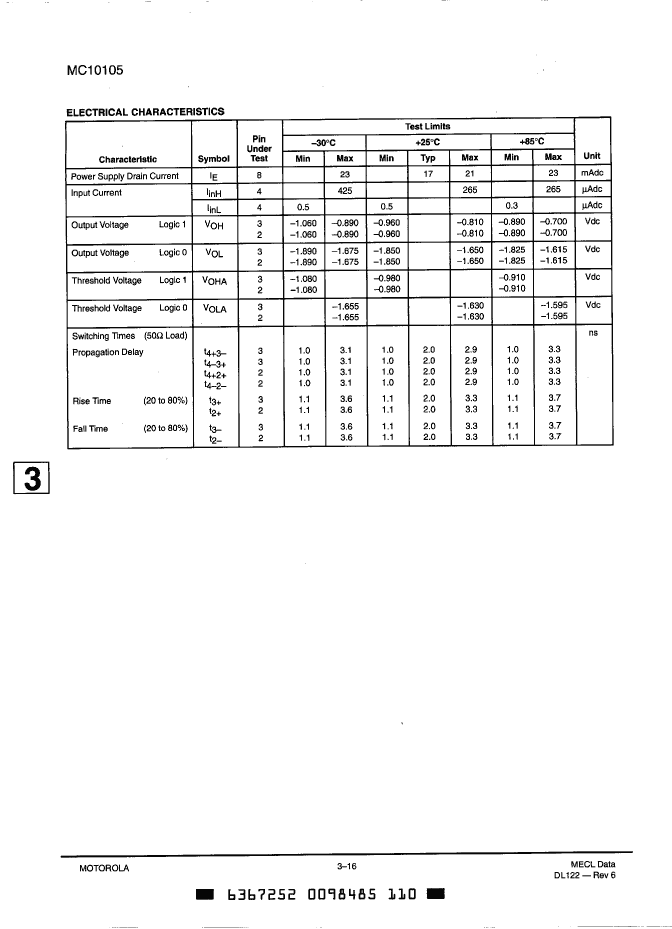

TTMC10105L Overview

OR/NOR Gate, ECL10K, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Twilight Technology Inc.
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
Logic integrated circuit type	OR/NOR GATE
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-5.2 V
Maximum supply current (ICC)	23 mA
Prop。Delay @ Nom-Sup	3.3 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	ECL10K
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
