SDA132E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SDA132E

SDA132E: Description50 A, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size224KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDA132E Overview

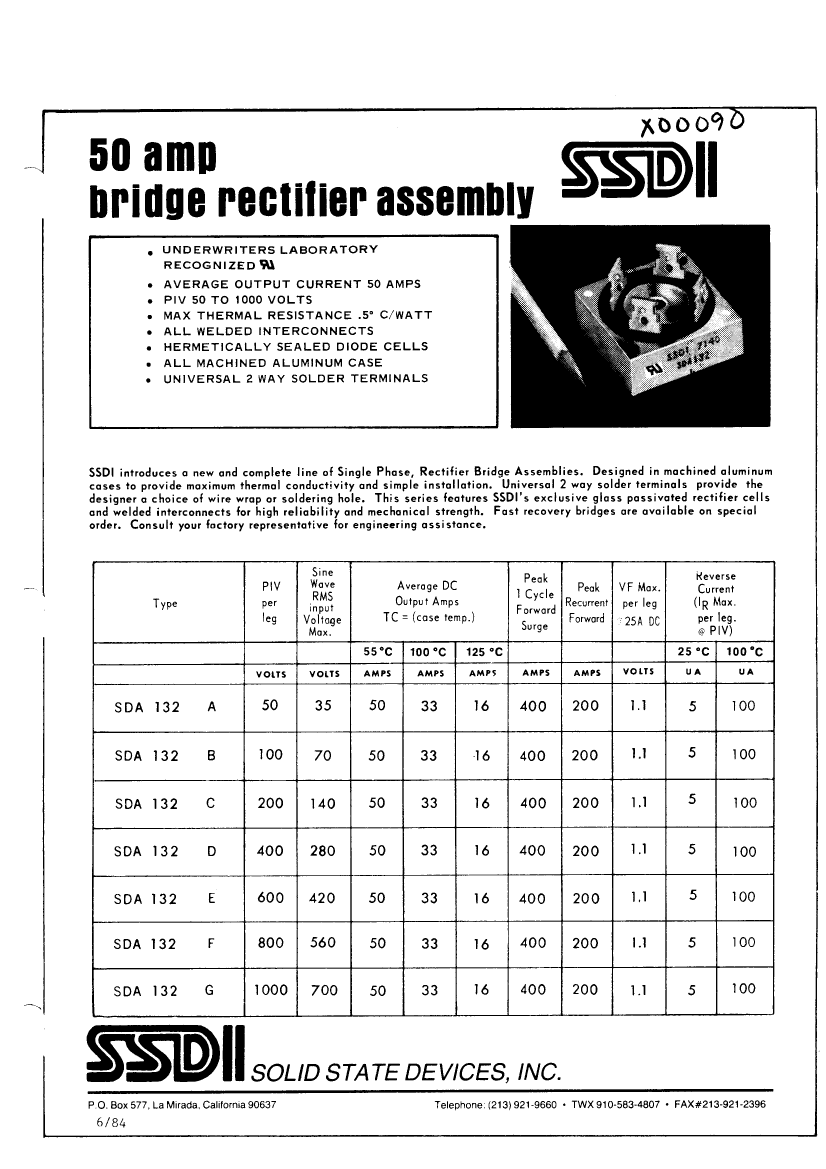

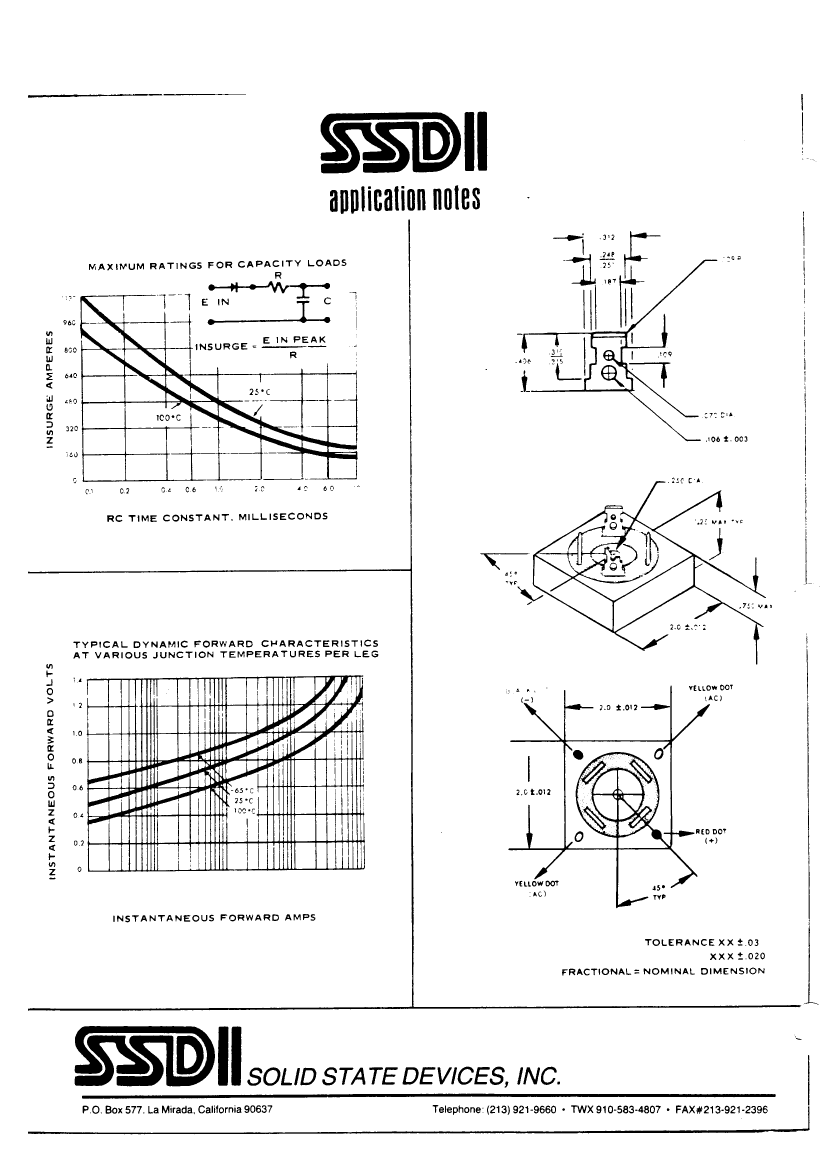

50 A, SILICON, BRIDGE RECTIFIER DIODE

SDA132E Parametric

Parameter Name	Attribute value
package instruction	S-MUFM-D4
Reach Compliance Code	compli
Other features	UL RECOGNIZED, HIGH RELIABILITY
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-MUFM-D4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Maximum output current	50 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

SDA132E Related Products

	SDA132E	SDA132C	SDA132B	SDA132F	SDA132G	SDA132A	SDA132D
Description	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE	50 A, SILICON, BRIDGE RECTIFIER DIODE
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
Other features	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY	UL RECOGNIZED, HIGH RELIABILITY
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	200 V	100 V	800 V	1000 V	50 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
package instruction	S-MUFM-D4	-	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4	S-MUFM-D4
Base Number Matches	1	-	1	1	1	-	-
Maker	-	SSDI	SSDI	-	-	SSDI	SSDI
