BU92747KV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> BU92747KV

BU92747KV: DescriptionSilicon Monolithic Integrated Circuit; CategoryWireless rf/communication Telecom circuit; File Size415KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BU92747KV Overview

Silicon Monolithic Integrated Circuit

BU92747KV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	48
Reach Compliance Code	compli
JESD-30 code	S-PQFP-G48
length	7 mm
Number of functions	1
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.625 mm
Nominal supply voltage	1.8 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7 mm

Preview

Download Datasheet

View All

1/4

Structure

Product Name

Model name

Outer Dimension

Features

Silicon Monolithic Integrated Circuit

IrDA Controller LSI built-in Ir remote control

BU92747KV

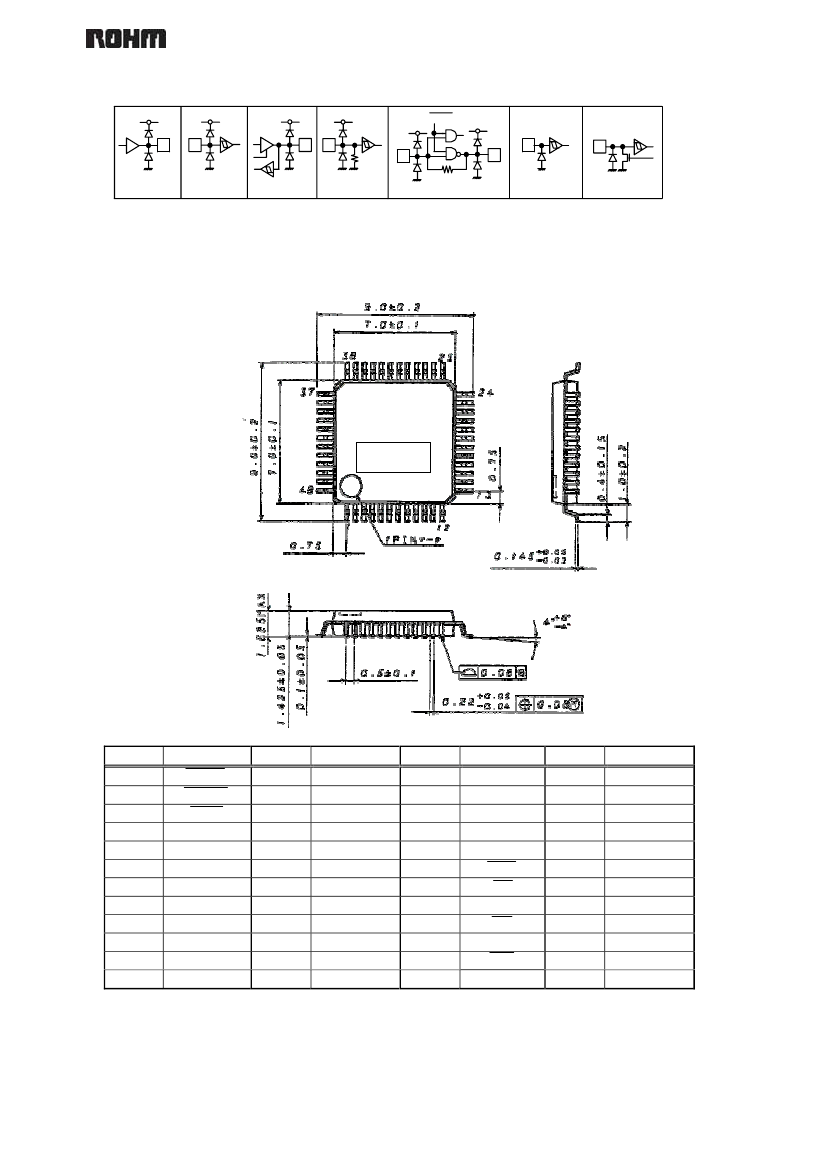

Figure 1 Outer Dimensions

・Data

transfer speed (bps)

IrDA SIR: 2.4kbps, 9.6kbps, 19.2kbps, 38.4kbps, 57.6kbps and 115.2kbps

IrDA MIR: 0.576Mbps, 1.152Mbps

IrDA FIR: 4Mbps

IrSimple

・Interface

16-bit data bus , Address A

0-3

・Built-in

2560

2byte FIFO buffer (for transmission and reception)

・Accessible

as a memory device connected to the bus

・Power

down mode setting possible for transmission and reception

・Input

clock of 48MHz for external input clock and crystal input clock

・Ir

remote control function

Serial 2-lines SDA, and SCL

*This LSI chip is not subject to radiation-proof design.

●Absolute

Maximum Rating

Ta=25°C unless otherwise stated

Item

Symbol

Minimum

Maximum

2.5

4.5

IO1, 2

+0.3

900

125

Unit

°C

Supply voltage

-0.3

Interface supply voltage1

IO1

-0.3

Interface supply voltage2

IO2

-0.3

Input voltage

-0.3

Power dissipation

Operating temperature range

OPR

-40

Storage temperature range

STG

-55

*1 It applies to all pins based on the GND pin.

*2 Reduced by 9.0mW for each increase in Ta of 1℃ over 25℃

(mounted on 70.0mm

70.0mm

1.6mm Glass-epoxy PCB)

●Operation

Range

Item

Symbol

Minimum

Standard

Supply voltage

1.62

1.8

Interface supply voltage1

IO1

1.62

1.8

Interface supply voltage2

IO2

1.62

1.8

*3 V

IO2

is connected with XIN/CLK48M, XOUT, PWDN, NIRQ and RESET.

Maximum

1.98

3.6

Unit

Status of this document

The Japanese version of this document is the formal specification.

A customer may use this translation version only for a reference to help reading the formal version.

If there are any differences in translation version of this document, formal version takes priority.

REV. A

4/4
