PMADV7121JN50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PMADV7121JN50

PMADV7121JN50: DescriptionIC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size806KB，11 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

PMADV7121JN50 Overview

IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter

PMADV7121JN50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Maximum linear error (EL)	0.3%
Number of digits	10
Number of functions	3
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	100 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

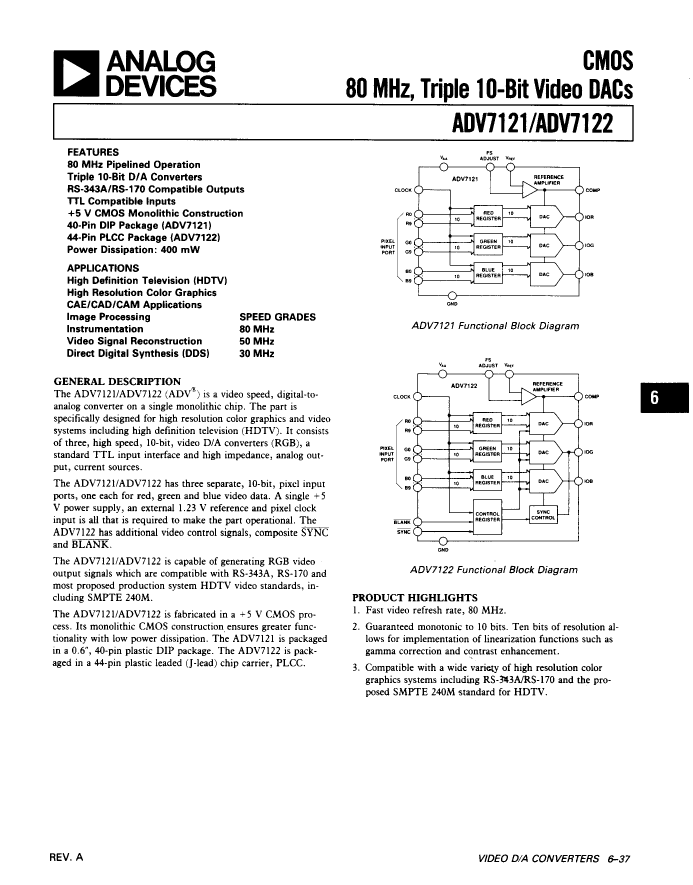

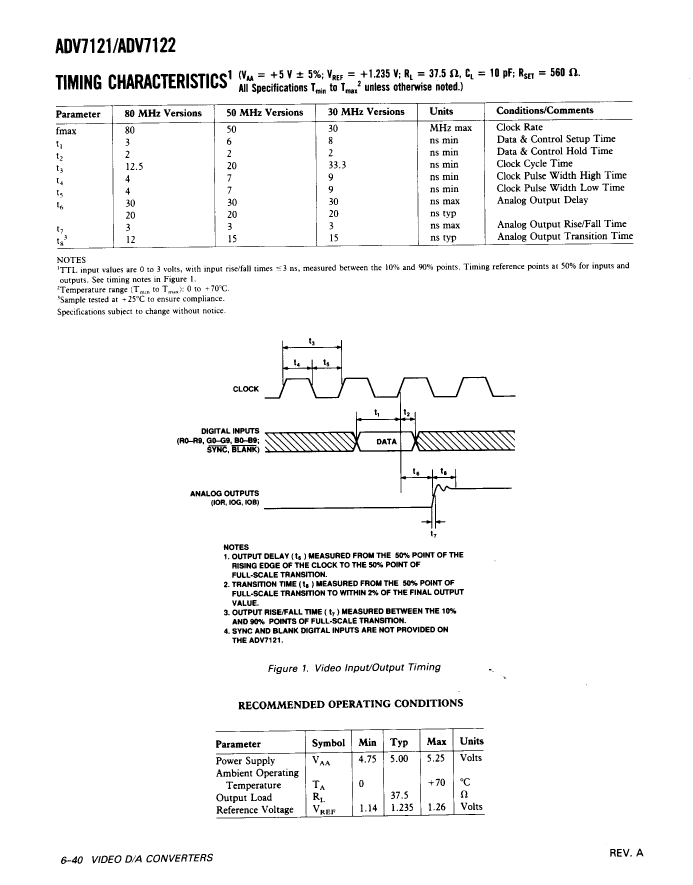

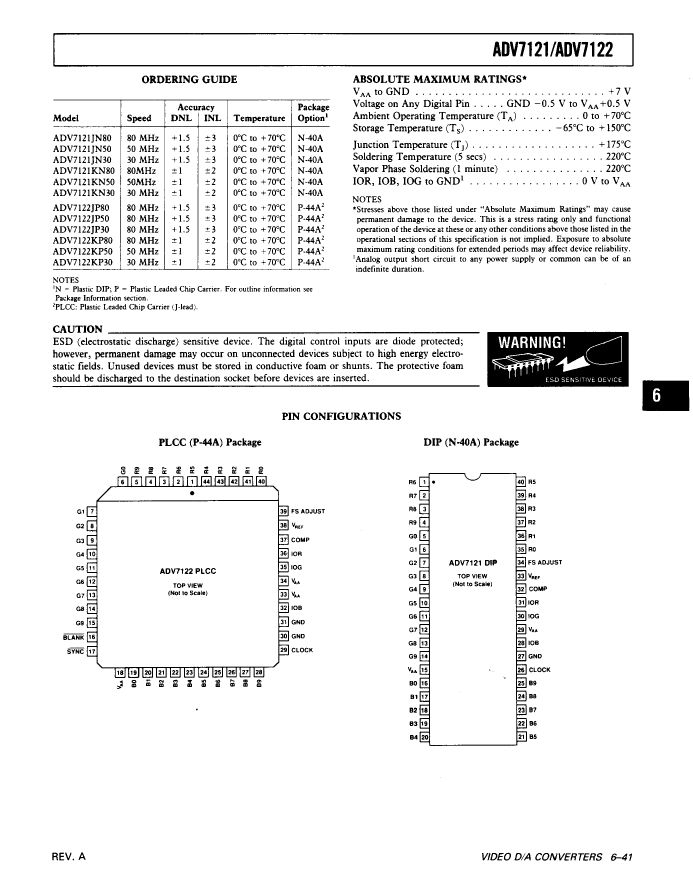

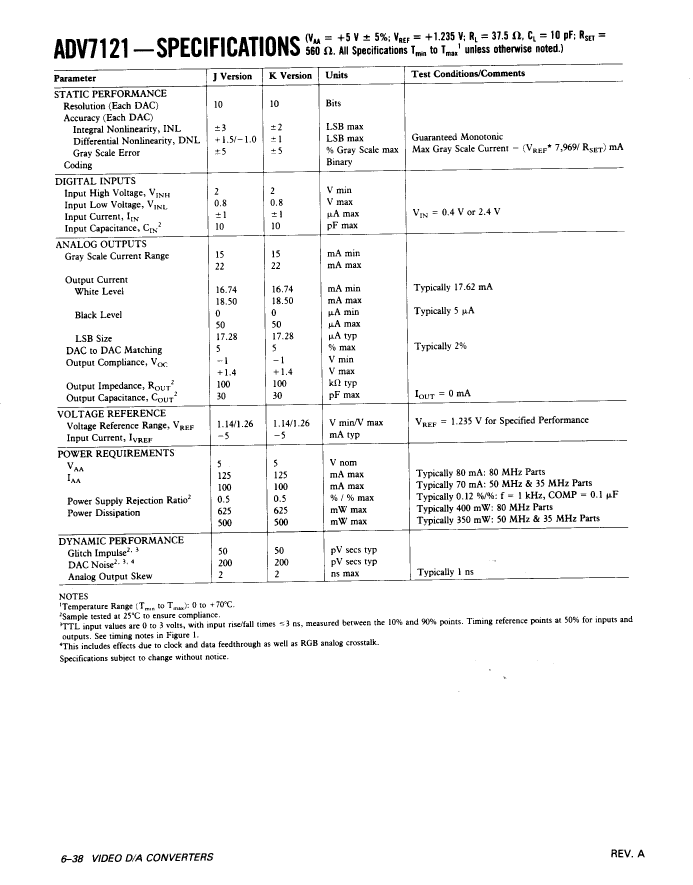

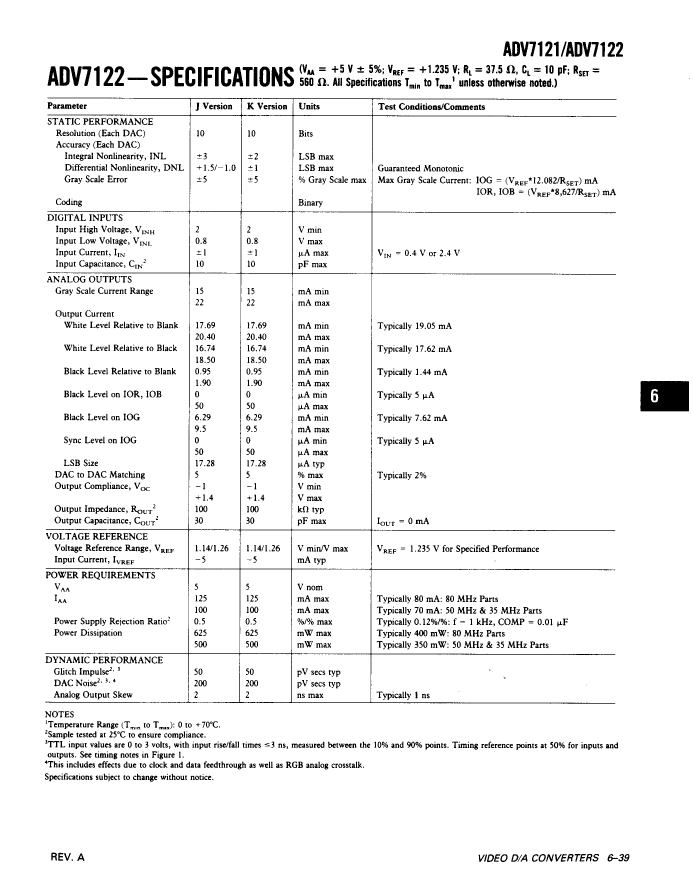

Preview

Download Datasheet

View All

PMADV7121JN50 Related Products

	PMADV7121JN50	PMADV7121JN30	PMADV7121KN50	PMADV7121KN80	PMADV7121KN30	PMADV7121JN80
Description	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,10-BIT,CMOS,DIP,40PIN, Digital to Analog Converter
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	not_compliant	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.3%	0.3%	0.2%	0.2%	0.2%	0.3%
Number of digits	10	10	10	10	10	10
Number of functions	3	3	3	3	3	3
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	100 mA	100 mA	100 mA	125 mA	100 mA	125 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	-
