RX1A-24SL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RX1A-24SL

RX1A-24SL: DescriptionPower/Signal Relay, SPST, Momentary, 0.023A (Coil), 24VDC (Coil), 540mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size539KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RX1A-24SL Overview

Power/Signal Relay, SPST, Momentary, 0.023A (Coil), 24VDC (Coil), 540mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RX1A-24SL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.9 mm
body height	24.8 mm
Body length or diameter	23.5 mm
Maximum coil current (DC)	0.023 A
Coil operating voltage (DC)	18 V
Coil power	540 mW
Coil release voltage (DC)	2.4 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	23.5mm x 12.9mm x 24.8mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	SEALED TYPE
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

RX SERIES

INDUSTRIAL RELAYS

UL & CUL File #E223388

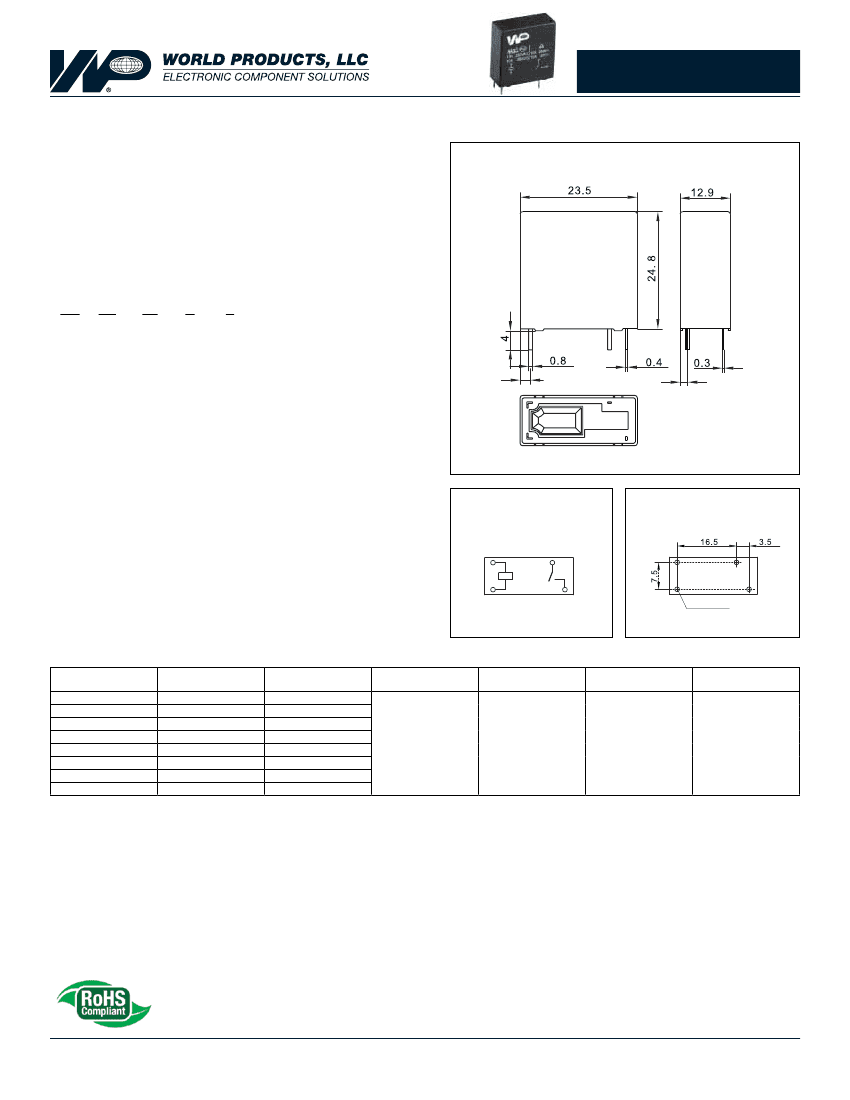

DIMENSIONS

Unit: mm

FEATURES

Contact capacity of 5A and 10A available.

Double insulation construction for high reliability.

Insulation distance of 6.0 mm.

Complete sealed type available if required.

ORDERING INFORMATION

(1)

(2)

(3)

1A-

(2)

(3)

(4)

(5)

(4)

Enclosure

Nil

= Unsealed type

= Sealed type

Coil Power

= 0.25W

Nil

= 0.54W

Basic Designation

= RX Series

Coil Arrangement

= 1 Form A (SPST-NO)

Coil Voltage

1.75

2.7

(5)

SCHEMATICS

Bottom view

PCB LAYOUT

Bottom view

Unit: mm

4 - Ø1.3

COIL RATINGS (AT 20°C)

Coil Nominal Voltage

(VDC)

Nominal Current

(mA)

176.47

106.38

88.24

44.44

58.06

30.00

21.82

10.91

Coil Resistance

Ω(± 10%)

155

270

600

1,100

4,400

Drop-Out Voltage

(VDC) min.

Pick-Up Voltage

(VDC) max.

Nominal Operating

Power (W)

Max. Allowable

Voltage (VDC)

10%

75%

Abt. 0.54

130% of nominal

voltage

World Products, LLC

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 17.7 (04.19.10)
