P4C148L-35DMB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> P4C148L-35DMB

P4C148L-35DMB: DescriptionStandard SRAM, 1KX4, 35ns, CMOS, CDIP18; Categorystorage storage; File Size527KB，8 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P4C148L-35DMB Overview

Standard SRAM, 1KX4, 35ns, CMOS, CDIP18

P4C148L-35DMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
Maximum access time	35 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	18
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.0002 A
Minimum standby current	2 V
Maximum slew rate	0.12 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

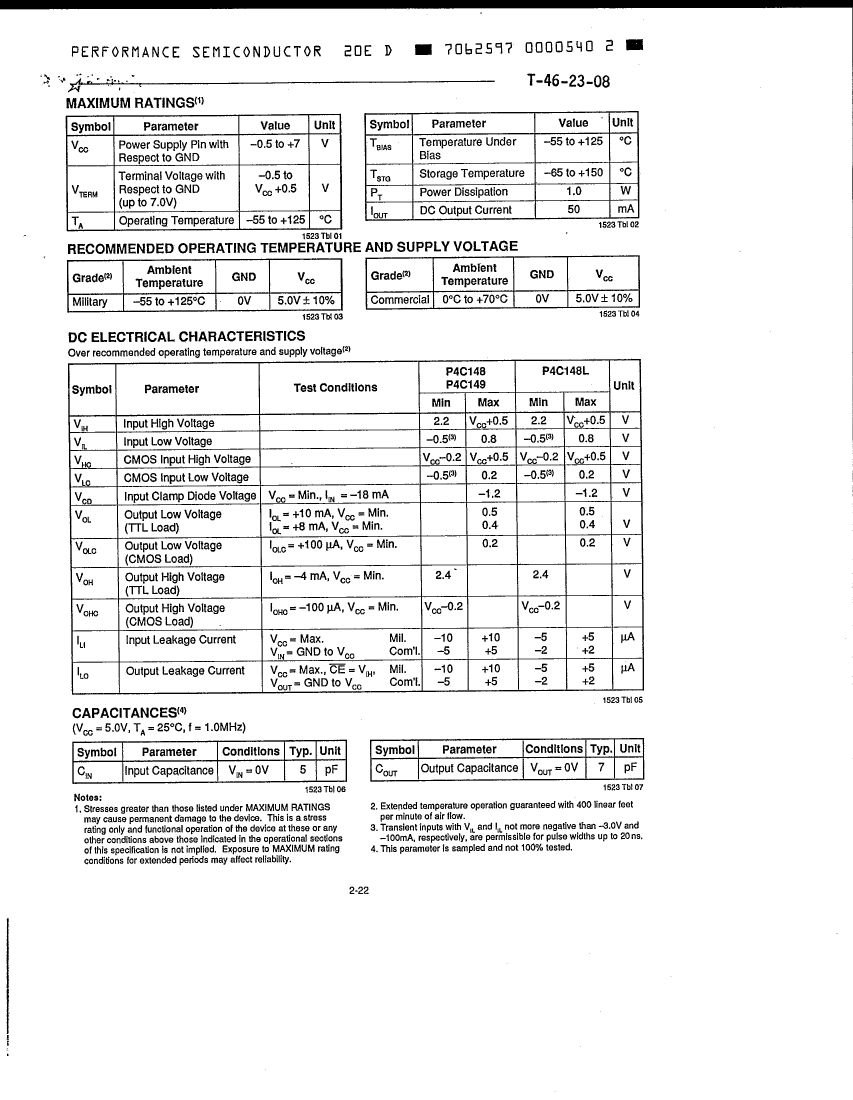

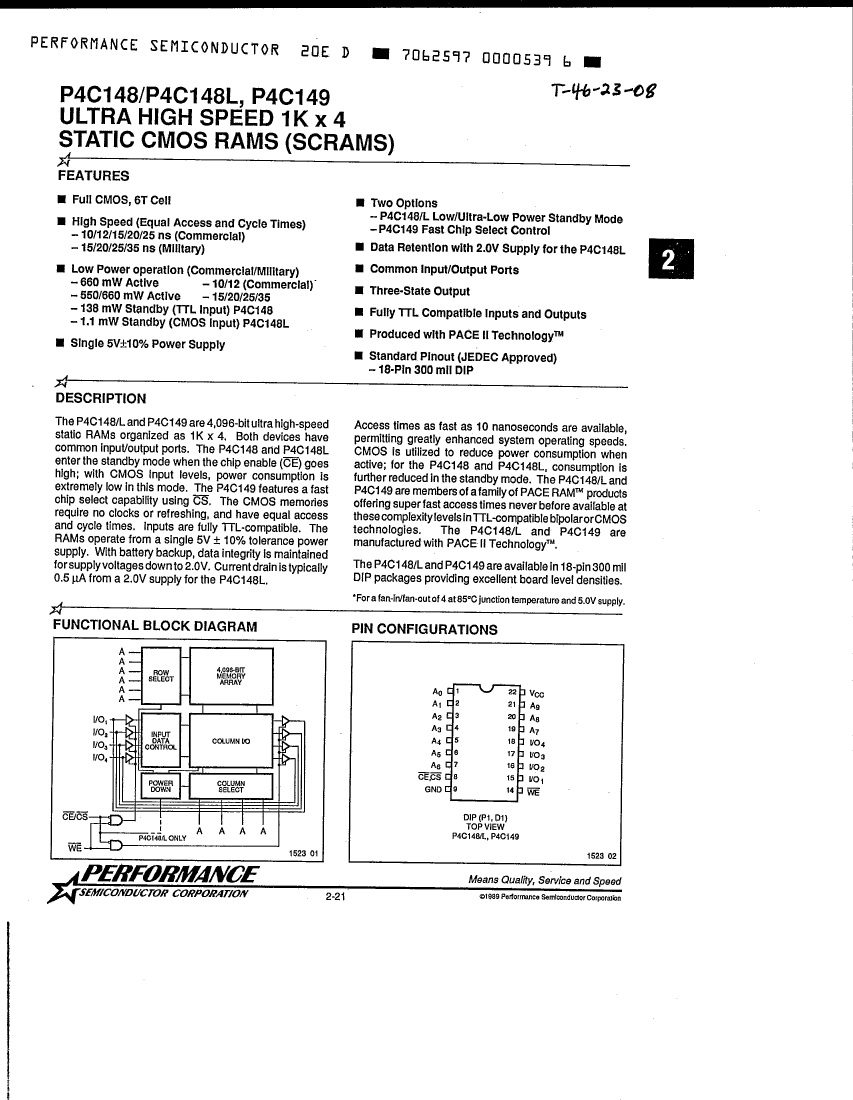

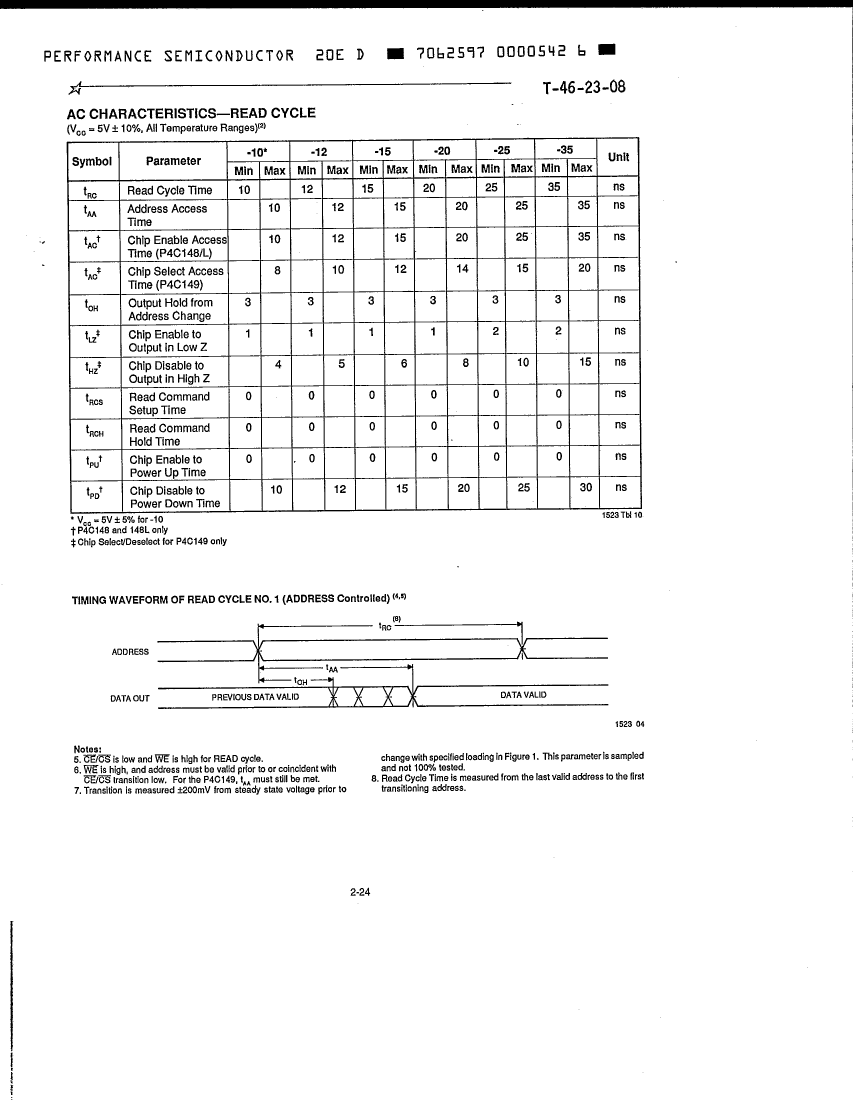

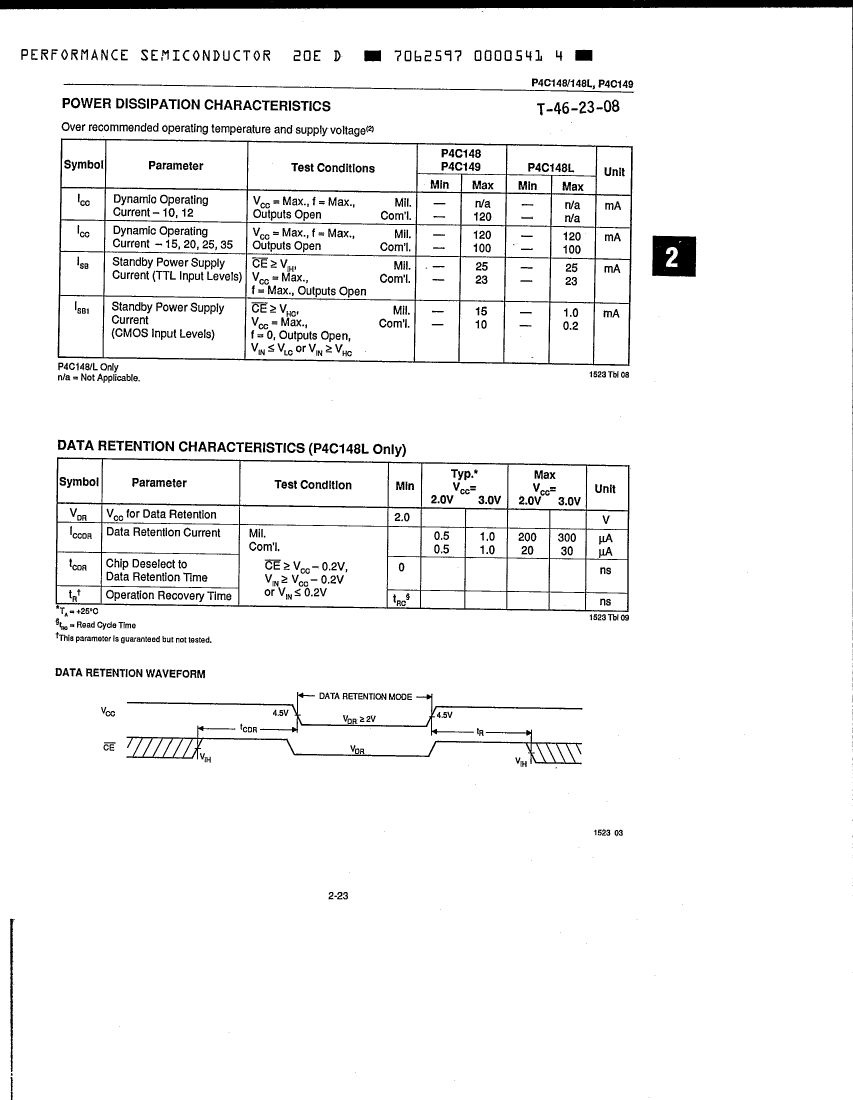

Preview

Download Datasheet

View All

P4C148L-35DMB Related Products

	P4C148L-35DMB	P4C148L-15PC	P4C148L-20DC	P4C148L-20PC	P4C148L-25DC	P4C148L-25PC	P4C148L-35DM
Description	Standard SRAM, 1KX4, 35ns, CMOS, CDIP18	Standard SRAM, 1KX4, 15ns, CMOS, PDIP18	Standard SRAM, 1KX4, 20ns, CMOS, CDIP18	Standard SRAM, 1KX4, 20ns, CMOS, PDIP18	Standard SRAM, 1KX4, 25ns, CMOS, CDIP18	Standard SRAM, 1KX4, 25ns, CMOS, PDIP18	Standard SRAM, 1KX4, 35ns, CMOS, CDIP18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	35 ns	15 ns	20 ns	20 ns	25 ns	25 ns	35 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T18	R-PDIP-T18	R-XDIP-T18	R-PDIP-T18	R-XDIP-T18	R-PDIP-T18	R-XDIP-T18
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4
Number of terminals	18	18	18	18	18	18	18
word count	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words	1024 words
character code	1000	1000	1000	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C
organize	1KX4	1KX4	1KX4	1KX4	1KX4	1KX4	1KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.00002 A	0.0002 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.12 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.12 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
