All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All attenuation measurements are measure relative to maximum insertion loss
This is the optimum impedance in order to achieve the performance shown
Minimum
-
-
166
-
165.5
-
164
-
50
50
40
-
-
-
-
-
-
Typical
169
10.4
166.187
171.860
165.869
172.147
165.470
172.695
57
61
50
0.44
82
3.6
1.4
50
200
Maximum
-
14
-
172
-
172.5
-
174
-
-
-
0.8
150
6
2
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
dB
dB
dB
dB p-p
nsec
deg
-
Ω
Ω
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
33nH 33pF
27nH
10
5
1:1
27pF
1,2,3
4,7,8,9
6
27nH
50Ω
50
Ω
Single-ended
50Ω
15nH
Subject to change or obsolescence without notice
Rev -
08-Aug-2003
Page 2 of 5
Preliminary Data Sheet
Part Number 855927
169 MHz SAW Filter

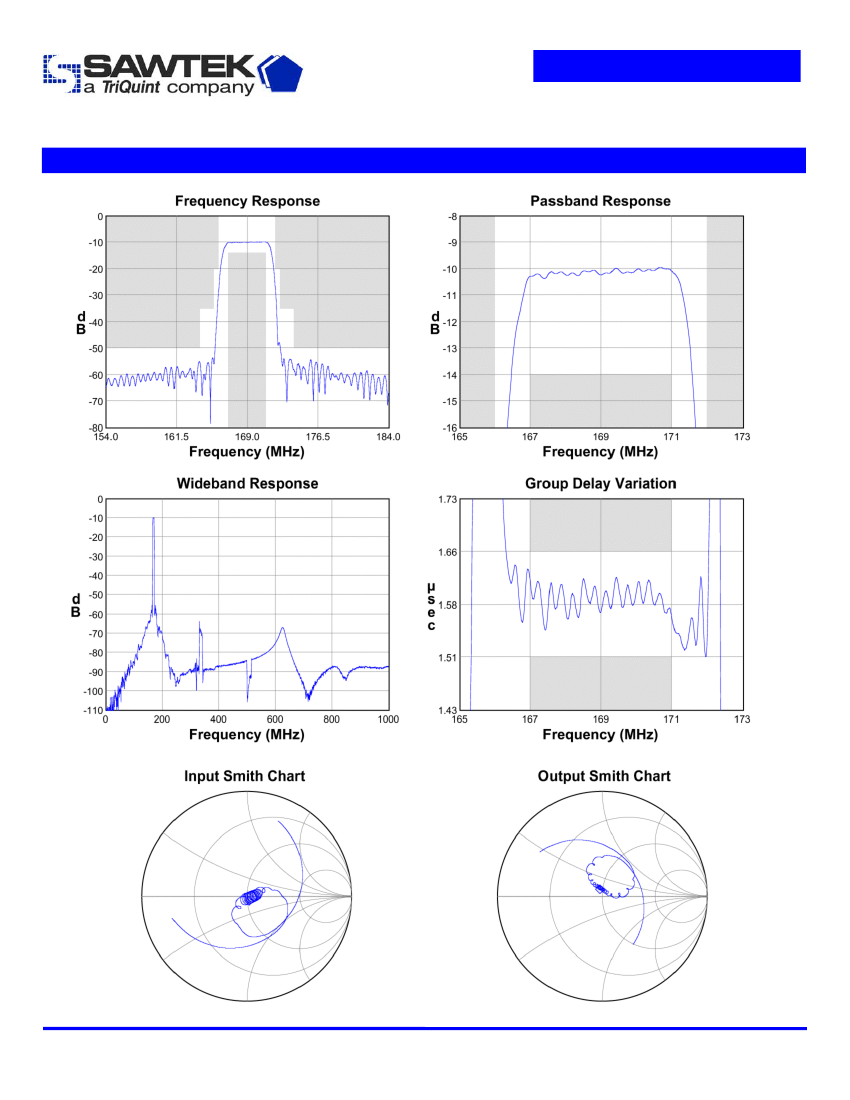

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
08-Aug-2003
Page 3 of 5
Preliminary Data Sheet
Actual matching values may vary due to PCB layout and parasitics
33nH 33pF
10
5
43nH
Part Number 855927
169 MHz SAW Filter
Matching Schematics
50
Ω
Single-ended
input
200
Ω
Balanced
output
50Ω
18pF
1,2,3
4,7,8,9
6
43nH
15pF
200Ω
Marking
PCB Footprint
8.84
SAWTEK
855927
XXXXXX
6.70
2.00
1.22
.69
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity:2000 units/reel
Subject to change or obsolescence without notice
Rev -
08-Aug-2003
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855927
169 MHz SAW Filter
Symbol
T
T
stg
Minimum
-10
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
