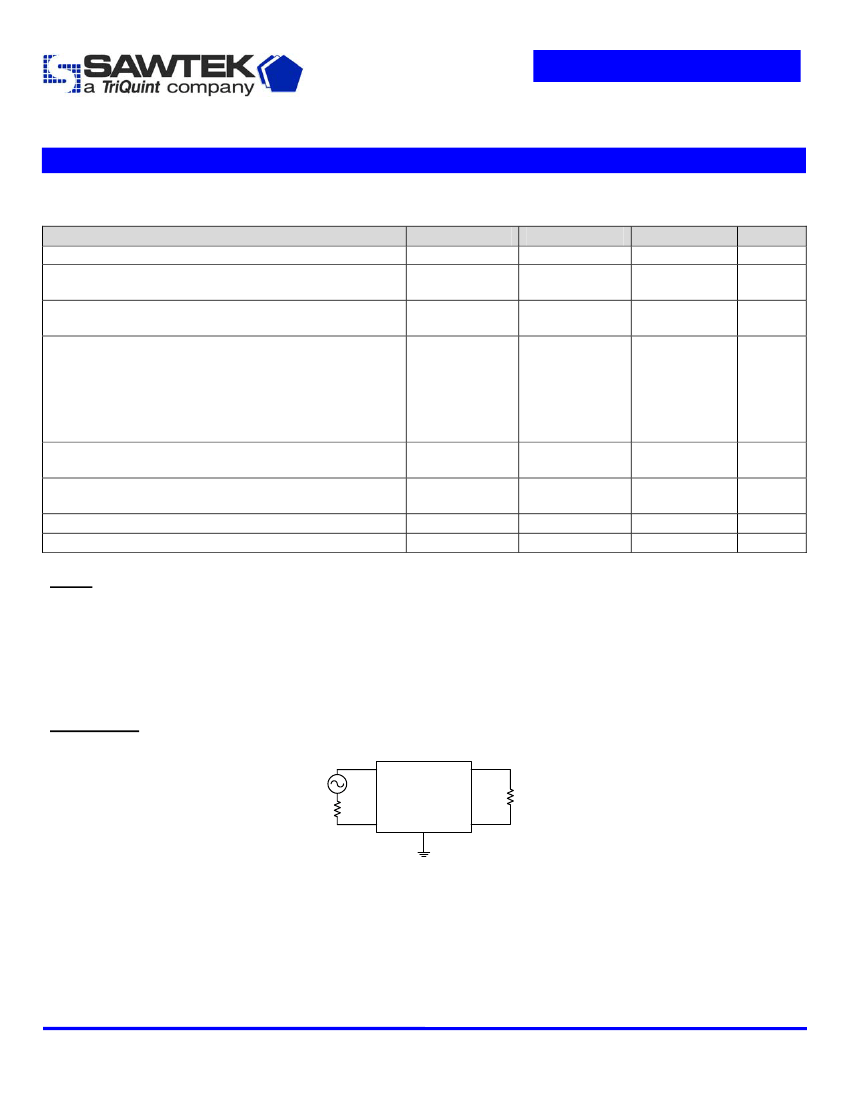

All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All attenuation measurements will be referenced to the insertion loss at center frequency
Total variation measured over the defined frequency range
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
5
200
Ω
2
3,4,7,8
6
200
Ω
Balanced
200
Ω
No impedance matching
required in a 200
Ω
system
Subject to change or obsolescence without notice
Rev B
05-Nov-2002
Page 2 of 5
Data Sheet
Part Number 856184
1220 MHz SAW Filter

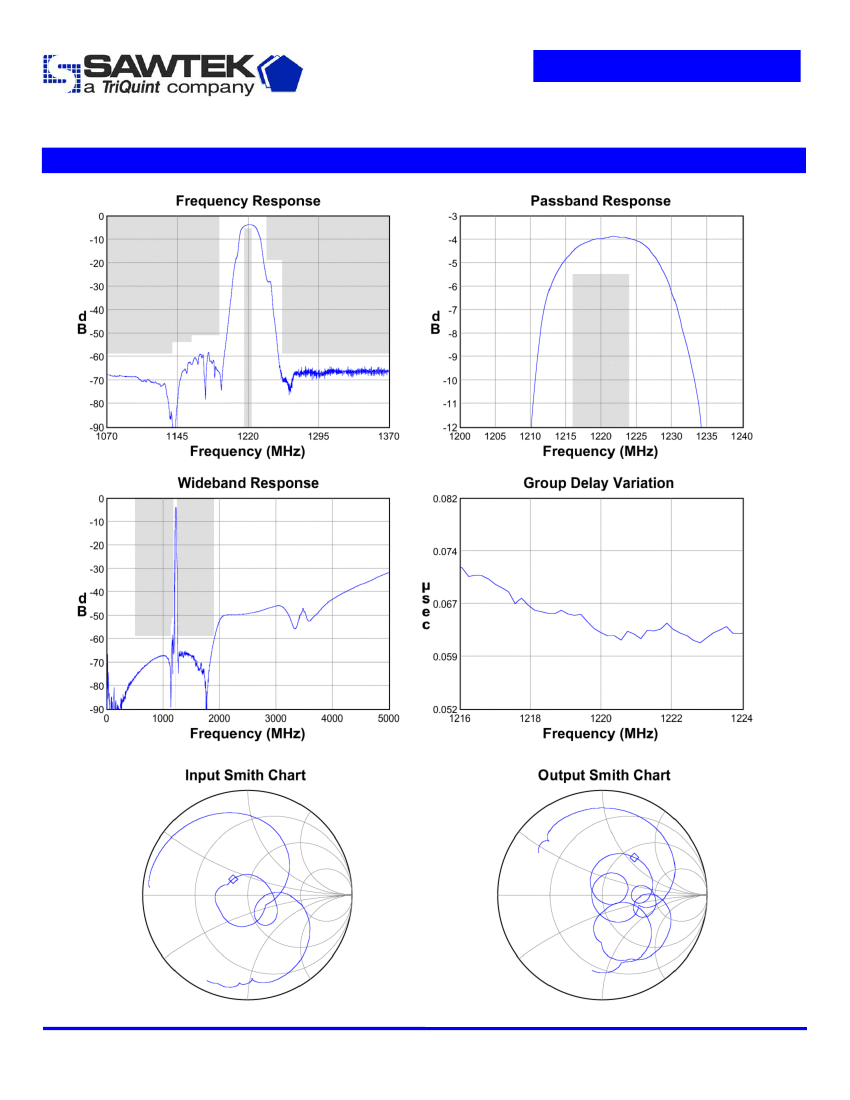

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev B
05-Nov-2002
Page 3 of 5
Data Sheet
Part Number 856184
1220 MHz SAW Filter

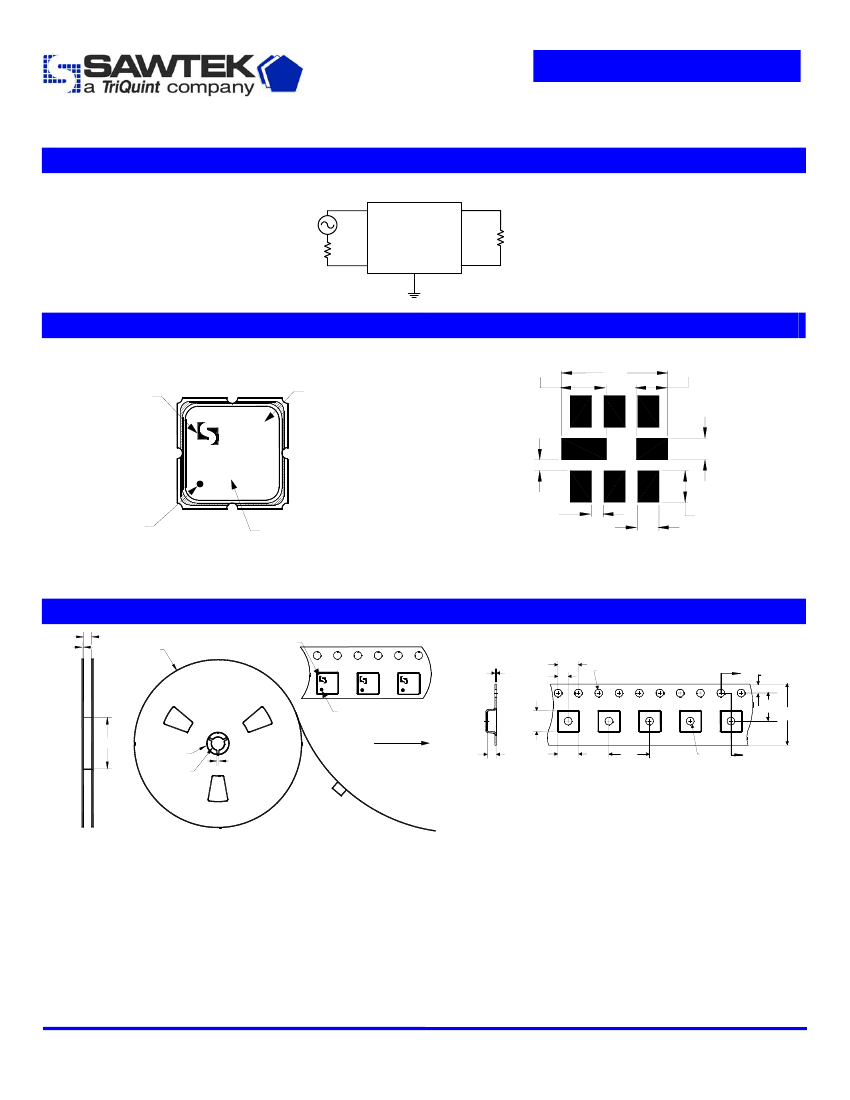

Matching Schematics
1
5
200
Ω
2
3,4,7,8
6
200
Ω
Balanced
200
Ω
No impedance matching
required in a 200
Ω
system
Marking
Sawtek
logo
Marking
code
PCB Footprint
1.70
4.01
1.19
.81
.41
L
JJJYM
ID dot
.46
1.19
.81
Date code
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
4.1
1.8
Section A-A
4.1
8.0
Ø1.5
A
ID dot
Ø102
12.0
Ø20.2
Ø13.0
2.0
Direction of travel
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev B
05-Nov-2002
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856184
1220 MHz SAW Filter
Symbol
T
T
stg
Minimum
0
-40
Maximum
+65
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
