All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Sawtek’s production specifications reflect the typical performance in a 50 ohm single-ended system. This filter can be used in both
single-ended and/or differential modes at each port. In addition, similar performance can be achieved in source and load
impedances ranging from 50 to 750 ohms.
Minimum
-
-
-
382.5
55
50
44
35
45
55
-
-
-
-
Typical
374
3.0
362
386
60
55
50
40
50
60
1.0
100
50
50
Maximum
-
5.0
365.5
-
-
-
-
-
-
-
1.5
150
-
-
Unit
MHz
dB
MHz
MHz
dB
dB
dB
dB
dB
dB
dB p-p
nsec p-p
Ω
Ω
Test Circuit:
12nH
1
5
50Ω
2,3,4,6,7,8
12nH
50Ω
Balanced
50Ω
2pF
Subject to change or obsolescence without notice
Rev -
22-Nov-2002
Page 2 of 5
Preliminary Data Sheet
Part Number 856187
374 MHz SAW Filter

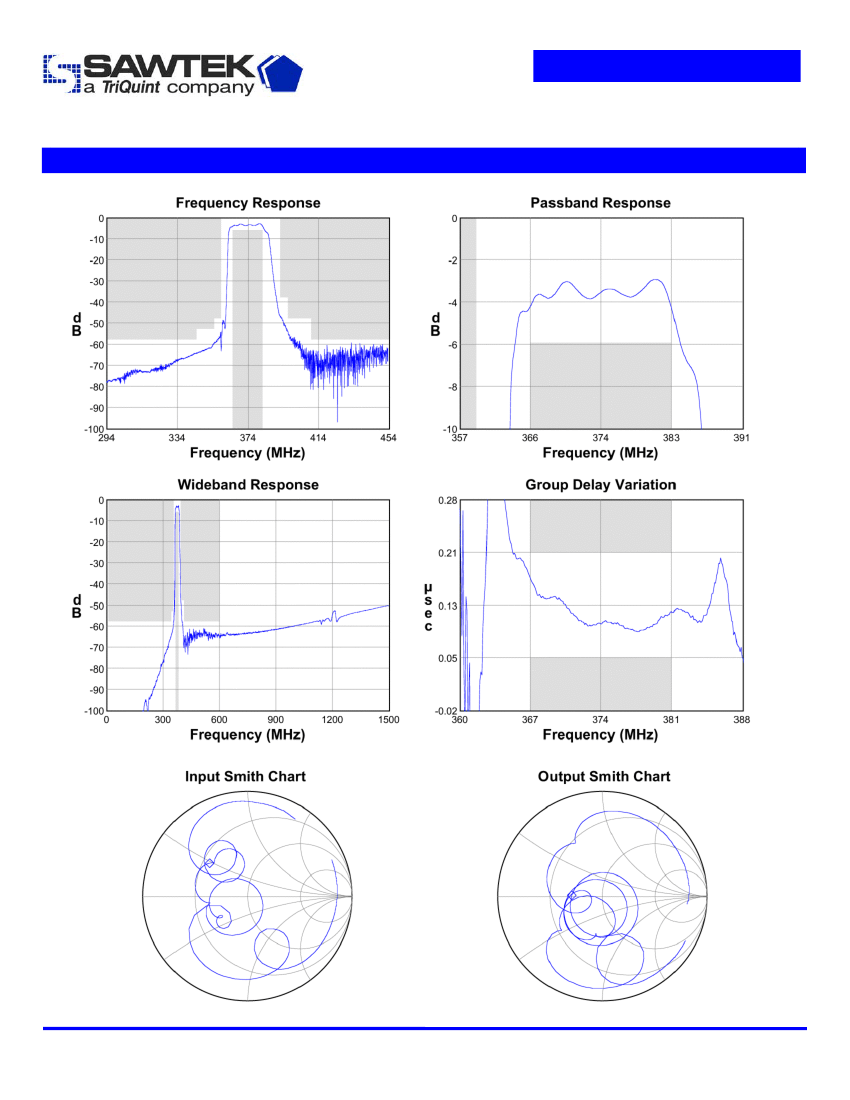

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
22-Nov-2002
Page 3 of 5
Preliminary Data Sheet
Actual matching values may vary due to PCB layout and parasitics
6pF
1
5
5pF
Part Number 856187
374 MHz SAW Filter
Matching Schematics
750Ω
Balanced
750Ω
47nH
2
6pF
3,4,7,8
6
5pF
56nH
750Ω
10pF
1
5
15pF
33nH
2
3,4,7,8
6
15pF
200Ω
Balanced
200Ω
47nH
200Ω
10pF
12nH
1
5
12nH
50Ω
Single-ended
50Ω
2pF
2,3,4,6,7,8
50Ω
Marking
Marking
code
PCB Footprint
1.70
4.01
1.19
Sawtek
logo
.81
.41
K
JJJYM
ID dot
Date code
.46
.81
1.19
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Subject to change or obsolescence without notice
Rev -
22-Nov-2002
Page 4 of 5
Preliminary Data Sheet
Tape and Reel
2.7
12.8
Ø330
Sawtek
logo
0.3
Part Number 856187
374 MHz SAW Filter
2.0
4.0
Ø1.5
A
1.75
5.5
ID dot
Ø102
4.1
1.8
Section A-A
4.1
8.0
Ø1.5
A
12.0
Ø20.2
Ø13.0
2.0
Direction of travel
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Maximum Ratings
Parameter
Operating Temperature Range
Input Power
(1)
Notes:
1.
CW at Fo = 374 MHz for 10,000 hours
Symbol
T
P
in
Minimum
-10
-
Maximum
+80
+7.5
Unit
C
dBm
o
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies which are implemented using any Sawtek component described in this data sheet.
