Datasheet
General Purpose CMOS Logic IC
Single 2-Input NOR Gate
BU4S01G2
General Description
The BU4S01G2 is a 2-input NOR gate.
An inverter-based buffer is incorporated at the gate output
to improve I/O transmission characteristics, and it
minimizes a variation in the propagation delay time
caused by an increase in the load capacitance.
Key Specifications
Supply Voltage Range:
Input Voltage Range:
Operating Temperature Range:
+3V to +16V
0V to V
DD
-40°C to +85°C
Features
Low power consumption
High noise immunity
Wide operating supply voltage range
High input impedance
High fan out
Input can be directly driven 2 L-TTL inputs or 1 LS-TTL
Buffered output
Packages
SSOP5
W(Typ) x D(Typ) x H(Max)
2.90mm x 2.80mm x 1.25mm
SSOP5
Pin Configurations
(Top View)
VDD
5
Y
4
Pin Descriptions
Pin No.
1
2
3
4
5
Symbol
A
B
VSS
Y
VDD
I/O
I
I
-
O
-
Function
Input
Input
Ground
Output
Power supply
1
A
2
B
3
VSS
Truth Table
INPUT
A
L
L
H
H
B
L
H
L
H
OUTPUT
Y
H
L
L
L
〇Product
structure : Silicon monolithic integrated circuit
.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 14 • 001
〇This
product has no designed protection against radioactive rays
1/12
TSZ02201-0RDR0GZ00160-1-2
30.Sep.2015 Rev.002
BU4S01G2
Absolute Maximum Ratings
(T
A
=25°C)
Parameter
Supply Voltage
Input Voltage
Input Current
Operating Temperature
Storage Temperature
Maximum Junction Temperature
Power Dissipation
Symbol
V
DD
V
IN
I
IN
T
opr
T
stg
T
Jmax
P
D
Rating
-0.3 to +18.0
-0.3 to V
DD
+0.3
±10
-40 to +85
-55 to +150
+150
0.67
(Note 1)
Unit
V
V
mA
°C
°C
°C
W
(Note 1) Derate by 5.4mW/°C when operating above T
A
=25°C (when mounted on ROHM’s standard board)
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.
Recommended Operating Conditions
(T
A
=-40°C to +85°C)
Parameter
Supply Voltage
Input Voltage
Symbol
V
DD
V
IN
Rating
+3.0 to +16.0
0 to V
DD
Unit
V
V
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
2/12
TSZ02201-0RDR0GZ00160-1-2
30.Sep.2015 Rev.002
BU4S01G2
Electrical Characteristics
(Unless otherwise specified, V
SS
=0V, T
A
=25°C)
Parameter
Symbol
Limits
Min
3.5
Input “H” Voltage
V
IH
7.0
11.0
-
Input “L” Voltage
Input “H” Current
Input “L” Current
DC Characteristics
Output “H” Voltage
V
IL
I
IH
I
IL
V
OH
-
-
-
-
4.95
9.95
14.95
-
Output “L” Voltage
V
OL
-
-
-0.51
Output “H” Current
I
OH
-2.1
-1.3
-3.4
0.51
Output “L” Current
I
OL
1.3
3.4
-
Quiescent Supply Current
I
DD
-
-
Typ
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Limits
Min
-
Output Rising Time
Switching Characteristics
t
TLH
-
-
-
Output Falling Time
t
THL
-
-
-
“L” to ”H”
Propagation Delay Time
t
PLH
-
-
-
“H” to ”L”
Propagation Delay Time
Input Capacitance
t
PHL
C
IN
-
-
-
Typ
70
35
30
70
35
30
85
40
30
85
40
30
5
Max
-
-
-
-
-
-
-
-
-
-
-
-
-
pF
ns
ns
ns
ns
Max
-
-
-
1.5
3.0
4.0
0.3
-0.3
-
-
-
0.05
0.05
0.05
-
-
-
-
-
-
-
0.25
0.5
1.0
μA
mA
mA
V
V
μA
μA
V
V
Unit
Conditions
V
DD
[V]
5
10
15
5
10
15
15
15
5
10
15
5
10
15
5
5
10
15
5
10
15
5
10
15
Conditions
V
DD
[V]
5
10
15
5
10
15
5
10
15
5
10
15
-
-
-
C
L
=50pF
10
C
L
=50pF
9
C
L
=50pF
8
C
L
=50pF
7
Figure
No.
V
IN
=V
DD
or V
SS
-
V
OH
=4.6V
V
OH
=2.5V
V
OH
=9.5V
V
OH
=13.5V
V
OL
=0.4V
V
OL
=0.5V
V
OL
=1.5V
V
IN
=V
DD
6
V
IN
=V
SS
5
|I
OUT
|<1μA
V
IN
=V
DD
II
OUT
|<1μA
V
IN
=V
SS
V
OUT
=0.5V
V
OUT
=1.0V
V
OUT
=1.5V
V
OUT
=4.5V
V
OUT
=9.0V
V
OUT
=13.5V
V
IH
=15V
V
IL
=0V
Figure
No.
2
3
4
2
3
4
-
-
2
3
4
2
3
4
Parameter
Symbol
Unit
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
3/12
TSZ02201-0RDR0GZ00160-1-2
30.Sep.2015 Rev.002
BU4S01G2

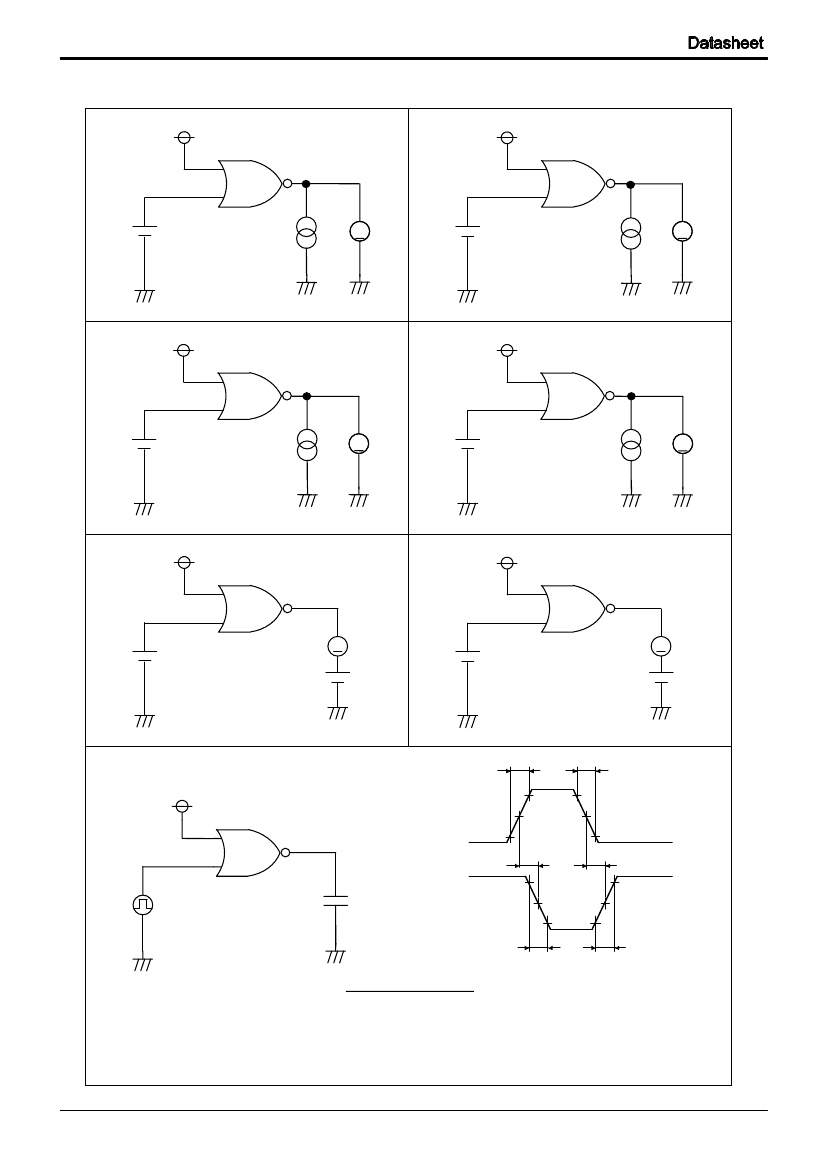

Test Circuits
1.V
IH
V
DD
2.V
IL
V
DD
V
IH
I
OUT
+
V V
OUT
V
IL
+
I
OUT
V V
OUT
3.V
OH
V
DD
4.V
OL
V
DD
V
IN
I
OUT
V V
OH
+
V
IN
I
OUT
V V
OL
+
5.I
OH
V
DD
6.I
OL
V
DD
V
IN
+
A I
OH
V
OH
V
IN
+
A I
OL
V
OL
7 . t
TLH
, t
THL
, t
PLH
, t
PHL
V
DD
INPUT
10%
OUTPUT
INPUT
C
L
=50pF
OUTPUT
20 ns
90%
50%
20 ns
t
PHL
90%
50%
10 %
t
PLH
t
THL
t
TLH
Description of Symbols
t
PHL
: Time from 50% of the rise edge of input waveform to 50% of
the fall edge of output waveform
t
PLH
: Time from 50% of the fall edge of input waveform to 50% of
the rise edge of output waveform
t
THL
: Time from 90% to 10% of fall edge of output waveform
t
TLH
: Time from 10% to 90% of rise edge of output waveform
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
4/12
TSZ02201-0RDR0GZ00160-1-2
30.Sep.2015 Rev.002
BU4S01G2
Typical Performance Curves
4
6
5
3
Output Voltage [V]
Output Voltage [V]
4
+85°C
+25°C
-40°C
+85°C
+25°C
-40°C
2
3
2
1
0
1
0
0
1
2
Input Voltage [V]
3
0
1
2
3
Input Voltage [V]
4
5
Figure 1. Output Voltage vs Input Voltage
（V
DD
=3V / V
SS
=0V）
Figure 2. Output Voltage vs Input Voltage
（V
DD
=5V / V
SS
=0V）
12
10
20
15
Output Voltage [V]
8
+85°C
+25°C
-40°C
Output Voltage [V]
6
4
2
0
0
2
4
6
Input Voltage [V]
8
10
10
+85°C
+25°C
-40°C
5
0
0
5
10
Input Voltage [V]
15
Figure 3. Output Voltage vs Input Voltage
（V
DD
=10V / V
SS
=0V）
Figure 4. Output Voltage vs Input Voltage
（V
DD
=15V / V
SS
=0V）
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111 • 15 • 001
5/12
TSZ02201-0RDR0GZ00160-1-2
30.Sep.2015 Rev.002
