CL-260PG-TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CL-260PG-TD

CL-260PG-TD: DescriptionSINGLE COLOR LED, PURE GREEN, 1.25 mm; CategoryLED optoelectronic/LED photoelectric; File Size501KB，9 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric View All

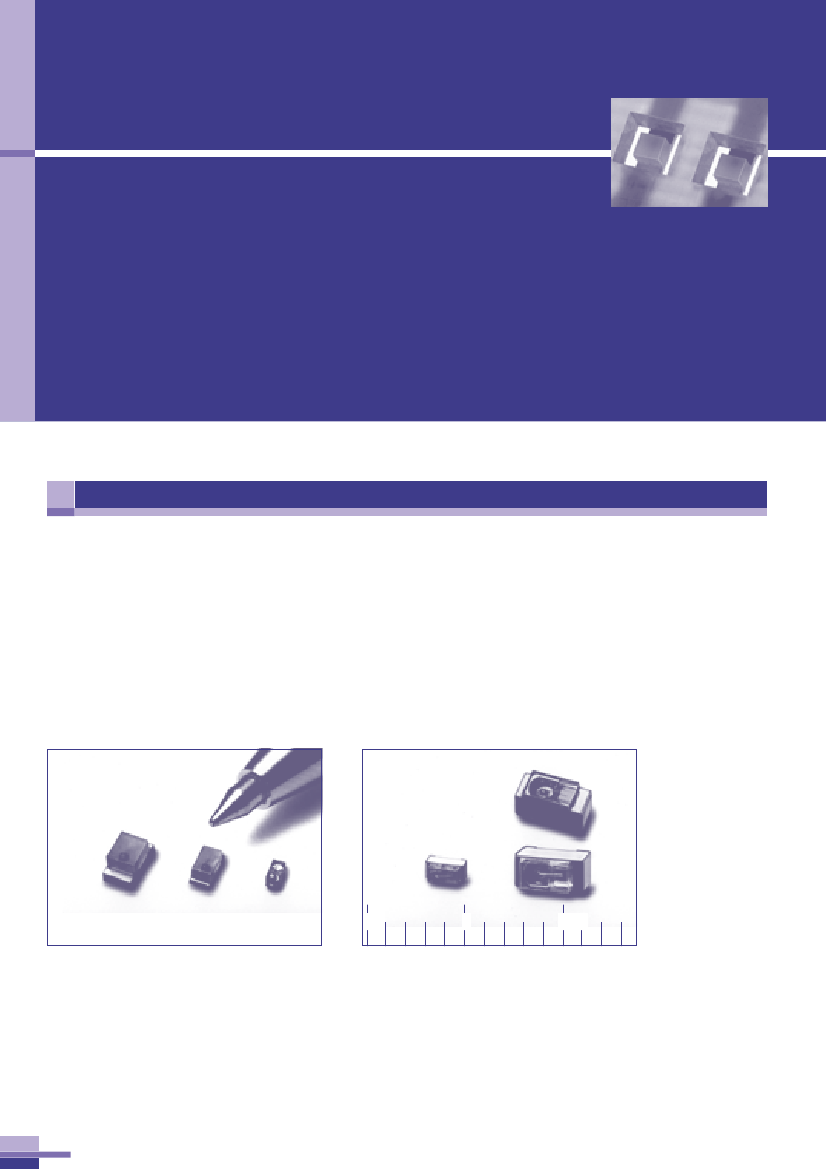

CL-260PG-TD Overview

SINGLE COLOR LED, PURE GREEN, 1.25 mm

CL-260PG-TD Parametric

Parameter Name	Attribute value
Maker	CITIZEN
Reach Compliance Code	unknown
color	PURE GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	NONDIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	557 nm
shape	RECTANGULAR
size	1.25 mm
surface mount	YES
Terminal pitch	3.3 mm

Preview

Download Datasheet

View All

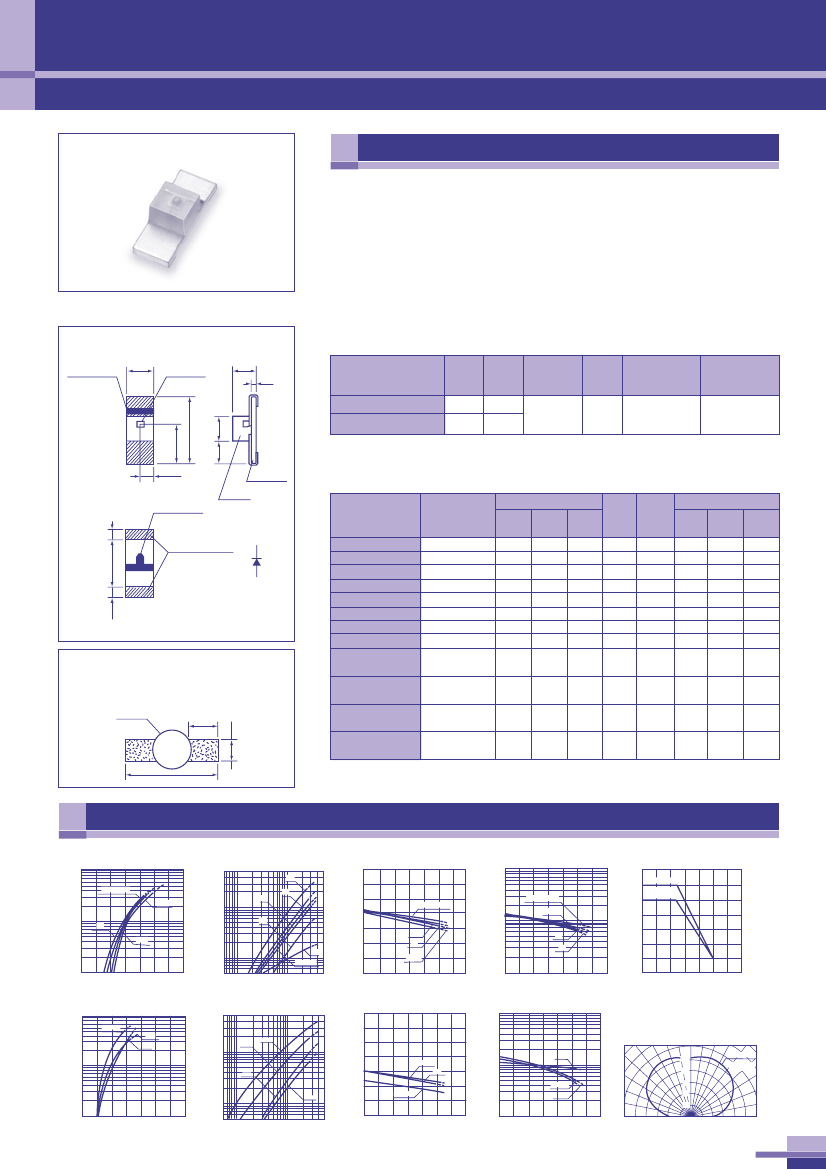

CL-260 シリーズ

CL-260 Series

特徴／ Features

1. チップマウンターによるプリント基

板背面からの自動実装が可½です。

2. プリント基板穴に発光面を挿入する

事により、

トータル的な薄型化が実現

できます。

3. プリント基板穴は、

丸穴に対応しています。

4. 単色発光タイプです。

5. 外½寸法は3.4(L)×1.25(W)×1.1

(H)mmの小型サイズです。

1. Mountable from bottom surface of

P.C. board by chip mounter

2. Thinner total height can be obtained

by means of fitting lens portion into

the cutout provided on the P.C.board.

3. Designed for circular cutout on P.C.

board

4. Mono-color type

5. Small and square size, dimensions：

3.4(L)×1.25(W)×1.1(H)mm

■外½寸法図/Outline

drawing

■絶対最大定格/Absolute

Maximum Rating

1.25

カ½ードマーク

Cathode mark

LED端子

LED die

1.1

0.3

(Ta 25℃)

Top

(℃)

−25∼＋80

Tst

(℃)

−30∼＋85

シリーズ

Series

CL-260

(

Except UR and HR

)

UR,HRを除く

(mW)

(mA)

100

※ 1

(V)

(1.425)※

(1.975)

3.4

(1.2)

CL-260UR/HR

※1

基板

P.C.board

樹脂

Resin

(1.1)

の条件はduty 1/10 、

パルス巾 0.1msecです。

Condition for I

is pulse of 1/10 duty and 0.1msec width.

(0.625)

※UR,HRの場合

※For

UR and HR

カ½ードマーク

Cathode mark

■電気的光学的特性/Electro-optical

Characteristics

部品コード

Code for parts

CL-260R

CL-260D

CL-260Y

(Ta 25℃)

V ※

min

typ

発光色

Lighting color

Red

Orange

Yellow

Lemon yellow

Yellow green

Green

Fresh green

Pure green

Super

brightness red

Super brightness

orange

Uitra

brightness red

High

brightness red

(mA)

typ

(V)

2.2

2.1

2.2

1.8

max

(V)

2.6

typ

(nm)

700

605

589

584

570

567

560

557

650

630

660

Δλ

typ

(nm)

100

2.4

はんだ付け電極

Soldering terminal

(mA) (mcd) (mcd)

0.5

1.3

2.4

7.1

2.6

6.4

2.6

2.5

2.2

1.5

3.5

6.4

6.5

4.3

6.2

極性

Polarity

CL-260LY

CL-260YG

CL-260G

CL-260FG

CL-260PG

0.5

単½/Unit : mm

推奨はんだ付けパターン

The following soldering patterns are recommended for

reflow-soldering:

リフローはんだ用

For reflow soldering

φ2.4

1.25

CL-260SR

CL-260SD

CL-260UR

CL-260HR

※NIST規格に準拠

4.2

1.076

基板穴

Cutout

※Per NIST standards

諸特性／ Characteristic

-V

特性

-V

Characteristics

100

2.6

R/YG/G/FG

Y/LY

YG/G/FG/PG

200

2.4

500

YG/G/FG/PG

CL-260UR•HR

CL-260

シリーズ

CL-260Series

Iv-I

特性

Iv-I

Characteristics

-Ta 特性

-Ta Characteristics

Iv-Ta 特性

Iv-Ta Characteristics

max-Ta 特性

max-Ta

Characteristics

Iv(mcd)

(mA)

Iv ( in％)

(

)

2.2

2.0

1.8

Y/LY

100

max

(mA)

Y/LY/FG

0.5

1.6

1.8

2.0

2.2

2.4

2.6

1.6

Y/LY

- 20

100

- 20

100

- 20

100

(

)

-V

特性

-V

Characteristics

100

UR/HR

(mA)

Iv-I

特性

Iv-I

Characteristics

2.6

2.4

T a (

-Ta 特性

-Ta Characteristics

500

Iv-Ta 特性

Iv-Ta Characteristics

指向特性

Directive Characteristics

40°

30°

20° 10°

120

50°

100

60°

UR/HR

70°

80°

100

90°

70°

80°

90°

0°

10° 20°

30°

40°

50°

100

全機種共通

Common to

all colors

Iv(mcd)

(mA)

(

)

2.2

2.0

1.8

Iv ( in％)

200

60°

1.6

1.8

2.0

2.2

2.4

2.6

0.5

UR/HR

1.6

- 20

100

- 20

(

)

(mA)

T a (
