DMC6224

Description
Mixer Diode, KA Band, 465ohm Z(V) Max, 7.5dB Noise Figure, Silicon, DO-23, DO-23, 2 PIN
CategoryDiscrete semiconductor    diode
File Size15KB,1 Pages
ManufacturerAdvanced Semiconductor, Inc.
Download Datasheet Parametric View All

DMC6224 Overview

Mixer Diode, KA Band, 465ohm Z(V) Max, 7.5dB Noise Figure, Silicon, DO-23, DO-23, 2 PIN

DMC6224 Parametric

Parameter NameAttribute value
MakerAdvanced Semiconductor, Inc.
Parts packaging codeDO-23
package instructionO-XEMW-N2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeMIXER DIODE
frequency bandKA BAND
maximum impedance465 Ω
minimum impedance335 Ω
JEDEC-95 codeDO-23
JESD-30 codeO-XEMW-N2
maximum noise index7.5 dB
Number of components1
Number of terminals2
Maximum operating frequency12 GHz
Minimum operating frequency8.2 GHz
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialUNSPECIFIED
Package shapeROUND
Package formMICROWAVE
Certification statusNot Qualified
surface mountYES
technologySCHOTTKY
Terminal formNO LEAD
Terminal locationEND

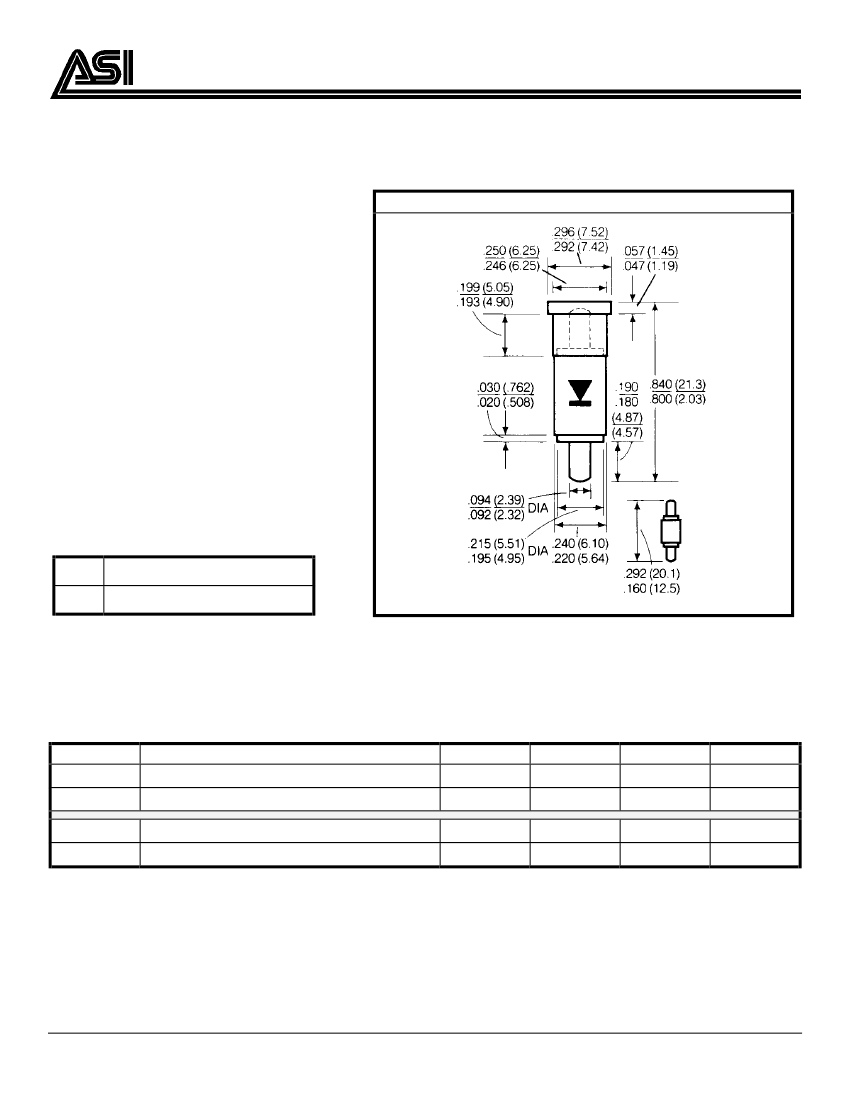

DMC6224
SCHOTTKY BARRIER DIODE
PACKAGE STYLE DO 23
DESCRIPTION:
The
ASI DMC6224
is a Silicon Schottky
Diode, Low Audio Noise for use in Slow
Speed Motion Detector Applications up to 40
GHz
FEATURES INCLUDE:
Uniform characteristics.
Bonded Junctions for reliability.
Low turn On for Starved L.O. Applications
MAXIMUM RATINGS
T
J
T
STG
-55 °C to +150 °C
-65 C to +200 °C
O
NONE
CHARACTERISTICS
SYMBOL
ANr
NF
Z
IF
VSRW
N = 1.5 dB
T
C
= 25 °C
TEST CONDITIONS
f = 8.0 Hz to 60 KHz
MINIMUM
TYPICAL
MAXIMUM
6.0
7.5
UNITS
dB
dB
---
Nominal range (not specified)
L.O. power 1.0 mW
f = 9.38 GHz
335
465
1.5
A D V A N C E D S E M I C O N D U C T O R, I N C.
7525 ETHEL AVENUE
NORTH HOLLYWOOD, CA 91605
(818) 982-1200
FAX (818) 765-300
Specifications are subject to change without notice.
REV. A
1/1
